The fuel pump relay in a 2001 Kenworth W900L is a critical component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Locating this relay can be essential for troubleshooting fuel delivery issues or performing maintenance. Typically, the fuel pump relay in this model is found in the fuse and relay panel, which is often located under the dashboard on the driver's side or in the engine compartment. Consulting the vehicle's manual or a wiring diagram specific to the 2001 Kenworth W900L can provide precise guidance on its exact location, ensuring efficient diagnosis and repair.
| Characteristics | Values |
|---|---|
| Location | Typically located in the fuse panel or relay box under the hood. |
| Fuse Panel Position | Often found near the battery or on the driver's side fender apron. |
| Relay Identification | Labeled as "Fuel Pump Relay" or similar; may have a part number. |
| Function | Controls power supply to the fuel pump for engine operation. |
| Vehicle Model | 2001 Kenworth W900L. |
| Common Issues | Relay failure can cause no-start conditions or fuel pump malfunction. |
| Replacement Part | Specific to Kenworth W900L; consult manual or dealer for correct part. |
| Diagnostic Tip | Check for power at the relay terminals if fuel pump issues occur. |
| Manual Reference | Refer to the Kenworth W900L service manual for exact location diagrams. |
Explore related products
What You'll Learn
Location of Fuel Pump Relay

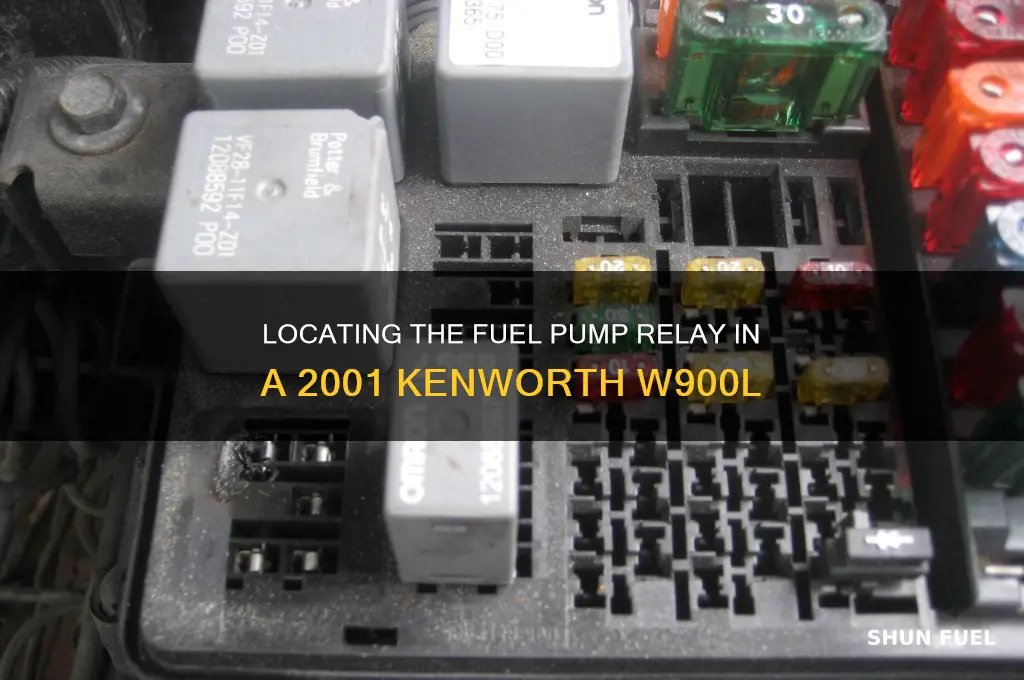

The fuel pump relay in a 2001 Kenworth W900L is a critical component for ensuring consistent fuel delivery to the engine. Locating it efficiently can save time during diagnostics or maintenance. Typically, this relay is housed in the fuse and relay panel, which is often found under the dashboard on the driver’s side. However, Kenworth’s design may vary slightly depending on the specific model configuration or aftermarket modifications. Always consult the vehicle’s service manual for precise location details, as it provides diagrams tailored to your truck’s setup.
To locate the fuel pump relay, start by identifying the fuse and relay panel. In the 2001 Kenworth W900L, this panel is usually accessible by removing a lower dashboard panel or kicking panel on the driver’s side. Once exposed, the panel will have a diagram or label indicating which relay corresponds to the fuel pump. If the diagram is missing or unclear, use a multimeter to test each relay for continuity while the ignition is on. The fuel pump relay will show power during operation, making it easier to identify.
A practical tip for verifying the correct relay is to listen for the fuel pump’s hum when the ignition is turned to the "on" position. If the relay is accessible, you can swap it with a similar relay in the panel (e.g., the horn relay) to see if the fuel pump activates. This method helps confirm functionality and location simultaneously. Always ensure the truck is in a safe, well-ventilated area before performing any electrical work.
Comparatively, newer Kenworth models may integrate the fuel pump relay into the engine control module (ECM), making it less accessible for manual testing. However, the 2001 W900L typically retains a standalone relay design, which simplifies troubleshooting. If the relay is faulty, replacement is straightforward—simply pull out the old relay and insert a new one of the same type. Keep a spare relay in your toolkit for emergencies, as fuel pump relay failure can leave you stranded.
In conclusion, locating the fuel pump relay in a 2001 Kenworth W900L involves identifying the fuse and relay panel under the dashboard, referencing the panel diagram, and using diagnostic tools if necessary. Understanding this process not only aids in quick repairs but also enhances your familiarity with the truck’s electrical system. Regularly inspecting the relay and its connections can prevent unexpected breakdowns, ensuring your Kenworth remains reliable on long hauls.
