The 2000 BMW X5's fuel pump relay is a crucial component in the vehicle's fuel delivery system, ensuring the fuel pump operates efficiently. Located in the E-Box (Electronic Box) under the hood, this relay is typically found near the firewall on the driver's side. It is often housed within a black plastic box containing multiple relays, which can be identified by their standardized layout and labeling. Accessing the fuel pump relay involves opening the hood, locating the E-Box, and carefully removing the lid to inspect or replace the relay if necessary. Understanding its location is essential for troubleshooting fuel-related issues or performing maintenance on this BMW model.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the fuse/relay box near the battery or on the driver's side fender. |
| Fuse/Relay Box Label | Typically labeled as "Fuse and Relay Module" or "E-Box." |
| Relay Identification | Often labeled as "Fuel Pump Relay" or "KLR 20" (depending on the diagram). |
| Relay Position | Specific position varies; consult the fuse box diagram in the owner's manual or online resources. |
| Function | Controls power to the fuel pump, ensuring proper fuel delivery to the engine. |
| Symptoms of Failure | Engine not starting, stalling, or difficulty starting due to lack of fuel pump operation. |
| Replacement Procedure | Locate the relay, disconnect the battery, remove the relay by pulling it straight out, and replace with a new one. |
| Compatibility | Specific to 2000 BMW X5 models; ensure the replacement relay matches the original specifications. |
| Diagnostic Tips | Check for blown fuses, test the relay with a multimeter, or swap with a known good relay for diagnosis. |
Explore related products
What You'll Learn
- Location in Engine Bay: Identify the exact position of the fuel pump relay in a 2000 BMW X5
- Relay Function and Role: Understand the purpose and operation of the fuel pump relay in the vehicle
- Symptoms of Failure: Recognize common signs indicating a faulty fuel pump relay in the 2000 BMW X5
- Replacement Steps: Learn the process to replace the fuel pump relay in a 2000 BMW X5
- Diagnostic Tips: Discover methods to test and diagnose issues with the fuel pump relay

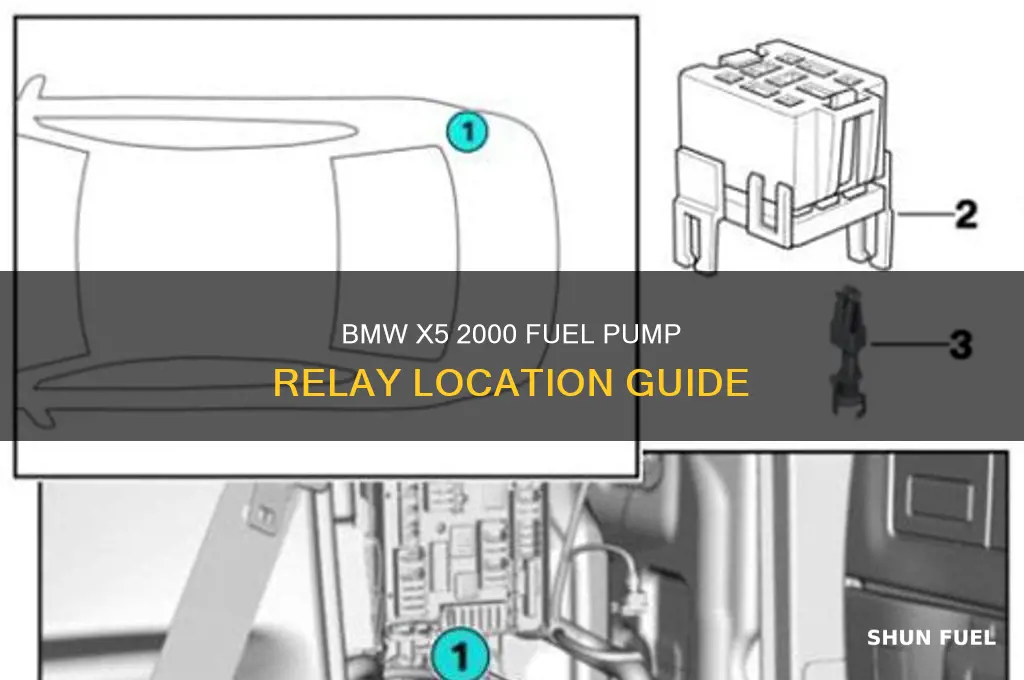

Location in Engine Bay: Identify the exact position of the fuel pump relay in a 2000 BMW X5
The fuel pump relay in a 2000 BMW X5 is a critical component, ensuring the fuel pump operates efficiently to deliver fuel to the engine. Locating it in the engine bay requires familiarity with the vehicle’s layout and a methodical approach. Begin by opening the hood and identifying the fuse box, typically located near the driver’s side strut tower. This rectangular module houses various relays and fuses, making it the primary area of focus. The fuel pump relay is usually labeled as "FP" or "FUEL PUMP" on the fuse box cover diagram, providing a visual guide to its exact position.
Once the fuse box is located, remove its cover to access the relays inside. The fuel pump relay is often a black or gray rectangular module with several pins, distinguishable from other relays by its size and labeling. In the 2000 BMW X5, it is commonly found in the middle or lower section of the fuse box, though its exact position may vary slightly depending on the model or regional specifications. If the diagram on the cover is unclear, consult the vehicle’s manual or a BMW-specific repair guide for precise identification.
For hands-on troubleshooting or replacement, ensure the ignition is off before handling the relay. Gently pull the relay straight out of its slot to inspect or test it. If replacement is necessary, match the new relay’s part number to the original to ensure compatibility. Reinsert the relay firmly, ensuring it clicks into place, and reattach the fuse box cover securely. This process not only aids in resolving fuel pump issues but also enhances understanding of the X5’s electrical system.
Comparatively, locating the fuel pump relay in a 2000 BMW X5 is simpler than in some other vehicles, thanks to its organized fuse box design. However, it still requires attention to detail, especially when distinguishing between similarly sized relays. Practical tips include using a flashlight for better visibility in the engine bay and keeping a notepad handy to jot down observations. By following these steps, even those with moderate mechanical experience can confidently identify and address issues related to the fuel pump relay.
Do Boats Have Fuel Pumps? Understanding Marine Fuel Systems
You may want to see also
Explore related products
Relay Function and Role: Understand the purpose and operation of the fuel pump relay in the vehicle
The fuel pump relay in a 2000 BMW X5 is a critical component that bridges the gap between the vehicle’s electrical system and its fuel delivery mechanism. Its primary function is to control the flow of power to the fuel pump, ensuring it operates only when the engine is running or being started. Without this relay, the fuel pump would either run continuously, wasting energy and reducing its lifespan, or fail to activate at all, preventing the engine from starting. This relay acts as a switch, triggered by the ignition system, to deliver power to the fuel pump at the precise moment it’s needed.
Analyzing its operation reveals a sophisticated interplay of electrical signals. When the ignition key is turned to the "on" position, the engine control unit (ECU) sends a signal to the fuel pump relay. This signal energizes the relay’s coil, closing the contacts and allowing current to flow to the fuel pump. The relay ensures the pump receives the correct voltage and amperage, preventing electrical overload or underperformance. In the 2000 BMW X5, this process is particularly important due to the vehicle’s high-performance engine, which demands precise fuel delivery for optimal combustion.
To locate the fuel pump relay in a 2000 BMW X5, refer to the fuse and relay panel, typically found in the engine bay or under the dashboard. Consult the owner’s manual for the exact position, as BMW often labels relays with codes (e.g., "KLR" for fuel pump relay). Once identified, inspect the relay for signs of wear, such as corrosion or burnt contacts, which can cause intermittent starting issues or fuel delivery problems. Replacing a faulty relay is straightforward: disconnect the battery, remove the old relay by pulling it straight out of its socket, and insert a new one of the same specifications.
A comparative look at the fuel pump relay’s role highlights its importance in modern vehicles. Unlike older carbureted engines, fuel-injected systems like the 2000 BMW X5 rely on precise fuel pressure and timing, making the relay indispensable. Its failure can mimic symptoms of a bad fuel pump or clogged fuel filter, leading to misdiagnosis. For instance, a relay that fails to close will prevent the pump from priming the system, causing hard starts or no-start conditions. Understanding this distinction can save time and money in diagnostics.
Instructively, maintaining the fuel pump relay involves regular checks during routine service. Ensure the relay’s connections are clean and secure, as loose or dirty terminals can disrupt its function. If the vehicle exhibits symptoms like stalling, hesitation, or a whining noise from the fuel tank, test the relay using a multimeter to verify continuity. For DIY enthusiasts, swapping relays with another of the same type (e.g., swapping the fuel pump relay with the horn relay) can help isolate the issue. Always prioritize safety by disconnecting the battery before working on the electrical system.
Step-by-Step Guide to Installing a Fuel Pump in a 2005 Volvo S60
You may want to see also
Explore related products
Symptoms of Failure: Recognize common signs indicating a faulty fuel pump relay in the 2000 BMW X5
A faulty fuel pump relay in a 2000 BMW X5 can manifest in several ways, often mimicking symptoms of other fuel system issues. One of the most common signs is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay fails to send the necessary electrical signal to the fuel pump, preventing it from priming the system with fuel. If the engine cranks but doesn’t start, or if it starts only after multiple attempts, the fuel pump relay may be the culprit.
Another telltale symptom is stalling or misfiring during acceleration or at high speeds. When the relay malfunctions intermittently, it can disrupt fuel delivery, causing the engine to lose power or stall unexpectedly. This is particularly dangerous in driving conditions that require consistent power, such as merging onto highways or overtaking. If you notice the vehicle hesitating or losing power under load, inspect the fuel pump relay as a potential cause.
Unusual noises from the fuel tank area can also indicate a failing relay. A healthy fuel pump operates quietly, but if the relay is faulty, the pump may not receive consistent power, leading to erratic operation. Listen for whining, buzzing, or humming sounds, especially during startup or when the engine is idling. These noises suggest the pump is struggling to function due to inadequate electrical signaling from the relay.
Lastly, a failing fuel pump relay can trigger the "check engine" light on the dashboard. While this light can illuminate for various reasons, it often appears when the engine control unit (ECU) detects inconsistent fuel pressure or delivery. Use an OBD-II scanner to retrieve error codes; codes related to fuel system malfunctions (e.g., P0087 or P0088) may point to a faulty relay. Addressing this issue promptly can prevent further damage to the fuel system and ensure reliable vehicle performance.
Step-by-Step Guide: Installing a Mechanical Fuel Pump on Dodge D150
You may want to see also
Explore related products
Replacement Steps: Learn the process to replace the fuel pump relay in a 2000 BMW X5
The fuel pump relay in a 2000 BMW X5 is located in the glove compartment, behind the fuse box panel. This placement is both strategic and somewhat hidden, requiring a methodical approach to access and replace. Before diving into the replacement process, ensure you have the correct replacement relay, a flathead screwdriver, and a basic understanding of your vehicle’s electrical system. Safety first: disconnect the battery to prevent any electrical mishaps during the process.
Begin by opening the glove compartment and emptying its contents. Gently remove the glove compartment by squeezing the sides to release the locking tabs, then lower it completely. Behind the compartment, you’ll find the fuse box panel, which is held in place by a few screws. Remove these screws and set them aside, then carefully pull the panel away to expose the relays. The fuel pump relay is typically labeled and can be identified by its position in the relay panel diagram, often found on the inside of the fuse box cover.
Once identified, use a flathead screwdriver to gently pry the relay straight out of its slot. Avoid tilting or forcing it, as this could damage the surrounding components. Insert the new relay by aligning it with the slot and pressing it firmly until it clicks into place. Ensure it sits flush with the other relays. Reassemble the fuse box panel by reattaching it with the screws you removed earlier, then reinstall the glove compartment by aligning it and pushing it back into place until it locks securely.
After replacement, reconnect the battery and test the vehicle’s operation. Start the engine and listen for the fuel pump’s hum, which should indicate proper relay function. If the engine fails to start or the pump doesn’t engage, double-check the relay’s orientation and connections. This process, while straightforward, demands attention to detail to avoid unnecessary complications. By following these steps, you’ll restore your BMW X5’s fuel system functionality efficiently and safely.
Do 4Runner Fuel Pumps Weaken Over Time? A Detailed Analysis
You may want to see also
Explore related products
Diagnostic Tips: Discover methods to test and diagnose issues with the fuel pump relay
The fuel pump relay in a 2000 BMW X5 is a critical component that ensures your vehicle’s engine receives the necessary fuel for operation. Located in the glove compartment fuse box, this relay can be a common culprit for starting issues or engine stalling. Diagnosing problems with it requires a systematic approach to avoid misidentifying symptoms or replacing parts unnecessarily.
Step-by-Step Testing Procedure: Begin by locating the relay, which is typically labeled as "KLR 15" or "FUEL PUMP" in the fuse box diagram. Swap the fuel pump relay with a similar relay (e.g., the horn relay) to isolate whether the issue is relay-specific. If the engine starts after the swap, the fuel pump relay is faulty. Next, use a multimeter to test the relay’s terminals for continuity. With the ignition on, check for power at the relay’s input terminal (pin 87) and ground at pin 85. If power and ground are present but the relay doesn’t click, the internal coil or contacts are likely damaged.
Analyzing Symptoms: A failing fuel pump relay often manifests as a no-start condition, sputtering, or intermittent power loss. Compare these symptoms with other potential causes, such as a clogged fuel filter or faulty fuel pump. For instance, if the engine cranks but doesn’t start, check for fuel pressure using a gauge. If pressure is absent, the relay or pump may be at fault. However, if pressure is normal, the issue could be ignition-related, narrowing your diagnostic focus.
Practical Tips for Accuracy: Always test the relay with the ignition in the "on" position to simulate operating conditions. If the relay clicks but the pump doesn’t engage, verify the pump’s wiring harness for corrosion or loose connections. Additionally, use a test light to confirm power delivery to the pump when the relay is activated. This ensures the issue isn’t wiring-related before replacing the relay.
Preventive Measures: Regularly inspect the fuse box for signs of overheating or corrosion, as these can degrade relay performance over time. Keep a spare relay in your vehicle for emergency swaps, especially during long trips. Understanding the relay’s role in the fuel system allows you to diagnose issues more confidently, saving time and money on unnecessary repairs.
Does the Nissan Versa Have a Fuel Pump Regulator?
You may want to see also
Frequently asked questions
The fuel pump relay in a 2000 BMW X5 is typically located in the E-box (Electronic Box) under the hood, near the driver's side strut tower. It is often integrated into a larger relay module.
The fuel pump relay is usually labeled as KLR15 or KLR 15 on the relay module. It is a small, rectangular component with a plug-in connector.
Symptoms include the engine not starting, stalling, or difficulty starting, especially after the engine has been running and is hot. You may also notice a lack of fuel pressure.
Yes, replacing the fuel pump relay is a relatively straightforward DIY task. Locate the relay in the E-box, disconnect the battery, remove the old relay, and install the new one. Ensure the replacement relay matches the original specifications.
