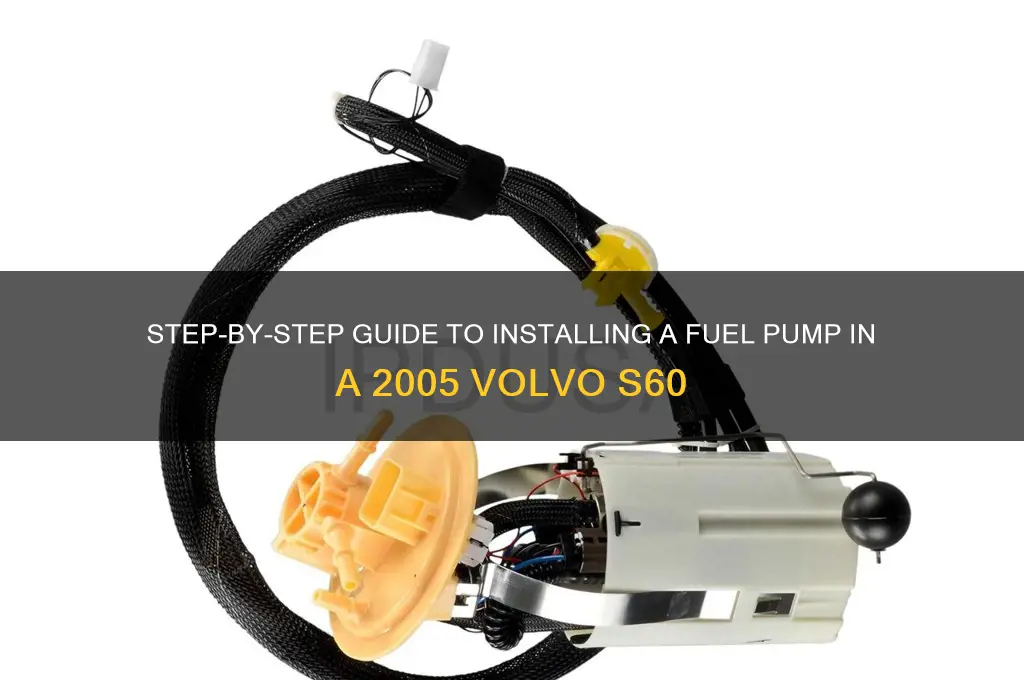

Installing a fuel pump in a 2005 Volvo S60 requires careful preparation and attention to detail to ensure safety and proper functionality. Begin by disconnecting the battery to prevent electrical hazards, then locate the fuel tank, typically found beneath the rear seat. Remove the rear seat cushion and access panel to expose the fuel pump assembly. Relieve the fuel system pressure using the Schrader valve, then disconnect the fuel lines and electrical connectors. Carefully lower the fuel pump assembly and replace it with the new unit, ensuring all connections are secure. Reinstall the access panel and rear seat, then reconnect the battery. Finally, test the system by starting the vehicle and checking for leaks. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2005 Volvo S60 |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Socket set, wrenches, screwdriver, trim removal tools, safety goggles |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access Fuel Pump | 1. Remove rear seat cushion 2. Locate and remove fuel pump access panel 3. Disconnect electrical connectors and fuel lines |
| Fuel Pump Replacement | Replace with OEM or compatible fuel pump assembly |
| Reinstallation Steps | 1. Reconnect fuel lines and electrical connectors 2. Reinstall access panel and rear seat cushion |
| Post-Installation Checks | Check for leaks, ensure proper operation, and reset any error codes |
| Estimated Time | 2-4 hours depending on experience |
| Difficulty Level | Intermediate to advanced |
| Recommended Parts | Genuine Volvo fuel pump or high-quality aftermarket replacement |
| Additional Tips | Use a fuel line disconnect tool to avoid damage, double-check connections |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, fuel line disconnect tool, new fuel pump, safety gear
- Locate Fuel Pump: Access pump through rear seat or trunk, depending on model
- Disconnect Battery: Ensure safety by disconnecting the negative battery terminal first
- Remove Fuel Lines: Use disconnect tool to safely detach fuel lines from pump
- Install New Pump: Secure new pump, reconnect lines, and test for leaks before reassembly
Gather Tools and Materials: Socket set, wrenches, fuel line disconnect tool, new fuel pump, safety gear
Before diving into the fuel pump installation on your 2005 Volvo S60, it's crucial to assemble the right tools and materials. This step is often overlooked, but it can make the difference between a smooth, efficient repair and a frustrating, time-consuming ordeal. A socket set, for instance, is indispensable for removing bolts and nuts of various sizes, ensuring you don't strip or damage any components. Wrenches, both open-end and adjustable, complement the socket set by providing access to tight spaces where sockets can't reach. The fuel line disconnect tool is specifically designed to safely release the fuel lines without causing leaks or damage, a critical aspect of working on a fuel system. Additionally, having a new fuel pump ready ensures you’re not left stranded mid-repair. Lastly, safety gear, including gloves and safety goggles, protects you from fuel spills and debris, which are common risks in this type of work.
Analyzing the tools required reveals a balance between precision and versatility. The socket set and wrenches, for example, are standard in most toolkits but must be selected carefully to match the specific bolt sizes used in the Volvo S60’s fuel system. The fuel line disconnect tool, while less common, is a specialized item that prevents accidental damage to the fuel lines, which can lead to costly repairs or safety hazards. This tool is particularly important because the fuel lines in the S60 are under pressure, even when the engine is off, making improper disconnection dangerous. By investing in the right tools, you not only ensure a successful repair but also avoid potential risks that could arise from using makeshift solutions.
From a practical standpoint, organizing your workspace with all necessary materials before starting is a time-saving strategy. Lay out the socket set, wrenches, and fuel line disconnect tool in a logical order, ensuring they’re within easy reach. Place the new fuel pump nearby, but keep it in its packaging until you’re ready to install it to prevent contamination. Safety gear should be worn from the beginning, even during the preparatory stages, as fuel systems can be unpredictable. A tip for efficiency: label each tool with its intended use or size using masking tape to avoid confusion during the repair. This small step can significantly streamline the process, especially if you’re working in a dimly lit garage or under time constraints.
Comparing the cost of tools versus the cost of professional labor highlights the value of a DIY approach. While the initial investment in a socket set, wrenches, and a fuel line disconnect tool may seem steep, these tools are reusable for future repairs, making them a cost-effective long-term solution. The new fuel pump itself is a significant expense, but replacing it yourself can save hundreds of dollars in labor fees. Moreover, the satisfaction of completing a complex repair independently often outweighs the financial savings. However, it’s essential to weigh your skill level and comfort with automotive repairs; if you’re unsure, consulting a professional can prevent costly mistakes.
In conclusion, gathering the right tools and materials is the foundation of a successful fuel pump installation on a 2005 Volvo S60. Each item—from the socket set to the safety gear—plays a unique role in ensuring efficiency, safety, and precision. By understanding the specific requirements of this repair and preparing accordingly, you not only save time and money but also gain valuable skills that can be applied to future automotive projects. Remember, the goal is not just to complete the repair but to do so safely and effectively, ensuring your vehicle remains reliable for years to come.
Dual Fuel Heat Pumps: Cost-Effective or Overpriced Investment?
You may want to see also
Explore related products
Locate Fuel Pump: Access pump through rear seat or trunk, depending on model
The fuel pump in a 2005 Volvo S60 isn't conveniently tucked under the hood. Its location depends on your specific model, requiring you to access it either through the rear seat or the trunk. This design choice, while potentially frustrating for DIYers, prioritizes safety by placing the pump within the fuel tank, a more protected environment.
Understanding this variation is crucial before you begin. Consult your Volvo's service manual or a reliable online resource specific to your S60's model and engine type to confirm the exact access point.
Accessing the fuel pump through the rear seat involves a bit more interior gymnastics. You'll need to fold down the rear seatback, revealing an access panel. This panel, often secured by screws or clips, provides a direct route to the fuel tank and the pump assembly. Be mindful of any wiring harnesses or fuel lines connected to the pump, ensuring they aren't damaged during the removal process.
A trunk-accessed fuel pump is generally more straightforward. Locate the access panel within the trunk floor, typically near the rear of the vehicle. This panel might be concealed under carpeting or a removable cover. Once exposed, you'll find the fuel pump assembly, often requiring the removal of additional bolts or fasteners for complete access.
Regardless of access point, safety is paramount. Always work in a well-ventilated area, away from open flames or sparks. Disconnect the battery before beginning any work on the fuel system to prevent accidental ignition. Additionally, relieve the fuel system pressure before attempting to remove the pump to avoid fuel spillage and potential hazards.
Understanding the Dual-Outlet Ford Fuel Pump's Functionality and Operation
You may want to see also
Explore related products
![[4 Pack] Screen Protector for Garmin Approach S40 S60 Premium GPS Golf Watch + Silicone Anti-dust Plugs Tempered Glass Anti-Scratch Bubble-Free Easy Installation](https://m.media-amazon.com/images/I/51-76ip7sJS._AC_UL320_.jpg)
Disconnect Battery: Ensure safety by disconnecting the negative battery terminal first
Before diving into the fuel pump installation on your 2005 Volvo S60, a critical safety measure demands attention: disconnecting the battery. This seemingly simple step is a cornerstone of automotive safety, particularly when working with electrical components like fuel pumps. The negative battery terminal, often marked with a minus sign or black color, holds the key to de-energizing the vehicle's electrical system.
In the context of fuel pump replacement, disengaging the battery serves multiple purposes. Firstly, it eliminates the risk of electrical shorts, which can occur when tools or components come into contact with live wires. Given the fuel pump's location near the fuel tank, a spark from an accidental short could have catastrophic consequences. Secondly, with the battery disconnected, you prevent the fuel pump's inadvertent activation during installation, ensuring a controlled and safe working environment.
To execute this step effectively, locate the battery in your Volvo S60, typically found in the engine bay. Using a wrench or socket, loosen the nut on the negative battery cable clamp, then carefully lift the cable away from the battery terminal. Ensure the cable is secured and cannot accidentally reattach. It's advisable to wait at least 15 minutes after disconnection to allow any residual charge in the system to dissipate, further minimizing risks.
This precautionary measure, though straightforward, is a non-negotiable aspect of automotive repair and maintenance. By prioritizing safety through battery disconnection, you not only protect yourself but also safeguard the vehicle's intricate systems. In the realm of DIY car repairs, this practice exemplifies the adage, "an ounce of prevention is worth a pound of cure," ensuring your fuel pump installation proceeds without electrical mishaps.
As you progress through the fuel pump installation, remember that this initial step sets the tone for the entire process. It's a reminder that in automotive work, safety isn't just a guideline—it's a fundamental principle that underpins every action. By mastering this simple yet crucial technique, you contribute to a safer and more efficient repair experience, making it a valuable skill in your automotive toolkit.
Falcon 9 Fuel Pumps: Size, Power, and Engineering Marvels
You may want to see also
Explore related products
![Car Phone Holder Fits for 2020-2024 Volvo S60[Only fits for 2020-2024], Car Phone Mount Snugly fit Navigation Bracket Air Vent, Fits 4.7-7 inch Phones,360° Rotable, Easy to Install](https://m.media-amazon.com/images/I/71WOQjMGHWL._AC_UL320_.jpg)
Remove Fuel Lines: Use disconnect tool to safely detach fuel lines from pump
Detaching fuel lines from the pump is a critical step in replacing the fuel pump of a 2005 Volvo S60, and it demands precision to avoid spills, leaks, or damage. The fuel lines are under pressure, even with the engine off, due to residual fuel system pressure. Attempting to remove them without the proper tool can result in fuel spray, broken quick-connect fittings, or compromised seals. A disconnect tool, specifically designed for fuel line quick-connects, ensures a safe and controlled release by evenly depressing the retaining clips while minimizing the risk of damage. This tool is typically inexpensive and universally compatible with most fuel line systems, making it an essential addition to your toolkit for this job.
The process begins with locating the fuel lines connected to the pump, usually found at the top of the fuel tank assembly. Before using the disconnect tool, relieve the fuel system pressure by locating the Schrader valve on the fuel rail (near the engine bay) and depressurizing it with the appropriate tool. Once pressure is relieved, position the disconnect tool over the quick-connect fitting, ensuring the tool’s prongs align with the retaining clips. Apply steady, even pressure to release the clips, then gently pull the fuel line away from the pump. Repeat this process for all connected lines, taking care not to twist or force the lines, as this can damage the fittings. Always work in a well-ventilated area and have a catch pan or rag ready to contain any residual fuel.
Comparing this method to alternative approaches highlights its superiority. Some DIYers attempt to remove fuel lines with pliers or flathead screwdrivers, but these tools can mar the fittings or fail to evenly depress the clips, leading to leaks or broken components. Others skip depressurizing the system, risking fuel spray or injury. The disconnect tool, paired with proper depressurization, not only safeguards the integrity of the fuel system but also streamlines the process, saving time and frustration. It’s a small investment that pays dividends in safety and efficiency.
A practical tip to enhance this step is to label or take a photo of the fuel line connections before detachment. This ensures correct reinstallation, as some fuel pumps have multiple lines with specific orientations. Additionally, inspect the quick-connect fittings and seals for wear or damage during removal. If the seals appear cracked or brittle, replace them to prevent future leaks. Finally, keep the disconnect tool clean and free of debris to maintain its effectiveness for future use. By approaching this step methodically and with the right tools, you’ll avoid common pitfalls and set the stage for a successful fuel pump replacement.
Reviving a Classic: Repairing a 1985 Porsche Fuel Pump Guide
You may want to see also
Explore related products
Install New Pump: Secure new pump, reconnect lines, and test for leaks before reassembly
With the old fuel pump removed, it's time to install the new one, a critical step in restoring your 2005 Volvo S60's fuel system. This phase demands precision and attention to detail to ensure a secure fit, proper connections, and a leak-free operation.
Securing the New Pump: Begin by positioning the new fuel pump assembly into the fuel tank, aligning it with the mounting holes. Use the provided bolts and torque them to the manufacturer's specifications, typically around 10-12 Nm. Over-tightening can damage the pump or the tank, while under-tightening may lead to vibrations and potential leaks. Ensure the pump is seated correctly, with the electrical connector and fuel lines accessible for the next steps.
Reconnecting Fuel Lines: The fuel lines are the lifelines of your vehicle's fuel system. Carefully attach the fuel lines to the new pump, ensuring each connection is secure. Use new seals or O-rings if provided with the replacement pump to guarantee a tight seal. Tighten the line fittings by hand initially, then use a wrench to snug them up, being cautious not to overtighten, as this can cause damage. A common mistake is to force connections, which can lead to cracked fittings or damaged lines.
Leak Testing: A Crucial Step: Before reassembling the fuel tank and surrounding components, it's imperative to test for leaks. Start by turning the ignition to the 'on' position without starting the engine. This will prime the fuel pump and pressurize the system. Inspect all connections for any signs of fuel seepage. If leaks are detected, tighten the connections slightly and retest. If the issue persists, disassemble and inspect for damaged components or incorrect installation.
This process ensures that your new fuel pump is installed correctly and safely, minimizing the risk of fuel leaks, which can be hazardous and detrimental to your vehicle's performance. Taking the time to secure the pump, reconnect lines meticulously, and conduct a thorough leak test will contribute to a successful repair and a reliable fuel system.
Step-by-Step Guide to Removing a John Deere Fuel Pump
You may want to see also
Frequently asked questions
You will need a jack and jack stands, a flathead screwdriver, a Phillips screwdriver, a socket set, a torque wrench, a fuel line disconnect tool, and a new fuel pump assembly.
To access the fuel pump, remove the rear seat cushion by pressing the release tabs and lifting it out. Then, locate and remove the fuel pump access panel, which is secured by screws or clips.
Yes, it’s crucial to relieve fuel pressure before starting the installation. You can do this by locating the fuel pressure relief valve (often near the fuel rail) and pressing the valve with a screwdriver while the engine is off.
After installing the new fuel pump, ensure all electrical connectors are securely attached and all fuel lines are properly connected. Use a torque wrench to tighten bolts to the manufacturer’s specifications, and double-check for leaks before reassembling the interior.
