Mercedes Mullins
The 2004 Ford Taurus is equipped with a fuel pump relay, a crucial component in the vehicle's fuel system that ensures the fuel pump operates efficiently. Located in the under-hood fuse box, also known as the power distribution box, the fuel pump relay is typically found near the battery or along the driver's side fender well. Identifying the correct relay can be straightforward, as it is often labeled Fuel Pump or FP on the fuse box cover diagram. Accessing the relay involves opening the hood, locating the power distribution box, and removing its cover to visually inspect the relays. If the relay is suspected to be faulty, it can be tested or replaced with a compatible unit to restore proper fuel pump functionality. Always consult the vehicle's manual or a trusted repair guide for specific instructions tailored to the 2004 Taurus model.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the fuse/relay box near the battery or firewall. |
| Fuse/Relay Box Label | Often labeled as "Fuse Box" or "Power Distribution Box." |
| Relay Position | Typically labeled as "Fuel Pump Relay" or "FP Relay" in the box diagram. |
| Relay Shape/Color | Usually a black or gray rectangular relay with 4-5 pins. |
| Access Difficulty | Moderate; requires opening the hood and locating the fuse/relay box. |
| Tools Needed | None or a relay puller tool for removal. |
| Related Fuse | Often protected by a fuse labeled "Fuel Pump" in the same box. |
| Function | Controls power to the fuel pump to ensure proper fuel delivery. |
| Symptoms of Failure | Engine not starting, stalling, or difficulty starting. |
| Replacement Part | Specific fuel pump relay for 2004 Ford Taurus (part number varies). |
| Year/Model Specificity | Applies specifically to the 2004 Ford Taurus model. |
Explore related products
What You'll Learn
- Location in Engine Bay: Identify the exact spot of the fuel pump relay in a 2004 Taurus
- Relay Functionality: Understand the role of the fuel pump relay in the vehicle’s fuel system
- Symptoms of Failure: Recognize common signs of a faulty fuel pump relay in a 2004 Taurus
- Replacement Steps: Learn how to replace the fuel pump relay in a 2004 Taurus
- Diagnostic Tips: Use troubleshooting methods to confirm if the fuel pump relay is defective

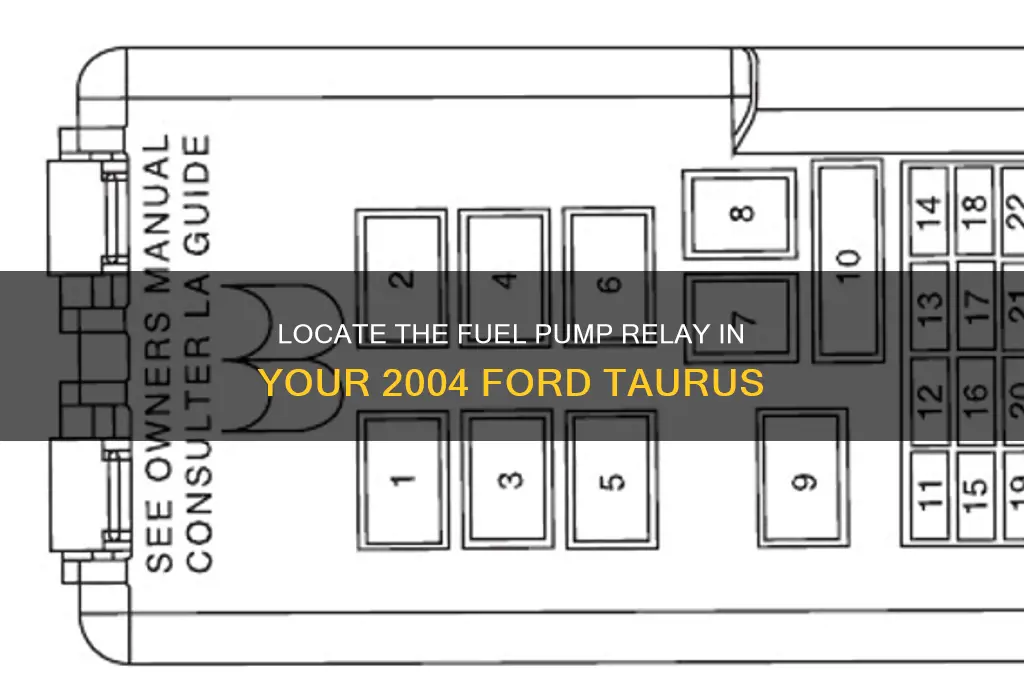

Location in Engine Bay: Identify the exact spot of the fuel pump relay in a 2004 Taurus
The fuel pump relay in a 2004 Ford Taurus is a critical component, ensuring the fuel pump operates only when the engine is running or being started. Locating it in the engine bay requires familiarity with the vehicle’s layout and a systematic approach. Begin by opening the hood and identifying the fuse box, typically located near the driver’s side fender. This is a common placement in many Ford models, including the 2004 Taurus, as it provides easy access for maintenance.
Once the fuse box is located, inspect its cover for a diagram indicating relay positions. The fuel pump relay is often labeled as "FP" or "FUEL PUMP" on this diagram. If the diagram is missing or unclear, consult the vehicle’s manual or an online resource specific to the 2004 Taurus. The relay itself is usually a rectangular or square-shaped module with several pins, distinguishable from fuses by its size and design.
To access the relay, remove the fuse box cover by pressing the release tabs on the sides. Inside, you’ll find rows of fuses and relays. The fuel pump relay is typically located in one of the corners or along the edge of the fuse box, depending on the configuration. It may be necessary to use a relay puller tool to safely extract it, as relays can be tightly seated.
A practical tip for verification is to swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay). If the fuel pump begins to hum when the key is turned to the "on" position, you’ve correctly identified the relay. This method ensures accuracy without relying solely on visual identification.
In summary, locating the fuel pump relay in a 2004 Taurus involves identifying the fuse box, referencing a diagram, and verifying the relay’s position. This process combines visual inspection with practical testing, ensuring confidence in your findings. Knowing its exact location simplifies troubleshooting and maintenance, making it a valuable skill for any Taurus owner.
Does PCM Control Fuel Pump? Understanding the Role of PCM
You may want to see also
Explore related products
Relay Functionality: Understand the role of the fuel pump relay in the vehicle’s fuel system
The fuel pump relay in a 2004 Ford Taurus is a critical component that acts as a switch, controlling the flow of power to the fuel pump. Located in the under-hood fuse/relay box, this relay ensures the fuel pump operates only when the engine is running or being started, conserving energy and reducing wear. Without it, the fuel pump would either run continuously or not at all, leading to inefficiency or engine failure. Understanding its role is essential for diagnosing fuel system issues, as a faulty relay can mimic symptoms of a failing fuel pump, such as stalling or difficulty starting.
Analyzing the functionality of the fuel pump relay reveals its dual purpose: safety and efficiency. When the ignition is turned on, the relay receives a signal from the powertrain control module (PCM), allowing current to flow to the fuel pump. This delayed activation, known as a "prime" sequence, pressurizes the fuel system before the engine starts, ensuring smooth operation. Once the engine is running, the relay maintains power to the pump, but if the engine stalls or the ignition is turned off, the relay cuts power, preventing fuel from being unnecessarily pumped. This mechanism reduces the risk of fire in the event of an accident or system malfunction.
To troubleshoot a suspected fuel pump relay issue in a 2004 Taurus, start by locating the relay in the under-hood fuse/relay box, typically labeled "FP" or "Fuel Pump." Swap it with a relay of the same type (e.g., the horn relay) to test functionality. If the fuel pump operates after the swap, the original relay is likely faulty. Replacement relays are inexpensive and widely available, but ensure the new relay matches the amperage and pin configuration of the original. Always consult the vehicle’s manual or a repair guide for specific instructions, as incorrect installation can damage the electrical system.
Comparing the fuel pump relay to other relays in the system highlights its unique importance. Unlike relays that control accessories like lights or wipers, the fuel pump relay directly impacts engine performance and safety. Its failure can lead to immediate drivability issues, whereas other relays may only affect convenience features. This distinction underscores the need for regular inspection, especially in older vehicles like the 2004 Taurus, where electrical components are more prone to wear. Proactive maintenance, such as cleaning relay contacts and checking for corrosion, can extend the relay’s lifespan and prevent unexpected breakdowns.
Instructively, diagnosing a fuel pump relay issue requires a systematic approach. Begin by verifying symptoms: a non-starting engine with no fuel pressure, despite a functional pump, often points to a relay problem. Use a multimeter to test for power at the relay’s input and output terminals; a lack of power at the output when the ignition is on indicates a faulty relay. For a practical tip, keep a spare relay in your vehicle’s emergency kit, as this small component can save you from being stranded. Understanding the fuel pump relay’s role not only aids in troubleshooting but also empowers vehicle owners to perform basic repairs with confidence.
Where to Find the Fuel Pump Fuse in a 1993 Ford Ranger
You may want to see also
Explore related products
Symptoms of Failure: Recognize common signs of a faulty fuel pump relay in a 2004 Taurus
A faulty fuel pump relay in a 2004 Ford Taurus can manifest in several distinct ways, often mimicking symptoms of other fuel system issues. One of the most common signs is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay fails to send power to the fuel pump, preventing it from priming the system with fuel. If the engine cranks but doesn’t start, or starts only after multiple attempts, the fuel pump relay may be to blame.
Another telltale symptom is stalling or sputtering during acceleration or at high speeds. When the relay malfunctions intermittently, it can cut power to the fuel pump momentarily, causing the engine to lose power. This can be particularly dangerous in traffic or on highways, as the vehicle may abruptly lose momentum. Drivers often report a sensation of the engine "missing" or hesitating before regaining power, which is a clear indicator of an unreliable electrical connection in the relay.
A less obvious but equally important sign is a sudden drop in fuel efficiency. A failing fuel pump relay can cause the pump to run inconsistently, delivering too much or too little fuel to the engine. This inefficiency not only wastes gas but also places additional strain on the engine, potentially leading to long-term damage. Monitoring your vehicle’s mileage and noting any unexplained changes can help identify this issue early.
To diagnose a faulty relay, start by listening for the fuel pump’s hum when you turn the ignition to the "on" position (but don’t start the engine). In a 2004 Taurus, the fuel pump relay is typically located in the underhood fuse box, often labeled as "FP Relay." If the pump doesn’t engage, use a multimeter to test the relay’s terminals for continuity. A lack of power or ground signal confirms a faulty relay. Replacement is straightforward: simply swap the old relay with a new one of the same part number, ensuring the vehicle is turned off to avoid electrical hazards.
In summary, recognizing the symptoms of a failing fuel pump relay—such as hard starting, stalling, or poor fuel efficiency—can save time and prevent misdiagnosis. By understanding these signs and knowing the relay’s location, Taurus owners can address the issue promptly, ensuring their vehicle remains reliable and safe on the road.
DIY Guide: Replacing the Fuel Pump on a 2002 Buick LeSabre
You may want to see also
Explore related products
Replacement Steps: Learn how to replace the fuel pump relay in a 2004 Taurus
The fuel pump relay in a 2004 Ford Taurus is located in the underhood fuse box, typically near the battery. This component is crucial for delivering power to the fuel pump, ensuring your vehicle starts and runs smoothly. Replacing a faulty relay can resolve issues like hard starts or stalling, making it a valuable DIY repair for car owners.
Before starting, gather the necessary tools: a flathead screwdriver, a new fuel pump relay (ensure it matches the original part number), and safety gloves. Begin by locating the underhood fuse box, which is usually on the driver’s side of the engine bay. Open the fuse box lid to reveal the relays and fuses. The fuel pump relay is often labeled "FP" or "Fuel Pump" in the diagram on the lid. If not, consult your owner’s manual for exact placement.
Once identified, use the flathead screwdriver to gently pry out the old relay. Be cautious not to damage surrounding components. Insert the new relay, ensuring it clicks securely into place. Reattach the fuse box lid and start the vehicle to test the repair. If the engine starts without hesitation, the replacement was successful.
While this process is straightforward, exercise caution when working around the battery and electrical components. Avoid touching terminals or wires with bare hands, and ensure the ignition is off before beginning. If you’re unsure about any step, consult a professional to prevent further issues. Replacing the fuel pump relay is a cost-effective fix that can restore your Taurus’s reliability with minimal effort.
DIY Guide: Replacing the Fuel Pump in a 2000 Jeep Cherokee
You may want to see also
Explore related products
Diagnostic Tips: Use troubleshooting methods to confirm if the fuel pump relay is defective
The fuel pump relay in a 2004 Ford Taurus is a critical component that ensures the fuel pump operates correctly, delivering fuel from the tank to the engine. If your Taurus isn’t starting or is stalling, a defective fuel pump relay could be the culprit. Before replacing it, use these diagnostic tips to confirm if the relay is indeed faulty.
Step 1: Locate the Relay
The fuel pump relay in a 2004 Taurus is typically found in the underhood fuse/relay box, often labeled as "FPD" or "Fuel Pump Driver." Consult your owner’s manual or a repair guide for the exact location. Once located, visually inspect the relay for signs of damage, such as corrosion, burnt marks, or loose connections. While this doesn’t confirm a defect, it’s a quick initial check.
Step 2: Swap Relays for Testing
If the relay appears intact, swap it with another relay of the same type in the fuse box (e.g., the A/C compressor relay). If the fuel pump begins to operate after the swap, the original relay is likely defective. If not, the issue may lie elsewhere, such as the fuel pump itself or the wiring harness. This method is simple and requires no specialized tools.
Step 3: Test with a Multimeter
For a more precise diagnosis, use a multimeter to test the relay’s continuity and operation. With the ignition off, remove the relay and check for continuity between the power and ground pins. Then, apply power to the relay’s control circuit and verify that the contacts close, allowing current to flow. If the relay fails these tests, it’s defective and needs replacement.
Caution: Avoid Misdiagnosis
A defective fuel pump relay is just one of many potential causes for fuel delivery issues. Before concluding the relay is faulty, rule out other possibilities, such as a bad fuel pump, clogged fuel filter, or faulty inertia switch. Misdiagnosis can lead to unnecessary part replacements and wasted time.
By systematically testing the fuel pump relay using these methods, you can confidently determine whether it’s the source of your 2004 Taurus’s fuel system problems. This approach saves time, money, and frustration, ensuring you address the root cause rather than guessing. Always prioritize safety and accuracy when working with electrical components.
Step-by-Step Guide: Removing the Fuel Pump on a 2009 Isuzu NPR
You may want to see also
Frequently asked questions
The fuel pump relay in a 2004 Ford Taurus is typically located in the underhood fuse/relay box. It is often labeled as "Fuel Pump Relay" or "FPR" on the box's cover diagram.
The fuel pump relay is usually a small, rectangular or square-shaped module with several pins. It can be identified by matching its position with the diagram on the fuse/relay box cover or by consulting the vehicle's manual.
Yes, replacing the fuel pump relay is a straightforward DIY task. Simply locate the relay in the underhood fuse/relay box, pull it straight out, and insert the new one in the same position. Ensure the vehicle is turned off before making any changes.
