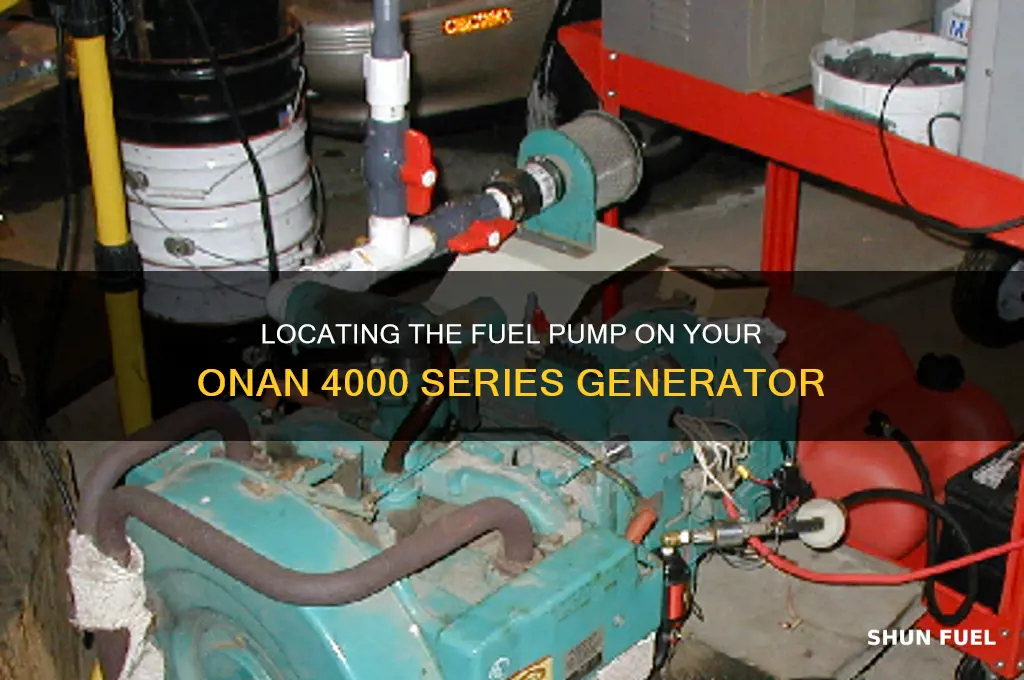

The Onan 4000 Series generator is a reliable power source commonly used in RVs, marine applications, and portable setups, but locating its fuel pump can be a challenge for many users. The fuel pump on this generator is typically integrated into the fuel system and is often housed within the generator's fuel module or near the carburetor, depending on the specific model and configuration. Understanding its exact location is crucial for maintenance tasks such as troubleshooting fuel delivery issues, replacing the pump, or performing routine inspections. Consulting the generator's manual or seeking guidance from a certified technician can provide precise instructions tailored to your Onan 4000 Series model, ensuring efficient and safe access to the fuel pump.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump | Typically mounted on the fuel tank or near the carburetor |
| Fuel Pump Type | Mechanical diaphragm pump (common in Onan 4000 series) |
| Access for Maintenance | Usually accessible by removing a side panel or fuel tank cover |
| Fuel Line Connection | Connected to the fuel tank and carburetor via hoses or rigid lines |
| Common Issues | Clogging, diaphragm failure, or weak pump pressure |
| Replacement Difficulty | Moderate; requires basic tools and mechanical knowledge |
| Compatibility | Specific to Onan 4000 series models (e.g., 4000i, 4000-4054, etc.) |
| Part Number (Example) | Varies by model; consult Onan parts manual for exact number |
| Maintenance Tip | Regularly inspect fuel lines and pump for leaks or damage |
| Diagnostic Symptom | Engine difficulty starting or running rough due to insufficient fuel delivery |
Explore related products
What You'll Learn
Fuel Pump Location Identification
The Onan 4000 Series generator, a reliable powerhouse for RVs and homes, relies heavily on its fuel pump for efficient operation. Identifying the fuel pump's location is crucial for maintenance, troubleshooting, and repairs. This guide provides a detailed breakdown of where to find the fuel pump and how to approach its identification.
Anatomy of the Onan 4000 Series: The fuel pump in most Onan 4000 Series generators is typically located within the generator's fuel system, often integrated into the carburetor assembly. This design allows for a compact and efficient fuel delivery system. To pinpoint its exact location, consult your generator's manual. It will provide a detailed diagram of the generator's components, including the fuel pump's position relative to the carburetor, fuel lines, and other key parts.
If you lack a manual, online resources like forums and repair videos can offer visual aids and user experiences to guide your search.
Visual Identification: The fuel pump itself is usually a small, cylindrical component with fuel lines attached. It may be mounted directly on the carburetor or connected via a short fuel line. Look for a component with a diaphragm or electric motor, depending on the pump type. Electric fuel pumps will have wires leading to the generator's electrical system. Diaphragm pumps are often operated by the engine's vacuum and will have a distinct, flexible diaphragm visible.
Recognizing these visual cues will help you confidently identify the fuel pump amidst the generator's other components.
Accessing the Fuel Pump: Accessing the fuel pump for inspection or replacement requires careful disassembly. Start by turning off the generator and allowing it to cool completely. Disconnect the battery to prevent accidental startup. Follow the fuel lines from the fuel tank to the carburetor, tracing them to the pump's location. Depending on the model, you may need to remove a protective cover or access panel to reach the pump. Refer to your manual or online resources for specific disassembly instructions for your Onan 4000 Series model.
Maintenance and Troubleshooting: Regularly inspecting the fuel pump for leaks, cracks, or signs of wear is essential for preventative maintenance. If you suspect a fuel pump issue, listen for unusual noises during operation, such as whining or grinding sounds. Difficulty starting the generator or inconsistent fuel delivery can also indicate pump problems. Remember, working on fuel systems requires caution. Always work in a well-ventilated area, avoid open flames, and use appropriate safety gear. If you're unsure about any aspect of fuel pump maintenance or repair, consult a qualified technician.
