The fuel pump relay in a 2005 Subaru STI is a critical component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located in the fuse and relay box, which is typically found in the engine bay, this relay ensures that the fuel pump operates efficiently and safely. For the 05 STI, the fuel pump relay is often situated near the battery or along the driver's side strut tower, though its exact position may vary slightly depending on the specific model or regional specifications. Identifying and accessing this relay is essential for troubleshooting fuel delivery issues or performing maintenance tasks related to the fuel system.
| Characteristics | Values |
|---|---|
| Location | Under the dashboard, on the driver's side, near the fuse box or relay panel |
| Access Method | Remove the lower dashboard panel or knee panel for visibility |
| Relay Panel Label | Typically labeled as "FUEL PUMP" or "FP" on the relay panel cover |
| Relay Position | Usually in the top row of the relay panel, but may vary by model |
| Color Coding | Often a black or gray relay with a distinct shape |
| Function | Controls power to the fuel pump, ensuring proper fuel delivery |
| Replacement Consideration | Ensure the replacement relay matches the original specifications |
| Diagnostic Tip | If the fuel pump is not priming, check the relay for clicking sounds |
| Year Applicability | Specifically for 2005 Subaru STI models |
| Additional Notes | May require a wiring diagram for precise identification |
Explore related products
$13.94
$14.08 $15.2
What You'll Learn
Location of fuel pump relay in 05 Subaru STI

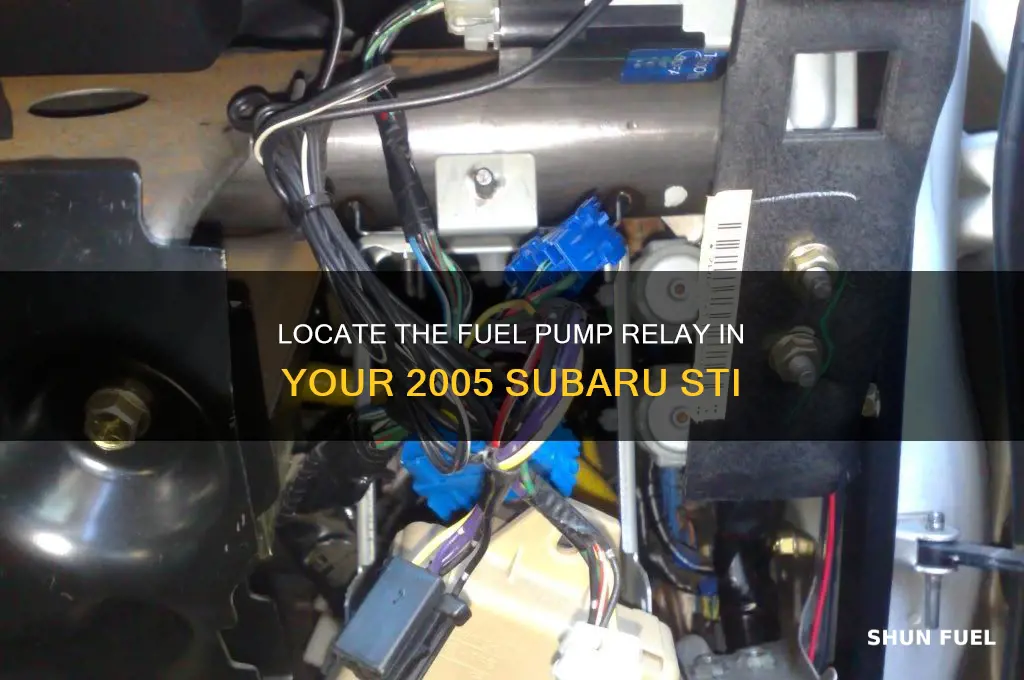

The fuel pump relay in a 2005 Subaru STI is a critical component for ensuring consistent fuel delivery to the engine. Located under the dashboard on the driver’s side, it’s tucked behind the fuse box panel. To access it, you’ll need to remove the lower dash panel, which typically involves unscrewing a few Phillips-head screws and gently prying the panel away. Once exposed, the relay is usually labeled as "FUEL PUMP" or "FP" on the fuse box diagram, making identification straightforward. This placement is consistent with Subaru’s design philosophy of keeping essential relays within easy reach for diagnostics and repairs.
Analyzing the design choice, Subaru’s decision to place the fuel pump relay under the dashboard serves both safety and accessibility purposes. Unlike some vehicles that locate the relay in the engine bay, this in-cabin placement protects it from heat, moisture, and debris, reducing the risk of failure. However, it also means the relay is less accessible during emergencies, such as a roadside fuel pump issue. For DIY enthusiasts, this location requires familiarity with interior panel removal, but it’s a trade-off for long-term reliability. Always disconnect the battery before working in this area to avoid accidental shorts.
If you’re troubleshooting a fuel pump issue, testing the relay is a logical first step. Start by locating the relay and swapping it with another of the same type (e.g., the A/C relay) to see if the problem persists. If the fuel pump engages after the swap, the relay is likely faulty. Replacement relays are inexpensive and widely available, but ensure the new one matches the pin configuration and amperage rating. Pro tip: Keep a spare relay in your glove box for quick diagnostics, as fuel pump issues can leave you stranded if the relay fails unexpectedly.
Comparing the 2005 STI’s relay location to other Subaru models, it’s worth noting that earlier generations, like the 2002-2003 WRX, often placed the fuel pump relay in the engine bay fuse box. The shift to the dashboard in the 05 STI reflects Subaru’s evolving design priorities. While this change improves durability, it can be less intuitive for mechanics accustomed to engine bay layouts. If you’re working on multiple Subaru models, always consult the specific vehicle’s manual to avoid confusion.
In conclusion, the fuel pump relay in a 2005 Subaru STI is strategically located under the driver’s side dashboard for protection and accessibility. While this placement requires removing interior panels, it’s a worthwhile trade-off for longevity. Familiarizing yourself with its location and testing procedures can save time and frustration during diagnostics. Always prioritize safety by disconnecting the battery before working in this area, and consider keeping a spare relay on hand for emergencies.
Jumping a Ford Fuel Pump Relay: Step-by-Step Guide for DIY Repairs
You may want to see also
Explore related products
Identifying the fuel pump relay fuse in 05 STI
The fuel pump relay fuse in a 2005 Subaru STI is a critical component for ensuring your vehicle’s fuel system operates correctly. Located in the fuse and relay box under the hood, this fuse is typically labeled as "FUEL PUMP" or "F/PMP" on the box’s diagram. Identifying it requires a basic understanding of the fuse box layout and a keen eye for detail. Start by consulting your owner’s manual for the exact location, as Subaru often provides a diagram of the fuse box in the engine bay. If the manual is unavailable, online forums and repair guides specific to the 05 STI can offer visual aids and step-by-step instructions.
Analyzing the fuse box layout reveals that the fuel pump relay fuse is usually a 15-amp fuse, though it’s essential to verify this with your vehicle’s specifications. A blown fuse can cause the fuel pump to fail, leading to engine stalling or difficulty starting. To inspect the fuse, use a fuse puller or a pair of needle-nose pliers to carefully remove it from the box. Hold the fuse up to a light source to check for a broken filament, which indicates a blown fuse. If the filament appears intact, a multimeter can be used to test continuity, ensuring the fuse is functioning correctly.
When replacing the fuel pump relay fuse, always use the correct amperage to avoid electrical issues. Subaru dealerships or auto parts stores typically stock the appropriate fuse, often labeled as a "mini blade fuse." While replacing the fuse is straightforward, it’s crucial to address the root cause of the blown fuse, such as a faulty fuel pump or wiring issue. Ignoring underlying problems can lead to repeated fuse failures and potential damage to the fuel system.
Comparing the 05 STI’s fuse box to other Subaru models highlights the importance of model-specific knowledge. While the general location of the fuel pump relay fuse remains consistent across many Subaru vehicles, the exact placement and labeling can vary. For instance, the 2005 STI’s fuse box may differ slightly from that of a 2004 WRX, emphasizing the need for precise research. Online communities, such as Subaru enthusiast forums, often provide model-specific insights that can save time and frustration during troubleshooting.
In conclusion, identifying the fuel pump relay fuse in a 2005 Subaru STI involves a combination of research, inspection, and caution. By familiarizing yourself with the fuse box layout, verifying the correct amperage, and addressing potential underlying issues, you can ensure your vehicle’s fuel system remains reliable. Whether you’re a seasoned mechanic or a DIY enthusiast, understanding this component is a valuable skill for maintaining your STI’s performance and longevity.
Eco-Friendly Fuel Pump Recycling: A Step-by-Step Guide to Reuse and Repurpose
You may want to see also
Explore related products
Steps to replace fuel pump relay in 05 STI
The fuel pump relay in a 2005 Subaru STI is located in the fuse and relay box under the hood, typically on the driver’s side near the battery. Identifying its exact position is the first step in replacing it, as this component is crucial for delivering power to the fuel pump, ensuring your engine runs smoothly. Before diving into the replacement process, ensure you have the correct replacement relay, a basic set of tools, and a clear workspace to avoid complications.
Begin by locating the fuse and relay box under the hood. It’s usually a black rectangular unit with a diagram on the lid indicating the positions of fuses and relays. Open the lid and refer to the diagram or your vehicle’s manual to pinpoint the fuel pump relay. It’s often labeled as "FPR" or "Fuel Pump." Once identified, use a relay puller tool or a flathead screwdriver to carefully extract the relay by prying it straight out of its slot. Avoid tilching or forcing it, as this can damage the surrounding components.
With the old relay removed, inspect it for signs of damage, such as burnt pins or a cracked casing. This can help confirm whether the relay was indeed the source of your fuel pump issues. Insert the new relay into the same slot, ensuring it clicks securely into place. Double-check that it’s seated properly to avoid intermittent power delivery to the fuel pump. Reattach the fuse box lid and secure it to prevent moisture or debris from entering.
After replacing the relay, start the vehicle to test the fuel pump’s operation. Listen for the characteristic humming sound, which indicates the pump is functioning correctly. If the engine starts and idles smoothly, the replacement was successful. However, if issues persist, consider testing the fuel pump itself or checking for other electrical problems in the circuit. Regularly inspecting and maintaining these components can prevent unexpected breakdowns and ensure your STI performs reliably.
Diagnosing Fuel Pump Relay Issues in a 2003 Ford Taurus
You may want to see also
Explore related products
Symptoms of a faulty fuel pump relay in 05 STI
The fuel pump relay in a 2005 Subaru STI is a critical component that ensures the fuel pump operates efficiently, delivering the necessary fuel to the engine. Located in the fuse and relay box under the hood, near the battery, this relay acts as a switch, controlling the power supply to the fuel pump. When it malfunctions, the consequences can be immediate and noticeable, affecting the vehicle’s performance and drivability. Recognizing the symptoms of a faulty fuel pump relay is essential for timely diagnosis and repair.
One of the most common symptoms of a failing fuel pump relay in an 05 STI is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay may not be sending power to the fuel pump, preventing it from priming the fuel system. In some cases, the engine may crank but fail to start, or it may start briefly before stalling. If you notice that the engine starts more easily when it’s warm or after multiple attempts, the relay could be the culprit. A quick test is to listen for the fuel pump’s hum when turning the ignition to the "on" position; if it’s absent or inconsistent, the relay may be at fault.
Another telltale sign is erratic engine performance while driving. A faulty relay can cause the fuel pump to operate intermittently, leading to fluctuations in fuel delivery. This may manifest as hesitation, surging, or a loss of power during acceleration. In severe cases, the engine may stall unexpectedly, posing a safety risk. If you experience these symptoms, particularly under load or at high speeds, inspect the fuel pump relay as a potential cause. Using a multimeter to test the relay’s continuity can help confirm whether it’s functioning properly.
A less obvious but equally important symptom is increased fuel consumption. When the fuel pump relay malfunctions, it can cause the pump to run continuously or deliver fuel inefficiently, leading to excessive fuel usage. Monitoring your vehicle’s fuel economy can provide early clues to relay issues. If you notice a sudden drop in miles per gallon without changes in driving habits or conditions, the relay may be failing. Addressing this promptly not only saves fuel but also prevents further strain on the fuel system.
Lastly, a faulty fuel pump relay can trigger the check engine light, often accompanied by diagnostic trouble codes (DTCs) related to fuel system issues. Common codes include P0087 (fuel rail/system pressure too low) or P0191 (fuel rail pressure sensor circuit range/performance). While these codes don’t exclusively point to the relay, they are strong indicators of fuel delivery problems. Using an OBD-II scanner to retrieve codes can narrow down the diagnosis, but always verify the relay’s condition through physical inspection or testing. Ignoring these warnings can lead to more severe engine damage over time.
In summary, a faulty fuel pump relay in a 2005 Subaru STI can cause a range of symptoms, from starting difficulties and erratic performance to increased fuel consumption and warning lights. By recognizing these signs early and conducting targeted tests, you can address the issue before it escalates. Regular maintenance and awareness of your vehicle’s behavior are key to keeping the fuel system—and your STI—running smoothly.
Testing Fuel Lift Pump DT466: Step-by-Step Guide for Optimal Performance
You may want to see also
Explore related products
Diagram for 05 Subaru STI fuel pump relay wiring
The fuel pump relay in a 2005 Subaru STI is a critical component located within the fuse and relay box under the hood, typically near the battery. Understanding its wiring diagram is essential for diagnostics, repairs, or modifications. The relay itself is a simple switch that controls power to the fuel pump, ensuring it operates only when the engine is running or being started. Its wiring consists of four primary terminals: two for the control circuit (connected to the ECU and ignition switch) and two for the power circuit (supplying voltage to the fuel pump).
Analyzing the wiring diagram reveals a straightforward yet precise configuration. The 85 terminal is connected to the ECU, which grounds the relay when the engine is cranked or running. The 86 terminal is tied to the ignition switch, providing a 12V signal when the key is turned. The 30 terminal receives constant battery voltage, while the 87 terminal delivers power to the fuel pump when the relay is activated. A fused connection from the battery ensures safety, preventing overcurrent that could damage the system. This layout is designed for reliability, with fail-safes to prevent the pump from running unnecessarily.
For those troubleshooting a fuel pump issue, the wiring diagram is invaluable. Start by verifying power at the 30 terminal with the ignition on. If absent, check the fuse and wiring from the battery. Next, test the 87 terminal for power when cranking; if missing, the relay or its control circuit may be faulty. Use a multimeter to confirm continuity between 85 and 86 when activated. If the relay clicks but the pump doesn’t run, inspect the wiring between 87 and the fuel pump for breaks or corrosion. Always disconnect the battery before working on the electrical system to avoid shorts.
Comparing the 2005 STI’s fuel pump relay wiring to other models highlights Subaru’s consistency in design. While newer models may incorporate additional safety features or CAN bus integration, the core principles remain the same. The STI’s relay is robust, designed to handle the high-performance demands of the vehicle. However, its exposed location under the hood makes it susceptible to corrosion from moisture and debris. Regular inspection and cleaning of the relay and its terminals can prevent intermittent issues, ensuring the fuel system operates flawlessly.
In conclusion, the fuel pump relay wiring diagram for the 05 Subaru STI is a blueprint for both maintenance and troubleshooting. Its simplicity belies its importance, as it directly impacts engine performance and reliability. By understanding the roles of each terminal and the flow of power, enthusiasts and mechanics alike can diagnose issues efficiently. Whether upgrading the fuel system or resolving a no-start condition, this diagram is an indispensable tool for anyone working on this iconic vehicle.
Why Your Fuel Transfer Pump Isn't Safe for Gasoline: Key Reasons
You may want to see also
Frequently asked questions
The fuel pump relay in a 2005 Subaru STI is located in the fuse and relay box under the hood, typically on the driver's side near the battery.
The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" on the underside of the fuse box cover. It is a small, rectangular relay with several pins.
Yes, you can test the relay by swapping it with another relay of the same type in the fuse box (e.g., the A/C relay) to see if the issue persists. You can also use a multimeter to check for continuity and proper function.
Common symptoms include the engine not starting, stalling, or difficulty starting, especially if the fuel pump is not priming when the ignition is turned on.
