The fuel pump on a 1995 Subaru Legacy is typically located inside the fuel tank, a common design for many vehicles of that era. This placement helps maintain fuel pressure and ensures a consistent supply to the engine. To access the fuel pump, you’ll need to remove the fuel tank, which involves disconnecting the fuel lines, electrical connectors, and tank straps. This task requires basic mechanical skills and safety precautions, such as relieving fuel system pressure and working in a well-ventilated area. If you’re unsure, consulting a repair manual or seeking professional assistance is recommended to avoid potential hazards.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |

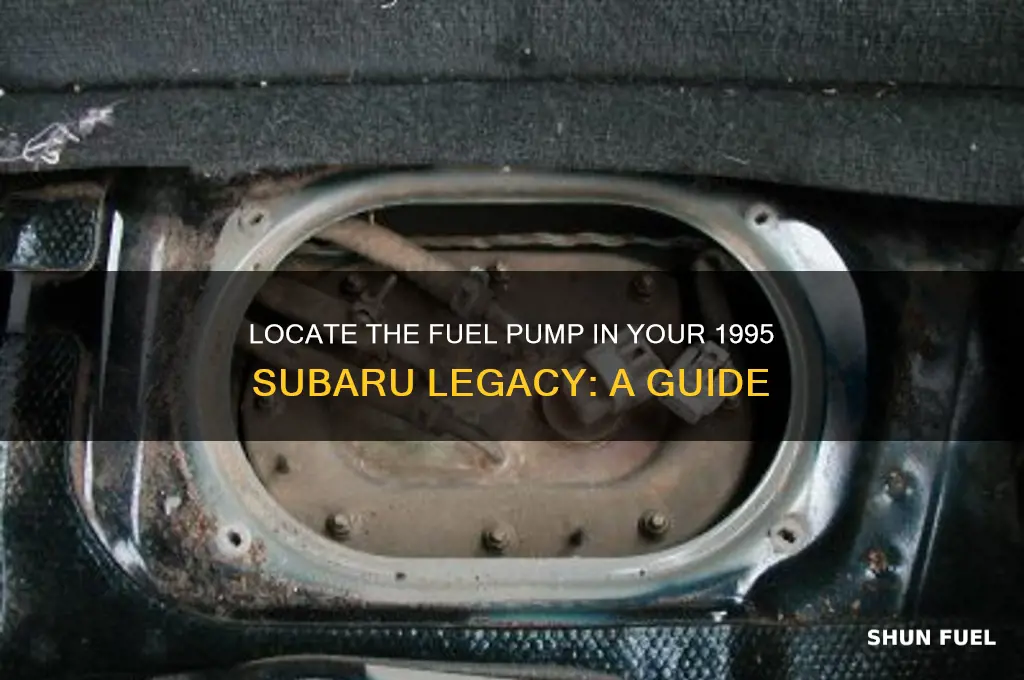

| Access Method | Requires removing the rear seat and fuel pump access panel |
| Fuel Tank Location | Beneath the rear seat area |
| Pump Type | Electric fuel pump |
| Compatibility | Specific to 1995 Subaru Legacy models |
| Replacement Difficulty | Moderate (requires specialized tools and knowledge) |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical connection problems |
| Maintenance Tips | Regularly check fuel filter and connections; replace pump if faulty |
| Safety Precautions | Ensure vehicle is on a level surface, disconnect battery before servicing |
| Tools Required | Socket set, screwdriver, fuel line disconnect tool, jack, jack stands |
Explore related products
What You'll Learn
Fuel pump location in 1995 Subaru Legacy
The fuel pump in a 1995 Subaru Legacy is located inside the fuel tank, a common placement for in-tank fuel pumps in many vehicles of that era. This design helps maintain fuel pressure and reduces the risk of vapor lock, especially during hot weather. To access the fuel pump, you’ll need to remove the fuel tank, which involves disconnecting the fuel lines, electrical connectors, and tank straps. This task requires basic mechanical skills and safety precautions, such as relieving fuel system pressure and working in a well-ventilated area to avoid fire hazards.
Analyzing the design choice of an in-tank fuel pump reveals Subaru’s focus on efficiency and reliability. By submerging the pump in fuel, it stays cooler, reducing the chance of overheating and extending its lifespan. However, this placement also means that replacing the fuel pump is more labor-intensive compared to external pumps. For a 1995 Subaru Legacy owner, understanding this trade-off is crucial when diagnosing fuel system issues or planning maintenance.
If you suspect your fuel pump is failing—symptoms include sputtering, stalling, or difficulty starting—replacing it is a straightforward but involved process. Begin by safely raising the vehicle and removing the fuel tank. Once the tank is accessible, drain the remaining fuel and disconnect the pump’s electrical and fuel lines. Remove the retaining ring or bolts securing the pump assembly, then install the new unit, ensuring all connections are tight and sealed. Reinstall the tank and test the system for leaks before driving.
Comparing the 1995 Subaru Legacy’s fuel pump location to newer models highlights evolutionary changes in automotive design. Modern Subaru vehicles often retain the in-tank pump but incorporate advanced diagnostics and quieter operation. For Legacy owners, this historical context underscores the importance of adhering to proven maintenance practices while being aware of technological advancements in later models.
A practical tip for DIYers: invest in a fuel line disconnect tool to avoid damaging the quick-connect fittings during removal. Additionally, use a fuel pump module lock ring tool to safely remove and reinstall the pump assembly without stripping threads. These tools, available at most auto parts stores, can save time and frustration, ensuring a smooth repair process. By understanding the fuel pump’s location and the steps involved in replacement, 1995 Subaru Legacy owners can tackle this task with confidence.
Locating the High-Performance 50 HP Mercury Four-Stroke Fuel Pump
You may want to see also
Explore related products
Identifying the fuel pump assembly
The fuel pump assembly in a 1995 Subaru Legacy is a critical component nestled within the fuel tank, requiring careful identification to avoid misdiagnosis or damage during maintenance. Unlike external components, the fuel pump is not immediately visible, making its location a common point of confusion for DIY mechanics. To begin, locate the fuel tank, typically situated beneath the rear seat or cargo area, depending on the model. Understanding the layout of the tank and its associated components is the first step in pinpointing the fuel pump assembly.
A practical tip for identifying the fuel pump assembly is to consult the vehicle’s service manual, which provides detailed diagrams and step-by-step instructions. For the 1995 Subaru Legacy, the manual highlights the assembly’s position within the tank and the specific tools needed for removal, such as a fuel line disconnect tool and a socket set. If the manual is unavailable, online forums and video tutorials often offer visual guidance, though verifying the accuracy of such resources is crucial. Always ensure the vehicle is on a level surface and the fuel tank is as empty as possible before attempting any work.
Comparatively, newer vehicles often feature more accessible fuel pump assemblies, but the 1995 Subaru Legacy’s design requires a more hands-on approach. The assembly’s integration with the fuel tank means that symptoms like engine sputtering or failure to start could indicate pump failure, but other issues, such as a clogged filter or faulty relay, must be ruled out first. Testing the pump’s operation by listening for its hum when the ignition is turned on can provide initial diagnostic insight, though a multimeter is necessary for a definitive electrical test.
In conclusion, identifying the fuel pump assembly in a 1995 Subaru Legacy demands a blend of knowledge and caution. Familiarize yourself with the fuel system’s layout, use reliable resources for guidance, and prioritize safety when accessing the tank. By understanding the assembly’s components and their functions, you can approach maintenance or replacement with confidence, ensuring the longevity and reliability of your vehicle’s fuel delivery system.
BMW E60 Fuel Pump Relay Location: A Comprehensive Guide
You may want to see also
Explore related products
Accessing the fuel tank area
The fuel pump in a 1995 Subaru Legacy is located inside the fuel tank, a common placement for in-tank fuel pumps in many vehicles of that era. Accessing the fuel tank area is a critical step in replacing or servicing the fuel pump, but it requires careful preparation and execution to ensure safety and efficiency. Before beginning, ensure the vehicle is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage and fire hazards.
To access the fuel tank area, start by locating the fuel tank itself, which is typically positioned beneath the rear seat or cargo area in the 1995 Subaru Legacy. Remove the rear seat or trunk lining to expose the tank’s access panel. This panel is secured by screws or clips, which should be carefully removed to avoid damaging the interior components. Once the panel is off, you’ll see the fuel pump module, which includes the pump, sender unit, and fuel lines. Disconnect the negative battery terminal to prevent accidental electrical shorts during the process.
Next, relieve the fuel system pressure to avoid fuel spray when the lines are disconnected. Locate the fuel pressure relief valve, often found near the fuel rail on the engine, and depress it to release pressure. If your vehicle lacks this valve, consult the repair manual for alternative methods. After relieving pressure, disconnect the fuel lines and electrical connectors attached to the fuel pump module. Use appropriate tools to avoid damaging the quick-disconnect fittings or wiring harnesses.
With the connections detached, the fuel pump module can be removed from the tank. Depending on the design, this may involve unscrewing a locking ring or using a specialized tool to release the module. Be cautious not to drop debris into the tank during removal. Once the module is out, inspect the tank for signs of corrosion or damage, as these issues can affect the performance of a new fuel pump. Reinstallation follows the reverse process, ensuring all connections are secure and the access panel is properly reattached.
Where is the Electric Fuel Pump Typically Mounted in Vehicles?
You may want to see also
Explore related products
Tools needed for fuel pump removal
Removing the fuel pump from a 1995 Subaru Legacy requires a specific set of tools to ensure the job is done safely and efficiently. The fuel pump is located inside the fuel tank, which means you’ll need to access and remove the tank first. This process involves working with fuel lines and electrical connections, so having the right tools is critical to avoid spills, leaks, or damage. Here’s a breakdown of the essential tools you’ll need for the task.
Step 1: Gather the Basic Hand Tools
Start with a standard socket set, including metric sizes (typically 10mm, 12mm, and 14mm for Subaru models). You’ll need these to remove bolts securing the fuel tank straps and the tank itself. A flathead and Phillips screwdriver are also necessary for prying and removing screws on the fuel pump assembly. Additionally, a pair of adjustable wrenches or pliers will help loosen fuel lines and clamps securely without damaging them. Keep a rag or absorbent cloth handy to catch any fuel that may spill during disconnection.
Step 2: Specialized Tools for Fuel System Work
To safely disconnect the fuel lines, invest in a fuel line disconnect tool. This tool is designed to release the spring clips on the fuel lines without causing damage or creating leaks. A fuel pump module removal tool may also be required if the pump is part of a larger assembly, as it helps extract the unit without harming the tank. For electrical connections, a small flathead screwdriver or a terminal removal tool will help detach the wiring harness cleanly.
Step 3: Safety and Preparation Tools
Safety should never be overlooked when working with fuel systems. A pair of nitrile gloves will protect your skin from fuel exposure, while safety goggles shield your eyes from accidental splashes. A fire extinguisher should be nearby as a precaution, though working in a well-ventilated area and avoiding open flames are equally important. Before starting, use a fuel pump pressure tester to relieve pressure in the system, reducing the risk of fuel spraying during disassembly.
Cautions and Practical Tips
Always work on the vehicle with the engine cool and the ignition off to prevent accidental starts. Disconnect the battery to eliminate any electrical hazards. When removing the fuel tank, ensure it’s as empty as possible to reduce weight and spill risks. If you encounter rusted or stubborn bolts, apply penetrating oil and allow it to sit for 15–20 minutes before attempting removal. Finally, label or take photos of connections before disconnecting them to simplify reassembly.
By equipping yourself with these tools and following these precautions, you’ll be well-prepared to tackle the fuel pump removal on your 1995 Subaru Legacy with confidence and precision.
Step-by-Step Guide to Installing a Fuel Pump on Mitsubishi Tractors
You may want to see also
Explore related products
Safety precautions for fuel pump replacement
Fuel pump replacement on a 1995 Subaru Legacy is not a task to be taken lightly, especially when considering the inherent risks associated with handling fuel systems. Before even locating the fuel pump, which is typically situated inside the fuel tank, it's crucial to prioritize safety. One of the most critical precautions is to relieve the fuel system pressure. This involves locating the fuel pressure relief valve or using a specialized tool to release the pressure safely. Failure to do this can result in fuel spraying or, worse, a fuel-related fire.
In the context of a 1995 Subaru Legacy, working on the fuel system requires a well-ventilated area, preferably outdoors, to minimize the risk of inhaling fuel vapors. Always wear safety goggles and nitrile gloves to protect your eyes and skin from fuel exposure. Fuel is not only flammable but also harmful if it comes into contact with your skin or eyes. Additionally, ensure that no open flames or sparks are present in the vicinity, as even a small spark can ignite fuel vapors.
Another essential safety measure is to disconnect the battery before beginning any work on the fuel system. This prevents accidental ignition of fuel vapors due to electrical shorts. For the 1995 Subaru Legacy, the battery is typically located in the engine bay, and disconnecting it involves removing the negative terminal first, followed by the positive terminal. This simple step significantly reduces the risk of electrical sparks that could lead to a fire.
When removing the fuel tank to access the pump, it’s vital to support the tank properly to avoid dropping it, which could cause damage or spillage. Use a jack or a secure stand to hold the tank in place while you disconnect the fuel lines and electrical connectors. Always clean any spilled fuel immediately and ensure the area is free of debris that could ignite. After replacement, carefully inspect all connections for leaks and test the system before driving the vehicle.
Finally, proper disposal of the old fuel pump and any residual fuel is a safety and environmental concern. Local regulations often dictate how to dispose of hazardous materials like fuel and fuel-contaminated parts. Check with your local waste management facility for guidelines. By adhering to these safety precautions, you not only protect yourself but also ensure a successful and hazard-free fuel pump replacement on your 1995 Subaru Legacy.
Step-by-Step Guide to Repairing Your Fuel Pump Wire Easily
You may want to see also
Frequently asked questions
The fuel pump on a 1995 Subaru Legacy is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle.
To access the fuel pump, you’ll need to remove the rear seat cushion, locate the fuel pump access panel, and then disconnect the electrical connectors and fuel lines before removing the pump from the tank.
Yes, common issues include fuel pump failure, which can cause the engine to stall or not start. Symptoms may include difficulty starting, sputtering, or a lack of power. Regular maintenance and timely replacement can prevent these problems.
