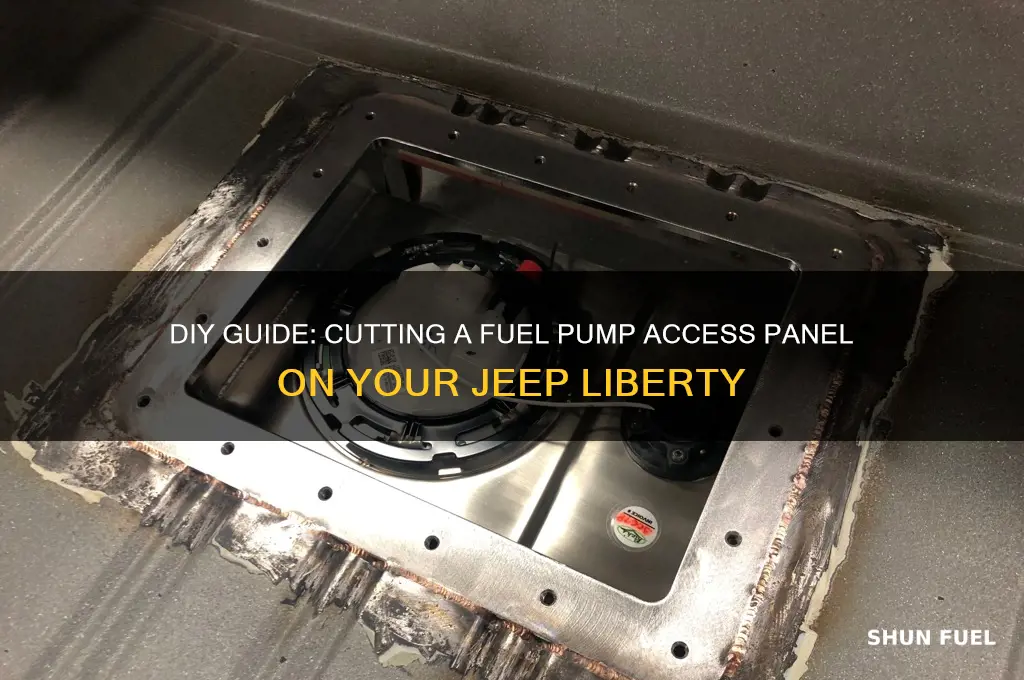

Cutting a fuel pump access panel on a Jeep Liberty is a task that requires precision and the right tools to ensure safety and efficiency. This process is often necessary when accessing the fuel pump for maintenance, repairs, or replacement. To begin, gather the necessary materials, including a rotary tool or metal-cutting blade, safety gear such as gloves and goggles, and a marker to outline the panel. Start by locating the fuel pump area, typically beneath the rear seat, and carefully measure and mark the dimensions of the access panel. Using the cutting tool, follow the marked lines, ensuring a clean and straight cut to avoid damaging surrounding components. Once the panel is removed, inspect the fuel pump area and proceed with the intended maintenance, always prioritizing safety and following manufacturer guidelines.
| Characteristics | Values |
|---|---|
| Vehicle Model | Jeep Liberty |
| Panel Location | Rear of the vehicle, under the rear seat or cargo area |
| Tools Required | Dremel or rotary tool with a metal cutting wheel, marker, ruler, safety gear (gloves, eye protection), and a drill with a pilot hole bit |
| Panel Size | Approximately 6" x 6" (customizable based on fuel pump module size) |
| Cutting Process | 1. Locate the fuel pump module. 2. Mark the panel outline using a ruler and marker. 3. Drill pilot holes at corners to prevent cracking. 4. Use the Dremel to cut along the marked lines. 5. Smooth edges with a file or sandpaper. |
| Safety Precautions | Disconnect the battery, work in a well-ventilated area, avoid sparks near fuel vapors, and wear appropriate safety gear. |
| Alternative Methods | Some use a jigsaw or reciprocating saw with a metal-cutting blade, but a Dremel is more precise for tight spaces. |
| Post-Cut Steps | Clean the area, inspect for sharp edges, and install an access panel cover if desired. |
| Difficulty Level | Moderate (requires precision and caution) |
| Time Required | 1-2 hours, depending on experience and tools used. |
Explore related products
What You'll Learn
- Tools Needed: Gather tin snips, drill, safety gear, marker, and measuring tape for precise panel cutting
- Panel Location: Identify the fuel pump access area under the rear seat
- Marking the Cut: Outline the panel shape using a template or measurements for accuracy
- Cutting Technique: Use tin snips or a nibbler to carefully cut along marked lines
- Finishing Edges: Smooth sharp edges with a file or sandpaper to prevent injuries
Tools Needed: Gather tin snips, drill, safety gear, marker, and measuring tape for precise panel cutting
Cutting a fuel pump access panel on a Jeep Liberty requires precision and the right tools. Among the essentials are tin snips, a drill, safety gear, a marker, and measuring tape. Each tool plays a specific role in ensuring the panel is cut accurately and safely. Tin snips are ideal for cutting through the metal with control, while a drill can be used to create pilot holes or secure new components. Safety gear, including gloves and eye protection, is non-negotiable to prevent injuries from sharp metal edges or debris. A marker and measuring tape ensure measurements are accurate, reducing the risk of mistakes that could compromise the vehicle’s integrity.
Analyzing the tools further, tin snips come in various types—straight, left-cutting, and right-cutting—each suited for different angles and cuts. For this task, straight-cut tin snips are often the best choice for making long, straight lines. The drill, paired with a metal-cutting bit, can be used to start cuts or create mounting points for a new access panel. Safety gear, such as cut-resistant gloves and safety goggles, protects against sharp metal shards and flying debris. The marker and measuring tape are crucial for outlining the cut area, ensuring symmetry and alignment with the vehicle’s design. Without these tools, the process becomes cumbersome and error-prone.
From a practical standpoint, the sequence of tool use matters. Begin by using the measuring tape and marker to outline the panel dimensions, ensuring the cut aligns with the fuel pump’s location. Next, use the drill to create starter holes at the corners of the marked area, which prevents the metal from warping when cutting. Then, employ the tin snips to carefully cut along the marked lines, using the starter holes as guides. Throughout the process, wear safety gear to mitigate risks. This methodical approach ensures the panel is removed cleanly, minimizing the need for extensive refinishing or repairs.
Comparatively, while some may attempt this task with generic cutting tools, the precision of tin snips and the versatility of a drill make them indispensable. Alternatives like angle grinders, though faster, can be harder to control and increase the risk of uneven cuts or damage to surrounding areas. The marker and measuring tape, often overlooked, are critical for achieving professional results, especially in a vehicle where aesthetics and functionality must align. Investing in the right tools not only simplifies the task but also ensures the longevity of the repair.
In conclusion, gathering the correct tools—tin snips, a drill, safety gear, a marker, and measuring tape—transforms a daunting task into a manageable project. Each tool serves a distinct purpose, from ensuring accurate measurements to executing clean cuts and maintaining safety. By prioritizing precision and preparedness, even a novice can successfully cut a fuel pump access panel on a Jeep Liberty, saving time and potential repair costs. This approach underscores the importance of equipping oneself with the right resources before tackling vehicle modifications.
Wiring a Fuel Pump Relay: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Panel Location: Identify the fuel pump access area under the rear seat
The fuel pump access panel in a Jeep Liberty is strategically located beneath the rear seat, a design choice that balances accessibility with protection. This area is shielded from external elements and everyday wear, ensuring the fuel pump remains secure while still allowing for necessary maintenance. Identifying this spot is the first critical step in any repair or replacement process, as it sets the stage for efficient and safe work.
To locate the panel, begin by removing the rear seat. In most Jeep Liberty models, this involves lifting the seat cushion and unsnapping or unbolting the seatback. Once removed, you’ll expose the vehicle’s floor, where the access panel is typically situated. Look for a rectangular or square-shaped cover, often made of thin metal or plastic, which may be marked with a label or embossed with the words “Fuel Pump Access.” If unmarked, it’s usually positioned near the center of the vehicle, aligned with the fuel tank below.
A comparative analysis of Jeep Liberty models reveals slight variations in panel placement depending on the year and trim. For instance, earlier models (2002–2007) often have the panel directly under the seat, while later models (2008–2012) may offset it slightly to accommodate redesigned fuel systems. Always consult your vehicle’s manual or a trusted repair guide to confirm the exact location for your specific model.
When identifying the panel, take note of surrounding components to avoid accidental damage. Nearby elements like wiring harnesses, insulation, or structural supports should be carefully avoided during the cutting process. A practical tip is to use a bright flashlight or underbody light to illuminate the area, ensuring you don’t mistake other panels or components for the fuel pump access point.
In conclusion, pinpointing the fuel pump access panel under the rear seat is a straightforward yet crucial task. By understanding its typical location, accounting for model-specific variations, and exercising caution around adjacent components, you’ll set a solid foundation for the next steps in your repair or maintenance project.
Does the Volkswagen CC Have Two Fuel Pumps? Explained
You may want to see also
Explore related products
Marking the Cut: Outline the panel shape using a template or measurements for accuracy
Precision is paramount when marking the cut for a fuel pump access panel on a Jeep Liberty. A single mismeasurement can lead to an uneven edge, compromised structural integrity, or even damage to surrounding components. To avoid these pitfalls, begin by sourcing a template specifically designed for your Jeep Liberty’s model year. Many automotive forums and aftermarket suppliers offer downloadable templates or pre-cut panels that align with factory specifications. If a template isn’t available, take meticulous measurements of the fuel pump area, ensuring symmetry and clearance for tools and hands during future maintenance.
Instructively, start by cleaning the underbody area around the fuel pump to ensure the template or markings adhere securely. If using a template, secure it with painter’s tape or a temporary adhesive, double-checking alignment with nearby structural points like frame rails or mounting brackets. For manual measurements, use a straightedge and a permanent marker to outline the panel shape, adding a 1/8-inch buffer around the perimeter to account for blade width. Always verify the outline’s position by comparing it to service manuals or online diagrams specific to your Jeep Liberty’s generation.
Persuasively, investing time in accurate marking pays dividends in both safety and aesthetics. A cleanly outlined panel not only simplifies the cutting process but also minimizes the risk of debris entering the fuel system during installation. Moreover, a precise cut ensures the access panel fits snugly, maintaining the vehicle’s underbody aerodynamics and rust protection. Skipping this step or rushing through it can lead to costly rework, including potential repairs to the fuel tank or exhaust system.
Comparatively, while some enthusiasts advocate for freehand cutting based on visual estimates, this approach often results in jagged edges or misaligned panels. Templates or measurements, on the other hand, provide a repeatable and reliable method, especially for those with limited fabrication experience. For instance, a 2005 Jeep Liberty owner using a template reported completing the marking process in under 15 minutes, whereas another who relied on guesswork spent over an hour correcting errors. The takeaway is clear: accuracy upfront saves time and frustration downstream.
Descriptively, imagine the underbody of your Jeep Liberty as a canvas where the access panel is a carefully framed window. The outline you create should be sharp and deliberate, resembling the precision of a factory-installed component. Use a bright, contrasting marker to ensure visibility in dimly lit workspaces, and consider adding hash marks or reference points along the outline to guide your cuts. By treating this step as a blend of art and science, you’ll achieve a result that’s both functional and visually satisfying.
Step-by-Step Guide to Removing a 3-Cylinder Fuel Injection Pump
You may want to see also
Explore related products
$4.99
Cutting Technique: Use tin snips or a nibbler to carefully cut along marked lines
Cutting a fuel pump access panel on a Jeep Liberty requires precision and the right tools. Tin snips or a nibbler are ideal for this task because they allow for controlled, clean cuts along marked lines without damaging surrounding metal. Unlike a reciprocating saw or angle grinder, these tools minimize the risk of jagged edges or excessive material removal, ensuring a professional finish.
When using tin snips, select the appropriate type—straight, left-cut, or right-cut—based on the direction of your cut. Begin by aligning the snips with the marked line and apply steady pressure to avoid deviating from the path. For tighter curves or intricate shapes, a nibbler is superior. This tool punches small, overlapping holes along the line, creating a smooth edge. Both tools require patience; rushing can lead to uneven cuts or tool slippage, compromising the panel’s integrity.
A critical step before cutting is securing the panel firmly in place. Use clamps or a vice to prevent movement, which can cause inaccuracies or accidents. Mark your cutting lines clearly with a permanent marker or scribe, double-checking measurements to ensure alignment with the fuel pump’s location. If the panel is still attached to the vehicle, mask surrounding areas with tape to protect paint and adjacent components from scratches or debris.
While tin snips and nibblers are effective, they have limitations. Tin snips work best on thinner gauge metals, typically up to 22 gauge, so verify the panel’s thickness beforehand. Nibblers, though versatile, generate metal shavings that can scatter; use a drop cloth or vacuum attachment to contain them. Always wear safety gear, including gloves and eye protection, as sharp metal edges and flying debris pose risks.
The takeaway is that precision tools like tin snips and nibblers offer control and accuracy when cutting a fuel pump access panel. By prioritizing careful planning, proper tool selection, and safety measures, you can achieve a clean, functional cut that facilitates fuel pump access without compromising the vehicle’s structure. This approach not only saves time but also ensures a result that meets professional standards.
Running an Electric Fuel Pump with a Carburetor: A Step-by-Step Guide
You may want to see also
Explore related products
Finishing Edges: Smooth sharp edges with a file or sandpaper to prevent injuries
Sharp edges on a freshly cut fuel pump access panel aren't just unsightly—they're hazardous. A snagged finger or torn glove can turn a routine repair into a trip to the emergency room. Smoothing these edges is a critical final step, transforming a rough cut into a safe, professional finish.
A file or sandpaper becomes your weapon of choice here. For coarse edges left by a jigsaw or reciprocating saw, start with a medium-grit file (80-120 grit). Work in smooth, even strokes, following the natural contour of the panel. Think of it as sculpting, gradually refining the edge until it's free of burrs and sharp points.
Sandpaper offers more control for finer finishing. Begin with a grit similar to your file (120 grit) and progress to finer grits (220, 400) for a smoother, more polished result. Wrap the sandpaper around a block of wood for even pressure and to prevent rounding over the edge. Pay particular attention to corners and areas where the cut may have been uneven.
Remember, safety is paramount. Wear gloves to protect your hands from metal shavings and always file or sand in a well-ventilated area. A respirator is recommended when working with metal dust.
This seemingly minor step of edge smoothing has a significant impact. It not only prevents injuries but also protects fuel lines and other components from damage caused by sharp edges. A smooth edge also makes future access to the fuel pump easier and safer. Think of it as an investment in both your safety and the longevity of your Jeep Liberty.
Accessing the Fuel Pump in Your 2003 Honda Civic: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need a reciprocating saw or a rotary cutoff tool with a metal-cutting blade, safety gear (gloves, goggles, and a mask), a marker, a ruler or straight edge, and a drill with a metal bit to start the cut.
The fuel pump access panel is typically located on the top of the fuel tank, which is situated underneath the rear seat area. You’ll need to remove the rear seats and the carpet to access it.
Yes, ensure the vehicle is on a level surface, the engine is off, and the battery is disconnected. Work in a well-ventilated area, avoid sparks near the fuel tank, and have a fire extinguisher nearby. Always wear protective gear to prevent injury from sharp metal edges.
