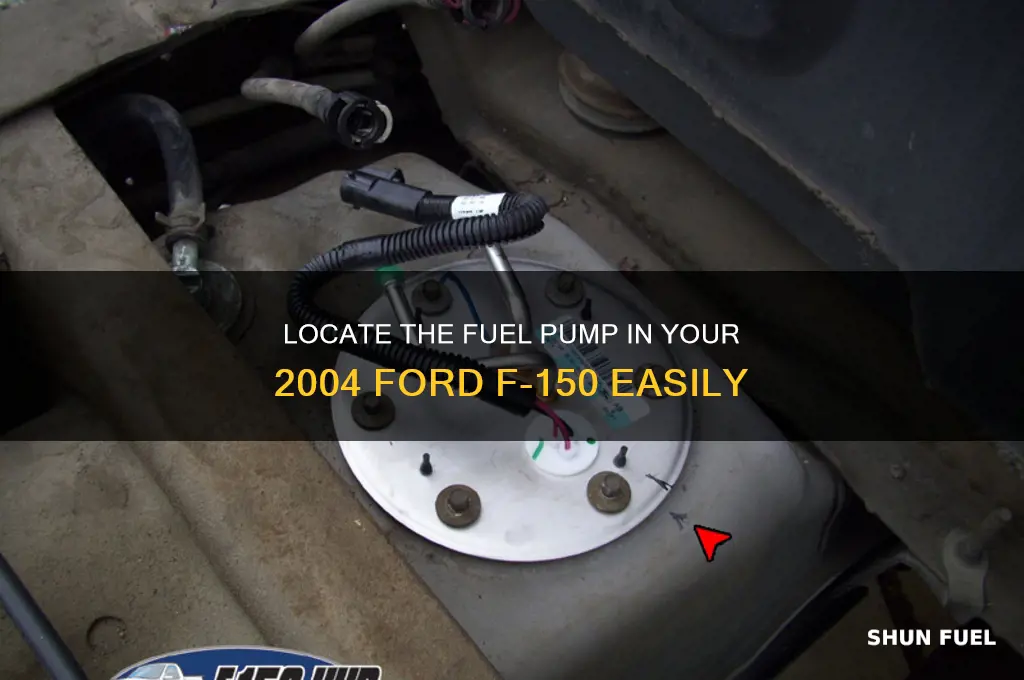

The fuel pump on a 2004 Ford F-150 is typically located inside the fuel tank, which is situated beneath the truck bed, near the rear axle on the driver's side. Accessing the fuel pump requires removing the truck bed or dropping the fuel tank, a process that involves disconnecting the fuel lines, electrical connectors, and tank straps. This task is often considered intermediate to advanced in difficulty due to the need for specialized tools and safety precautions, such as relieving fuel system pressure and working in a well-ventilated area. Consulting the vehicle’s service manual or seeking professional assistance is recommended for accurate and safe replacement or maintenance.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank for access |
| Fuel Tank Location | Beneath the vehicle, near the rear axle |
| Tank Removal Necessity | Yes, the fuel tank must be lowered to replace the fuel pump |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and a new fuel pump module |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, and work in a ventilated area |
| Model Specifics | Applies to 2004 Ford F-150 models with in-tank fuel pumps |
| Difficulty Level | Moderate to difficult, recommended for experienced DIYers or professionals |
| Estimated Time | 2-4 hours depending on experience and tools |
| Common Issues | Fuel pump failure leading to no-start condition or poor engine performance |
Explore related products
What You'll Learn
Fuel Pump Location in Engine Bay
The fuel pump in a 2004 Ford F-150 is not located in the engine bay, contrary to what one might expect. Instead, it is situated within the fuel tank, a design choice common in many modern vehicles to reduce the risk of fuel line fires and improve fuel system efficiency. This in-tank placement means that accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions. Before starting, ensure the vehicle is on a level surface, the ignition is off, and the fuel system pressure is relieved to minimize hazards.
Understanding the fuel pump’s location is crucial for diagnostics and maintenance. Symptoms of a failing fuel pump—such as sputtering, stalling, or difficulty starting—often prompt owners to investigate. While the pump itself is in the tank, related components like the fuel inertia switch (a safety feature that cuts power to the pump in a collision) are located in the engine bay or passenger compartment, depending on the model. This distinction highlights the importance of knowing both the primary and secondary components of the fuel system when troubleshooting.
For those attempting to replace the fuel pump, the process involves draining the fuel tank, lowering it from the vehicle, and carefully removing the pump assembly. This is not a beginner-friendly task, as it requires specialized tools and a clear understanding of fuel system safety. DIYers should consider renting or purchasing a fuel line disconnect tool to avoid spills and accidents. Professional installation is recommended for those unsure of their mechanical skills, as improper handling can lead to costly repairs or safety risks.
Comparing the 2004 Ford F-150 to earlier models reveals a shift in fuel pump design. Older vehicles often featured external fuel pumps mounted in the engine bay or along the chassis, which were more accessible but less safe. The in-tank design, while more secure, complicates repairs. This evolution underscores the trade-offs between safety and convenience in automotive engineering, a factor worth considering when choosing between older and newer models for maintenance purposes.
In summary, the fuel pump on a 2004 Ford F-150 is located inside the fuel tank, not the engine bay. This design prioritizes safety but requires careful planning and execution for repairs. Familiarizing oneself with the fuel system’s layout, including related components like the inertia switch, can streamline diagnostics. Whether tackling the job independently or seeking professional help, understanding this unique placement is key to addressing fuel pump issues effectively.
