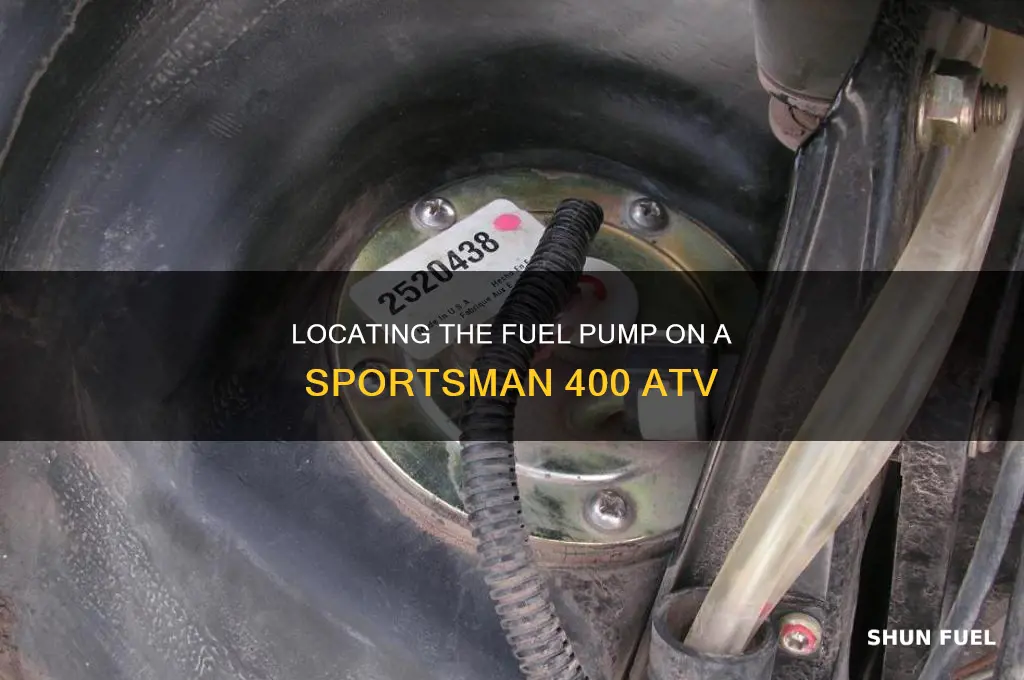

Locating the Fuel Pump on a Sportsman 400
The fuel pump on a Polaris Sportsman 400 is typically located inside the fuel tank, a common design in many ATVs to protect the pump from external damage and maintain fuel system integrity. This placement requires removing the fuel tank to access the pump, which can be a straightforward process if approached methodically. Begin by ensuring the ATV is on a level surface and the engine is cool to prevent accidents. Disconnect the battery to eliminate any risk of electrical mishaps during the process.
To access the fuel pump, start by relieving the fuel system pressure by loosening the fuel cap. Next, remove the seat and any plastic panels covering the fuel tank. Disconnect the fuel lines and electrical connectors attached to the tank, taking note of their positions for reassembly. Securely support the tank and remove the mounting bolts to lower it gently. Once the tank is accessible, the fuel pump module can be seen at the top, often secured with a locking ring or screws. Carefully remove the pump assembly, ensuring no debris enters the tank during the process.
When replacing the fuel pump, ensure the new unit is compatible with the Sportsman 400’s fuel system specifications. Reinstallation follows the reverse order of removal, with a critical emphasis on sealing the tank properly to prevent leaks. Use a new gasket if required, and reattach all fuel lines and electrical connectors securely. After reassembly, reconnect the battery and check for leaks by running the engine briefly. This systematic approach minimizes errors and ensures the fuel system operates efficiently.
Comparing the Sportsman 400’s fuel pump location to other ATV models highlights its practicality. Unlike external pumps, which are more exposed to damage, the in-tank design offers durability and reliability. However, this design necessitates more labor-intensive maintenance, making it essential to follow a precise procedure. For DIY enthusiasts, investing in a service manual specific to the Sportsman 400 can provide detailed diagrams and troubleshooting tips, ensuring a successful repair.
In summary, locating and servicing the fuel pump on a Sportsman 400 requires careful planning and execution. By understanding the pump’s in-tank placement and following a step-by-step process, owners can address fuel system issues effectively. This knowledge not only saves time and money but also extends the ATV’s lifespan, ensuring it remains a reliable companion for outdoor adventures.
