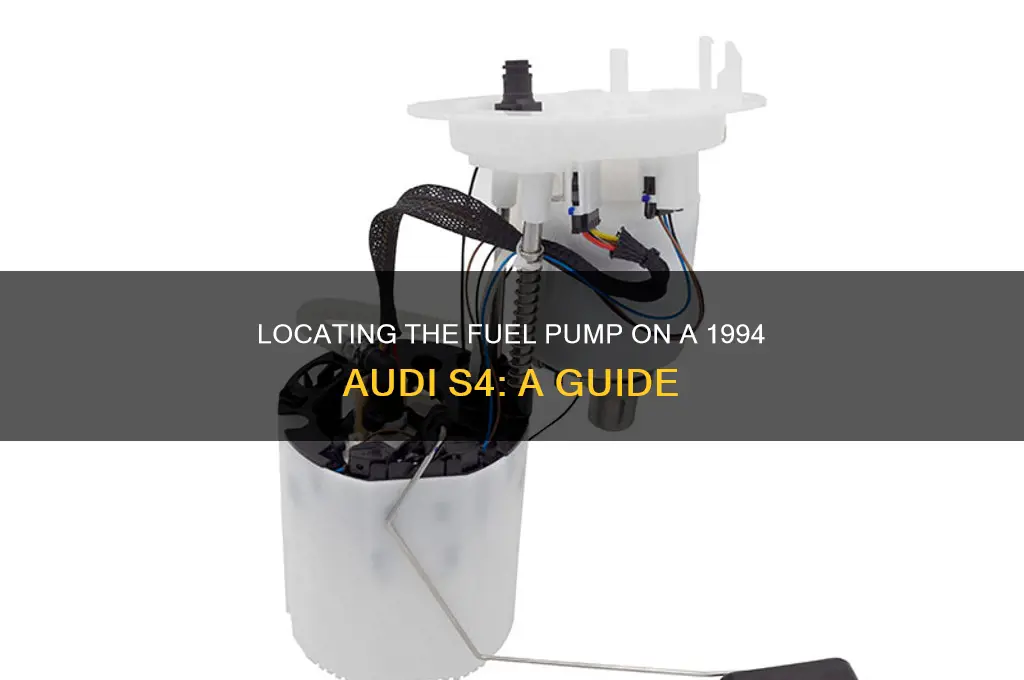

The fuel pump on a 1994 Audi S4 is typically located inside the fuel tank, a common placement for in-tank fuel pumps in many vehicles of that era. To access it, you’ll need to remove the rear seat or a dedicated access panel in the trunk, depending on the specific model configuration. Once the access point is exposed, you can disconnect the electrical connector and fuel lines before lowering the fuel tank slightly or removing it entirely to replace the pump. This process requires caution due to the presence of fuel and the need to relieve fuel system pressure beforehand. Always consult the vehicle’s service manual for detailed instructions specific to the Audi S4.
Explore related products
What You'll Learn
Fuel pump location in Audi S4 1994 model
The Audi S4 1994 model, a classic in the Audi lineup, houses its fuel pump in a location that requires some familiarity with the vehicle’s undercarriage. Specifically, the fuel pump is integrated into the fuel tank, a common design for many vehicles of that era. This placement ensures the pump operates efficiently by being submerged in fuel, which helps with cooling and reduces the risk of cavitation. To access the fuel pump, you’ll need to locate the fuel tank, typically found beneath the rear seat or trunk area, depending on the vehicle’s configuration.
For DIY enthusiasts or mechanics working on a 1994 Audi S4, accessing the fuel pump involves several steps. First, ensure the vehicle is on a level surface and the fuel tank is as empty as possible to minimize spillage. Disconnect the negative battery terminal to prevent electrical hazards. Next, remove the rear seat or trunk lining to expose the fuel tank access panel. Once the panel is removed, you’ll find the fuel pump assembly, which includes the pump, sender unit, and fuel lines. Be cautious when handling fuel lines to avoid leaks or damage.
Comparing the 1994 Audi S4’s fuel pump location to modern vehicles highlights how design priorities have evolved. In newer models, fuel pumps are often more accessible, with quick-disconnect fittings and modular designs that simplify replacement. However, the 1994 S4’s in-tank design was ahead of its time in terms of reliability and efficiency, even if it requires more effort to access. This comparison underscores the trade-offs between durability and convenience in automotive engineering.
A practical tip for diagnosing fuel pump issues in the 1994 Audi S4 is to listen for the pump’s priming cycle when the ignition is turned on. If no sound is heard, the pump may be faulty or inaccessible due to a dead battery or wiring issue. Additionally, checking the fuel pressure with a gauge can confirm whether the pump is functioning correctly. If replacement is necessary, consider using OEM parts to ensure compatibility and longevity, as aftermarket options may vary in quality.
In conclusion, understanding the fuel pump’s location in the 1994 Audi S4 is crucial for maintenance and troubleshooting. Its in-tank placement, while less accessible than modern designs, offers reliability and efficiency. By following proper procedures and leveraging diagnostic techniques, owners can address fuel pump issues effectively, ensuring their classic Audi continues to perform optimally.
