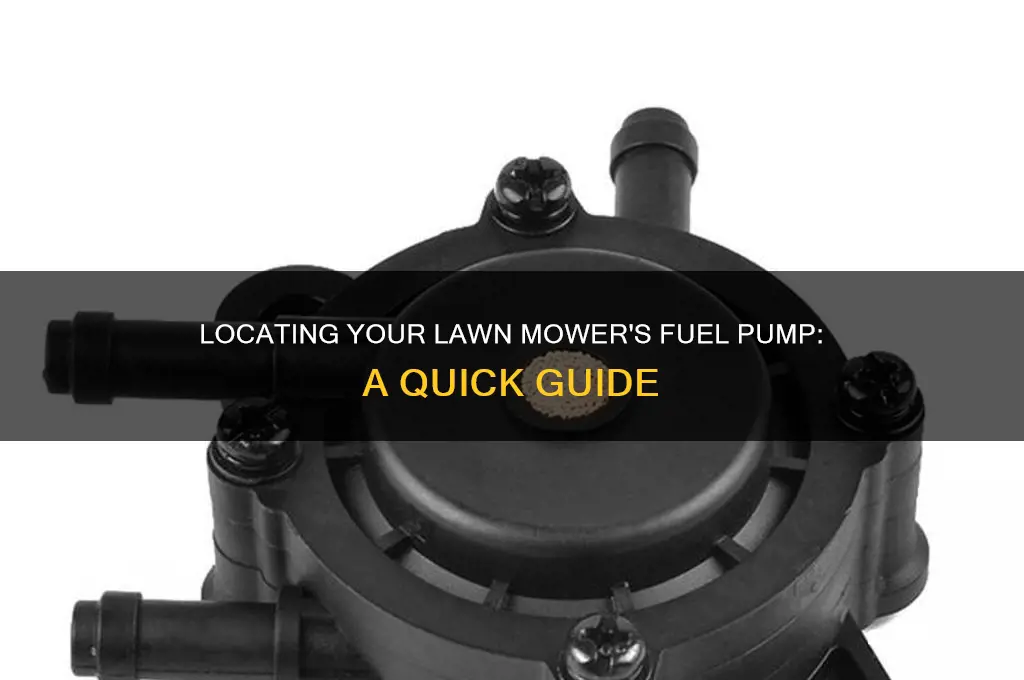

Locating the fuel pump on a lawn mower is essential for maintenance and troubleshooting, but its position varies depending on the mower’s make and model. Most push mowers with small engines often lack a mechanical fuel pump, relying instead on gravity or a pulse-type system to deliver fuel. However, larger riding mowers or those with more complex engines may feature a fuel pump, typically located near the fuel tank or carburetor. Consulting the mower’s manual or inspecting the engine compartment can help identify its exact location, ensuring proper care and efficient operation.
| Characteristics | Values |
|---|---|
| Location | Typically located between the fuel tank and the carburetor, often near the bottom of the fuel tank or integrated into the fuel line. |
| Type | Most lawn mowers use a vacuum-operated fuel pump or a pulse pump (also known as a pulsation dampener). Some newer models may have electric fuel pumps. |
| Function | Ensures consistent fuel flow from the tank to the carburetor, maintaining proper engine operation. |
| Appearance | Small, cylindrical or rectangular component, often made of plastic or metal, with fuel lines attached. |
| Maintenance | May require cleaning or replacement if clogged or damaged. Check for leaks or cracks in the fuel lines. |
| Compatibility | Specific to the lawn mower model and engine type. Always refer to the manufacturer’s manual for exact location and replacement parts. |
| Common Brands | Briggs & Stratton, Kohler, Honda, Craftsman, etc., each with varying fuel pump designs and placements. |
| Troubleshooting | Symptoms of a failing fuel pump include hard starting, stalling, or inconsistent engine performance. |
Explore related products
What You'll Learn
Fuel pump location by lawn mower type
The location of a fuel pump on a lawn mower varies significantly depending on the type of mower and its propulsion system. For push mowers, which are typically gasoline-powered but carbureted, there is often no fuel pump at all. Instead, these mowers rely on gravity to feed fuel from the tank to the carburetor. The fuel tank is usually positioned above the engine to facilitate this flow, eliminating the need for a pump. If a push mower does have a fuel pump, it is rare and would likely be a small, diaphragm-style pump mounted near the carburetor or integrated into the fuel line.
In contrast, riding lawn mowers and lawn tractors often feature more complex fuel systems, especially in models with larger engines. These mowers commonly have electric fuel pumps, which are typically located near the fuel tank or along the fuel line leading to the engine. For example, on many riding mowers, the fuel pump is mounted on the chassis beneath the seat or near the rear of the machine, close to the fuel tank. This placement ensures efficient fuel delivery to the engine, which is crucial for the higher power demands of these machines. Always consult the mower’s manual to identify the exact location, as designs can vary by manufacturer.
Zero-turn mowers, known for their speed and maneuverability, often house the fuel pump near the engine or fuel tank, similar to riding mowers. However, due to their compact design, the pump may be integrated into the fuel module or mounted directly on the engine block. This proximity reduces the length of the fuel line, minimizing the risk of vapor lock, a common issue in high-temperature operating conditions. Regularly inspect the fuel pump and lines for leaks or damage, especially after rough terrain use, to ensure optimal performance.
For battery-powered or electric lawn mowers, the concept of a fuel pump is irrelevant, as they operate on electricity rather than gasoline. These mowers draw power from a battery or cord, eliminating the need for a fuel system altogether. However, understanding the fuel pump locations in traditional mowers can still be useful when transitioning from gas to electric models, as it highlights the simplicity and reduced maintenance of electric alternatives. If you’re troubleshooting a gas mower’s fuel pump, consider whether an electric model might better suit your needs in the long term.
Finally, commercial-grade lawn mowers, designed for heavy-duty use, often have robust fuel systems with high-capacity pumps. These pumps are usually located near the fuel tank or engine, with some models featuring in-tank pumps for added efficiency. Commercial mowers may also include additional components like fuel filters or pressure regulators, which are often integrated into the pump assembly. When replacing a fuel pump on a commercial mower, ensure compatibility with the engine’s fuel injection system and follow manufacturer guidelines for installation to avoid voiding warranties or causing damage.
