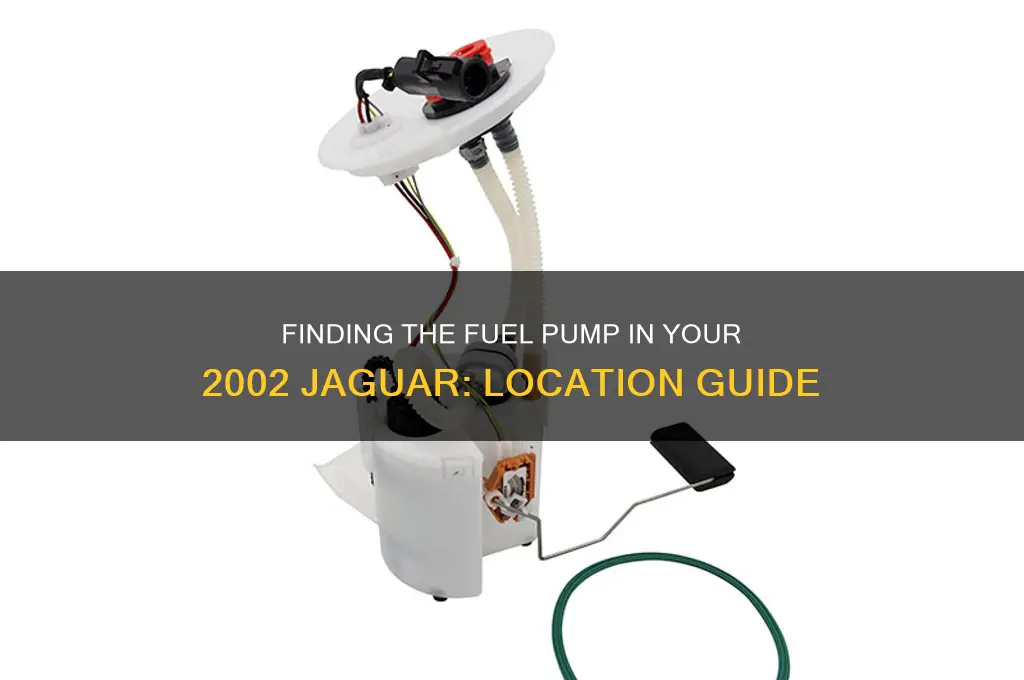

The fuel pump on a 2002 Jaguar is typically located inside the fuel tank, a common placement in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design also protects the pump from external damage and keeps it submerged in fuel, which helps to cool the pump and extend its lifespan. Accessing the fuel pump in a 2002 Jaguar usually requires removing the rear seat or a specific access panel, depending on the model, followed by lowering the fuel tank to expose the pump assembly. It’s important to relieve the fuel system pressure and disconnect the battery before attempting any repairs or replacements to ensure safety.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Jaguar |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat and fuel tank access panel |
| Fuel Pump Type | In-tank electric fuel pump |
| Tank Design | Integrated fuel pump and sender unit |
| Common Issues | Fuel pump failure, clogged fuel filter, or electrical connection problems |
| Replacement Difficulty | Moderate to difficult (requires fuel tank removal in some cases) |
| Tools Required | Socket set, wrenches, fuel line disconnect tools, and safety equipment |
| Safety Precautions | Work in a well-ventilated area, relieve fuel pressure before servicing |
| Estimated Replacement Time | 2-4 hours depending on experience and tools |
Explore related products
What You'll Learn
Fuel Pump Location in 2002 Jaguar S-Type
The fuel pump in a 2002 Jaguar S-Type is located within the fuel tank, a common placement in modern vehicles to maintain fuel pressure and reduce the risk of vapor lock. This in-tank design is part of the vehicle’s fuel delivery system, which ensures a consistent supply of fuel to the engine under various driving conditions. Accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation to avoid fuel spills or electrical hazards.
To locate and service the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Disconnect the negative battery terminal to prevent accidental ignition. Raise the vehicle securely on jack stands to access the underside, where the fuel tank is mounted. The tank is typically held in place by straps and electrical connectors, which must be detached before lowering the tank. Once removed, the fuel pump module can be accessed by opening the tank’s service panel or lid.
A key consideration when working on the fuel pump is the vehicle’s age. The 2002 Jaguar S-Type is over two decades old, meaning corrosion or brittle components may complicate the process. Inspect fuel lines and connectors for signs of wear or leakage before proceeding. If the pump is being replaced, ensure the new unit is compatible with the S-Type’s fuel system specifications, typically a high-pressure pump rated for the vehicle’s 4.0L or 3.0L V6/V8 engines.
For DIY enthusiasts, this task is moderately challenging due to the need for specialized tools and safety precautions. Working with fuel systems carries inherent risks, including flammability and environmental concerns. If unsure, consulting a professional mechanic is advisable. However, with proper preparation and attention to detail, locating and servicing the fuel pump in a 2002 Jaguar S-Type is achievable, restoring optimal fuel delivery to the vehicle.
Diagnosing Fuel Pump Issues in Your 2003 Honda CR-V: A Guide
You may want to see also
Explore related products
Identifying Fuel Pump on 2002 Jaguar X-Type
The 2002 Jaguar X-Type's fuel pump is nestled within the fuel tank, a common placement in modern vehicles to maintain fuel pressure and reduce vapor lock. This in-tank design, while efficient, complicates access for inspection or replacement. Unlike external pumps, which are often mounted near the engine bay or along the chassis, the X-Type's pump requires removing the fuel tank for direct access. This design choice underscores the importance of proper maintenance to avoid the labor-intensive task of pump replacement.
Identifying the fuel pump on this model begins with understanding its symptoms of failure. A faulty pump may manifest as difficulty starting, sputtering at high speeds, or a complete loss of power. If these issues arise, the fuel pump is a prime suspect. However, before assuming the pump is the culprit, check the fuel filter and relay, as these components can mimic pump failure. A diagnostic scan tool can also help confirm the issue by retrieving error codes related to fuel system pressure.
To locate the fuel pump, start by ensuring the vehicle is on a flat surface and the fuel tank is as empty as possible to minimize weight and fire risk. Disconnect the battery to prevent accidental ignition. The fuel tank is situated beneath the rear seat area, requiring removal of the seat and insulation to access the tank's top. Once exposed, the pump assembly is typically secured by a locking ring or bolts, which must be carefully removed to extract the pump. This process demands precision to avoid damaging the tank or fuel lines.
Replacing the fuel pump on a 2002 Jaguar X-Type is not a task for the faint-hearted. It involves draining the fuel tank, lowering it from the vehicle, and disassembling the pump module. A new pump should be installed with a fresh fuel filter and gasket to ensure a proper seal. Reassembly requires meticulous attention to torque specifications and reconnection of electrical and fuel lines. Given the complexity, many owners opt for professional assistance, but with the right tools and patience, it’s a manageable DIY project.
In summary, identifying and replacing the fuel pump on a 2002 Jaguar X-Type requires a blend of diagnostic acumen and mechanical skill. Recognizing symptoms, understanding the pump’s in-tank location, and following a systematic approach to access and replace it are key. While challenging, this task can save significant labor costs and deepen one’s familiarity with the vehicle’s intricacies. Always prioritize safety and consult a repair manual for model-specific details.
Does the Honda GX690 Engine Include a Fuel Pump?
You may want to see also
Explore related products
Accessing Fuel Pump in 2002 Jaguar XK8
The fuel pump in a 2002 Jaguar XK8 is located within the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design choice, while advantageous for performance, complicates access for maintenance or replacement. Unlike external pumps, which can often be reached without extensive disassembly, the in-tank location necessitates a more involved process that includes draining the fuel tank and removing it from the vehicle.
To access the fuel pump, begin by ensuring the vehicle is on a level surface and the fuel tank is as empty as possible to minimize spillage and weight. Disconnect the negative battery terminal to prevent accidental ignition. Locate the fuel tank, which is situated beneath the rear seats and trunk area, protected by a layer of underbody shielding. Remove the rear seat bottom and trunk lining to expose the tank’s access points. This step requires patience, as Jaguar interiors are designed with precision fitment, and forcing components can cause damage.
Once the tank is exposed, disconnect the fuel lines and electrical connectors, taking note of their positions for reassembly. Use a suitable wrench or line disconnect tool to avoid damaging the fittings. With the connections removed, lower the fuel tank carefully, as it may still contain residual fuel. Place a drain pan beneath to catch any spillage. After the tank is accessible, remove the retaining ring or screws holding the fuel pump module in place. Lift the module out, being mindful of the fuel level sensor and float arm, which are delicate components.
When replacing the fuel pump, ensure the new unit is compatible with the 2002 Jaguar XK8’s system, as aftermarket parts may vary in design. Reinstallation follows the reverse order of removal, with careful attention to sealing the tank to prevent leaks. Torque specifications for the tank and pump assembly should be adhered to, typically ranging between 10-15 Nm for the retaining screws. Failure to tighten properly can result in fuel leaks, which pose a safety hazard.
In summary, accessing the fuel pump in a 2002 Jaguar XK8 requires methodical disassembly of interior components and careful handling of the fuel system. While the process is labor-intensive, it is manageable with basic mechanical skills and the right tools. Always prioritize safety by working in a well-ventilated area and avoiding open flames or sparks during the procedure.
Mastering Mechanical Fuel Pump Disassembly: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel Pump Placement in 2002 Jaguar XJ8
The fuel pump in a 2002 Jaguar XJ8 is located within the fuel tank, a common placement in modern vehicles to ensure the pump remains cooled by the fuel and to reduce the risk of vapor lock. This in-tank design is part of the vehicle’s fuel delivery system, which includes the pump, a filter, and associated wiring. Accessing the fuel pump requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline and the complexity of the vehicle’s underbody components.
To replace or inspect the fuel pump, start by relieving the fuel system pressure using the appropriate valve, typically located near the fuel rail. Disconnect the negative battery terminal to prevent electrical hazards. Raise the vehicle securely on jack stands to access the fuel tank, which is mounted beneath the rear seat area. Carefully lower the tank after disconnecting the fuel lines and electrical connectors. The pump assembly is secured to the top of the tank with a locking ring, which can be removed using a specialized tool to avoid damage.
Comparing the 2002 Jaguar XJ8’s fuel pump placement to earlier models highlights advancements in automotive engineering. Older Jaguars often featured external fuel pumps, which were more susceptible to heat and mechanical failure. The in-tank design not only improves reliability but also integrates the pump with the fuel level sender, streamlining the system. However, this integration means that pump replacement often requires tank removal, a more labor-intensive process than external pump swaps.
For DIY enthusiasts, replacing the fuel pump on a 2002 Jaguar XJ8 is feasible with the right tools and precautions. A fuel pump removal tool, available at most auto parts stores, is essential for safely detaching the locking ring. Always work in a well-ventilated area and avoid open flames or sparks. If the task seems daunting, consulting a professional mechanic is advisable, as improper installation can lead to fuel leaks or system malfunctions. Regularly inspecting the fuel pump and associated components can prevent unexpected failures, ensuring the vehicle’s performance and safety.
Repairing Your Briggs V-Twin Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Locating Fuel Pump on 2002 Jaguar Vanden Plas
The 2002 Jaguar Vanden Plas, a luxury sedan known for its refined driving experience, houses its fuel pump within the fuel tank, a common placement in modern vehicles. This in-tank design offers several advantages, including reduced noise, improved fuel cooling, and protection from external elements. However, accessing the fuel pump for maintenance or replacement requires a systematic approach due to its location.
Accessing the Fuel Pump:
To locate the fuel pump on a 2002 Jaguar Vanden Plas, you'll need to access the fuel tank. This process involves several steps and precautions to ensure safety and efficiency. Firstly, ensure the vehicle is parked on a level surface, and the engine is turned off. Engage the parking brake and allow the engine to cool down if it has been running. The fuel tank is located beneath the rear seat area, requiring you to remove the rear seat cushion to gain access. This involves releasing the retaining clips or bolts that secure the seat in place.
Removal and Replacement:
Once the rear seat is removed, you'll find the fuel pump module access panel. This panel is typically secured with screws or bolts, which need to be carefully removed to avoid stripping. After accessing the fuel pump module, disconnect the electrical connector and fuel lines, taking note of their positions for reassembly. The fuel pump is usually secured with a locking ring or bolts, which must be loosened to remove the pump assembly. When installing a new fuel pump, ensure it is compatible with your Jaguar model and follow the manufacturer's instructions for a proper fit.
Safety and Practical Tips:
Working with fuel systems requires caution due to the flammable nature of gasoline. Always relieve the fuel system pressure before attempting any repairs. This can be done by locating the fuel pressure relief valve, typically found near the fuel rail, and depressing the valve to release pressure. Wear safety goggles and gloves to protect against fuel spills. Additionally, have a fire extinguisher nearby as a precautionary measure. When replacing the fuel pump, consider using a fuel tank sealing compound to ensure a secure fit and prevent leaks.
Troubleshooting and Maintenance:
If you're experiencing fuel-related issues, such as engine stalling or poor performance, the fuel pump could be a potential culprit. However, before replacing the pump, check for other common issues like clogged fuel filters or faulty fuel pressure regulators. Regular maintenance, including fuel filter replacements at recommended intervals, can help prevent premature fuel pump failure. Keep a record of maintenance tasks to ensure your Jaguar's fuel system remains in optimal condition.
In summary, locating and replacing the fuel pump on a 2002 Jaguar Vanden Plas involves a series of precise steps, from accessing the fuel tank to ensuring a secure installation. By following safety precautions and considering practical tips, this task can be accomplished effectively, contributing to the overall maintenance and longevity of your vehicle's fuel system.
DIY Guide: Removing the Fuel Pump in a 2002 Buick Century
You may want to see also
Frequently asked questions
The fuel pump on a 2002 Jaguar is typically located inside the fuel tank. It is an in-tank fuel pump, which is a common design for modern vehicles.
To access the fuel pump, you’ll need to remove the fuel tank. This involves relieving the fuel system pressure, disconnecting the fuel lines, and lowering the tank from the vehicle. The fuel pump module is then accessible from the top of the tank.
Yes, you’ll need basic hand tools like wrenches and sockets, a fuel line disconnect tool, and possibly a specialized locking ring tool to remove the fuel pump module from the tank. Always refer to a repair manual for detailed instructions.
