The fuel pump in a Mitsubishi Galant is typically located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump requires removing the fuel tank, which involves disconnecting the fuel lines, electrical connectors, and tank straps. This process should be done with caution, as working with fuel systems can be hazardous. Consulting the vehicle’s service manual or seeking professional assistance is recommended to ensure safe and accurate replacement or maintenance of the fuel pump.
| Characteristics | Values |
|---|---|
| Vehicle Model | Mitsubishi Galant |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat or accessing the service panel in the trunk |
| Fuel Tank Location | Beneath the rear seat area |
| Pump Type | Electric fuel pump |
| Common Years Affected | 1999-2012 models |
| Tools Required for Access | Screwdriver, socket set, fuel line disconnect tool |
| Replacement Difficulty | Moderate (requires fuel system knowledge and safety precautions) |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Additional Components | Fuel sender unit, fuel filter (integrated in some models) |
Explore related products
What You'll Learn
Fuel pump location in Mitsubishi Galant sedan models
The fuel pump in Mitsubishi Galant sedan models is typically located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and extreme temperatures, ensuring its longevity. For most Galant models produced between 1994 and 2012, accessing the fuel pump requires removing the rear seat or a dedicated access panel in the trunk, depending on the year and trim level. This internal placement means that replacing the fuel pump often involves dropping the fuel tank, a task that demands careful handling of fuel lines and electrical connections.
When diagnosing fuel pump issues in a Mitsubishi Galant, it’s crucial to understand its location relative to other components. For instance, the fuel pump module includes a sending unit that communicates fuel levels to the dashboard gauge. If the pump fails, symptoms like engine sputtering, difficulty starting, or stalling may occur. To confirm a faulty pump, use a fuel pressure gauge to test pressure at the fuel rail, ensuring it matches the manufacturer’s specifications (typically 40–60 psi for Galant models with a 2.4L engine). Always relieve fuel system pressure before attempting any repairs to avoid accidents.
Replacing the fuel pump on a Mitsubishi Galant sedan requires a systematic approach. Start by disconnecting the battery and relieving fuel pressure via the Schrader valve on the fuel rail. Next, remove the rear seat or trunk access panel to expose the fuel tank. Safely lower the tank using a jack or support stand, then disconnect the fuel lines and electrical harness. Remove the retaining ring or bolts securing the pump module to the tank, and install the new pump, ensuring all seals and gaskets are intact. Reassembly follows the reverse order, with careful attention to torque specifications for bolts and proper reconnection of fuel lines.
Comparing the fuel pump location across different Galant generations reveals slight variations. Pre-1994 models often housed the pump externally, near the fuel tank but outside it, making replacements simpler but less efficient. Post-1994 models standardized the in-tank design, improving performance and reliability. For example, the 2004–2012 Galant uses a modular pump assembly that includes the sending unit and float, simplifying diagnostics but complicating replacements due to the integrated design. Understanding these differences ensures compatibility when sourcing replacement parts or troubleshooting across model years.
For DIY enthusiasts tackling fuel pump replacement on a Mitsubishi Galant, practical tips can streamline the process. Always work in a well-ventilated area and use non-sparking tools to minimize fire risks. If the fuel tank is difficult to lower due to rusted bolts or tight space, consider using a penetrating oil and a breaker bar for added leverage. After installation, cycle the ignition a few times to pressurize the system and check for leaks before starting the engine. Finally, reset the fuel system by clearing any error codes with an OBD-II scanner to ensure proper operation. These steps not only save time but also enhance safety and reliability.
Connecting F53 Fuel Pump Wiring Harness: A Step-by-Step Guide
You may want to see also
Explore related products
Identifying the fuel pump in Mitsubishi Galant hatchbacks
The fuel pump in a Mitsubishi Galant hatchback is typically located inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure. This design requires accessing the fuel tank, usually found beneath the rear seat or cargo area, depending on the model year. For instance, in the 2004-2012 Galant hatchbacks, the fuel tank is positioned under the rear seat cushion, necessitating its removal to expose the pump assembly.

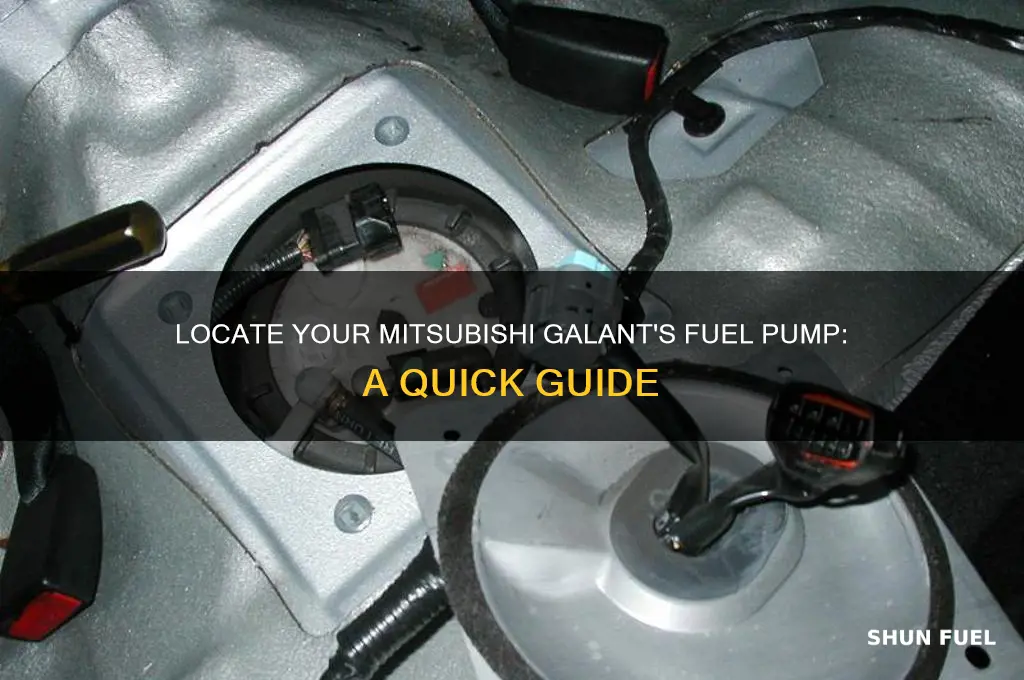

To identify the fuel pump, start by locating the fuel tank access panel. In most Galant hatchbacks, this involves folding or removing the rear seat to reveal a metal or plastic cover secured by screws or clips. Once the cover is removed, the fuel pump module, which includes the pump, sender unit, and float, will be visible. The pump itself is often a cylindrical or rectangular component connected to the fuel lines and wiring harness.
A practical tip for identification is to consult the vehicle’s service manual, which provides detailed diagrams and part numbers specific to your Galant’s model year. For example, the 2007 Galant hatchback uses a Walbro fuel pump (part number 401G026), which can be cross-referenced for compatibility if replacement is needed. Additionally, some aftermarket pumps may have slight variations in design, so verifying the part number ensures accuracy.
When working on the fuel system, safety is paramount. Always relieve fuel pressure before accessing the pump by disconnecting the fuel pump relay and running the engine until it stalls. Wear safety goggles and gloves, and ensure the vehicle is on a level surface with the ignition off. If unsure, consult a professional, as mishandling fuel components can lead to leaks or fires.
In summary, identifying the fuel pump in a Mitsubishi Galant hatchback involves locating the fuel tank, accessing the pump module, and verifying its specifications. With the right tools, precautions, and knowledge, this task becomes manageable, ensuring proper maintenance or replacement of this critical component.
CP4 Fuel Pump Update: What's Changed and Why It Matters
You may want to see also
Explore related products
Accessing the fuel pump in Mitsubishi Galant coupes
The fuel pump in Mitsubishi Galant coupes is typically located inside the fuel tank, a common placement in many modern vehicles to keep the pump cool and reduce the risk of fuel line vapor lock. This design choice, while advantageous for performance and safety, complicates access for maintenance or replacement. Unlike older models where the pump might be mounted externally, the Galant’s in-tank location requires a systematic approach to reach it without causing damage or creating hazards.
To access the fuel pump, start by ensuring the vehicle is on a flat surface and the fuel tank is as empty as possible to minimize spillage and weight. Disconnect the negative battery terminal to prevent electrical accidents. Locate the fuel tank, which is usually beneath the rear seat in coupes, and remove the seat by releasing the retaining bolts or clips. This exposes the fuel tank access panel, a protective cover that shields the pump assembly. Removing this panel often requires specialized tools, such as a socket wrench or screwdriver, depending on the fastening mechanism.
Once the access panel is removed, the fuel pump module becomes visible. It consists of the pump, sending unit, and float, all connected to the fuel lines and wiring harness. Before removing the module, relieve the fuel system pressure using the Schrader valve located near the fuel rail. Disconnect the electrical connector and fuel lines carefully, noting their positions for reassembly. Use a fuel line quick disconnect tool if necessary to avoid damaging the lines. With these connections detached, the pump module can be carefully lifted out of the tank.
Working on the fuel system carries inherent risks, including fire hazards and exposure to flammable liquids. Always wear safety goggles and gloves, and ensure the work area is well-ventilated and free of open flames or sparks. If the tank is difficult to access or the pump is stuck, avoid forcing components, as this can lead to costly damage. In such cases, consulting a professional mechanic or referencing a Mitsubishi Galant service manual can provide model-specific guidance. Proper preparation and caution ensure a safe and successful fuel pump replacement.
Does ICM Control Fuel Pump? Understanding the Relationship and Functionality
You may want to see also
Explore related products
Fuel pump placement in different Galant generations (e.g., 2000-2010)
The Mitsubishi Galant, a staple in the mid-size sedan market, underwent significant changes across its generations, including variations in fuel pump placement. Understanding these differences is crucial for maintenance and troubleshooting. For instance, the 2000-2004 Galant models (eighth generation) typically house the fuel pump inside the fuel tank, a common design for improved efficiency and protection from external elements. This in-tank placement requires removing the fuel tank for pump replacement, a task that demands caution due to the flammable nature of gasoline. Always ensure the vehicle is on a level surface, the engine is cool, and the battery is disconnected before proceeding.
In contrast, the 2004-2010 Galant models (ninth generation) maintain the fuel pump’s in-tank location but introduce slight design changes. For example, accessing the pump on these models may involve removing a dedicated access panel on the top of the fuel tank, streamlining the replacement process compared to earlier generations. However, the fuel tank still needs to be lowered or removed in some cases, emphasizing the need for proper tools and safety measures. DIY enthusiasts should invest in a fuel line disconnect tool and a jack stand for secure tank handling.
One notable exception is the 2008-2010 Galant models equipped with the 2.4L engine, where the fuel pump assembly includes an integrated fuel level sensor. This dual-function component requires precise alignment during installation to ensure accurate fuel gauge readings. Always refer to the vehicle’s service manual for torque specifications and alignment marks to avoid complications.
Comparatively, the earlier 2000-2002 models with the 3.0L V6 engine feature a slightly larger fuel pump due to higher fuel demands. This size difference necessitates careful selection of replacement parts to ensure compatibility. Cross-referencing part numbers or consulting a trusted mechanic can prevent costly mistakes.
In summary, while the fuel pump remains in-tank across the 2000-2010 Galant generations, subtle design changes and engine-specific variations require tailored approaches for maintenance. Whether tackling the task yourself or seeking professional help, understanding these generational differences ensures efficient and safe repairs. Always prioritize safety, use the correct tools, and follow manufacturer guidelines for optimal results.
Spotting a Failing Boat Fuel Pump: Key Warning Signs to Watch
You may want to see also
Explore related products
Tools needed to locate and access the fuel pump in a Galant
Locating and accessing the fuel pump in a Mitsubishi Galant requires a combination of basic hand tools and specialized equipment. The fuel pump is typically housed within the fuel tank, necessitating its removal for access. Essential tools include a floor jack and jack stands to safely elevate the vehicle, allowing clear access to the underside where the fuel tank is located. A wrench or socket set is crucial for removing bolts securing the tank, while a flathead screwdriver can assist in prying loose any retaining clips or fuel lines. Additionally, a drain pan is indispensable for catching residual fuel when disconnecting the tank, minimizing spills and safety hazards.
Beyond the basics, a fuel line disconnect tool is highly recommended to safely separate the fuel lines without damaging them. This tool is specifically designed to release the spring clips that secure the lines, reducing the risk of fuel leaks post-reassembly. A trim panel removal tool may also be necessary if interior panels need to be accessed to reach the fuel pump module, as some Galant models house the pump’s electrical connector inside the trunk or rear seating area. For precise diagnosis before removal, a multimeter can test the pump’s electrical circuit, ensuring the issue lies with the pump itself rather than the wiring.
Safety should always be prioritized when working on a vehicle’s fuel system. Safety goggles and nitrile gloves are essential to protect against fuel exposure, which can irritate skin and eyes. A fire extinguisher should be kept nearby as a precautionary measure, given the flammable nature of gasoline. Working in a well-ventilated area is critical to avoid inhaling fuel vapors, and smoking or open flames must be strictly avoided during the process. These precautions, combined with the right tools, ensure a safe and efficient fuel pump replacement or inspection.
For those unfamiliar with automotive repairs, a fuel pump removal tool can simplify the process of extracting the pump from the tank. This tool engages the locking ring securing the pump assembly, allowing it to be turned and removed without damaging the tank. While not always necessary, it significantly reduces the risk of complications, especially for first-time DIYers. Pairing this tool with a step-by-step repair manual specific to the Galant’s model year ensures accuracy and confidence throughout the task. With the right tools and precautions, accessing the fuel pump becomes a manageable project rather than an intimidating challenge.
Does the 2003 MBZ 320E Feature Dual Fuel Pumps?
You may want to see also
Frequently asked questions
The fuel pump on a Mitsubishi Galant is typically located inside the fuel tank.
To access the fuel pump, you need to remove the fuel tank. This involves draining the fuel, lowering the tank, and then removing the pump assembly from the top of the tank.
No, the fuel pump is an in-tank component, so the fuel tank must be removed to replace the pump.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and a whining noise from the fuel tank area.
Replacing the fuel pump is a moderately challenging task due to the need to remove the fuel tank. It’s recommended to have basic mechanical skills or seek professional assistance.
