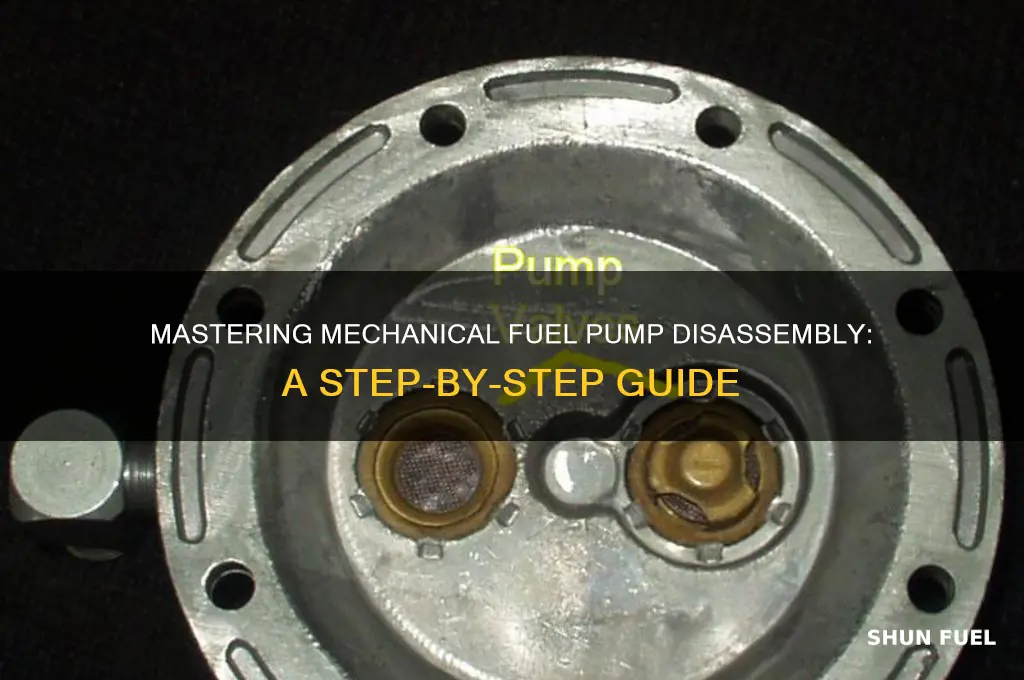

Tearing apart a mechanical fuel pump requires a systematic approach to understand its internal components and functionality. Begin by ensuring the pump is disconnected from the fuel system and safely drained of any residual fuel to prevent hazards. Using appropriate tools, carefully remove the mounting bolts and detach the pump from the engine. Next, disassemble the pump by unscrewing the housing cover, taking note of the orientation and placement of gaskets or seals. Inspect the diaphragm, valves, and plunger for wear or damage, as these are critical to the pump’s operation. Document each step and organize components to facilitate reassembly or repair. This process not only aids in diagnosing issues but also enhances your understanding of the pump’s mechanical principles.
| Characteristics | Values |
|---|---|
| Safety Precautions | Wear safety goggles and gloves; ensure vehicle is on a level surface and engine is cool; relieve fuel system pressure |
| Tools Required | Socket set, wrenches, screwdrivers, pliers, pry bar, gasket scraper, cleaning solvent, rags |
| Disassembly Steps | 1. Disconnect fuel lines and electrical connections 2. Remove mounting bolts and lift pump from engine 3. Disassemble pump housing using appropriate tools 4. Separate internal components (diaphragm, valves, springs, etc.) 5. Inspect parts for wear, damage, or debris |
| Common Components | Diaphragm, check valves, inlet/outlet valves, springs, pushrod, cam, housing |
| Inspection Focus | Diaphragm tears, valve leaks, spring tension, pushrod wear, cam damage |
| Cleaning Process | Use carburetor cleaner or solvent to remove debris and residue from all components |
| Reassembly Tips | Replace damaged parts, ensure proper alignment, use new gaskets/seals, lubricate moving parts |
| Testing Method | Bench test pump for proper operation before reinstallation |
| Reinstallation Steps | Reverse disassembly process, ensuring tight connections and proper mounting |
| Post-Installation Check | Inspect for leaks, verify fuel pressure, and test engine operation |
| Maintenance Interval | Typically replaced every 100,000 miles or when symptoms of failure appear |
| Symptoms of Failure | Hard starting, stalling, loss of power, fuel leaks, unusual noises |
| Compatibility | Specific to vehicle make, model, and engine type; consult manual or parts catalog |
| Environmental Considerations | Dispose of old fuel and parts according to local regulations; avoid spills |
| Professional Assistance | Recommended for complex systems or if unsure about disassembly/reassembly process |
Explore related products
What You'll Learn
- Safety Precautions: Essential protective gear, workspace setup, and precautions to avoid injury during disassembly
- Tool Requirements: List of tools needed, including wrenches, screwdrivers, and pliers for the task
- Pump Disassembly Steps: Sequential steps to dismantle the pump, focusing on key components and fasteners
- Component Inspection: How to examine parts for wear, damage, or defects during teardown
- Reassembly Tips: Guidelines for reassembling the pump correctly after inspection or repair
Safety Precautions: Essential protective gear, workspace setup, and precautions to avoid injury during disassembly
Disassembling a mechanical fuel pump involves handling sharp components, flammable liquids, and potential spring-loaded mechanisms. Before you begin, prioritize safety to prevent injuries and accidents. Start by wearing nitrile gloves to protect your hands from fuel residue and sharp edges. Safety goggles are non-negotiable, as small springs or debris can become projectiles during disassembly. A long-sleeved shirt and sturdy work pants minimize skin exposure to sharp parts and fuel spills. For added protection, consider a face shield if the pump’s condition suggests a higher risk of flying debris.
Your workspace setup is equally critical. Choose a well-ventilated area to disperse fuel vapors, which can ignite if exposed to sparks or open flames. Clear the workspace of clutter and ensure a stable, non-slip surface for the pump. Place a drip tray beneath the pump to catch any residual fuel, and keep a fire extinguisher nearby as a precaution. Avoid working near open flames, heaters, or electrical tools that could spark. If indoors, ensure proper airflow with fans or open windows, and avoid smoking in the vicinity.
During disassembly, proceed methodically to avoid injury. Use the correct tools for each step—forcing components with improper tools can lead to slips or breakage. When releasing tension from springs, such as those in the diaphragm or plunger, work slowly and use a tool to hold the spring in place. Never point the pump’s outlet toward yourself or others when removing the diaphragm, as residual pressure could expel fuel or debris. Always inspect the pump for signs of corrosion or damage before starting, as weakened components may fail unexpectedly.
Finally, handle fuel with care. If the pump contains fuel, drain it into a sealed container before disassembly. Clean any spills immediately with absorbent material, and dispose of contaminated materials according to local regulations. Wash your hands thoroughly after handling fuel to avoid skin irritation or ingestion. By taking these precautions, you create a safer environment for disassembly, reducing the risk of injury and ensuring a more controlled process.
