The fuel pump in a 2006 Mitsubishi Eclipse is located inside the fuel tank, a common placement in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump requires removing the fuel tank, which involves safely lowering it from the vehicle after disconnecting the fuel lines and electrical connectors. This process should be done with caution, ensuring the fuel system is depressurized and the vehicle is on a stable surface. Consulting the vehicle's service manual or seeking professional assistance is recommended for those unfamiliar with fuel system repairs.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat and fuel tank cover for access |
| Fuel Tank Location | Beneath the rear seat area |
| Pump Type | Electric in-tank fuel pump |
| Tank Removal Required | Yes, for direct access to the fuel pump |
| Tools Needed | Socket set, wrenches, screwdriver, and possibly a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure and disconnect battery before starting |
| Replacement Difficulty | Moderate to difficult due to fuel tank removal |
| Common Issues | Fuel pump failure, clogged fuel filter, or electrical issues |
| Year Applicability | Specific to 2006 Mitsubishi Eclipse models |
| Additional Components | Fuel sender unit and fuel filter may be integrated with the pump assembly |
Explore related products
What You'll Learn

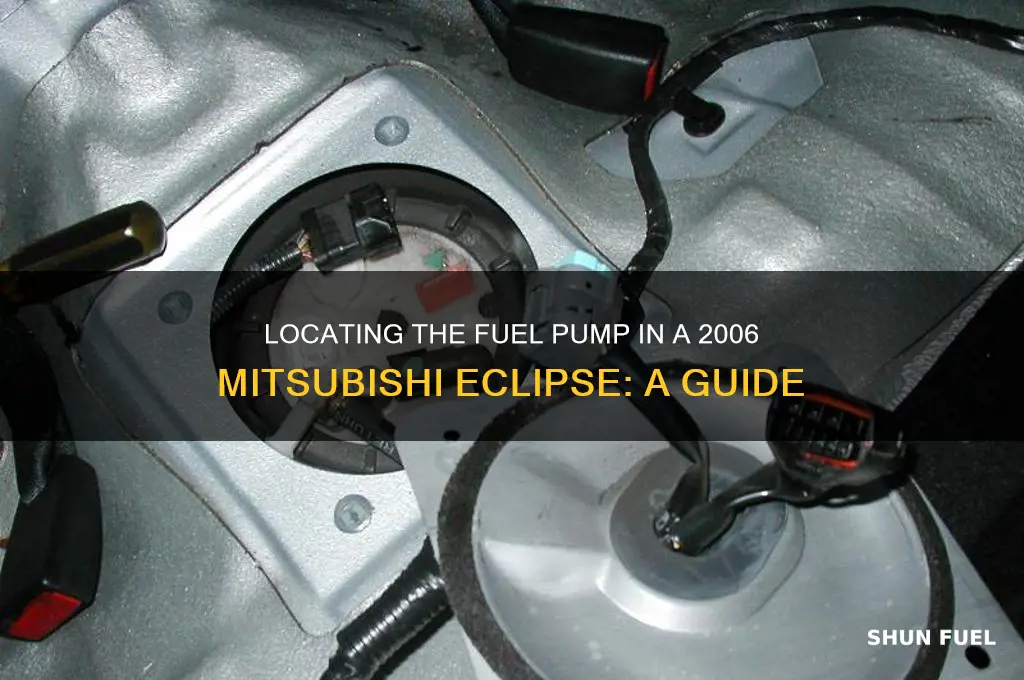

Fuel pump location in 2006 Eclipse
The fuel pump in a 2006 Mitsubishi Eclipse is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design choice also ensures that the pump remains submerged in fuel, which helps lubricate and cool the motor, extending its lifespan. If you’re attempting to locate or replace the fuel pump, you’ll need to access the fuel tank, typically found beneath the rear seat or trunk area, depending on the trim level of your Eclipse.
Accessing the fuel pump requires a systematic approach. Start by relieving the fuel system pressure using the Schrader valve on the fuel rail, then disconnect the battery to prevent accidental ignition. Next, remove the rear seat or trunk lining to expose the fuel pump access panel. This panel is secured by a series of bolts or clips, which, when removed, allow you to lift the panel and expose the fuel pump assembly. Be cautious of residual fuel in the tank, and work in a well-ventilated area to avoid fumes.
Comparing the 2006 Eclipse to earlier models, the fuel pump’s in-tank location is a significant improvement. Older designs often placed the pump externally, making it more susceptible to heat and mechanical damage. The in-tank design not only enhances reliability but also simplifies the fuel delivery system by integrating the pump and sender unit. However, this placement makes replacement more labor-intensive, as the entire fuel tank must be lowered or partially removed to access the pump.
For DIY enthusiasts, replacing the fuel pump in a 2006 Eclipse is feasible with the right tools and precautions. You’ll need a fuel line disconnect tool, a new pump assembly, and possibly a specialty socket for the retaining ring. After accessing the pump, disconnect the electrical connector and fuel lines, then remove the retaining ring to extract the old pump. Installation is the reverse process, but ensure all connections are secure and the tank is properly sealed to prevent leaks. If you’re unsure, consulting a repair manual or professional is advisable to avoid costly mistakes.
Finally, understanding the fuel pump’s location is crucial for diagnosing issues like poor engine performance or starting difficulties. Symptoms of a failing pump include sputtering at high speeds, loss of power, or difficulty starting the vehicle. Regular maintenance, such as replacing the fuel filter and using high-quality fuel, can prolong the pump’s life. If replacement is necessary, consider upgrading to a higher-performance pump for improved fuel delivery, especially in modified or high-performance Eclipse models. Always prioritize safety and follow manufacturer guidelines when working on the fuel system.
Step-by-Step Guide: Connecting a Fuel Pump Safely and Efficiently
You may want to see also
Explore related products
Accessing the fuel pump in a 2006 Eclipse
The fuel pump in a 2006 Mitsubishi Eclipse is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, complicates access, requiring the removal of the fuel tank for pump replacement or maintenance. Understanding this layout is crucial for anyone attempting to service the fuel system, as it dictates the tools, time, and safety precautions needed.
To access the fuel pump, start by relieving the fuel system pressure using the Schrader valve located on the fuel rail. This step is critical to prevent fuel spray and potential hazards. Next, disconnect the negative battery terminal to eliminate the risk of electrical shorts. With safety measures in place, raise the vehicle and secure it on stands to access the fuel tank from beneath. The tank is typically held in place by straps and may require the removal of the exhaust system or other components for clearance.
Once the tank is accessible, carefully lower it to a stable surface, taking care not to damage the fuel lines or wiring harness. The fuel pump module is secured to the top of the tank with a locking ring, which can be removed using a specialized tool or a flat-head screwdriver and mallet. After removing the ring, lift the module out of the tank, noting the orientation of the pump and sender unit for reassembly. Inspect the pump and filter for wear or contamination before proceeding with replacement or cleaning.
Comparing this process to older vehicles with external fuel pumps highlights the trade-offs in modern design. While in-tank pumps offer performance benefits, their accessibility is significantly reduced, often turning a straightforward repair into a multi-hour task. For DIY enthusiasts, investing in a fuel pump removal tool and familiarizing oneself with the vehicle’s undercarriage layout can streamline the process. Professional mechanics, however, may opt for a lift and specialized equipment to expedite the job.
In conclusion, accessing the fuel pump in a 2006 Mitsubishi Eclipse requires careful planning, safety precautions, and the right tools. While the in-tank design presents challenges, understanding the steps involved and preparing accordingly can make the task manageable. Whether tackling the repair personally or seeking professional assistance, knowing the pump’s location and the intricacies of its removal is essential for maintaining the vehicle’s fuel system.
Bench Testing Fuel Pump Relay: Step-by-Step Guide for Accurate Diagnostics
You may want to see also
Explore related products
Identifying the fuel pump in a 2006 Eclipse
The fuel pump in a 2006 Mitsubishi Eclipse is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This in-tank design requires accessing the fuel tank to identify or replace the pump, which involves a series of steps that demand caution and preparation. Before starting, ensure the vehicle is on a level surface, the engine is cool, and the fuel tank is no more than half full to minimize hazards and weight.
Identifying the fuel pump begins with locating the fuel tank, typically positioned beneath the rear seat or trunk area in the 2006 Eclipse. The fuel pump module is connected to the tank via a flange and secured with a locking ring. To visually confirm its presence, remove the rear seat bottom or trunk lining to access the fuel tank’s service panel. The fuel pump’s electrical connector and fuel lines will be visible once the panel is removed, providing a clear indication of its location.
A comparative analysis of the 2006 Eclipse’s fuel system reveals that its in-tank pump design is shared with many vehicles of its era, but the specific mounting and access points vary. Unlike some models where the pump is accessible from the top of the tank, the Eclipse requires dropping the tank partially or fully for service. This distinction underscores the importance of consulting the vehicle’s service manual or a trusted repair guide to avoid missteps during identification or replacement.
Persuasively, understanding the fuel pump’s location is critical for diagnosing issues like engine stalling, poor performance, or no-start conditions. Symptoms such as a whining noise from the fuel tank or a non-responsive fuel gauge can point directly to pump failure. By identifying the pump’s location and its associated components, such as the fuel filter and pressure regulator, owners can make informed decisions about repairs, whether DIY or professional.
Instructively, to safely identify the fuel pump, disconnect the battery and relieve fuel system pressure before proceeding. Use a fuel pressure gauge to test the system and confirm pump functionality. If replacement is necessary, ensure the new pump matches the original specifications, including flow rate and electrical compatibility. Practical tips include using a drain pan to catch residual fuel and having a helper assist with tank removal, as it can be heavy and awkward to handle alone.
Descriptively, the fuel pump in the 2006 Eclipse is a compact, electric unit integrated into a module that includes the sender unit and float. Its design prioritizes efficiency and reliability, with a turbine-style impeller that draws fuel from the tank and delivers it to the engine under pressure. The module’s locking ring and gasket ensure a secure, leak-free connection to the tank, highlighting the precision required in both identification and replacement tasks.
Automotive Fuel Pumps: Understanding the Role of Check Valves
You may want to see also
Explore related products
Replacing the fuel pump in a 2006 Eclipse
The fuel pump in a 2006 Mitsubishi Eclipse is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, complicates replacement, as it requires removing the tank—a task that demands careful planning and execution. Before diving into the process, ensure you have the necessary tools: a jack, jack stands, wrenches, screwdrivers, and a new fuel pump assembly. Safety is paramount; work in a well-ventilated area, disconnect the battery, and relieve fuel system pressure to avoid accidents.
Replacing the fuel pump begins with draining the fuel tank to minimize spillage and weight. Locate the drain valve or use a siphon pump, but never attempt to drain fuel near open flames or sparks. Once empty, raise the vehicle securely on jack stands to access the tank. Disconnect the fuel lines, electrical connectors, and tank straps, then carefully lower the tank to the ground. The pump assembly is typically held in place by a locking ring or retainer plate; remove this to extract the old pump. Inspect the tank for debris or damage before installing the new pump, ensuring a clean environment for optimal performance.
Installing the new fuel pump requires precision. Align the pump assembly with the tank opening and secure it with the locking ring or retainer plate, ensuring a tight seal. Reattach the fuel lines and electrical connectors, double-checking for leaks or loose connections. Reinstall the tank, reconnect the battery, and prime the fuel system by cycling the ignition switch a few times before starting the engine. This step ensures the pump operates correctly and prevents dry starts, which can damage the new component.
While the process seems straightforward, common pitfalls include overlooking fuel system pressure relief or mishandling fuel lines, leading to leaks or system malfunctions. Always refer to a repair manual or online resources specific to the 2006 Eclipse for detailed diagrams and torque specifications. If unsure, consult a professional to avoid costly mistakes. Replacing the fuel pump is a task that rewards patience and attention to detail, ensuring your Eclipse runs smoothly for years to come.
Fixing Diaphragm Fuel Pumps: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Common issues with 2006 Eclipse fuel pump
The 2006 Mitsubishi Eclipse fuel pump is located in the fuel tank, a common placement for modern vehicles to maintain fuel pressure and ensure consistent delivery to the engine. This design, while efficient, introduces specific vulnerabilities that owners should be aware of. One prevalent issue is the fuel pump’s susceptibility to contamination from debris or sediment in the tank, which can clog the pump’s intake or damage internal components. Regular fuel filter replacements and using high-quality fuel can mitigate this risk, but neglect often leads to premature pump failure.
Another frequent problem is electrical malfunction, particularly in the wiring harness or connectors leading to the fuel pump. Over time, these components can corrode, fray, or become loose due to vibration and temperature fluctuations. Symptoms include intermittent starting issues, stalling, or a complete loss of power. Diagnosing this requires a multimeter to test for voltage at the pump connector, and repairs may involve cleaning connections or replacing damaged wiring. Ignoring these signs can leave you stranded, as the pump’s failure to deliver fuel will render the engine inoperable.
The fuel pump’s internal check valve is also prone to failure, especially in vehicles with higher mileage. This valve prevents fuel from draining back into the tank when the engine is off, maintaining pressure for quick starts. A faulty check valve causes hard starting, extended cranking times, or a no-start condition. While replacing the entire pump is the typical fix, some aftermarket kits allow for check valve replacement alone, offering a cost-effective alternative. However, this repair requires specialized tools and should be approached with caution.
Lastly, the fuel pump’s location inside the tank complicates access, making diagnostics and replacements labor-intensive. Removing the tank is often necessary, which adds time and expense to repairs. DIY enthusiasts should ensure the fuel system is depressurized before attempting any work, using a pressure relief tool to avoid accidents. For those less experienced, professional installation is recommended to prevent damage to the tank or pump during reassembly. Understanding these common issues empowers owners to address problems proactively, extending the life of their 2006 Eclipse’s fuel system.
Finding the Fuel Pump in a 1989 Dodge Dakota
You may want to see also
Frequently asked questions
The fuel pump in a 2006 Mitsubishi Eclipse is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle.
To access the fuel pump, you need to remove the rear seat cushion, locate the fuel pump access panel, and then disconnect the electrical connectors and fuel lines before removing the pump assembly.
Yes, the fuel pump module is designed to be replaced without removing the entire fuel tank. However, you must relieve the fuel system pressure and ensure the tank is as empty as possible for safety.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and a whining noise coming from the fuel tank area.
