Regan Brown
Connecting a fuel pump is a critical task in automotive maintenance, requiring precision and adherence to safety protocols. The process typically involves locating the fuel pump, often situated within the fuel tank or along the fuel line, and ensuring the vehicle is safely disconnected from the power source to prevent accidents. Depending on the vehicle’s make and model, you’ll need to remove any protective covers or components obstructing access to the pump. Next, disconnect the electrical connector and fuel lines, taking care to avoid spills or damage. Install the new fuel pump by reversing these steps, ensuring all connections are secure and properly sealed. Finally, test the system for leaks and functionality before reassembling any removed components. Always consult the vehicle’s manual or a professional guide for model-specific instructions.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | In-tank, external, or inline (depends on vehicle model) |
| Power Source | 12V DC (most vehicles) |
| Wiring Connections | Positive (+) to battery or relay, negative (-) to ground |
| Fuse Protection | Always use a fuse (typically 10-20A) in the power line |
| Relay Usage | Recommended for high-current pumps to protect the switch |
| Grounding | Securely connect to a clean, unpainted metal surface |
| Fuel Lines | Use compatible hoses (rubber or nylon) with proper fittings |
| Pressure Regulator | Ensure it's connected in-line (if required by the system) |
| Safety Precautions | Work with the ignition off; avoid sparks near fuel |
| Testing | Check for leaks, proper pressure, and correct operation before driving |
| Compatibility | Ensure the pump matches the vehicle's fuel system requirements |
| Mounting | Securely mount external pumps to prevent vibration damage |
| Electrical Load | Verify the pump's amperage doesn't exceed the wiring capacity |
| Fuel Filter | Install a pre-filter if not integrated into the pump |
| Instructions | Follow vehicle-specific or manufacturer guidelines for exact steps |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect fuel pump, wiring harness, connectors, safety gear, and basic hand tools
- Locate Fuel Pump: Identify pump location (usually in fuel tank or near engine)
- Disconnect Battery: Ensure safety by disconnecting the vehicle’s battery before starting
- Install Fuel Pump: Securely mount the pump, connect lines, and attach wiring harness
- Test and Verify: Reconnect battery, check for leaks, and confirm pump operation
Gather Tools and Materials: Collect fuel pump, wiring harness, connectors, safety gear, and basic hand tools
Before you even think about connecting a fuel pump, ensure you have everything you need within arm’s reach. Nothing derails a project faster than realizing mid-task that a critical component is missing. Start by laying out your fuel pump, wiring harness, and connectors on a clean, flat surface. The fuel pump is the heart of this operation, so verify it’s the correct model for your vehicle—check the part number against your car’s specifications to avoid costly mistakes. The wiring harness and connectors are equally vital, as they ensure a secure electrical connection, preventing shorts or malfunctions.
Safety gear isn’t optional; it’s mandatory. Fuel is highly flammable, and even a small spark can lead to disaster. Equip yourself with nitrile gloves to protect your skin from fuel exposure, safety goggles to shield your eyes from splashes, and a fire extinguisher rated for Class B fires (flammable liquids). If you’re working in a confined space, ensure proper ventilation to avoid inhaling fumes. These precautions may seem excessive, but they’re the difference between a smooth repair and a trip to the emergency room.
Basic hand tools are the unsung heroes of this process. A set of metric wrenches, screwdrivers (both flathead and Phillips), and needle-nose pliers will handle most of the work. Add a torque wrench to your kit to ensure bolts are tightened to manufacturer specifications—overtightening can damage components, while undertightening risks leaks. If you’re working on a modern vehicle, a trim removal tool can help you access the fuel pump without damaging interior panels. Investing in quality tools not only makes the job easier but also ensures longevity for future projects.
Organization is key to efficiency. Arrange your tools and materials in the order you’ll use them, creating a workflow that minimizes backtracking. For example, place the wiring harness near the fuel pump and keep the connectors within easy reach. Labeling components with masking tape can prevent confusion, especially if you’re dealing with multiple wires or fittings. This methodical approach saves time and reduces the risk of errors, turning a potentially daunting task into a manageable, step-by-step process.
Finally, consider the environment you’re working in. If you’re in a garage, clear the area of clutter and ensure the floor is dry to prevent slips. If outdoors, choose a shaded spot to avoid fuel evaporation from heat. Keep a tray or container nearby to catch any spilled fuel, and have absorbent materials like kitty litter or oil-absorbent pads on hand for cleanup. By preparing your workspace as carefully as you prepare your tools, you create a safe, efficient environment that sets the stage for a successful fuel pump connection.
Does the 2000 F150 Feature a Fuel Pump Driver Module?
You may want to see also
Explore related products
Locate Fuel Pump: Identify pump location (usually in fuel tank or near engine)
The fuel pump's location is a critical first step in any installation or repair process, as it dictates the tools, techniques, and safety precautions required. Typically, you'll find the fuel pump in one of two places: submerged in the fuel tank or mounted near the engine. Understanding this distinction is essential because it influences the complexity of the task and the potential risks involved. For instance, accessing a pump inside the fuel tank often requires draining the tank and removing it, whereas an engine-mounted pump may be more straightforward to reach but could involve working around hot components.
In vehicles with in-tank fuel pumps, the pump is usually part of a module that includes a sender unit and, in some cases, a fuel filter. This design keeps the pump cooled by the fuel and reduces the risk of vapor lock. To locate it, consult your vehicle’s manual or a repair guide specific to your make and model. Look for the fuel tank access panel, often found beneath the rear seat or in the trunk. For engine-mounted pumps, check along the fuel lines near the engine block or firewall. These pumps are commonly found in older vehicles or certain high-performance models where accessibility and serviceability are prioritized.
When identifying the pump’s location, consider the vehicle’s age and design. Modern vehicles overwhelmingly use in-tank pumps due to their efficiency and safety benefits, while older models may have external pumps for simplicity. For example, a 1990s Honda Civic will likely have an in-tank pump, whereas a classic carbureted muscle car might have a pump mounted on the frame rail. Knowing this can save you time and prevent unnecessary disassembly of components.
Safety is paramount when locating and accessing the fuel pump. If the pump is in the tank, ensure the vehicle is on a level surface, and the ignition is off to avoid sparks. Use a wrench or socket set to disconnect the fuel lines carefully, and have a drain pan ready to catch any spilled fuel. For engine-mounted pumps, allow the engine to cool before starting work, and be cautious of sharp edges or hot surfaces. Always refer to a repair manual for vehicle-specific safety guidelines.
In summary, locating the fuel pump begins with determining whether it’s in the fuel tank or near the engine. This knowledge informs the tools, safety measures, and steps needed for the task. Whether you’re replacing a faulty pump or upgrading your fuel system, accurate identification of the pump’s location is the foundation for a successful and safe repair. Always prioritize safety and consult reliable resources to ensure the job is done correctly.
Step-by-Step Guide to Hard Wiring Your Fuel Pump Safely
You may want to see also
Explore related products
Disconnect Battery: Ensure safety by disconnecting the vehicle’s battery before starting
Before attempting any work on a vehicle's fuel system, prioritizing safety is paramount. One critical step often overlooked is disconnecting the battery. This simple action significantly reduces the risk of electrical accidents, such as short circuits or sparks, which could ignite fuel vapors and lead to a dangerous situation.
The Science Behind the Safety Measure:
The fuel system operates under pressure, and any electrical malfunction near fuel lines or the pump itself can have catastrophic consequences. By disconnecting the battery, you eliminate the power source for the vehicle's electrical system, effectively rendering it inert. This prevents accidental activation of fuel pumps, injectors, or other components during the repair process.
Imagine working on a live wire – the potential for disaster is evident. Similarly, working on a fuel system with a connected battery is akin to playing with fire, quite literally.
A Step-by-Step Guide to Safe Disconnection:
- Locate the Battery: Typically found under the hood, the battery is usually housed in a plastic casing. Consult your vehicle's manual if you're unsure of its location.
- Identify Terminals: Most car batteries have two terminals: positive (+) and negative (-). The positive terminal is usually marked in red, while the negative is black.
- Loosen the Nut: Using a wrench or pliers, loosen the nut on the negative terminal. This will allow you to remove the cable easily.
- Remove the Cable: Once the nut is loose, carefully pull the negative cable away from the battery terminal. Ensure it doesn’t come into contact with any metal surfaces.
- Secure the Cable: To prevent accidental reconnection, secure the loose cable away from the battery terminal using a zip tie or electrical tape.
Beyond the Basics: Additional Considerations
While disconnecting the battery is crucial, it's not a foolproof guarantee of safety. Always work in a well-ventilated area, avoid open flames or sparks, and wear appropriate safety gear, including gloves and eye protection. Remember, fuel is highly flammable, and even a small spark can have devastating consequences.
Step-by-Step Guide to Replacing Your Vehicle's Fuel Pump Safely
You may want to see also
Explore related products
Install Fuel Pump: Securely mount the pump, connect lines, and attach wiring harness
Mounting a fuel pump securely is the foundation of a reliable fuel system. Choose a location that minimizes vibration and heat exposure, typically near the fuel tank but away from exhaust components. Use a sturdy mounting bracket and ensure the pump is level to prevent internal damage. For in-tank pumps, verify the locking mechanism engages fully to avoid fuel leaks. Always consult the manufacturer’s torque specifications for bolts to prevent over-tightening, which can crack the pump housing. A well-mounted pump not only ensures consistent fuel delivery but also extends the component’s lifespan.
Connecting fuel lines requires precision and attention to detail. Use high-quality hoses rated for fuel compatibility, such as those made from nitrile or PTFE, to withstand ethanol blends and prevent degradation. Secure fittings with wrenches, but avoid over-tightening, as this can deform the connections. Apply thread sealant or Teflon tape to threaded fittings to ensure an airtight seal. Double-check for leaks by pressurizing the system with a hand pump or starting the engine briefly. A single loose connection can lead to fuel starvation or, worse, a hazardous leak, so thorough inspection is critical.

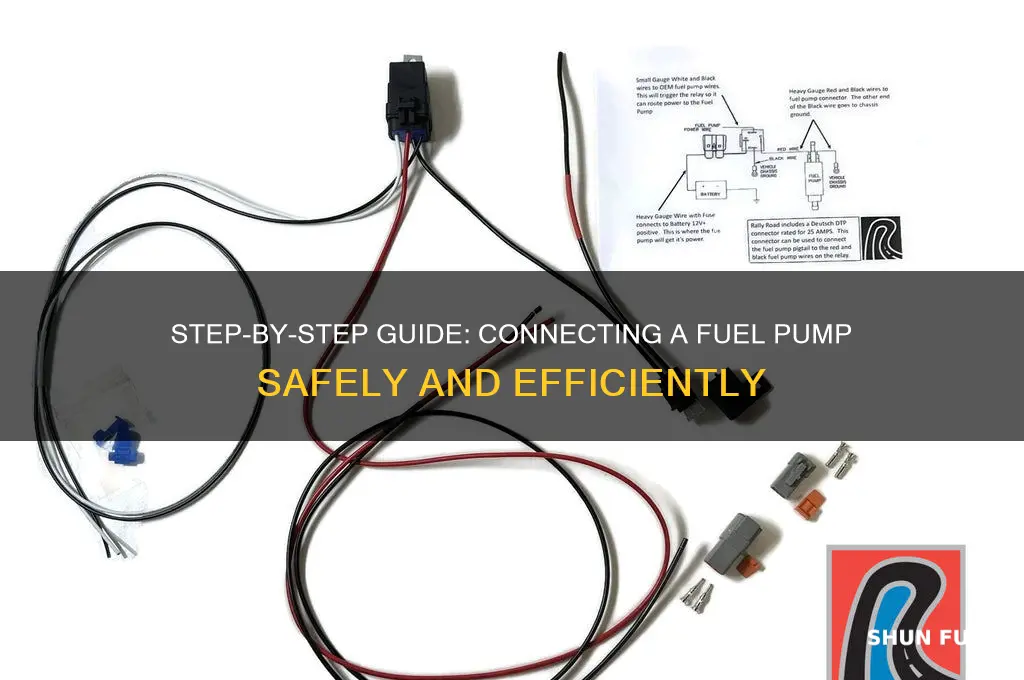

Attaching the wiring harness is the final step in integrating the fuel pump into the vehicle’s electrical system. Ensure the harness is routed away from hot surfaces and moving parts to prevent damage. Connect the positive wire to a switched 12-volt power source, such as the fuel pump relay, and the negative wire to a clean ground point on the chassis. Use heat-shrink tubing or electrical tape to insulate connections and protect against short circuits. Test the pump’s operation before driving by listening for the priming cycle when the ignition is turned on. Proper wiring ensures the pump activates only when needed, conserving energy and reducing wear.
Each step in installing a fuel pump—mounting, connecting lines, and attaching the wiring harness—plays a distinct role in system functionality. Skipping or rushing any phase can lead to inefficiency, leaks, or failure. For instance, a poorly mounted pump may vibrate loose, while incorrect wiring can cause the pump to run continuously, overheating and draining the battery. By following these guidelines and treating each step with equal importance, you create a fuel system that is both safe and efficient, ensuring your vehicle performs reliably under all conditions.
Does Gas Cool the Fuel Pump? Unraveling the Myth and Facts
You may want to see also
Explore related products
Test and Verify: Reconnect battery, check for leaks, and confirm pump operation
After connecting a fuel pump, the final and most critical phase is testing and verification. This step ensures the system operates safely and efficiently, preventing potential hazards like fuel leaks or pump failure. Begin by reconnecting the battery, ensuring all terminals are securely tightened to maintain a stable electrical connection. A loose connection can lead to intermittent power supply, which may damage the pump or cause erratic performance. Always wear safety gloves and goggles during this process, as fuel is flammable and can cause skin irritation.
Once the battery is reconnected, start the engine and listen for the fuel pump’s priming cycle, a brief humming sound that indicates the pump is pressurizing the fuel system. If the sound is absent, check the pump’s fuse and relay, as these are common failure points. Use a multimeter to verify power is reaching the pump; a reading of 12 volts at the pump’s connector confirms proper electrical supply. If voltage is insufficient, inspect the wiring harness for damage or corrosion, which can disrupt the circuit.
Next, inspect the fuel lines and connections for leaks. Even a small leak can lead to fuel loss, reduced engine performance, or fire risk. Apply a mixture of water and dish soap to the connections and look for bubbles, which indicate escaping fuel. For a more thorough check, run the engine for a few minutes and reinspect the lines, as pressure changes can reveal hidden leaks. If a leak is detected, tighten the fittings or replace damaged components immediately.
Finally, confirm the pump’s operation by monitoring fuel pressure with a gauge. Connect the gauge to the fuel rail and compare the reading to the manufacturer’s specifications, typically between 30 and 60 psi for most vehicles. Low pressure suggests a clogged filter, faulty pump, or air in the system, while high pressure indicates a restricted return line or failing regulator. If pressure is inconsistent, cycle the ignition key on and off to observe the pump’s response, ensuring it maintains steady pressure during operation.
This systematic approach to testing and verification not only ensures the fuel pump functions correctly but also safeguards against potential risks. By methodically checking electrical connections, inspecting for leaks, and confirming proper pressure, you can confidently rely on the fuel system’s performance. Always consult the vehicle’s manual for specific values and procedures, as variations exist across makes and models.
Does a Faulty Fuel Pump Trigger Diagnostic Codes? Find Out Here
You may want to see also
Frequently asked questions
You will typically need a wrench or socket set, screwdrivers, pliers, a fuel line disconnect tool (if applicable), and safety equipment like gloves and safety goggles.
Check the grounding wire connection to the vehicle’s chassis or designated ground point. Ensure the connection is clean, tight, and free of corrosion for a reliable electrical circuit.
It is highly recommended to disconnect the battery before connecting a fuel pump to prevent accidental sparks or electrical shorts, which could lead to a fire or damage to the pump.
