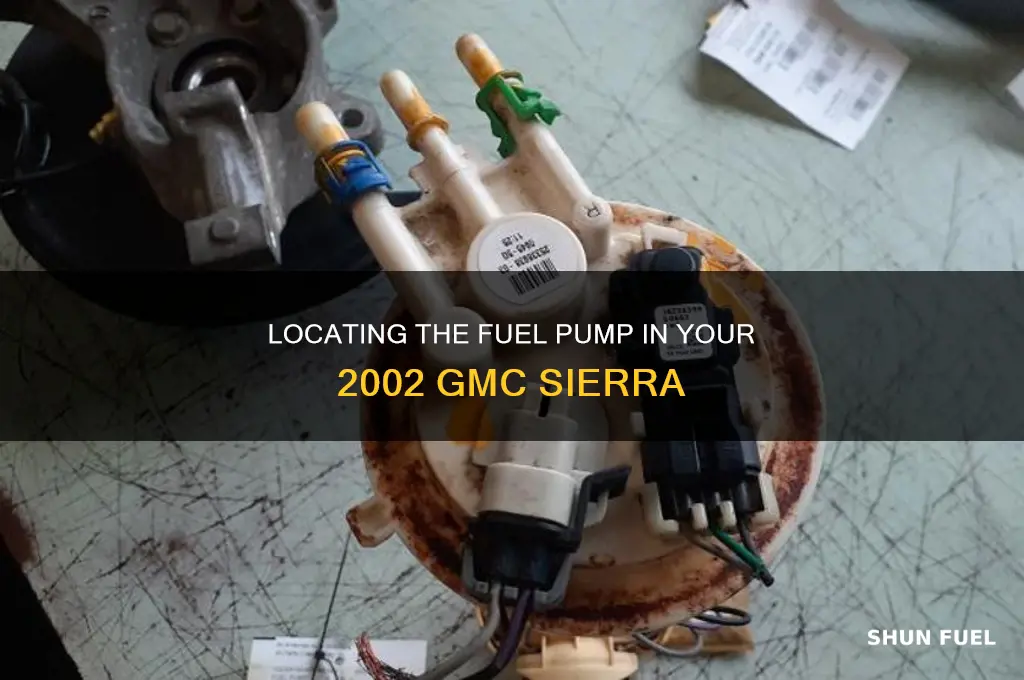

The fuel pump in a 2002 GMC Sierra is located inside the fuel tank, a common placement for many modern vehicles to ensure safety and maintain fuel pressure. To access it, you’ll need to remove the fuel tank, which typically involves draining the fuel, lowering the tank, and disconnecting the electrical and fuel lines. This task requires basic mechanical skills and safety precautions, such as working in a well-ventilated area and relieving fuel system pressure before starting. If you’re unsure, consulting a repair manual or seeking professional assistance is recommended to avoid potential hazards.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the fuel tank or accessing through a service panel |
| Tank Type | Steel fuel tank |
| Pump Type | In-tank electric fuel pump |
| Tank Capacity | Approximately 26 gallons (98.4 liters) |
| Fuel Pump Module | Includes pump, sender unit, and filter sock |
| Tools Required for Access | Jack, jack stands, wrenches, screwdriver, and possibly a fuel line tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, and work in a ventilated area |
| Common Issues | Fuel pump failure, clogged filter sock, or faulty sender unit |
| Replacement Difficulty | Moderate to difficult due to tank removal |
| Estimated Replacement Time | 2-4 hours depending on experience and tools |
Explore related products
What You'll Learn
Fuel pump location in engine bay
The fuel pump in a 2002 GMC Sierra is not located in the engine bay, contrary to what one might expect. Instead, it is situated within the fuel tank, a design choice common in many modern vehicles to reduce the risk of fuel line fires and improve fuel system efficiency. This in-tank placement means that accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions. Before starting, ensure the vehicle is on a level surface, the ignition is off, and the fuel system pressure is relieved to minimize hazards.
Understanding the fuel pump’s location is crucial for diagnostics and maintenance. Symptoms of a failing fuel pump, such as sputtering, stalling, or difficulty starting, often prompt owners to investigate. While the pump itself is in the tank, related components like the fuel filter or pressure regulator may be located in the engine bay or along the fuel lines. For the 2002 GMC Sierra, the fuel filter is typically found near the driver’s side frame rail, providing an accessible point for inspection or replacement without tackling the more complex task of removing the fuel tank.
For those considering DIY repairs, accessing the in-tank fuel pump involves draining the fuel tank, disconnecting the fuel lines, and lowering the tank to expose the pump assembly. This process requires basic tools like wrenches, a jack, and safety equipment, including gloves and safety goggles. It’s essential to work in a well-ventilated area and avoid open flames or sparks. While the task is manageable for experienced enthusiasts, novice mechanics may find it challenging due to the weight of the fuel tank and the precision required to avoid damaging fuel lines or electrical connections.
Comparing the 2002 GMC Sierra’s fuel pump location to older models highlights the evolution of fuel system design. Earlier vehicles often mounted the fuel pump externally, either in the engine bay or along the chassis, making it more accessible but less safe. The in-tank design, while less convenient for repairs, offers significant advantages in terms of safety and performance. For owners of this model, recognizing this difference can help set realistic expectations for maintenance and troubleshooting, emphasizing the need for patience and preparation when dealing with fuel system issues.
In summary, while the fuel pump in a 2002 GMC Sierra is not in the engine bay, understanding its in-tank location is key to effective maintenance. By focusing on related components in the engine bay and preparing for the complexities of in-tank access, owners can approach fuel system issues with confidence. Whether diagnosing symptoms or planning repairs, this knowledge ensures a more informed and safer approach to keeping the vehicle running smoothly.
Choosing the Right GPH Fuel Pump for Your 454 Engine
You may want to see also
Explore related products
Accessing the fuel pump assembly
The fuel pump in a 2002 GMC Sierra is located inside the fuel tank, a common placement for modern vehicles to ensure the pump stays cool and lubricated by the surrounding fuel. This design, while efficient, complicates access, requiring the removal of the tank for maintenance or replacement. Understanding this layout is crucial for anyone planning to tackle fuel pump issues on this model.
To access the fuel pump assembly, start by relieving the fuel system pressure to prevent accidental fuel spray or injury. Locate the pressure relief valve, typically near the fuel rail, and depress it using the appropriate tool. Once pressure is relieved, disconnect the negative battery terminal to eliminate the risk of electrical sparks. These initial steps are non-negotiable safety measures that must precede any work on the fuel system.
With safety precautions in place, proceed to drain the fuel tank to minimize spillage and weight during removal. Use a siphon pump or a hand-operated transfer pump to transfer fuel into a suitable container. After draining, raise the vehicle securely on jack stands to access the underside. Locate the fuel tank, which is usually positioned along the chassis between the rear wheels. Disconnect the fuel lines and electrical connectors, taking care to label their positions for reassembly. Loosen the tank straps and carefully lower the tank to the ground, ensuring no components are strained or damaged.
Once the tank is removed, the fuel pump assembly becomes accessible. It is typically secured by a locking ring or retaining mechanism that requires a specialized tool for removal. Carefully pry off the locking ring and lift the pump assembly out of the tank. Inspect the assembly for signs of wear, contamination, or damage before proceeding with repairs or replacement. Reinstallation follows the reverse process, ensuring all connections are secure and the tank is properly seated.
Sizing Your Fuel Pump: A Comprehensive Guide for Optimal Performance
You may want to see also
Explore related products
Fuel tank removal steps
The fuel pump in a 2002 GMC Sierra is located inside the fuel tank, which necessitates removing the tank for access. This process requires careful planning and adherence to safety protocols to avoid hazards associated with flammable fuels. Below is a detailed guide on fuel tank removal steps, tailored to this specific vehicle.
Preparation and Safety Measures
Before beginning, ensure the vehicle is on a level surface, the ignition is off, and the battery is disconnected to prevent accidental sparks. Relieve fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a suitable tool. Wear safety goggles and gloves, and have a fire extinguisher nearby. Place a drain pan under the fuel tank to catch residual fuel, as even a depressurized system may release some liquid.
Disconnecting Components and Lowering the Tank
Start by removing the fuel tank straps, typically secured by bolts accessible from the underside of the vehicle. Use a wrench or socket set to loosen these bolts, ensuring the tank is supported while doing so. Next, disconnect the fuel lines and electrical connectors attached to the tank. Use a line disconnect tool to avoid damaging the quick-connect fittings. Once all connections are detached, carefully lower the tank using a jack or a secure lifting mechanism. Be mindful of the tank’s weight, as it may still contain fuel, and handle it with care to prevent spills.
Post-Removal Considerations
With the tank removed, inspect the fuel pump module for wear or damage. If replacing the pump, ensure the new unit is compatible with the 2002 GMC Sierra’s specifications. Clean the tank’s interior if reusing it, and replace the fuel filter as part of routine maintenance. Reinstallation follows the reverse order of removal, with a critical emphasis on tightening straps securely and reconnecting lines and electrical components correctly.
Cautions and Practical Tips
Avoid smoking or working near open flames during this process. If fuel spills occur, clean them immediately to prevent fire risks. For vehicles with high mileage, consider replacing the tank straps if they show signs of corrosion or wear. Always refer to the vehicle’s service manual for torque specifications and additional model-specific guidance. This methodical approach ensures safe and efficient fuel tank removal, facilitating access to the fuel pump for inspection or replacement.
Locate Fuel Pump Relay in Your 1998 Toyota Tacoma Easily
You may want to see also
Explore related products
Identifying fuel pump components
The fuel pump in a 2002 GMC Sierra is located inside the fuel tank, a common placement in many modern vehicles to keep the pump cool and reduce the risk of vapor lock. Identifying its components is crucial for maintenance or replacement, as each part plays a specific role in delivering fuel efficiently to the engine. The primary components include the electric fuel pump itself, a strainer or filter to prevent debris from entering the system, and a sending unit that monitors fuel levels. Understanding these elements ensures accurate diagnosis and repair, saving time and preventing missteps during service.
Analyzing the fuel pump assembly reveals its modular design, which simplifies replacement. The electric fuel pump is the heart of the system, drawing fuel from the tank and pressurizing it for delivery to the engine. Attached to it is the strainer, a sock-like filter that traps contaminants, ensuring clean fuel reaches the pump. The sending unit, often integrated with the pump, measures fuel levels and transmits this data to the fuel gauge. These components are typically housed in a single module, accessible by dropping the fuel tank, a task requiring safety precautions like relieving fuel system pressure and disconnecting the battery.
From a practical standpoint, identifying these components during inspection can help diagnose common issues. For instance, a failing fuel pump may exhibit symptoms like sputtering, stalling, or difficulty starting, while a clogged strainer can reduce fuel flow, leading to poor performance. The sending unit, if faulty, may cause inaccurate fuel gauge readings. When replacing the fuel pump, it’s advisable to replace the entire module, as individual components are often not sold separately. Always use OEM or high-quality aftermarket parts to ensure compatibility and reliability, especially in older vehicles like the 2002 GMC Sierra.
Comparatively, the fuel pump module in the 2002 GMC Sierra shares similarities with other GM trucks of the same era but differs in specific design and mounting details. For example, the strainer design may vary slightly, and the sending unit’s electrical connector might have a unique configuration. This highlights the importance of consulting a vehicle-specific repair manual or diagram before beginning work. Additionally, while some fuel pumps in other vehicles are accessible without dropping the tank, the Sierra’s design necessitates this step, making it a more involved process.
In conclusion, identifying fuel pump components in a 2002 GMC Sierra requires familiarity with its integrated module design and the function of each part. By understanding the electric fuel pump, strainer, and sending unit, owners can troubleshoot issues effectively and perform replacements with confidence. Always prioritize safety, use the correct tools, and follow step-by-step procedures to ensure a successful repair. This knowledge not only saves money on professional repairs but also extends the life of the vehicle’s fuel system.
Testing Your 2003 Mustang Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Tools needed for fuel pump replacement
The fuel pump in a 2002 GMC Sierra is located inside the fuel tank, which means replacing it requires a specific set of tools to access and remove the tank safely. Understanding the tools needed is crucial to avoid complications during the replacement process. Here’s a detailed breakdown to ensure you’re well-prepared.
Essential Tools for the Job:
- Floor Jack and Jack Stands: These are necessary to safely lift the vehicle and provide stable support while you work underneath. Ensure the stands are rated for your truck’s weight.
- Wrench Set or Socket Set: You’ll need these to remove bolts securing the fuel tank straps and other components. Common sizes include 10mm, 12mm, and 15mm.
- Screwdrivers: Both flathead and Phillips screwdrivers may be required for miscellaneous fasteners or panel removal.
- Fuel Line Disconnect Tools: These specialized tools help safely release the fuel lines without damaging them or causing leaks.
- Pry Bar or Trim Removal Tool: Useful for gently prying off the fuel tank access panel or other components without scratching the vehicle.
Safety and Specialty Tools:
Safety should always be a priority when working with fuel systems. A safety goggles and gloves are essential to protect against fuel spills or debris. Additionally, a fuel pump module removal tool may be required to extract the pump assembly from the tank, depending on the design. If you’re unsure about compatibility, consult your vehicle’s manual or a trusted mechanic.
Optional but Helpful Tools:
A drain pan is useful for catching any residual fuel when disconnecting lines, while a ratchet strap can assist in lowering or raising the fuel tank safely. For those with limited experience, a repair manual specific to the 2002 GMC Sierra can provide step-by-step guidance tailored to your vehicle.
By gathering these tools beforehand, you’ll streamline the fuel pump replacement process and minimize the risk of errors or accidents. Preparation is key to a successful DIY repair.
Fuel Pump Replacement Costs: What You Need to Know
You may want to see also
Frequently asked questions
The fuel pump in a 2002 GMC Sierra is located inside the fuel tank.
To access the fuel pump, you need to remove the fuel tank. This involves draining the fuel, lowering the tank, and then removing the pump assembly from the top of the tank.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards.
No, the fuel pump is an in-tank unit, so the tank must be removed to access and replace the pump.
Common signs include difficulty starting, sputtering at high speeds, loss of power, and unusual noises from the fuel tank area.
