Fixing a diaphragm fuel pump requires a systematic approach to diagnose and resolve common issues such as fuel starvation, leaks, or pump failure. Begin by inspecting the pump for visible damage, cracks, or loose connections, ensuring all fittings are tight and secure. Check the diaphragm for wear or tears, replacing it if necessary, as a compromised diaphragm can lead to inefficient fuel transfer. Verify that the pump is receiving adequate power and that the check valve is functioning properly to prevent backflow. Clean or replace clogged fuel filters and lines to ensure unobstructed fuel flow. If the pump still fails to operate, test the solenoid or motor for electrical faults, replacing components as needed. Always refer to the manufacturer’s manual for specific instructions and safety precautions to ensure a successful repair.
| Characteristics | Values |
|---|---|
| Common Issues | Fuel pump not pumping, leaks, diaphragm failure, clogged inlet/outlet |
| Tools Required | Screwdriver, wrench, pliers, replacement diaphragm, gasket, fuel line |
| Steps to Fix | 1. Disconnect fuel lines 2. Remove pump cover 3. Inspect diaphragm for damage 4. Replace diaphragm if necessary 5. Clean or replace gaskets 6. Reassemble and test pump |
| Safety Precautions | Work in well-ventilated area, avoid sparks, relieve fuel system pressure before starting |
| Replacement Parts | Diaphragm kit, gaskets, fuel lines, filters |
| Troubleshooting Tips | Check for air leaks, ensure proper fuel flow, inspect for debris in fuel lines |
| Maintenance Tips | Regularly inspect for leaks, clean fuel filters, avoid running pump dry |
| Compatibility | Specific to pump model; check manufacturer’s manual |
| Cost of Repair | $20–$100 (depending on parts and labor) |
| Time Required | 30 minutes to 2 hours (depending on complexity) |
| Professional Help | Recommended if unsure or for complex issues |
Explore related products
What You'll Learn
- Diagnosing Pump Issues: Identify symptoms like engine sputtering, hard starting, or fuel leaks indicating diaphragm pump failure
- Disassembling the Pump: Safely remove the pump, detach fuel lines, and disassemble components for inspection or repair
- Replacing Diaphragm: Remove old diaphragm, clean housing, and install new diaphragm with proper alignment and sealing
- Reassembling and Testing: Reassemble pump, reconnect fuel lines, and test for leaks and proper fuel delivery
- Preventive Maintenance: Regularly inspect pump, clean fuel system, and replace worn parts to avoid future failures
Diagnosing Pump Issues: Identify symptoms like engine sputtering, hard starting, or fuel leaks indicating diaphragm pump failure
Engine sputtering, hard starting, and fuel leaks are red flags that your diaphragm fuel pump may be failing. These symptoms often stem from the pump’s inability to maintain consistent fuel pressure or deliver fuel efficiently to the engine. Sputtering, for instance, occurs when the engine receives an inconsistent fuel supply, causing it to misfire. Hard starting suggests the pump isn’t delivering enough fuel to initiate combustion, while fuel leaks indicate a cracked diaphragm or faulty seal. Ignoring these signs can lead to complete pump failure, leaving you stranded or causing further engine damage.
To diagnose pump issues effectively, start by checking fuel pressure with a gauge. A reading below the manufacturer’s specifications (typically 3–5 PSI for small engines) confirms the pump is underperforming. Next, inspect the pump for visible cracks, leaks, or damage. If the diaphragm is compromised, it won’t create the necessary vacuum to draw fuel, resulting in poor engine performance. Additionally, listen for unusual noises during operation, such as clicking or grinding, which may signal internal wear or debris in the pump.
Comparing a failing diaphragm pump to a healthy one highlights key differences. A functional pump operates silently, maintains steady fuel pressure, and ensures smooth engine performance. In contrast, a failing pump struggles to keep up with fuel demands, especially under load or during acceleration. For example, if your lawnmower or generator stalls when the throttle is increased, the pump likely can’t deliver sufficient fuel to meet the engine’s higher requirements. This comparison underscores the importance of addressing symptoms early to avoid costly repairs.
Practical tips for diagnosing pump issues include testing the pump’s output by disconnecting the fuel line and cranking the engine. If no fuel is expelled, the pump is likely clogged or the diaphragm is ruptured. Another method is to perform a vacuum test by applying suction to the pump’s inlet; if it holds, the diaphragm is intact. For older pumps (over 5 years), consider age as a factor, as diaphragms degrade over time, especially in harsh conditions. Always consult the pump’s manual for specific troubleshooting steps and replacement intervals.
In conclusion, recognizing symptoms like engine sputtering, hard starting, and fuel leaks is the first step in diagnosing diaphragm pump failure. By combining visual inspections, pressure tests, and comparative analysis, you can pinpoint the issue accurately. Addressing these problems promptly not only restores engine performance but also extends the pump’s lifespan. Remember, a failing pump is more than an inconvenience—it’s a safety hazard that demands immediate attention.
Step-by-Step Guide to Repairing a Fuel Pump Diaphragm
You may want to see also
Explore related products
Disassembling the Pump: Safely remove the pump, detach fuel lines, and disassemble components for inspection or repair
Before tackling the intricate task of disassembling a diaphragm fuel pump, it's crucial to understand the pump's role in your vehicle's fuel system. Diaphragm pumps are known for their reliability, but wear and tear can lead to reduced performance or failure. Disassembly is often necessary to identify issues such as cracked diaphragms, clogged valves, or worn seals. This process requires precision and care to avoid damage or safety hazards, making it a critical step in any repair or maintenance routine.
Steps to Safely Remove the Pump: Begin by relieving fuel system pressure to prevent accidental spills or injuries. Locate the pump, typically mounted near the fuel tank or engine bay, and disconnect the battery to eliminate any risk of ignition. Use appropriate tools to loosen and remove the mounting bolts, ensuring the pump is free from its housing. Gently lift the pump, taking care not to strain or damage connected fuel lines. If the pump is stubborn, inspect for hidden fasteners or brackets that may still be securing it in place.
Detaching Fuel Lines with Care: Fuel lines are often the most delicate part of this process, as they can crack or leak if mishandled. Start by identifying the type of connection—hose clamps, quick-disconnect fittings, or threaded couplings. For hose clamps, use a flathead screwdriver to loosen the clamp before sliding it away from the pump. Quick-disconnect fittings require a specialized tool or a careful prying motion to release the locking mechanism. Threaded couplings should be unscrewed slowly, using a wrench or pliers with a cloth to prevent damage to the threads. Always have a drain pan ready to catch any residual fuel.
Disassembling Components for Inspection: With the pump removed and fuel lines detached, focus on disassembling the unit for a thorough inspection. Start by removing the pump cover, typically secured with screws or clips. Inside, you’ll find the diaphragm, valves, and springs. Carefully lift the diaphragm assembly, noting its orientation for reassembly. Inspect the diaphragm for cracks, the valves for debris, and the springs for fatigue. Clean all components with a solvent-safe cleaner and a soft brush, ensuring no residue remains. If parts are damaged, replace them with manufacturer-approved components to ensure compatibility and performance.
Cautions and Practical Tips: Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Wear safety goggles and nitrile gloves to protect against chemical exposure. If you encounter resistance during disassembly, avoid forcing components, as this can lead to breakage. Keep a detailed record of the disassembly process, including the order of parts and their positions, to simplify reassembly. For complex pumps, consider taking photos at each step as a visual reference. Finally, consult the pump’s manual or a trusted repair guide for model-specific instructions, as designs can vary significantly.
By following these steps and precautions, disassembling a diaphragm fuel pump becomes a manageable task, allowing for accurate diagnosis and effective repairs. This hands-on approach not only saves costs but also deepens your understanding of your vehicle’s fuel system, empowering you to tackle future maintenance with confidence.
Snowmobile Fuel Pump Testing: A Step-by-Step Troubleshooting Guide
You may want to see also
Explore related products

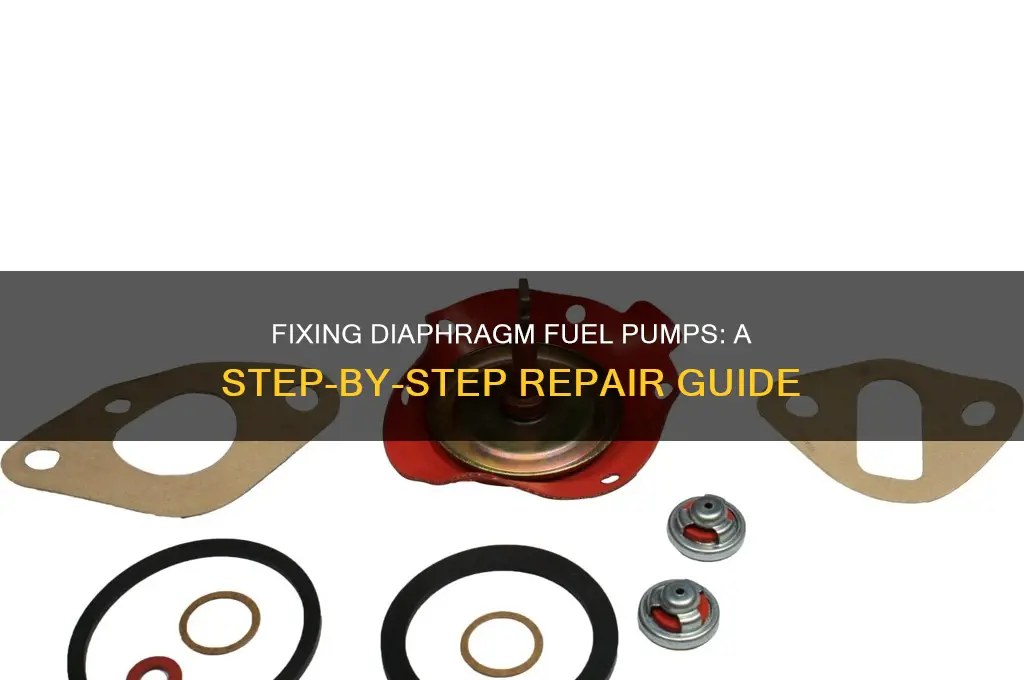

Replacing Diaphragm: Remove old diaphragm, clean housing, and install new diaphragm with proper alignment and sealing
A worn or damaged diaphragm is a common culprit behind diaphragm fuel pump failures. This critical component, responsible for creating the vacuum necessary to draw fuel, can crack, tear, or lose flexibility over time, leading to reduced pump efficiency or complete failure. Replacing the diaphragm is often a straightforward and cost-effective solution to restore your pump's functionality.
Here's a detailed guide to ensure a successful replacement:
Disassembly and Inspection: Begin by disconnecting the fuel lines and relieving any pressure within the system. Carefully disassemble the pump housing, taking note of the diaphragm's orientation and any gaskets or seals present. Inspect the old diaphragm for signs of wear, such as cracks, tears, or hardening. Also, examine the housing for debris, corrosion, or damage that could compromise the new diaphragm's performance.
Cleaning and Preparation: Thoroughly clean the pump housing using a suitable solvent to remove any fuel residue, dirt, or old gasket material. Ensure all surfaces are dry before proceeding. If the housing shows signs of corrosion, consider using a mild abrasive to restore a smooth surface. Inspect the housing for any sharp edges or burrs that could damage the new diaphragm during installation.
Installation and Alignment: Position the new diaphragm, ensuring it is correctly aligned with the pump's ports and valves. Pay close attention to the manufacturer's instructions regarding the diaphragm's orientation and any specific installation requirements. Use a suitable lubricant, such as silicone grease, to aid in the installation and prevent damage to the diaphragm.
Sealing and Reassembly: Apply a thin, even layer of gasket sealant or use a new gasket if required. Reassemble the pump housing, ensuring all components are securely fastened. Torque the bolts to the manufacturer's specifications, being careful not to overtighten, as this can damage the diaphragm or housing. Reconnect the fuel lines, ensuring they are securely attached and free from leaks.
Post-Installation Checks: After reassembly, perform a visual inspection to confirm the diaphragm is seated correctly and the housing is securely sealed. Reapply pressure to the fuel system and check for any leaks. If possible, test the pump's operation by priming the system and observing the fuel flow. This will ensure the new diaphragm is functioning correctly and the pump is ready for service.
By following these steps and paying attention to detail, you can effectively replace the diaphragm in your fuel pump, restoring its performance and extending its service life. Remember, proper maintenance and regular inspections can prevent unexpected failures and ensure the reliability of your fuel system.
Quick Fixes to Speed Up Your Fuel Pump's Performance
You may want to see also
Explore related products
Reassembling and Testing: Reassemble pump, reconnect fuel lines, and test for leaks and proper fuel delivery
Once the diaphragm fuel pump’s internal components are cleaned, replaced, or repaired, reassembly is the next critical step. Begin by carefully aligning the diaphragm and gaskets with their respective seats, ensuring no folds or misalignments that could compromise performance. Secure the pump housing with the appropriate torque specifications—overtightening can warp the casing, while undertightening risks leaks. Use a torque wrench to apply manufacturer-recommended values, typically ranging from 10 to 20 Nm for small engines. This precision ensures the pump operates efficiently without unnecessary strain on the diaphragm.
Reconnecting fuel lines demands equal attention to detail. Inspect all hoses for cracks, brittleness, or signs of degradation, replacing them if necessary. When attaching lines, ensure clamps are snug but not over-tightened, as this can damage the hoses. Use a fuel-resistant sealant on threaded connections if specified by the manufacturer, but avoid over-application to prevent contamination. Properly routed lines should avoid sharp bends or areas prone to high heat, as these can restrict flow or accelerate wear. A well-organized fuel line layout not only prevents leaks but also simplifies future maintenance.
Testing the reassembled pump is a twofold process: leak detection and performance verification. Start by pressurizing the system without running the engine, using a hand pump or compressed air (at no more than 5 psi) to check for leaks at joints, gaskets, and hoses. Apply soapy water to suspected areas—bubbling indicates a leak. Once leak-free, test fuel delivery by cranking the engine. Observe the fuel flow at the carburetor or fuel rail; it should be consistent and free of air bubbles. Use a fuel pressure gauge to confirm the pump maintains the correct pressure, typically 3–5 psi for carbureted systems and 40–60 psi for fuel-injected engines.
A common oversight during reassembly is neglecting to prime the pump, which can lead to airlocks and poor performance. To prime, disconnect the fuel line at the carburetor or injector and crank the engine briefly until fuel flows steadily. This ensures the pump is fully charged and ready to deliver fuel efficiently. Additionally, listen for unusual noises during operation—squeaking or grinding may indicate misalignment or debris in the pump, requiring disassembly for further inspection.
In conclusion, reassembling and testing a diaphragm fuel pump is a meticulous process that balances precision with practicality. By following torque specifications, inspecting fuel lines, and conducting thorough leak and performance tests, you ensure the pump operates reliably. Attention to priming and unusual noises further safeguards against post-repair issues. This methodical approach not only restores functionality but also extends the pump’s lifespan, making it a worthwhile investment of time and effort.
Crafting a Vintage Fuel Pump Replica: A Step-by-Step Guide
You may want to see also
Explore related products
Preventive Maintenance: Regularly inspect pump, clean fuel system, and replace worn parts to avoid future failures
Diaphragm fuel pumps, critical in many small engines and industrial applications, are prone to wear and tear due to constant exposure to fuel and vibration. Regular inspection is the first line of defense against unexpected failures. Start by checking the pump for cracks, leaks, or deformities in the diaphragm, as these can lead to fuel inefficiency or complete breakdown. Inspect the inlet and outlet ports for debris or corrosion, which can restrict fuel flow. Use a magnifying glass or flashlight to spot microscopic damage, and document findings for trend analysis. Early detection of issues allows for timely intervention, reducing downtime and repair costs.
Cleaning the fuel system is equally vital to prevent clogs and ensure optimal pump performance. Over time, fuel contaminants like dirt, rust, or varnish accumulate in filters, lines, and the pump itself. Begin by draining the fuel tank and replacing the filter, ensuring compatibility with the fuel type (e.g., ethanol-blended fuels require ethanol-resistant materials). Use a fuel system cleaner recommended by the manufacturer, following dosage instructions—typically 1 ounce per 5 gallons of fuel. Flush the lines with clean fuel to remove residual debris. Neglecting this step can lead to pump overheating or diaphragm rupture, especially in high-demand applications like marine engines or generators.
Replacing worn parts proactively is a cornerstone of preventive maintenance. Diaphragm pumps have a finite lifespan, with diaphragms, valves, and seals degrading over time. Monitor pump pressure and flow rate; a 10–15% drop from baseline readings signals potential wear. Replace diaphragms every 2–3 years or 1,000 hours of operation, whichever comes first, using OEM parts for compatibility. Inspect check valves for stiffness or leakage, as these can cause backflow or fuel starvation. While DIY replacements are possible, consult a technician for complex systems or if unsure about disassembly procedures.
Comparing reactive repairs to preventive maintenance highlights the latter’s cost-effectiveness. A failed diaphragm pump can cost $200–$500 to replace, plus labor and potential engine damage expenses. In contrast, a maintenance kit (diaphragm, seals, gaskets) typically costs $50–$100, and cleaning supplies add another $20–$30. Scheduling maintenance every 6–12 months, depending on usage, ensures longevity and reliability. For example, a landscaping business with daily pump use saved $1,200 annually by adopting a preventive approach, avoiding three emergency repairs in one year.
Finally, integrate preventive maintenance into a broader system care routine. Pair pump inspections with engine tune-ups, fuel tank cleanings, and hose checks for a comprehensive strategy. Keep a logbook detailing inspection dates, findings, and replacements to track wear patterns. For fleets or multi-pump setups, use color-coded tags to indicate maintenance status. By treating the pump as part of an interconnected system, rather than an isolated component, you maximize efficiency and minimize the risk of cascading failures. This holistic approach transforms maintenance from a chore into a strategic investment in equipment longevity.
Exploring 1994 Vehicles: Did They Feature Fuel Pump Driver Modules?
You may want to see also
Frequently asked questions
Common symptoms include engine sputtering, difficulty starting the engine, inconsistent fuel delivery, and a noticeable drop in engine performance. You may also hear unusual noises from the pump or notice fuel leaks.
Start by checking for fuel flow at the carburetor or fuel injector. If there’s no fuel, inspect the pump for cracks, leaks, or a damaged diaphragm. You can also test the pump’s pressure using a gauge or listen for proper operation when the engine is running.
Many diaphragm fuel pumps can be repaired by replacing the diaphragm, valves, or gaskets. However, if the pump housing is cracked or severely damaged, replacement is usually the best option. Always refer to the manufacturer’s instructions for specific repair guidelines.
You’ll typically need a wrench or socket set, screwdrivers, pliers, a new diaphragm kit (if repairing), and a clean cloth for wiping surfaces. Ensure you have the correct replacement parts and follow safety precautions, such as relieving fuel system pressure before starting the repair.
