The fuel pump relay in a Volvo S80 is a critical component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located in the fuse box, typically found in the engine compartment or under the dashboard, this relay ensures that the fuel pump operates efficiently, delivering the necessary fuel to the engine. Identifying its exact location can vary depending on the model year, so consulting the vehicle’s manual or a trusted repair guide is essential for accurate troubleshooting or replacement. Understanding where the fuel pump relay is situated in a Volvo S80 is crucial for diagnosing issues such as engine stalling or failure to start, as a faulty relay can disrupt fuel delivery and affect overall performance.
| Characteristics | Values |
|---|---|
| Location | Typically found in the fuse box under the hood or in the cabin fuse panel. |
| Vehicle Model | Volvo S80 |
| Year Range | Varies by model year (e.g., 1999-2006, 2007-2016) |
| Fuse Box Position | Often labeled as "Fuel Pump Relay" or "Relay 10" in the fuse box diagram. |
| Function | Controls power supply to the fuel pump. |
| Symptoms of Failure | Engine not starting, stalling, or difficulty starting. |
| Replacement Part | Specific to Volvo S80 fuel pump relay (part number varies by year). |
| Access Difficulty | Moderate (requires locating the fuse box and identifying the correct relay) |
| Tools Required | Basic hand tools (e.g., screwdriver, pliers). |
| Cost of Replacement | Approximately $20-$50 (varies by brand and retailer). |
| DIY Feasibility | High (relatively simple to replace with basic automotive knowledge). |
Explore related products
What You'll Learn

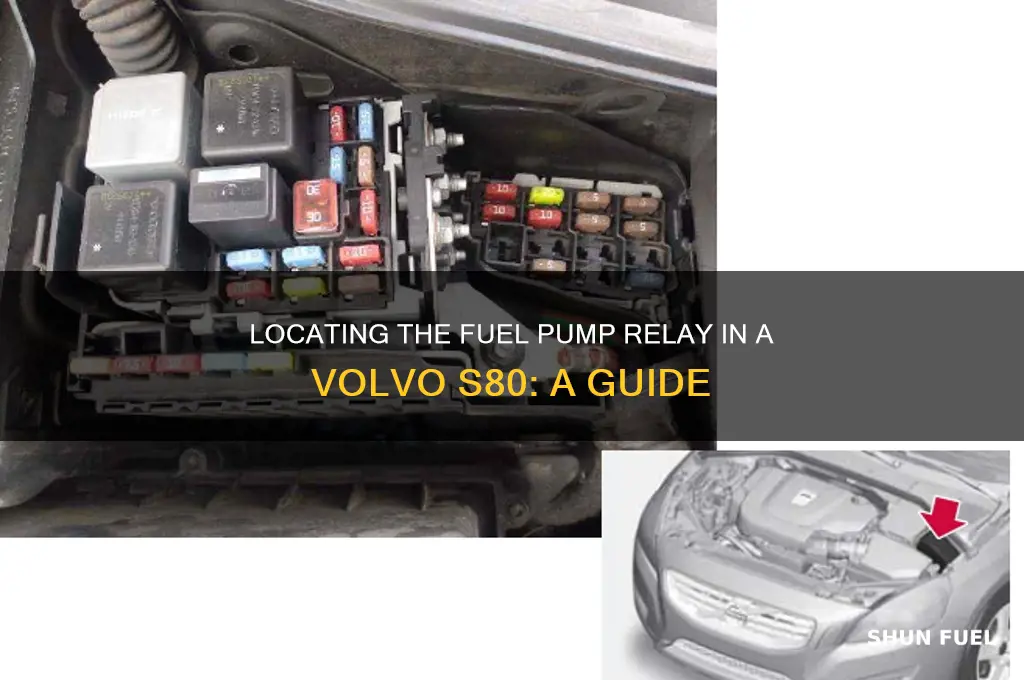

Location of Fuel Pump Relay
The fuel pump relay in a Volvo S80 is a critical component that ensures your vehicle’s fuel system operates efficiently. Located in the fuse box, its exact position varies by model year. For most 1999–2006 Volvo S80 models, the relay resides in the engine bay fuse box, typically near the battery or along the driver’s side strut tower. Identifying it requires consulting the fuse box diagram, often found on the lid’s underside or in the owner’s manual. This relay is essential for activating the fuel pump, delivering fuel from the tank to the engine, and preventing engine stalls or startup failures.
Analyzing the design of the Volvo S80’s electrical system reveals why the fuel pump relay is placed in the engine bay rather than the cabin. This location protects the relay from moisture and temperature fluctuations, common in the passenger compartment. However, its proximity to the engine exposes it to heat and vibration, which can accelerate wear. Regular inspection for corrosion or loose connections is advisable, especially in older models. Understanding this trade-off highlights the importance of routine maintenance to ensure the relay’s longevity and reliability.
For DIY enthusiasts, replacing a faulty fuel pump relay in a Volvo S80 is a straightforward task. Begin by locating the fuse box and removing its cover to access the relay. Use the diagram to identify the correct relay, typically labeled as "FUEL PUMP" or "FP." Swap it with a new one, ensuring the prongs align correctly. Test the vehicle afterward to confirm the issue is resolved. Caution: Always disconnect the battery before working on the fuse box to avoid electrical hazards. This process saves time and money compared to a professional repair.
Comparing the Volvo S80’s fuel pump relay location to other vehicles reveals both similarities and differences. While many cars place the relay in the engine bay fuse box, some models integrate it into the main cabin fuse panel or even mount it directly on the fuel pump assembly. Volvo’s choice prioritizes durability and accessibility, balancing protection with ease of maintenance. This approach aligns with the brand’s focus on reliability, making it a practical design for both mechanics and owners alike.
Descriptively, the fuel pump relay in a Volvo S80 is a small, rectangular component with a series of prongs that connect to the fuse box. Its unassuming appearance belies its critical role in the vehicle’s operation. Often black or gray, it blends seamlessly into the fuse box, making it easy to overlook without the diagram. Despite its simplicity, this relay is a lifeline for the fuel system, ensuring consistent performance under various driving conditions. Recognizing its location and function empowers owners to address issues promptly, maintaining their vehicle’s efficiency and safety.
TCU vs. TCF Fuel Pumps: Key Differences and Identification Tips
You may want to see also
Explore related products
Identifying the Relay in Volvo S80
The fuel pump relay in a Volvo S80 is a critical component, ensuring the engine receives the necessary fuel for operation. Identifying its location is essential for troubleshooting or maintenance, but it’s not always straightforward due to variations across model years. For most Volvo S80 models (2000–2006), the relay is housed in the Central Electronic Module (CEM), located under the dashboard on the driver’s side. However, some later models may integrate it into the fuse box in the engine bay, near the battery. Understanding these differences is key to avoiding unnecessary disassembly.
To identify the correct relay, start by consulting the vehicle’s service manual, which provides a detailed diagram of the fuse and relay layout. For instance, in the 2004 Volvo S80, the fuel pump relay is often labeled as “R9” in the CEM. If the manual is unavailable, online forums and Volvo-specific resources can offer model-specific insights. A practical tip: use a multimeter to test the relay’s continuity, ensuring it’s functioning before assuming it’s the source of the issue. This step saves time and prevents misdiagnosis.
Comparing the Volvo S80’s relay system to other vehicles highlights its unique design. Unlike many cars where relays are standalone units, Volvo integrates them into larger modules, emphasizing efficiency but complicating access. For example, while a Toyota Camry’s fuel pump relay is typically found in the engine bay, the S80’s CEM placement requires removing interior panels, a task that demands patience and precision. This design choice underscores Volvo’s focus on centralized electronics but requires a more methodical approach during repairs.
When attempting to locate the relay, proceed with caution. Disconnecting the battery is a critical safety step to avoid electrical shorts, especially when working near the CEM. Additionally, avoid forcing components apart; Volvo’s interior panels are often secured with clips that can break if mishandled. A magnetic parts tray can help keep screws organized during disassembly. For those less experienced, pairing this task with a visual guide or tutorial can significantly reduce the risk of errors.
In conclusion, identifying the fuel pump relay in a Volvo S80 requires a blend of research, precision, and caution. Whether it’s nestled in the CEM or engine bay fuse box, understanding its location and function is crucial for effective troubleshooting. By leveraging resources like service manuals, testing tools, and practical tips, even novice mechanics can navigate this task with confidence. This knowledge not only saves time but also ensures the longevity of the vehicle’s fuel system.
Understanding the Functionality of a Ford Fuel Pump Relay
You may want to see also
Explore related products
Common Symptoms of a Faulty Relay
A faulty fuel pump relay in a Volvo S80 can manifest in several ways, often mimicking symptoms of other fuel system issues. One of the most common signs is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay fails to send power to the fuel pump, preventing it from priming the system with fuel. If the engine cranks but doesn’t start, or starts inconsistently, the relay may be to blame. This symptom can be misleading, as it often resembles a failing fuel pump or clogged fuel filter, making diagnosis tricky without proper testing.
Another telltale symptom is a sudden stall while driving, particularly at high speeds or under load. When the relay malfunctions, it can intermittently cut power to the fuel pump, causing the engine to lose fuel supply and shut down unexpectedly. This is not only frustrating but also dangerous, as it can leave you stranded in traffic or on the highway. If your Volvo S80 exhibits this behavior, it’s crucial to inspect the relay and associated wiring for signs of damage or corrosion, as these issues can exacerbate relay failure.
An often overlooked symptom is a whining or buzzing noise from the fuel tank area when the ignition is turned on. This sound typically indicates that the fuel pump is receiving power, but if the noise is absent or inconsistent, the relay may be at fault. To test this, listen carefully near the fuel tank after turning the key to the "on" position (but before starting the engine). If the pump doesn’t prime, use a multimeter to check for voltage at the relay’s output terminal. No voltage suggests a faulty relay or a wiring issue between the relay and the pump.
Lastly, a malfunctioning fuel pump relay can trigger the check engine light, often accompanied by error codes related to fuel system pressure or delivery. While these codes don’t exclusively point to a relay problem, they should prompt a thorough inspection of the relay and its connections. Modern Volvo S80 models (2007–2016) typically store diagnostic trouble codes (DTCs) like P0087 or P0088, which indicate low fuel pressure. Clearing these codes and monitoring their return can help isolate the relay as the culprit. Always consult a repair manual or diagnostic tool for your specific model year to ensure accurate troubleshooting.
Measuring Fuel Pump Amp Draw: A Step-by-Step Guide
You may want to see also
Explore related products
Steps to Replace the Relay
The fuel pump relay in a Volvo S80 is typically located in the fuse box under the hood, near the battery. Identifying its exact position is crucial before attempting any replacement, as this ensures you’re working on the correct component. Volvo often labels relays clearly, but consulting the owner’s manual or a repair guide can provide a precise diagram for your specific model year.
Before starting, disconnect the car battery to prevent electrical mishaps. Once the relay’s location is confirmed, carefully pry open the fuse box cover using a flathead screwdriver, taking care not to damage the plastic clips. Relays are usually plug-and-play components, but inspect the relay socket for corrosion or damage. If the socket appears compromised, clean it with electrical contact cleaner or consider replacing it to ensure a reliable connection.
With the fuse box open, gently pull the old relay straight out of its slot. Avoid twisting or forcing it, as this can damage the socket. Insert the new relay by aligning the pins with the socket and pushing it firmly until it clicks into place. Ensure it sits flush with the surrounding relays to avoid loose connections. Reattach the fuse box cover securely, then reconnect the battery.
After replacement, test the fuel pump relay by starting the vehicle. Listen for the pump’s priming sound, which should occur for 2–3 seconds when the ignition is turned on. If the engine starts smoothly, the relay is functioning correctly. Persistent issues may indicate a deeper problem, such as a faulty fuel pump or wiring, requiring further diagnosis. Always keep a spare relay in your emergency kit, as this component is a common failure point in older vehicles.
Fuel Pump Luxor Baronne Location Guide: Where to Find It
You may want to see also
Explore related products
Tools Needed for Relay Replacement
Replacing the fuel pump relay in a Volvo S80 requires a precise set of tools to ensure the job is done efficiently and safely. The first essential tool is a relay puller, which is specifically designed to extract relays from their sockets without damaging the surrounding components. While some relays can be removed by hand, a puller ensures consistency, especially in tight spaces like the Volvo S80’s fuse box. Without this tool, there’s a risk of bending relay pins or cracking the housing, leading to further complications.
Beyond the relay puller, a multimeter is indispensable for diagnosing the relay’s functionality before replacement. This tool allows you to test the relay’s continuity and ensure the new part is operational. For the Volvo S80, set the multimeter to the resistance or continuity setting and check the pins according to the relay’s diagram. If the multimeter shows no continuity or irregular readings, the relay is faulty and needs replacement. Skipping this step could result in installing a new relay only to discover the issue persists.
A trim removal tool is another critical item, particularly for accessing the fuel pump relay in the Volvo S80. The relay is often located in a fuse box hidden behind interior panels, which require careful removal to avoid scratches or damage. A trim tool’s thin, flat edge allows you to pry panels gently without leaving marks. Pair this with a magnetic screwdriver to keep track of screws during disassembly, as the Volvo S80’s interior panels often involve multiple fasteners that are easy to misplace.
Finally, a flashlight and gloves are practical additions to your toolkit. The Volvo S80’s fuse box is typically located in dimly lit areas, such as under the dashboard or in the trunk, making a flashlight essential for visibility. Gloves protect your hands from sharp edges and provide a better grip when handling small components like relays. While these tools may seem minor, they significantly streamline the process, ensuring a smooth and error-free replacement.
In summary, replacing the fuel pump relay in a Volvo S80 demands a combination of specialized and everyday tools. A relay puller, multimeter, trim removal tool, magnetic screwdriver, flashlight, and gloves form the core toolkit. Each tool serves a unique purpose, from diagnostics to disassembly, ensuring the job is completed accurately and without damage. Investing in these tools not only simplifies the task but also prevents potential issues down the road.
New Fuel Pump Not Working? Troubleshooting Tips and Common Causes
You may want to see also
Frequently asked questions
The fuel pump relay in a Volvo S80 is typically located in the fuse box under the hood. It is often found in the engine compartment fuse and relay box, usually labeled as "FUEL PUMP" or "FP RELAY."
The fuel pump relay is usually a small, rectangular or square-shaped component with several pins. It is often labeled with a number or "FUEL PUMP" on the relay itself or in the fuse box diagram provided in your vehicle’s manual.
If the fuel pump relay is faulty, it should be replaced with a new one. First, locate the relay in the fuse box, remove it by pulling it straight out, and replace it with a compatible relay. Ensure the replacement matches the specifications of the original relay. If unsure, consult a professional mechanic.
