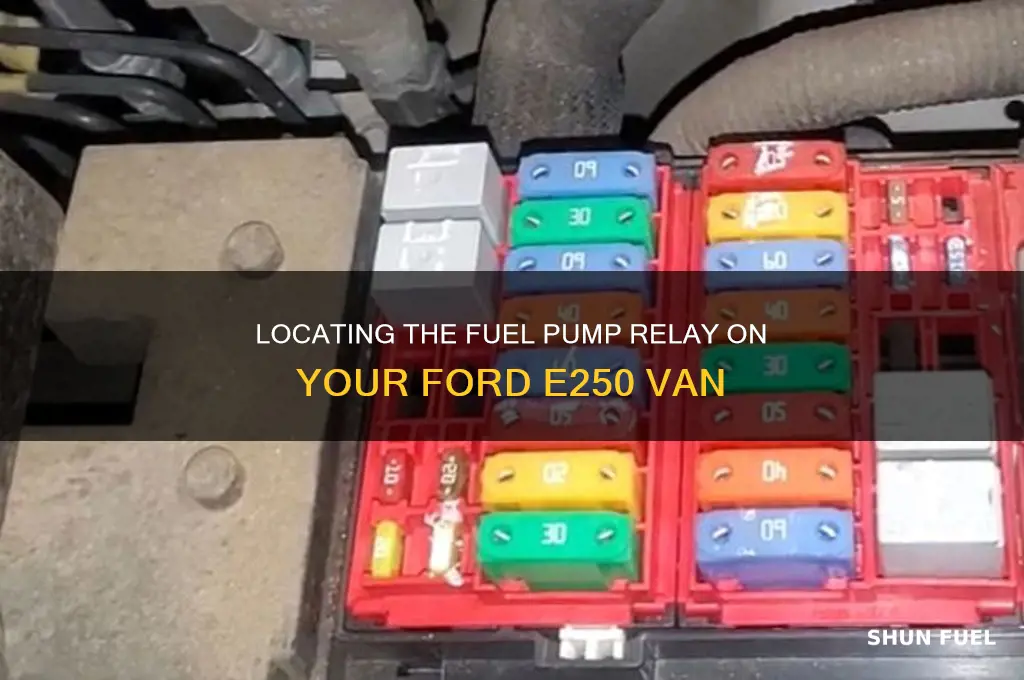

The fuel pump relay on a Ford E-250 is a critical component that ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. Locating this relay can be essential for troubleshooting issues such as a non-starting engine or fuel delivery problems. Typically, the fuel pump relay on an E-250 is found in the under-hood fuse/relay box, often labeled as Fuel Pump or FP Relay. It’s important to consult the vehicle’s manual or a wiring diagram for the exact location, as it may vary depending on the model year and configuration. Identifying and testing this relay can help diagnose electrical faults and ensure the fuel system functions properly.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford E-250 |
| Fuel Pump Relay Location | Under the hood, in the engine compartment fuse box |
| Fuse Box Location | Driver's side, near the firewall |
| Relay Position | Varies by year, typically in the main relay section |
| Relay Identification | Often labeled as "Fuel Pump" or "FP" |
| Common Years Affected | 1999-2007 (location may vary slightly by year) |
| Tools Required for Access | None (easily accessible by hand) |
| Related Components Nearby | Fuses, other relays, and wiring harnesses |
| Diagnostic Tips | Check for blown fuses or a faulty relay if fuel pump issues occur |
| Replacement Part | Specific to Ford E-250 fuel pump relay |
Explore related products
What You'll Learn
Location of Fuel Pump Relay in E250 Engine Bay
The fuel pump relay in an E250 engine bay is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood, its position varies slightly depending on the model year and engine configuration. For most Ford E250 models, particularly those from the late 1990s to mid-2000s, the relay is housed within the main fuse box, often situated near the driver’s side fender or battery. Identifying this component is essential for troubleshooting fuel delivery issues or performing maintenance tasks.
To locate the fuel pump relay, start by opening the hood and identifying the fuse box. This box is typically a rectangular or square-shaped unit with a removable lid. Once the lid is off, consult the diagram on the underside of the cover or in your vehicle’s manual to pinpoint the relay’s position. In some E250 models, the fuel pump relay is labeled as "FPR" or "Fuel Pump Relay," making it easier to spot. If the diagram is unclear, the relay is usually a larger, rectangular component with four to five pins, distinguishable from smaller fuses.
For hands-on troubleshooting, a practical tip is to use a multimeter to test the relay’s functionality. With the ignition off, remove the relay and check for continuity across the pins. If the relay fails this test, it may be the source of your fuel pump issues. Replacement relays are readily available at auto parts stores, but ensure compatibility with your specific E250 model. Always disconnect the battery before working on electrical components to avoid accidental shorts.
Comparing the E250’s fuel pump relay location to other vehicles highlights its accessibility. Unlike some models where the relay is buried deep within the engine bay or under the dashboard, Ford designed the E250’s relay to be easily reachable. This design choice simplifies diagnostics and repairs, saving time and effort for both DIY enthusiasts and professional mechanics. However, its exposed position means it’s more susceptible to corrosion or damage from debris, so regular inspection is advisable.
In conclusion, understanding the location and function of the fuel pump relay in your E250 engine bay is a valuable skill for vehicle maintenance. By familiarizing yourself with its position and testing procedures, you can address fuel system issues more effectively. Whether you’re performing routine checks or diagnosing a problem, this knowledge ensures your E250 remains reliable on the road.
Why Aftermarket Fuel Pumps Fail Prematurely: Common Causes Explained
You may want to see also
Explore related products
Identifying Fuel Pump Relay in E250 Fuse Box
The fuel pump relay in an E250 is a critical component, ensuring your vehicle’s engine receives the necessary fuel for operation. Located within the fuse box, this relay acts as a switch, controlling power to the fuel pump. Identifying it correctly is essential for troubleshooting or maintenance, but its position can vary depending on the model year and configuration of your E250.
To locate the fuel pump relay, start by consulting your vehicle’s manual, which often includes a fuse box diagram. For most E250 models, the fuse box is situated under the dashboard on the driver’s side or in the engine compartment. The fuel pump relay is typically labeled as "FUEL PUMP" or "FP RELAY" on the diagram. If the diagram is unclear or missing, look for a rectangular or square-shaped relay with four to five pins. It’s usually larger than standard relays and may be color-coded for easy identification.
A practical tip for verification is to use a multimeter to test the relay’s continuity. With the ignition off, remove the relay and check for continuity between the pins. If the relay is functioning, you’ll detect a closed circuit between specific pins, confirming its role as the fuel pump relay. This method is particularly useful if the labeling is worn or unclear.
When replacing the fuel pump relay, ensure the new component matches the specifications of the original. Mismatched relays can lead to improper fuel delivery, causing engine performance issues. Additionally, always disconnect the battery before working on the fuse box to prevent electrical mishaps.
In summary, identifying the fuel pump relay in an E250 fuse box requires a combination of visual inspection, reference to the vehicle manual, and, if necessary, electrical testing. Proper identification and handling of this component are key to maintaining your vehicle’s fuel system reliability.
Is There a Fuse for the Fuel Pump? A Comprehensive Guide
You may want to see also
Explore related products
Steps to Access E250 Fuel Pump Relay
The E250 fuel pump relay is typically located in the under-hood fuse/relay box, a common placement for Ford vehicles to protect electrical components from the elements. This box is usually situated near the battery or along the firewall, making it accessible yet shielded from direct exposure. Identifying the correct relay requires understanding the layout of the fuse/relay box, which can vary slightly depending on the model year and engine type.
To access the E250 fuel pump relay, start by locating the under-hood fuse/relay box. This box is often secured with a latch or clip that can be released with minimal force. Once opened, you’ll find a diagram on the lid or inside cover that labels each relay and fuse. The fuel pump relay is usually marked as “Fuel Pump” or “FP Relay.” If the diagram is missing or unclear, consult the vehicle’s manual or an online resource specific to your E250 model year.
With the fuse/relay box open, carefully remove the fuel pump relay by pulling it straight out of its slot. This can be done by hand, but using a small tool like a relay puller or needle-nose pliers can prevent damage to the relay or surrounding components. Inspect the relay for signs of corrosion, melting, or loose connections, as these issues can cause fuel pump malfunctions. Testing the relay with a multimeter is recommended if you suspect it’s faulty.
Reinstalling or replacing the relay requires inserting it firmly into the correct slot, ensuring it clicks into place. If replacing the relay, use a part that matches the original specifications, typically a 12V relay with the same pin configuration. After installation, close the fuse/relay box securely and test the vehicle’s operation by starting the engine and checking for proper fuel pump engagement. Regularly inspecting this relay during routine maintenance can prevent unexpected breakdowns.
For those unfamiliar with automotive electrical systems, caution is key. Always disconnect the battery before working on electrical components to avoid short circuits or accidental activation. If unsure about any step, consult a professional mechanic or refer to detailed guides tailored to your E250’s specific make and model. Proper access and handling of the fuel pump relay not only ensures vehicle reliability but also enhances safety during repairs.
Step-by-Step Guide: Removing the Fuel Pump in a BMW 325xi
You may want to see also
Explore related products
Common Issues with E250 Fuel Pump Relay
The E250 fuel pump relay, typically located in the under-hood fuse/relay box near the battery, is a critical component that ensures your vehicle’s fuel pump operates efficiently. However, it’s prone to issues that can disrupt fuel delivery, leading to engine performance problems. One common issue is corrosion or loose connections at the relay terminals. Over time, exposure to moisture and dirt can cause the contacts to degrade, resulting in intermittent power supply to the fuel pump. This often manifests as difficulty starting the engine or sudden stalls, especially in damp conditions. Inspecting the relay for green or white residue and cleaning the terminals with electrical contact cleaner can resolve this.
Another frequent problem is relay failure due to overheating. The fuel pump relay handles high electrical currents, and prolonged use or poor ventilation in the engine bay can cause it to overheat and burn out. Symptoms include a non-starting engine or a fuel pump that runs continuously, draining the battery. To diagnose, swap the fuel pump relay with another identical relay in the fuse box (e.g., the horn relay) and observe if the issue persists. If the problem moves to the other function, the relay is faulty and needs replacement.
Wiring harness issues are also a culprit, particularly in older E250 models. The wires connected to the fuel pump relay can fray or break due to vibration and age, leading to a loss of power to the fuel pump. This often requires tracing the wiring harness from the relay to the fuel pump and repairing or replacing damaged sections. A multimeter can help identify breaks in the circuit by testing for continuity between the relay and the fuel pump.
Lastly, incorrect relay installation can cause problems, especially after DIY repairs. The E250 fuel pump relay is polarity-sensitive, meaning it must be inserted correctly to function. Reversing the relay or using a non-compatible part can damage the circuit or prevent the fuel pump from activating. Always refer to the vehicle’s manual or a reliable diagram to ensure proper installation. If in doubt, consult a professional to avoid further complications.
Addressing these issues promptly can prevent costly repairs and ensure your E250 runs smoothly. Regular inspections and understanding the relay’s role in the fuel system are key to maintaining optimal performance.
Testing a John Deere Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Replacing the Fuel Pump Relay on an E250
The fuel pump relay on an E250 is typically located in the under-hood fuse/relay box, often near the battery or firewall. This component is crucial for activating the fuel pump, ensuring your engine receives the necessary fuel for operation. Identifying its exact location can vary slightly depending on the model year, but it’s generally housed in a black plastic box labeled "fuse/relay center." Before attempting replacement, consult your vehicle’s manual or a trusted online resource to confirm the precise location for your specific E250 model.
Replacing the fuel pump relay is a straightforward task that requires minimal tools and technical expertise. Start by disconnecting the battery to prevent electrical mishaps. Locate the fuse/relay box and remove its cover to access the relays. Relays are often labeled, but if not, refer to the diagram inside the box lid or your manual to identify the fuel pump relay. Use a relay puller tool or a flathead screwdriver to carefully extract the old relay, ensuring not to damage surrounding components. Insert the new relay, ensuring it clicks securely into place, then reassemble the box and reconnect the battery.
While the process is simple, there are a few cautions to keep in mind. First, always handle relays with care, as they contain delicate internal components. Avoid forcing the relay out or in, as this can damage the socket. Second, ensure the replacement relay matches the specifications of the original; using an incorrect relay can lead to electrical issues or failure. Lastly, if your E250 exhibits symptoms like stalling, difficulty starting, or a non-responsive fuel gauge, test the relay before replacement. A multimeter can verify if the relay is faulty, saving you time and unnecessary expense.
The takeaway is that replacing the fuel pump relay on an E250 is an accessible DIY task that can resolve common fuel system issues. By understanding its location, following proper steps, and exercising caution, you can restore your vehicle’s performance efficiently. This repair not only saves on labor costs but also empowers you with a deeper understanding of your E250’s electrical system. Always prioritize safety and accuracy, and when in doubt, consult a professional or refer to reliable resources for guidance.
Step-by-Step Guide to Replacing a GM Big Block Fuel Pump
You may want to see also
Frequently asked questions
The fuel pump relay on a Ford E-250 is typically located in the under-hood fuse/relay box. It is often labeled as "Fuel Pump Relay" or "FPR" for easy identification.
No, the fuel pump relay on a Ford E-250 is not located inside the cabin. It is situated in the engine compartment within the fuse/relay box.
The fuel pump relay is usually labeled with a diagram on the fuse box cover or in the owner's manual. It may also be marked with "Fuel Pump" or "FPR" on the relay itself.
If you cannot find the fuel pump relay, consult the vehicle's owner's manual or a repair guide specific to your E-250 model year. Alternatively, a mechanic or dealership can assist in locating it.
