The fuel pump relay on a 1999 Nissan Maxima is a crucial component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located in the engine bay, this relay is typically housed within the fuse and relay box, which is often found near the battery or along the firewall. For the 1999 Nissan Maxima, the fuel pump relay is usually positioned in the main fuse box under the hood, labeled as FUEL PUMP or F/P. To access it, you'll need to open the hood, locate the fuse box, and consult the diagram on the box cover or the owner's manual to identify the correct relay. If you're experiencing issues with fuel delivery, checking the fuel pump relay is a good starting point, as a faulty relay can prevent the fuel pump from operating properly.
| Characteristics | Values |
|---|---|
| Location | Under the hood, inside the fuse/relay box (often labeled as "IPDM" or "Fuse & Relay Box") |
| Fuse/Relay Box Position | Typically located near the battery or on the driver's side of the engine bay |
| Relay Label | Often labeled as "FUEL PUMP" or "FP" on the relay box cover diagram |
| Relay Shape/Color | Usually a rectangular black or gray relay with multiple pins |
| Function | Controls power supply to the fuel pump to ensure proper fuel delivery |
| Replacement Procedure | Locate the relay, pull it straight out, and replace with a new one |
| Common Issues | Relay failure can cause the fuel pump to stop working, leading to no-start conditions |
| Diagnostic Tip | Check for power at the fuel pump connector if the relay is suspected to be faulty |
| Vehicle Compatibility | Specific to 1999 Nissan Maxima models |
Explore related products
$6.99 $7.79
$8.99
$7.99 $9.99
What You'll Learn

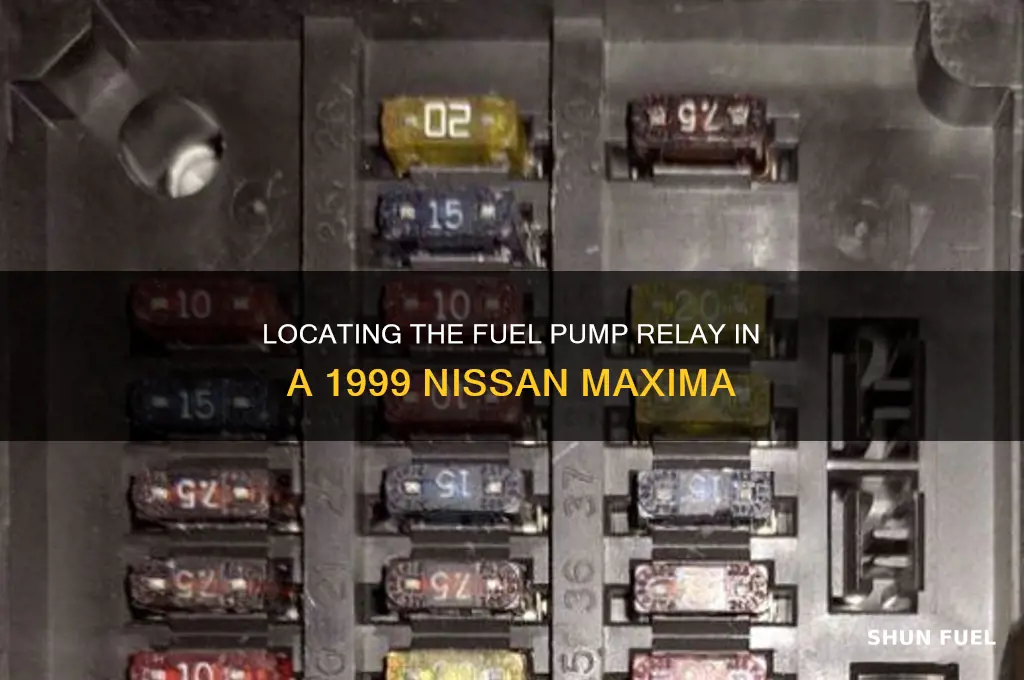

Location of fuel pump relay in 1999 Nissan Maxima engine bay
The 1999 Nissan Maxima’s fuel pump relay is a critical component for ensuring proper fuel delivery to the engine. Located in the engine bay, it is often housed within the IPDM (Intelligent Power Distribution Module), a black plastic box situated near the battery on the driver’s side. This module consolidates several relays and fuses, making it a central hub for electrical distribution. To access the fuel pump relay, start by opening the hood and locating the IPDM, which is typically secured with a few screws or clips. Once the cover is removed, the fuel pump relay is usually labeled for easy identification, often as "FUEL PUMP" or "FP."
Analyzing the design of the 1999 Maxima’s engine bay reveals Nissan’s emphasis on accessibility for maintenance tasks. The IPDM’s placement near the battery reduces the length of wiring harnesses, improving reliability and simplifying diagnostics. However, the relay’s integration into the IPDM means that a faulty fuel pump relay may require replacing the entire module, which can be more costly than swapping out a standalone relay. This design trade-off highlights the importance of regular inspections to catch issues early.
For DIY enthusiasts, replacing the fuel pump relay involves a few straightforward steps. First, disconnect the negative battery terminal to prevent electrical mishaps. Next, locate and remove the IPDM cover by unsnapping or unscrewing it. Identify the fuel pump relay by cross-referencing the diagram on the module’s underside or consulting the owner’s manual. Carefully pull the relay straight out of its slot and insert the new one, ensuring it clicks into place. Reassemble the IPDM and reconnect the battery. Always test the vehicle afterward to confirm the repair was successful.
A comparative look at other Nissan models from the same era shows that the fuel pump relay’s location in the 1999 Maxima is consistent with Nissan’s design philosophy. For instance, the 1998 Altima also houses the relay in the IPDM, while the 2000 Sentra places it in a similar but slightly more compact module. This consistency simplifies troubleshooting across models but underscores the need for model-specific knowledge when working on older vehicles.
Finally, a practical tip for diagnosing fuel pump relay issues: if the engine cranks but doesn’t start, use a multimeter to test for power at the fuel pump connector. If power is absent, the relay is a likely culprit. However, before replacing it, check the fuse and wiring for faults, as these are common causes of relay failure. Keeping a spare relay in your toolkit can save time during roadside emergencies, especially since auto parts stores often carry this component for the 1999 Maxima.
Understanding Inline DC Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
Identifying the fuel pump relay in a 1999 Nissan Maxima
The fuel pump relay in a 1999 Nissan Maxima is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood, it’s part of the main fuse and relay box, typically found near the battery or along the driver’s side fender. This relay acts as a switch, controlling power to the fuel pump, which is essential for starting and running the engine. Without it, the fuel pump won’t activate, leaving your car stranded.
To identify the fuel pump relay, start by opening the hood and locating the fuse and relay box. It’s usually a black rectangular unit with a removable lid. Once opened, you’ll see a grid of relays and fuses, often labeled on the underside of the lid or in the owner’s manual. The fuel pump relay is typically labeled as "FP" or "FUEL PUMP." If labels are missing, consult a repair manual or online diagram specific to the 1999 Nissan Maxima for precise location.
A practical tip for verification is to use a multimeter to test the relay. With the ignition on, check for power at the relay’s terminals. If power is present but the fuel pump isn’t running, the relay may be faulty. Relays are inexpensive and easy to replace, making this a common DIY fix. Always ensure the car is off and the battery is disconnected before handling electrical components to avoid accidents.
Comparing the 1999 Nissan Maxima’s fuel pump relay to other models, its location is consistent with many Nissan vehicles of that era, often placed in the main fuse box for accessibility. However, newer models may integrate the relay into the engine control unit (ECU), complicating DIY repairs. This underscores the importance of knowing your vehicle’s specific design, especially for older cars like the 1999 Maxima, where simplicity often translates to easier troubleshooting.
In conclusion, identifying the fuel pump relay in a 1999 Nissan Maxima involves locating the fuse and relay box, referencing labels or diagrams, and verifying functionality with a multimeter. This straightforward process empowers car owners to diagnose and resolve fuel system issues efficiently, ensuring their vehicle remains reliable. Always prioritize safety and accuracy when working on electrical systems to avoid damage or injury.
Bad Fuel Pump: The Culprit Behind Lawn Mower Backfiring?
You may want to see also
Explore related products
Steps to access fuel pump relay on 1999 Nissan Maxima
The fuel pump relay in a 1999 Nissan Maxima is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Located in the fuse and relay box under the hood, it’s a small but vital part that can sometimes malfunction, leading to starting issues or stalling. Identifying and accessing this relay is straightforward if you follow a systematic approach, saving you time and potential frustration.
Step 1: Locate the Fuse and Relay Box
Open the hood and look for the fuse and relay box, typically positioned near the battery on the driver’s side. It’s a black rectangular unit with a removable lid. Consult your owner’s manual for exact placement if you’re unsure. Once found, remove the lid by pressing the tabs on the sides and lifting it off. This exposes the relays and fuses, which are often labeled for easy identification.
Step 2: Identify the Fuel Pump Relay
Inside the fuse and relay box, locate the fuel pump relay. It’s usually labeled as "FUEL PUMP" or "FP" on the underside of the lid or in the manual. If not labeled, compare the relays to find the one matching the fuel pump relay’s part number, which is typically a 4-pin relay. Gently pull the relay straight up to remove it, ensuring you don’t damage the surrounding components.
Step 3: Test or Replace the Relay
If you suspect the relay is faulty, test it using a multimeter or swap it with a known working relay of the same type. If replacing, insert the new relay into the same slot, ensuring it clicks securely into place. Reattach the fuse box lid and test the vehicle’s operation. Always use a relay with the same specifications to avoid electrical issues.
Cautions and Practical Tips
Work with the ignition off to prevent electrical hazards. If you’re unsure about any step, consult a professional or refer to a repair manual. Keep a spare relay in your vehicle for emergencies, as fuel pump relay failures can leave you stranded. Regularly inspect the fuse and relay box for corrosion or damage, as these issues can affect relay performance.
By following these steps, you can efficiently access and address issues with the fuel pump relay on your 1999 Nissan Maxima, ensuring your vehicle remains reliable and road-ready.
Accessing the Fuel Pump in a 1994 Pontiac Grand Am
You may want to see also
Explore related products
Common issues with 1999 Nissan Maxima fuel pump relay
The 1999 Nissan Maxima’s fuel pump relay is a critical component located in the fuse box under the hood, near the battery. While its placement is straightforward, owners often encounter issues that disrupt fuel delivery and engine performance. One common problem is relay failure due to age and electrical wear, causing the vehicle to stall or fail to start. Symptoms include a non-responsive engine despite a full tank of gas, which can be misleadingly attributed to fuel shortages.
Diagnosing a faulty relay involves a multimeter test to check for continuity. If the relay fails this test, replacement is necessary. However, before swapping parts, inspect the wiring harness for corrosion or loose connections, as these issues can mimic relay failure. A practical tip: clean the fuse box contacts with electrical cleaner and ensure all connections are secure to rule out external causes.
Another frequent issue is overheating, which can melt the relay’s plastic housing or damage internal components. This often occurs due to prolonged high-current draw or exposure to extreme temperatures. To mitigate this, consider installing a relay with a higher temperature rating or adding a heat shield around the fuse box. Regularly inspecting the relay for discoloration or warping can also prevent sudden failures.
Comparatively, the 1999 Maxima’s fuel pump relay is more prone to failure than newer models due to its design and the age of the vehicle. While modern vehicles often integrate the relay into the ECU for better protection, the Maxima’s standalone relay is more exposed to environmental and electrical stresses. Upgrading to a more robust aftermarket relay can provide long-term reliability, though compatibility must be verified.
In conclusion, addressing fuel pump relay issues in a 1999 Nissan Maxima requires a combination of diagnostic precision and preventive maintenance. By understanding common failure modes and implementing practical solutions, owners can ensure consistent fuel delivery and extend the life of their vehicle’s electrical system.
Installing an Electric Fuel Pump in a 1975 Chevy Caprice
You may want to see also
Explore related products
Replacing the fuel pump relay in a 1999 Nissan Maxima
The fuel pump relay in a 1999 Nissan Maxima is a critical component that ensures your vehicle’s fuel system operates efficiently. Located in the fuse box under the hood, this relay acts as a switch, controlling power to the fuel pump. Identifying its exact position can be tricky, as Nissan often places it among other relays and fuses, but it’s typically labeled as "FUEL PUMP" or "FP" on the fuse box cover diagram. Before attempting replacement, verify the relay’s condition using a multimeter to test for continuity, as symptoms like engine stalling or difficulty starting may not always indicate a faulty relay.
Replacing the fuel pump relay is a straightforward task that requires minimal tools and time. Start by locating the fuse box, usually on the driver’s side of the engine bay. Remove the cover to expose the relays and fuses, then consult the diagram to identify the fuel pump relay. Use a relay puller tool or a flathead screwdriver to carefully extract the old relay, ensuring not to damage surrounding components. Insert the new relay, ensuring it clicks into place securely. Reattach the fuse box cover and test the vehicle to confirm the issue is resolved. This process typically takes less than 15 minutes and costs under $20 for a new relay.
While replacing the fuel pump relay is simple, it’s essential to approach the task methodically to avoid complications. Always disconnect the battery before working on the fuse box to prevent electrical shorts. If the relay is difficult to remove, avoid excessive force, as this can damage the socket. Additionally, ensure the replacement relay matches the specifications of the original part, as using an incorrect relay can lead to system malfunctions. For added safety, wear insulated gloves when handling electrical components.
Comparing the fuel pump relay replacement to other fuel system repairs highlights its cost-effectiveness and ease. Unlike replacing the fuel pump itself, which can cost hundreds of dollars and require specialized tools, swapping the relay is a DIY-friendly fix. It’s also less invasive than diagnosing issues with the fuel pump fuse or wiring harness, which may involve tracing circuits and testing connections. By addressing the relay first, you can rule out a common culprit before pursuing more complex and expensive repairs.
In conclusion, replacing the fuel pump relay in a 1999 Nissan Maxima is a practical solution for resolving fuel system issues. Its accessibility in the fuse box, combined with the simplicity of the replacement process, makes it an ideal starting point for troubleshooting. With the right tools, precautions, and a bit of patience, even novice car owners can tackle this repair confidently, saving time and money while keeping their vehicle running smoothly.
Diagnosing Fuel Pump Relay Issues in Your 1999 Corvette: A Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a 1999 Nissan Maxima is typically located in the fuse box under the hood. It is often found in the engine compartment fuse and relay box, labeled as "Fuel Pump" or "FP."
The fuel pump relay is usually a small, rectangular component with a diagram or label on the fuse box cover indicating its position. It often has four or five pins and may be black or gray in color.
If you’re having trouble locating the fuel pump relay, refer to the owner’s manual for a detailed diagram of the fuse and relay box. Alternatively, consult a repair manual or seek assistance from a professional mechanic for accurate identification.
