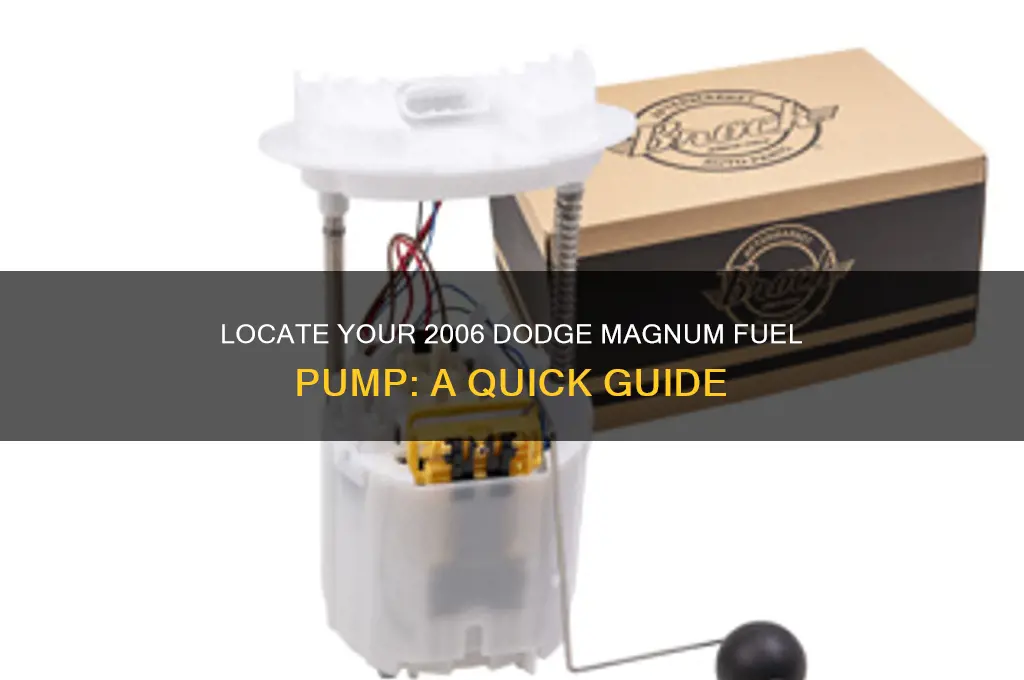

The 2006 Dodge Magnum's fuel pump is located inside the fuel tank, a common placement in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump requires removing the fuel tank, which is typically situated beneath the rear seat or trunk area, depending on the specific model and trim. Before attempting any repairs or maintenance, it's essential to relieve the fuel system pressure and disconnect the battery to ensure safety. Consulting the vehicle's service manual or seeking guidance from a professional mechanic can provide detailed instructions tailored to the Dodge Magnum's design.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2006 Dodge Magnum |
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump) |
| Fuel Tank Access | Located under the rear seat or trunk area |
| Fuel Pump Module | Includes fuel pump, sender unit, and filter |
| Fuel Pump Replacement | Requires removing the fuel tank or accessing it from the top |
| Tools Required | Jack, jack stands, wrenches, screwdriver, fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Common Issues | Fuel pump failure, reduced fuel pressure, engine stalling |
| Replacement Cost | $200-$500 (parts and labor, depending on location and mechanic) |
| DIY Difficulty | Moderate to difficult (requires mechanical skill and proper tools) |
| Fuel Pump Type | Electric fuel pump |
| Fuel System Type | Returnless fuel system |
| Fuel Tank Capacity | Approximately 21.5 gallons (81.4 liters) |
Explore related products
What You'll Learn
Fuel Pump Access Panel Location
The 2006 Dodge Magnum's fuel pump is located within the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure. Accessing the fuel pump requires locating the fuel pump access panel, which is not immediately visible and demands some familiarity with the vehicle's undercarriage. This panel is a crucial entry point for maintenance or replacement, designed to provide direct access to the fuel pump module without the need to remove the entire fuel tank.
To locate the fuel pump access panel, start by safely raising the rear of the vehicle using a jack and securing it on stands. Ensure the car is on a level surface and the parking brake is engaged. The access panel is typically found on the top of the fuel tank, beneath the rear seating area. For the 2006 Dodge Magnum, this panel is often situated near the rear axle, requiring you to crawl underneath the vehicle for a clear view. A flashlight is essential for visibility in this dimly lit area.
Once the access panel is identified, the next step is to remove it. This involves unscrewing a series of bolts or fasteners that secure the panel to the fuel tank. Be cautious not to strip the threads or damage the panel, as it must be reinstalled after the fuel pump is serviced. A socket wrench with the appropriate-sized socket is the recommended tool for this task. After removing the fasteners, carefully lift the panel to expose the fuel pump module.
It’s worth noting that working on a fuel system carries inherent risks, including the potential for fuel spills or ignition hazards. Always ensure the vehicle’s engine is cool and the ignition is off before beginning work. Additionally, relieve the fuel system pressure by disconnecting the fuel pump relay and running the engine until it stalls. This precautionary step minimizes the risk of fuel spraying during the access panel removal process.
In summary, the fuel pump access panel on a 2006 Dodge Magnum is located on the top of the fuel tank, near the rear axle. Accessing it requires raising the vehicle, identifying the panel, and carefully removing the securing fasteners. While the process is straightforward, it demands attention to safety and precision to avoid complications. Proper tools and precautions ensure a smooth and hazard-free maintenance experience.
Accessing Your Crosstour's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Removing Rear Seats for Access
The 2006 Dodge Magnum’s fuel pump is located in the fuel tank, which sits beneath the rear seats. To access it, you’ll need to remove those seats first. This process is straightforward but requires attention to detail to avoid damaging components or the vehicle’s interior. Start by locating the retaining bolts or clips that secure the rear seat assembly. These are typically found along the bottom edge of the seat, often hidden beneath plastic trim or carpet. Use a flashlight to illuminate these areas, as visibility can be limited.
Once you’ve identified the fasteners, use the appropriate tool—usually a socket wrench or screwdriver—to remove them. Be cautious not to strip the bolts or damage the surrounding material. After the fasteners are removed, gently lift the rear seat assembly upward and out of the vehicle. Some models may have additional latches or hinges that require manipulation, so refer to your vehicle’s manual for specific instructions. With the seats removed, you’ll have clear access to the fuel tank and pump, allowing you to proceed with diagnostics or replacement.
Removing the rear seats also exposes the fuel tank’s access panel, which is crucial for fuel pump work. However, this step isn’t just about brute force—it’s about precision. Ensure the vehicle is parked on a flat surface and the parking brake is engaged to prevent movement. If the seats are heavy or awkward to handle, enlist a helper to avoid strain or dropping the assembly. Additionally, take note of how the seats are positioned before removal; this will make reinstallation easier once the fuel pump work is complete.
A practical tip: before starting, disconnect the battery to prevent accidental fuel pump activation or electrical issues. Also, have a clean, dry area ready to place the seats, as they can be bulky and prone to collecting dirt or debris. By following these steps carefully, you’ll gain the necessary access to the fuel pump while minimizing the risk of damage to your Dodge Magnum’s interior or mechanical systems.
Mastering Ford Transit Fuel Pump Programming: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel Tank Drop Procedure
The 2006 Dodge Magnum's fuel pump is located inside the fuel tank, a common design in modern vehicles to keep the pump cool and improve reliability. However, accessing it requires a systematic approach to avoid damage or safety hazards. The fuel tank drop procedure is a critical step in this process, and understanding its intricacies can save time and prevent costly mistakes.
Steps to Drop the Fuel Tank:
- Prepare the Vehicle: Park on a level surface, engage the parking brake, and disconnect the battery to prevent electrical accidents. Relieve fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a suitable tool.
- Remove Obstructions: Raise the vehicle securely on jack stands to access the underside. Remove the rear splash shield and exhaust system if necessary, as these components may obstruct tank removal.
- Disconnect Components: Carefully disconnect the fuel lines, electrical connectors, and vapor lines from the fuel tank. Use appropriate tools to avoid damaging quick-connect fittings or wiring.
- Unstrap the Tank: Loosen and remove the fuel tank straps, ensuring they are fully detached from the vehicle frame. Support the tank with a jack or a secure lifting mechanism before removing the straps completely.
- Lower the Tank: Slowly lower the fuel tank to the ground, taking care not to strain or damage the fuel lines or wiring still attached to the vehicle.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks due to the flammable nature of fuel vapors. Use a drain pan to catch any residual fuel that may spill during the process. If the tank is heavy or awkward to handle, enlist a helper to ensure safe removal.
Dropping the fuel tank on a 2006 Dodge Magnum is a straightforward but meticulous procedure. By following these steps and exercising caution, you can access the fuel pump efficiently and minimize the risk of complications. This process not only facilitates pump replacement but also allows for inspection and maintenance of other fuel system components.
Are Budget Fuel Pumps Reliable? Pros, Cons, and Performance Insights
You may want to see also
Explore related products
Identifying Fuel Pump Assembly
The fuel pump assembly in a 2006 Dodge Magnum is a critical component nestled within the fuel tank, a design choice that keeps the pump cooled by the surrounding fuel. This setup, while efficient, can make identification and access challenging for the uninitiated. To locate the assembly, start by understanding its role: the fuel pump is responsible for drawing fuel from the tank and delivering it to the engine under the correct pressure. In the Magnum, this assembly typically includes the pump itself, a sending unit for the fuel gauge, and a filter to ensure clean fuel delivery. Recognizing these components is the first step in identifying the fuel pump assembly.
When attempting to identify the fuel pump assembly, consider the vehicle’s symptoms. A failing fuel pump may manifest as difficulty starting, sputtering at high speeds, or a complete loss of power. These signs can guide you to the fuel tank, where the assembly resides. Accessing the tank requires removing the rear seat and the fuel pump access panel, a process that demands caution to avoid fuel spills or electrical hazards. Once exposed, the assembly is usually a cylindrical unit with electrical connectors and fuel lines attached. Familiarizing yourself with these visual cues can streamline the identification process.
A comparative approach can also aid in identification. Unlike older vehicles where fuel pumps were often mounted externally, the 2006 Dodge Magnum’s in-tank design is standard for modern vehicles. This placement reduces noise and improves reliability but complicates access. Comparing the Magnum’s setup to external pump systems highlights the importance of understanding the specific design. For instance, external pumps are easier to inspect but more prone to heat damage, whereas in-tank pumps require more effort to access but benefit from fuel cooling. This comparison underscores the need for precision when identifying the Magnum’s fuel pump assembly.
Practical tips can further simplify the identification process. Always disconnect the battery before working on the fuel system to prevent accidental ignition. Use a fuel pressure gauge to test the pump’s output, which should match the manufacturer’s specifications (typically around 40-60 PSI for the Magnum). If pressure is low, the pump or its components may be faulty. Additionally, inspect the fuel lines and connectors for leaks or corrosion, as these issues can mimic pump failure. By combining symptom analysis, visual recognition, and diagnostic testing, you can confidently identify the fuel pump assembly in your 2006 Dodge Magnum.
Is Your Fuel Pump Failing? Signs to Watch For
You may want to see also
Explore related products
Safety Precautions for Replacement
Before attempting to replace the fuel pump on your 2006 Dodge Magnum, it’s critical to address safety precautions to prevent accidents, injuries, or damage to the vehicle. Fuel systems operate under high pressure and contain flammable materials, making proper preparation essential.
Step 1: Relieve Fuel System Pressure
Always start by relieving the fuel system pressure to minimize the risk of fuel spray or ignition. Locate the fuel pump relay in the fuse box and remove it. Then, start the engine and let it run until it stalls. This ensures residual pressure is released. If your vehicle has a Schrader valve on the fuel rail, use a pressure gauge to confirm the system is depressurized.
Cautionary Measures During Disassembly
When accessing the fuel pump, which is located inside the fuel tank, ensure the vehicle is on a flat, stable surface and the ignition is off. Disconnect the battery to eliminate any chance of electrical sparks. Use non-sparking tools, such as those made of brass or plastic, to avoid ignition hazards. Work in a well-ventilated area, but avoid open flames or sparks within a 20-foot radius.
Handling Fuel and Components
Fuel is toxic and flammable, so wear safety goggles and nitrile gloves to protect your skin and eyes. Keep a fire extinguisher nearby as a precaution. When removing the fuel tank, ensure it’s as empty as possible to reduce weight and spillage. Use a drain pan to catch any residual fuel, and dispose of it according to local regulations. Inspect all fuel lines and connections for cracks or leaks before reinstalling the new pump.
Final Checks and Reassembly
After installing the new fuel pump, reattach all electrical connectors and fuel lines securely. Double-check that the fuel tank is properly sealed and mounted. Reconnect the battery and test the system for leaks by pressurizing it with a hand pump or starting the engine briefly. Address any leaks immediately before driving the vehicle.
By following these safety precautions, you’ll minimize risks and ensure a successful fuel pump replacement on your 2006 Dodge Magnum.
Understanding the Fuel Pump System in a 2005 Chrysler 300
You may want to see also
Frequently asked questions
The fuel pump in a 2006 Dodge Magnum is located inside the fuel tank, which is situated in the rear of the vehicle, underneath the rear seat area.
To access the fuel pump, you’ll need to remove the rear seat cushion, locate the fuel pump access panel, and then lower the fuel tank or remove it entirely to reach the pump.
No, the fuel pump is an integral part of the fuel tank assembly, so the tank must be removed or lowered to replace the pump.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and a whining noise coming from the fuel tank area.
