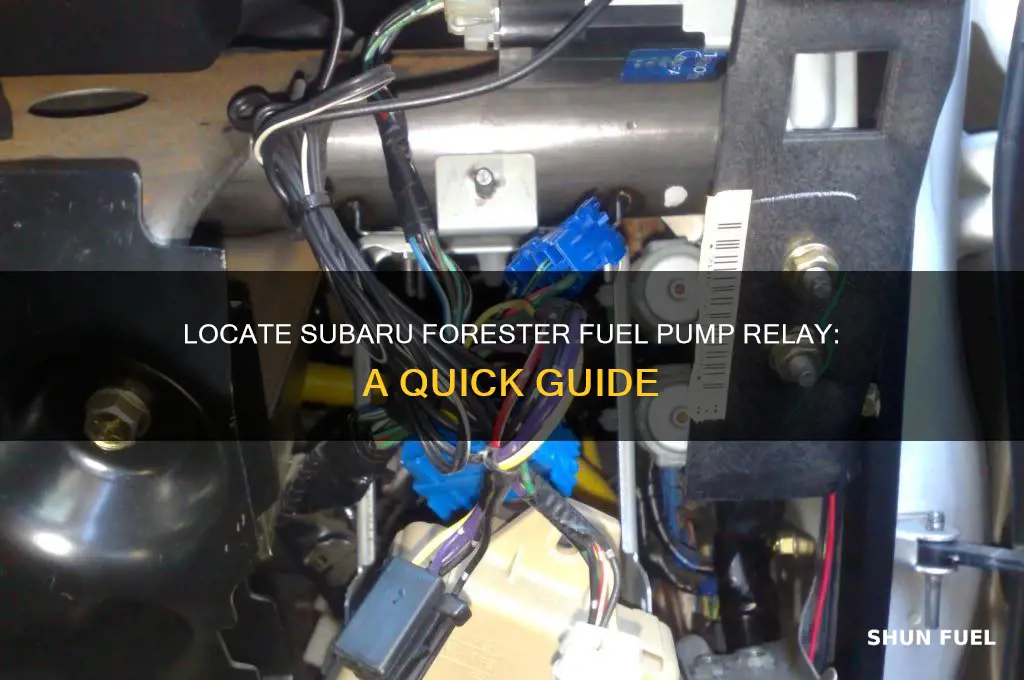

The fuel pump relay in a Subaru Forester is a critical component that ensures the fuel pump operates correctly, delivering fuel from the tank to the engine. Its location can vary depending on the model year, but it is typically found in the fuse and relay box under the hood or inside the cabin. For most Subaru Forester models, the relay is housed in the under-hood fuse box, often labeled as FPR or FUEL PUMP. To access it, locate the fuse box, remove the cover, and refer to the diagram inside to identify the correct relay. If it’s not under the hood, check the interior fuse panel, usually near the driver’s side footwell or under the dashboard. Always consult the vehicle’s manual for precise instructions tailored to your specific year and model.
| Characteristics | Values |
|---|---|
| Location | Under the dashboard, near the driver's side fuse box (2009-2018 models) |
| Alternative Location | Inside the engine bay fuse box (some older models, e.g., 2003-2008) |
| Fuse Box Access | Requires removing a panel under the steering column or opening hood |
| Relay Identification | Typically labeled "FUEL PUMP" or "FP" on the fuse box diagram |
| Relay Function | Controls power supply to the fuel pump |
| Common Issues | Relay failure can cause no-start conditions or fuel pump malfunction |
| Replacement Difficulty | Moderate; requires locating and swapping the relay |
| Tools Needed | Screwdriver or trim removal tool for accessing fuse box |
| Model Variability | Location may vary slightly between Forester generations |
| Consult Manual | Always refer to the vehicle's service manual for exact location |
Explore related products
What You'll Learn
2009-2018 Forester Relay Location
The fuel pump relay in the 2009-2018 Subaru Forester is a critical component, ensuring the fuel pump operates efficiently. Located under the dashboard on the driver’s side, it’s tucked behind the fuse box panel. To access it, first remove the lower dash panel by unsnapping the plastic clips. Once exposed, the relay is typically labeled as "FUEL PUMP" or "FP" on the fuse box diagram, making identification straightforward. This placement is consistent across most models in this range, though slight variations may exist depending on trim or regional specifications.
For DIY enthusiasts, replacing or testing the fuel pump relay is a manageable task. Start by disconnecting the negative battery terminal to prevent electrical mishaps. After locating the relay, use a flathead screwdriver to gently pry it out of its slot. When installing a new relay, ensure it clicks securely into place. A common diagnostic tip is to swap the fuel pump relay with another relay of the same type (e.g., the A/C compressor relay) to determine if the issue is relay-specific. If the problem persists, further investigation into the fuel pump or wiring may be necessary.
Comparing the 2009-2018 Forester to earlier models, the relay’s relocation from the engine bay to the cabin reflects Subaru’s design evolution. This change improves accessibility and protects the relay from heat and moisture, common causes of failure in engine bay-mounted components. However, the cabin location means it’s more susceptible to accidental damage during interior work, so caution is advised when handling items under the dashboard.
A practical tip for troubleshooting: if the engine cranks but doesn’t start, a faulty fuel pump relay is a likely culprit. Use a multimeter to test the relay’s continuity or listen for the fuel pump’s priming hum when turning the ignition to the "ON" position. If no sound is heard, the relay or pump may need attention. Keeping a spare relay in your emergency kit is a wise precaution, as this small component can leave you stranded if it fails unexpectedly.
In summary, the 2009-2018 Subaru Forester’s fuel pump relay is conveniently located under the driver’s side dashboard, behind the fuse box panel. Its accessibility makes maintenance straightforward, but its placement requires careful handling to avoid damage. Understanding its role and knowing how to test or replace it can save time and money, ensuring your Forester remains reliable on the road.
Optimal Locations for Installing an Electric Fuel Pump in Vehicles
You may want to see also
Explore related products
Identifying Fuel Pump Relay Fuse
The fuel pump relay fuse in a Subaru Forester is a critical component that ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. Identifying this fuse is essential for troubleshooting fuel delivery issues, such as a non-starting engine or erratic performance. Located within the fuse box, this relay acts as a switch, controlling power to the fuel pump. Understanding its location and function can save time and prevent unnecessary repairs.
To locate the fuel pump relay fuse in a Subaru Forester, start by consulting the vehicle’s manual, which provides a diagram of the fuse box layout. Typically, the fuse box is found under the dashboard on the driver’s side or in the engine bay. For most Forester models, the fuel pump relay is labeled as "FUEL PUMP" or "FP" in the fuse box cover diagram. If the diagram is unclear, online forums and Subaru-specific repair guides often offer detailed images and step-by-step instructions tailored to your model year.
Once you’ve identified the fuse, inspect it for signs of damage, such as a broken filament or charring. A blown fuse is a common culprit for fuel pump failure. Replacing it with a fuse of the same amperage rating (usually 15–20 amps for the fuel pump relay) is a straightforward fix. However, if the fuse blows repeatedly, this indicates an underlying issue, such as a faulty fuel pump or wiring problem, requiring further diagnosis.
For hands-on troubleshooting, use a multimeter to test the relay’s continuity. With the ignition off, remove the relay and check for power at its terminals. If power is absent, the issue may lie in the wiring or the relay itself. Swapping the fuel pump relay with another relay of the same type (e.g., the A/C compressor relay) can help determine if the relay is faulty. If the fuel pump operates with the swapped relay, replace the original relay.
In summary, identifying the fuel pump relay fuse in a Subaru Forester involves consulting the manual, inspecting the fuse box, and using diagnostic tools like a multimeter. Addressing issues promptly ensures reliable vehicle performance and prevents potential breakdowns. Always prioritize safety by working with the ignition off and referring to model-specific resources for accuracy.
Can Electric Fuel Pumps Power Lawn Tractors Efficiently?
You may want to see also
Explore related products
Accessing Relay Box in Forester
The relay box in a Subaru Forester is a critical component housing various relays, including the fuel pump relay. Accessing it requires precision and care to avoid damaging surrounding components. Located under the dashboard on the driver’s side, the relay box is shielded by a plastic cover that must be removed to expose the relays. This process is straightforward but demands attention to detail, as the area is cramped and poorly lit.
To begin, ensure the vehicle is turned off and the key is removed to prevent electrical mishaps. Kneel on the driver’s seat and position yourself facing the pedals. Using a flathead screwdriver or a trim removal tool, gently pry off the lower dashboard panel beneath the steering column. This panel is secured by clips, so apply steady pressure to avoid breaking them. Once removed, you’ll see a black plastic cover with a tab on one side—this is the relay box cover. Pull the tab to release the cover and set it aside.
Inside the relay box, relays are labeled with codes or diagrams, making identification easier. The fuel pump relay is typically marked as "F/P" or "FP." Before handling any components, note the relay’s orientation to ensure correct reinstallation. If replacing the relay, use a compatible part with the same pin configuration and amperage rating. Subaru Foresters from 2014 to 2018 often use a 4-pin relay, but verify this with your vehicle’s manual or a parts diagram.
While accessing the relay box, be cautious of sharp edges on the dashboard components and avoid touching nearby wiring harnesses to prevent accidental disconnections. If the relay box is difficult to reach, consider using a flashlight or a flexible phone camera to inspect the area. Reassembling the components in reverse order is crucial—ensure all clips are securely fastened to avoid rattling or misalignment.
In summary, accessing the relay box in a Subaru Forester involves removing the lower dashboard panel and the relay box cover. Identifying the fuel pump relay is simplified by its labeling, but always double-check compatibility when replacing it. This process, though confined, is manageable with patience and the right tools, ensuring you can address fuel pump relay issues efficiently.
Electric Fuel Pump Core Charge: What You Need to Know
You may want to see also
Explore related products
Testing Forester Fuel Pump Relay
The fuel pump relay in a Subaru Forester is a critical component, ensuring the fuel pump operates only when the engine is running or being started. Testing this relay can help diagnose issues like a no-start condition or erratic fuel delivery. Before diving into the test, locate the relay, typically found in the fuse and relay box under the hood, often near the battery. It’s usually labeled as "FUEL PUMP" or "FP." Once identified, proceed with a systematic test to determine its functionality.
To test the fuel pump relay, start by gathering a multimeter and a jumper wire. With the ignition off, remove the relay and inspect its terminals. A typical fuel pump relay has four or five pins, corresponding to power, ground, control, and output circuits. Use the multimeter to check for continuity between the power and ground pins, ensuring the relay coil is intact. If continuity is absent, the relay is faulty and needs replacement. However, if the coil is functional, proceed to test the switching mechanism.
Next, reconnect the relay and use the jumper wire to simulate the control signal from the engine control unit (ECU). Turn the ignition to the "ON" position and place one end of the jumper wire on the control pin and the other on a good ground. Listen for the fuel pump to activate, indicating the relay is switching correctly. If the pump doesn’t run, verify power is reaching the relay’s input pin. If power is present but the pump remains inactive, the relay’s contacts are likely stuck or damaged, necessitating replacement.
A comparative approach can further validate the relay’s condition. Swap the fuel pump relay with another relay of the same type in the fuse box, such as the A/C compressor relay, if applicable. If the fuel pump operates after the swap, the original relay is defective. Conversely, if the swapped relay fails to activate the fuel pump, the issue may lie elsewhere, such as a faulty fuel pump or wiring. Always recheck connections and fuses before concluding the relay is at fault.
In conclusion, testing the fuel pump relay on a Subaru Forester requires a methodical approach, combining visual inspection, continuity checks, and functional testing. By systematically evaluating the relay’s coil and contacts, you can accurately diagnose whether it’s the source of fuel delivery issues. Always prioritize safety, ensuring the ignition is off during testing and double-checking connections to avoid electrical mishaps. A properly functioning relay is essential for reliable engine operation, making this test a valuable skill for any Forester owner.
Understanding Solid State Electric Fuel Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Replacing Faulty Relay in Subaru
The fuel pump relay in a Subaru Forester is a critical component, often located in the fuse and relay box under the hood. This box is typically situated near the battery, though its exact position can vary by model year. Identifying a faulty relay is key—symptoms include a no-start condition, engine stalling, or a whirring noise from the fuel tank area. Before replacing the relay, verify the issue by checking for power at the fuel pump connector or using a multimeter to test the relay’s continuity.
Replacing a faulty fuel pump relay in a Subaru Forester is a straightforward task that requires minimal tools. Start by locating the fuse and relay box, which is usually marked with a diagram on the lid indicating the relay’s position. Once identified, pull the relay straight out of its slot. Compare the old relay with the new one to ensure compatibility, as Subaru uses different relays across models. Insert the new relay firmly into the same slot, ensuring it clicks into place. After replacement, test the vehicle to confirm the issue is resolved.
A common mistake when replacing a fuel pump relay is overlooking other potential causes of fuel system issues, such as a failing fuel pump or clogged fuel filter. If the problem persists after replacing the relay, consider these components next. Additionally, always consult the vehicle’s manual or a trusted repair guide for model-specific details, as some Foresters may have unique configurations. For example, older models (pre-2010) often have the relay box on the driver’s side strut tower, while newer models may place it closer to the battery.
To prevent future relay failures, inspect the fuse and relay box for corrosion or loose connections during routine maintenance. Corrosion can disrupt electrical flow, leading to intermittent issues. If you notice signs of moisture or dirt, clean the box with a dry brush and apply a dielectric grease to protect the contacts. Finally, keep a spare relay in your emergency kit—a faulty relay can leave you stranded, and having a replacement on hand can save time and hassle.
In summary, replacing a faulty fuel pump relay in a Subaru Forester is a simple yet impactful repair. By understanding the relay’s location, verifying the issue, and following proper replacement steps, you can restore your vehicle’s performance efficiently. Pair this repair with regular inspections to ensure long-term reliability and avoid unexpected breakdowns.
Where to Find Your Fuel Pump Check Valve: A Quick Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a Subaru Forester is typically located in the fuse and relay box under the hood, near the battery.
The fuel pump relay is usually labeled as "FPR" or "FUEL PUMP" on the underside of the fuse box cover. It’s a small, rectangular component with several pins.
Yes, you can access the fuel pump relay with basic hand tools. Simply open the hood, locate the fuse and relay box, and remove the cover to access the relay.
Symptoms include difficulty starting the engine, stalling, or a complete failure to start. You may also notice the engine cranking but not firing.
Yes, replacing the fuel pump relay is a straightforward DIY task. Ensure the car is off and the battery is disconnected before starting the replacement.
