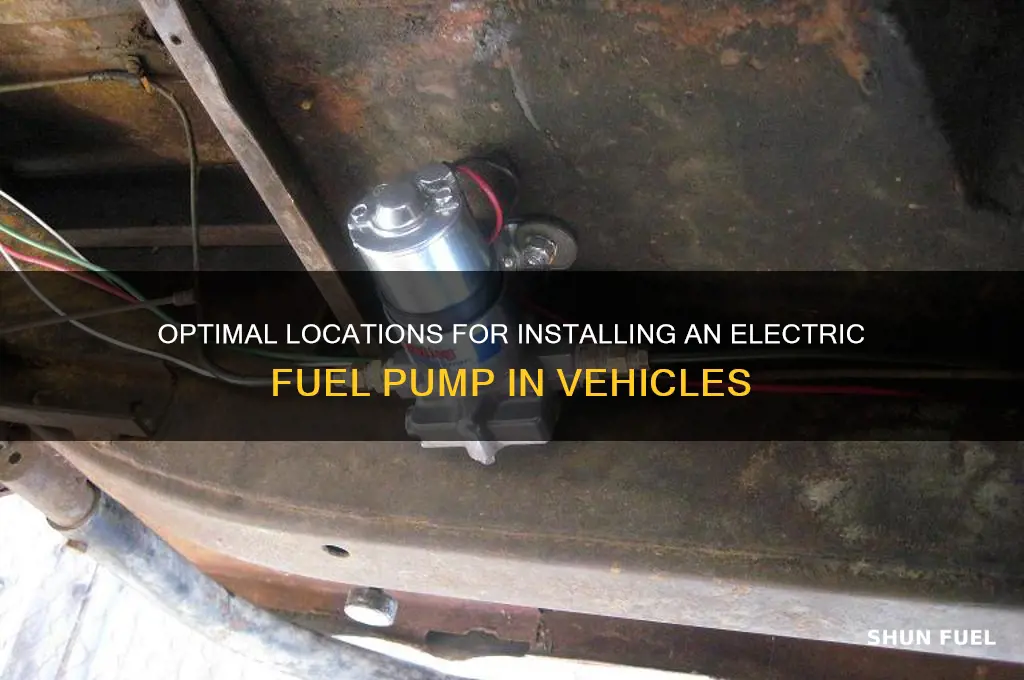

When considering where to add an electric fuel pump, it’s crucial to evaluate both the vehicle’s design and the pump’s intended function. Typically, electric fuel pumps are installed in the fuel tank for in-tank applications, ensuring a consistent supply of fuel while minimizing vapor lock issues. However, for external installations, the pump should be mounted close to the fuel tank but in a location that allows easy access for maintenance and avoids extreme heat or vibration. Ensuring the pump is positioned below the fuel tank level is essential to prevent air pockets and maintain proper fuel flow. Additionally, compatibility with the fuel system, including hose routing and electrical connections, must be carefully assessed to optimize performance and safety.
Explore related products
What You'll Learn
Engine Bay Placement
The engine bay is a prime location for electric fuel pump placement, offering proximity to the fuel system and a controlled environment. However, it’s not as simple as bolting it anywhere with space. Heat management is critical—excessive temperatures can degrade pump performance and lifespan. Position the pump away from exhaust manifolds, turbochargers, or other high-heat sources. Utilize heat shields or insulating materials if proximity is unavoidable. Additionally, ensure the pump is mounted securely to withstand engine vibrations, using rubber isolators or anti-vibration mounts to prevent premature failure.
When integrating an electric fuel pump into the engine bay, consider the fuel line routing. Keep lines as short and direct as possible to minimize pressure drop and potential leaks. Use high-pressure fuel hose rated for your system’s requirements, typically 100–200 psi for most applications. Secure lines with clamps and routing clips to avoid contact with moving parts or sharp edges. If the pump is in-tank, ensure the feed line from the tank to the engine bay is adequately sized and insulated to prevent fuel vaporization, especially in high-performance setups.
A common mistake is neglecting electrical grounding. The engine bay’s metal surfaces seem like ideal grounding points, but corrosion or paint can compromise conductivity. Always use a dedicated ground wire connected to a clean, unpainted metal surface or a grounding stud. Ensure the pump’s relay and wiring are rated for the current draw, typically 10–20 amps for high-flow pumps. Waterproofing electrical connections with heat-shrink tubing or silicone sealant is also advisable, as engine bays are prone to moisture and chemical exposure.
For those upgrading from a mechanical to an electric fuel pump, placement in the engine bay allows for easier integration with existing fuel lines and filters. However, be mindful of clearance issues—modern engine bays are often cramped. Measure twice and test-fit components before final installation. If space is limited, consider relocating other components like the air filter or battery to accommodate the pump. Always refer to the pump’s specifications for minimum clearance requirements, typically 1–2 inches around the unit for airflow and maintenance access.
Finally, test the system thoroughly before relying on it for daily driving or high-performance use. Check for leaks, verify fuel pressure with a gauge, and ensure the pump operates quietly without unusual vibrations. If using a return-style fuel system, confirm proper flow and pressure regulation. For turbocharged or supercharged setups, consider a pump with a higher flow rate, such as 255 LPH or greater, to meet increased fuel demands. Proper engine bay placement, combined with meticulous installation, ensures reliability and performance in any fuel system upgrade.
Avoid These Mistakes: How to Accidentally Destroy Your Fuel Pump
You may want to see also
Explore related products
Fuel Tank Installation
Installing an electric fuel pump requires careful consideration of the fuel tank's design and the vehicle's overall fuel system. The fuel tank is the heart of this operation, and its installation is a critical step that demands precision and adherence to safety standards. One of the primary concerns is the pump's placement within the tank, which directly impacts fuel delivery efficiency and system reliability.
Optimal Placement for Performance: The ideal location for an electric fuel pump is typically at the lowest point of the fuel tank, ensuring a consistent fuel supply, especially during aggressive driving or when the tank is running low. This positioning minimizes the risk of air pockets forming in the fuel lines, which can lead to pump cavitation and reduced performance. For instance, in high-performance vehicles, the pump is often mounted near the tank's rear, allowing gravity to assist in fuel flow towards the engine.
Installation Process: When installing the fuel tank, follow these steps: First, ensure the tank is securely mounted, using the vehicle's original mounting points or custom brackets for aftermarket tanks. Next, insert the fuel pump assembly, which may include a sender unit and float for fuel level indication. The pump should be sealed tightly to prevent leaks, using gaskets or O-rings compatible with the fuel type. Electrical connections must be secure and, if necessary, sealed to avoid moisture ingress.
Safety and Compatibility: It is crucial to select a fuel pump compatible with the fuel type (e.g., gasoline, diesel, or ethanol blends) to prevent material degradation and ensure longevity. Additionally, consider the pump's flow rate and pressure specifications, matching them to the engine's requirements. Overlooking these details can lead to inadequate fuel delivery or, worse, safety hazards due to leaks or electrical malfunctions.
Custom Installations and Upgrades: In custom builds or performance upgrades, the fuel tank installation might involve modifying the tank to accommodate a high-flow pump or additional components like baffles to reduce fuel slosh. This process requires meticulous planning, often involving professional fabricators to ensure the tank's structural integrity and compliance with safety regulations. Proper ventilation and overflow systems are also essential to prevent pressure buildup and potential fuel spillage.
The success of an electric fuel pump installation heavily relies on the fuel tank's setup, emphasizing the need for a well-thought-out approach that considers performance, safety, and compatibility. Each vehicle and application may present unique challenges, making it a task that demands both technical knowledge and attention to detail.
Are All SBC Fuel Pumps Identical? Key Differences Explained
You may want to see also
Explore related products
Inline vs. In-Tank Setup
Choosing between an inline and in-tank electric fuel pump setup hinges on your vehicle’s design, performance goals, and maintenance preferences. Inline pumps mount externally, typically along the fuel line between the tank and engine. This placement simplifies installation and troubleshooting, as the pump is easily accessible without dropping the tank. In contrast, in-tank pumps are submerged directly in the fuel, often replacing the stock mechanical pump in OEM setups. This integration reduces fuel line pressure drop and keeps the pump cooler, extending its lifespan.
For high-performance applications, the decision becomes critical. Inline pumps are ideal for carbureted engines or retrofits where the fuel tank lacks provisions for an in-tank unit. They’re also cost-effective for budget builds, with prices starting around $50 for entry-level models. However, they introduce additional noise and vibration, as the pump operates outside the tank’s sound-dampening environment. In-tank pumps, while pricier (starting at $150 for quality units), offer quieter operation and better fuel system efficiency, making them the go-to for modern fuel-injected engines.
Installation complexity varies significantly. Inline pumps require securing the unit, routing fuel lines, and ensuring proper grounding—tasks manageable with basic tools. In-tank installations demand tank removal, precise pump alignment, and often a new sending unit or hanger assembly. DIYers should factor in the risk of fuel spillage and the need for a clean workspace when opting for the in-tank route. Professional installation is recommended if you’re unsure, as improper setup can lead to leaks or pump failure.
Maintenance and longevity differ as well. Inline pumps are easier to replace but are more exposed to heat and debris, potentially shortening their lifespan. In-tank pumps benefit from constant fuel immersion, which cools and lubricates them, but accessing a failed unit requires tank removal—a labor-intensive process. For daily drivers, the in-tank setup’s reliability outweighs the inconvenience, while racers or hobbyists may prefer the inline pump’s accessibility for quick swaps during tuning.
Ultimately, the choice depends on your priorities. Inline pumps excel in simplicity and cost, making them suitable for temporary upgrades or carbureted systems. In-tank pumps offer superior performance, noise reduction, and longevity, aligning with modern fuel-injected setups. Assess your vehicle’s needs, budget, and your tolerance for complexity before committing to either configuration.
Checking Your 2006 Mustang's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Mounting Near Fuel Lines
Mounting an electric fuel pump near the fuel lines is a strategic choice that optimizes efficiency and minimizes potential issues. This placement reduces the distance fuel must travel, decreasing the risk of vapor lock in high-performance or high-temperature applications. For example, in carbureted engines, positioning the pump within 12–18 inches of the carburetor ensures consistent fuel delivery, especially during hard acceleration or when climbing steep grades. This setup also simplifies routing, as the pump can be integrated directly into the existing fuel line path, reducing the need for excessive tubing or fittings.
When installing the pump near fuel lines, ensure it’s mounted securely to avoid vibration-induced damage. Use rubber isolators or vibration-damping mounts to minimize stress on the pump and connections. For in-line fuel pumps, align the pump’s inlet and outlet ports with the fuel line direction to maintain smooth flow. If using a high-pressure pump, such as those rated above 60 PSI, reinforce the mounting bracket to handle the additional strain. Always check the manufacturer’s guidelines for specific clearance and orientation requirements to prevent interference with other components.
A critical consideration is the pump’s position relative to the fuel tank. Mounting the pump below the tank level ensures a gravity-fed system, which reduces the pump’s workload and extends its lifespan. However, if the pump must be mounted above the tank, incorporate a one-way check valve to prevent fuel from draining back into the tank when the engine is off. This setup is common in applications where space constraints dictate pump placement, such as in compact engine bays or custom builds.
Finally, prioritize safety by ensuring the pump is mounted away from heat sources like exhaust manifolds or headers. Excessive heat can degrade the pump’s internal components or cause fuel vaporization. Use heat shielding or insulation if proximity to heat sources is unavoidable. Additionally, inspect all connections for leaks after installation, particularly at the pump’s inlet and outlet. A small fuel leak near a hot surface can quickly escalate into a hazardous situation. By carefully planning and executing the mounting process, you can achieve a reliable, efficient fuel delivery system tailored to your vehicle’s needs.
Wiring Your Fuel Pump to the Ignition Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Considerations for High-Performance Systems
In high-performance systems, the placement of an electric fuel pump is critical to ensure consistent fuel delivery under extreme conditions. Mounting the pump in-tank is often ideal for street-driven vehicles, as it utilizes the fuel’s cooling properties and reduces noise. However, for racing applications where fuel slosh and starvation are risks, an external pump near the fuel cell with a surge tank is recommended. This setup maintains a steady fuel supply during hard cornering or acceleration, preventing lean conditions that can damage engines.
Pressure and flow rate compatibility are non-negotiable in high-performance setups. A pump rated for 60–80 PSI and 200+ LPH (liters per hour) is typical for turbocharged or supercharged engines producing 500+ horsepower. Pairing the pump with a high-flow fuel filter and regulator ensures clean, regulated fuel delivery. Always verify the pump’s specifications against your engine’s demands, as under-pumping can lead to detonation, while over-pumping wastes energy and risks regulator failure.
Electrical integrity is another cornerstone of high-performance fuel systems. Use a dedicated relay and 10–12 gauge wiring directly from the battery to handle the pump’s amperage draw, typically 15–20 amps under load. Ground the pump to a clean, chassis-connected point to avoid voltage drops. In racing environments, consider a secondary pump as a failsafe, wired to a separate circuit, to prevent catastrophic failures during competition.
Lastly, consider the fuel pump’s orientation and environment. External pumps should be mounted securely, away from exhaust heat and potential debris. Use rubber isolators to minimize vibration-induced fatigue. For ethanol blends (E85), ensure the pump and lines are compatible, as ethanol’s corrosive nature can degrade non-specific materials. Regularly inspect fittings for leaks, especially after track days, to maintain system integrity.
Does Walbro Fuel Pump Boost Horsepower? Performance Insights Revealed
You may want to see also
Frequently asked questions
The best location is near the fuel tank, as close as possible to the tank's outlet, to ensure a consistent fuel supply and minimize the risk of cavitation.
Yes, many modern vehicles and aftermarket kits allow for in-tank mounting, which helps maintain fuel coolness, reduces noise, and improves efficiency.
While possible, it’s not ideal due to the heat and potential fuel vapor buildup. If necessary, ensure it’s mounted away from hot components and use proper ventilation.
It’s recommended to place the fuel pump before the fuel filter to ensure the filter receives pressurized fuel and to protect the pump from debris.
Yes, installing it in the trunk or rear is common, especially in rear-wheel-drive vehicles, as it keeps the pump close to the tank and reduces the length of the fuel line.
