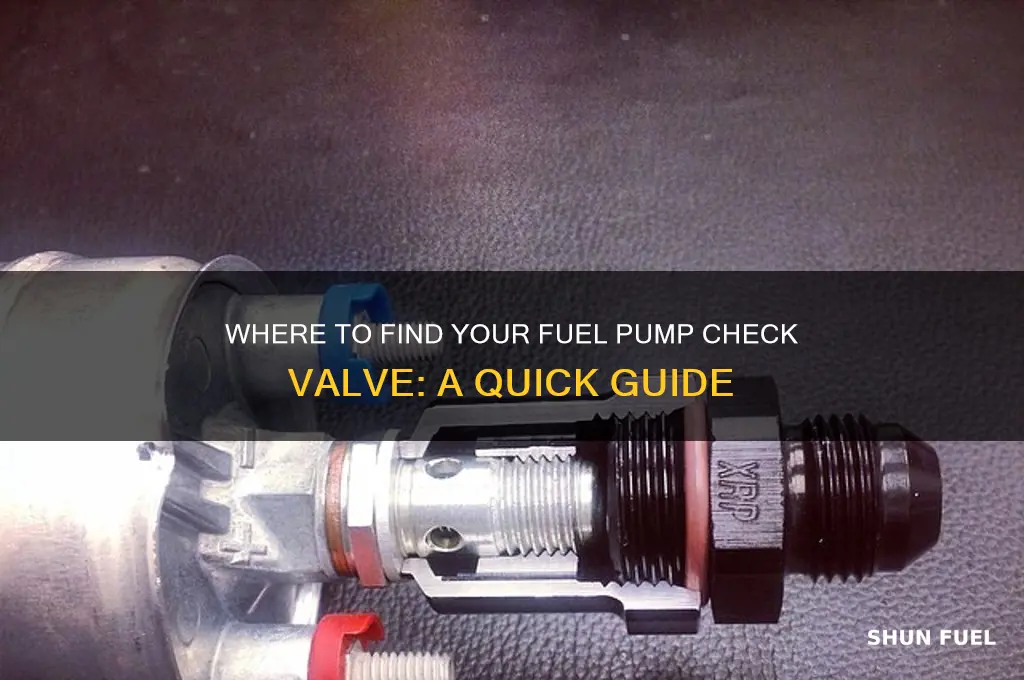

The fuel pump check valve is a critical component in a vehicle's fuel system, designed to prevent fuel from flowing backward from the fuel rail to the fuel tank, ensuring consistent pressure and efficient engine operation. Its location varies depending on the vehicle make and model, but it is typically integrated within the fuel pump module, which is often housed inside the fuel tank. In some vehicles, the check valve may be part of the fuel pump assembly itself, while in others, it could be a separate component located along the fuel line near the pump. To locate it precisely, consulting the vehicle's service manual or inspecting the fuel tank assembly is recommended.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank, integrated into the fuel pump module. |
| Purpose | Prevents fuel from flowing back into the tank when the pump is off. |
| Function | Maintains fuel pressure in the fuel lines, ensures quick engine start. |
| Type | One-way valve (allows fuel flow in one direction only). |
| Material | Typically made of durable materials like rubber, plastic, or metal. |
| Common Issues | Clogging, sticking, or failure, leading to hard starting or stalling. |
| Maintenance | Usually replaced as part of the fuel pump assembly, not individually. |
| Access | Requires fuel tank removal for inspection or replacement. |
| Compatibility | Specific to vehicle make, model, and fuel system design. |
| Cost | Replacement cost varies; often included in fuel pump module price. |
Explore related products
What You'll Learn
Fuel Pump Module Location
The fuel pump module is a critical component in modern vehicles, housing the fuel pump, check valve, and other essential parts that ensure a consistent fuel supply to the engine. Typically located inside the fuel tank, this module is designed to maintain fuel pressure and prevent backflow, which could lead to starting issues or engine stalls. Understanding its location is key for diagnostics, maintenance, or replacement, as accessing it often requires removing the fuel tank or using specialized tools.
Analyzing the design of most vehicles, the fuel pump module is strategically placed at the bottom of the fuel tank to ensure the pump remains submerged in fuel, reducing the risk of overheating and ensuring efficient operation. This placement also allows the check valve to function optimally, maintaining residual pressure in the fuel lines even when the engine is off. For example, in many Ford and GM vehicles, the module is secured to the top of the tank with a locking ring, accessible by dropping the tank or using an access panel if available.
When locating the fuel pump module, start by consulting the vehicle’s service manual for specific instructions, as designs vary across makes and models. For instance, some vehicles, like certain Honda or Toyota models, may have an access panel under the rear seat, allowing for easier module removal without dropping the tank. However, in most cases, the process involves disconnecting the fuel lines, electrical connectors, and lowering the tank to access the module. Always relieve fuel system pressure before beginning work to avoid hazards.
A practical tip for DIY enthusiasts is to inspect the fuel pump module for signs of wear or contamination during routine maintenance. If the check valve fails, fuel can drain back into the tank, causing hard starts or extended cranking times. Replacing the module typically costs between $200 and $800, depending on the vehicle and labor rates. For those tackling the job themselves, ensure you have a new locking ring or gasket, as reusing old components can lead to leaks.
In comparison to older carbureted systems, the integration of the fuel pump and check valve into a single module has simplified fuel delivery but requires more precise handling during repairs. Modern modules often include a strainer to filter debris, further emphasizing the importance of proper installation. Whether you’re diagnosing a fuel system issue or performing preventative maintenance, knowing the exact location and function of the fuel pump module is indispensable for keeping your vehicle running smoothly.
Why Fuel Pumps Fail: Common Causes and Prevention Tips
You may want to see also
Explore related products
Check Valve Position in Pump
The check valve in a fuel pump is a critical component designed to prevent fuel backflow, ensuring consistent pressure and system integrity. Typically located within the fuel pump module, it is often integrated into the pump's outlet or positioned immediately downstream to maintain prime and prevent fuel from returning to the tank when the engine is off. This strategic placement minimizes the risk of air entering the system during restarts, which is especially vital in high-pressure fuel injection systems.
Analyzing its position reveals a balance between functionality and design constraints. In in-tank fuel pumps, the check valve is usually housed within the pump assembly itself, often near the discharge port to ensure immediate backflow prevention. For external fuel pumps, it may be a standalone component mounted on the pump outlet or integrated into the fuel line. This variation highlights the importance of consulting the vehicle’s service manual to identify the exact location, as misidentification can lead to unnecessary disassembly or damage during maintenance.
From a practical standpoint, understanding the check valve’s position is essential for troubleshooting fuel system issues. Symptoms like hard starting, stalling, or extended cranking times may indicate a failed check valve, particularly if the fuel pressure drops significantly after the engine is turned off. To inspect or replace the valve, locate the fuel pump module—often accessed by removing the rear seat or trunk lining in vehicles with in-tank pumps. For external pumps, follow the fuel line from the tank to the engine bay, where the valve is typically visible or marked.
Comparatively, the check valve’s position differs across fuel system types. In returnless fuel systems, the valve is crucial for maintaining pressure, while in return-style systems, it works alongside a fuel pressure regulator. This distinction underscores the need for system-specific knowledge when diagnosing or repairing. For instance, in diesel engines, the check valve must withstand higher pressures, often requiring robust materials like stainless steel or hardened plastics.
In conclusion, the check valve’s position in a fuel pump is a deliberate design choice to ensure system efficiency and reliability. Whether integrated or standalone, its location directly impacts performance and maintenance accessibility. By familiarizing oneself with its placement and function, vehicle owners and technicians can address fuel system issues more effectively, ensuring optimal engine operation and longevity. Always refer to manufacturer guidelines for precise location and replacement procedures.
Where to Find the Fuel Pump in Modern Vehicles
You may want to see also
Explore related products
Tank Access for Inspection
Accessing the fuel tank for inspection is a critical step in locating and assessing the fuel pump check valve. Most modern vehicles position the fuel pump module—which houses the check valve—inside the tank, necessitating tank removal or specialized access. Begin by consulting the vehicle’s service manual to identify the tank’s mounting points, safety locks, and any unique disassembly procedures. For example, some tanks are secured with straps bolted to the chassis, while others require lowering the exhaust system for clearance. Always relieve fuel system pressure before proceeding to avoid hazards like fuel spray or fires.
Once the tank is accessible, inspect the area around the pump module for signs of leakage or corrosion, which could indicate check valve failure. In vehicles with an access panel, such as certain Ford or GM models, you may bypass tank removal entirely. However, this feature is rare, and most tanks must be detached for a thorough inspection. When removing the tank, work on a flat surface and use a drain pan to capture residual fuel, minimizing environmental risks and cleanup. Note that plastic tanks are more prone to cracking during handling, so avoid excessive force or dropping.
After extracting the pump module, the check valve is typically located at the outlet of the pump assembly, designed to maintain fuel pressure in the lines when the engine is off. Test its functionality by applying pressure to the inlet side and checking for backflow. A faulty valve will allow fuel to reverse, leading to hard starts or stalling. Replacement kits often include the check valve as part of the pump assembly, but standalone valves are available for some models. Ensure compatibility by cross-referencing part numbers with the manufacturer’s database.
For DIY enthusiasts, investing in a fuel line quick-disconnect tool and safety goggles is essential for this task. Professional mechanics may use vacuum testers to diagnose check valve issues without tank removal, but this method is less definitive. Regardless of approach, prioritize safety by working in a well-ventilated area and avoiding open flames or sparks. Proper inspection not only identifies check valve problems but also reveals broader fuel system issues, such as contaminated fuel or worn pump components, ensuring comprehensive repairs.
Step-by-Step Guide: Removing the Fuel Pump in a 1999 Durango
You may want to see also
Explore related products
$12.99
Identifying the Check Valve
The fuel pump check valve is a critical component in a vehicle's fuel system, ensuring that fuel doesn't flow backward from the engine to the tank when the pump is off. Identifying its location is essential for maintenance, troubleshooting, or replacement. Typically, the check valve is integrated into the fuel pump module, which is often located inside the fuel tank. However, some vehicles may have it as a separate component along the fuel line. To pinpoint its location, consult your vehicle’s service manual or inspect the fuel pump assembly directly. If the pump is in-tank, you’ll likely find the check valve as part of the pump’s outlet or within the housing itself.
Analyzing the design of modern fuel systems reveals that the check valve’s placement is deliberate. Its primary function is to maintain fuel pressure in the lines, ensuring quick starts and preventing air from entering the system. In vehicles with returnless fuel systems, the check valve is often more robust, as it handles higher pressures. Conversely, older systems with return lines may have a simpler check valve design. Understanding this distinction helps in identifying the valve’s location and its role in your specific vehicle’s fuel delivery mechanism.
To identify the check valve, start by locating the fuel pump. In most vehicles, this requires removing the fuel tank or accessing it through a service panel. Once the pump is exposed, inspect the outlet side of the assembly. The check valve is usually a small, one-way mechanism with a spring-loaded flap or ball. It may be integrated into the pump housing or attached as a separate component. If you’re unsure, compare it to diagrams in your vehicle’s manual or online resources specific to your make and model.
A practical tip for DIY enthusiasts: if you suspect the check valve is faulty (e.g., hard starting or fuel pressure loss), test it by applying pressure to the fuel line. If fluid flows backward, the valve is likely defective. Replacement often requires removing the fuel pump, so ensure you have the right tools and safety precautions, such as relieving fuel system pressure and working in a well-ventilated area. Always refer to manufacturer guidelines for your vehicle’s specific requirements.
In conclusion, identifying the fuel pump check valve requires a combination of knowledge and hands-on inspection. Its location varies by vehicle design but is typically part of the fuel pump module. By understanding its function and following systematic steps, you can locate and assess the check valve effectively, ensuring your fuel system operates reliably. Whether for maintenance or troubleshooting, this focused approach saves time and prevents unnecessary complications.
Do Outboard Motors Have Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Common Fuel Pump Designs
Fuel pump designs vary widely across vehicles, each tailored to meet specific performance, efficiency, and durability requirements. One common design is the in-tank electric fuel pump, which integrates the pump and check valve within the fuel tank. This setup minimizes fuel line pressure drop and reduces the risk of vapor lock, a condition where fuel vaporizes in the lines, disrupting fuel flow. The check valve in this design is typically located at the pump outlet, ensuring fuel pressure is maintained in the lines when the pump is off, enabling quick starts and preventing air from entering the system.
Another prevalent design is the mechanical fuel pump, often found in older carbureted engines. These pumps are driven by the camshaft or a dedicated eccentric lobe, and the check valve is usually positioned at the pump outlet or within the pump housing. While less common in modern vehicles, mechanical pumps are valued for their simplicity and reliability. However, their external mounting exposes them to higher temperatures and potential fuel leaks, making the check valve’s role in maintaining pressure critical during engine shutdown.
High-performance vehicles frequently employ dual-pump systems, combining a primary in-tank pump with a secondary external pump to meet increased fuel demands. In these setups, check valves are strategically placed at each pump outlet to prevent backflow and ensure consistent fuel delivery under high-load conditions. For example, racing applications may use check valves rated for pressures exceeding 100 psi to handle the extreme demands of turbocharged or supercharged engines.
A notable innovation is the brushless electric fuel pump, which offers improved efficiency and longevity compared to traditional brushed designs. The check valve in these pumps is often integrated into the pump module, reducing the overall footprint and simplifying installation. This design is particularly advantageous in hybrid and electric vehicles, where fuel systems must operate intermittently and maintain pressure for extended periods without engine assistance.
Understanding these designs highlights the importance of the check valve’s location in optimizing fuel system performance. Whether in-tank, mechanical, dual-pump, or brushless, the check valve’s placement directly impacts fuel pressure stability, system efficiency, and vehicle reliability. Proper maintenance, such as periodic inspection for clogs or leaks, ensures the check valve functions as intended, preventing costly fuel delivery issues.
Understanding the Vacuum Source for Briggs Fuel Pump Operation
You may want to see also
Frequently asked questions
The fuel pump check valve is usually located inside the fuel pump module, which is often found in the fuel tank.
In most cases, accessing the fuel pump check valve requires removing the fuel tank, as the valve is integrated into the fuel pump assembly inside the tank.
The fuel pump check valve prevents fuel from flowing back into the tank when the engine is off, maintaining pressure in the fuel system. Its location inside the fuel pump module ensures it functions correctly within the fuel delivery system.
