The fuel pump relay on a 2008 Ford Taurus is a crucial component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located in the under-hood fuse/relay box, this relay ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. For owners or mechanics troubleshooting fuel-related issues, identifying the exact location of the fuel pump relay is essential. In the 2008 Ford Taurus, the relay box is typically found near the battery, with the fuel pump relay labeled for easy identification. Consulting the owner’s manual or a repair guide can provide further details on its precise position and how to access it safely.
| Characteristics | Values |
|---|---|
| Location | Inside the Smart Junction Box (SJB), which is located under the dashboard on the driver's side. |
| Access Method | Remove the lower dash panel to access the SJB. |
| Relay Identification | The fuel pump relay is typically labeled as "Fuel Pump Relay" or "FPR." |
| Relay Position | Specific position varies; consult the SJB diagram in the owner's manual. |
| Function | Controls power to the fuel pump, ensuring fuel delivery to the engine. |
| Replacement Difficulty | Moderate; requires basic tools and knowledge of electrical components. |
| Common Issues | Relay failure can cause no-start conditions or intermittent fuel delivery. |
| Diagnostic Tip | Check for power at the relay terminals using a multimeter if issues arise. |
Explore related products
What You'll Learn

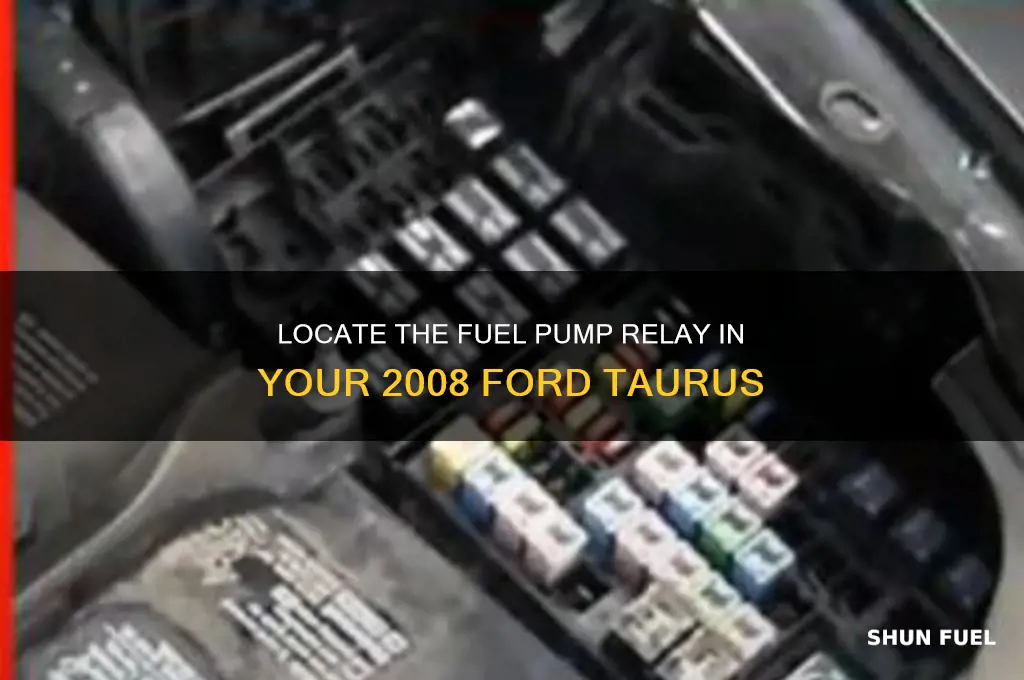

Location under hood near battery
The 2008 Ford Taurus locates its fuel pump relay in a surprisingly accessible spot: nestled under the hood near the battery. This placement is both strategic and user-friendly, allowing for relatively straightforward troubleshooting or replacement without requiring extensive disassembly of the engine compartment. The relay is typically housed within a black plastic box labeled "Power Distribution Box," which is secured with a removable lid. This box is designed to protect the relay and other fuses from the elements, ensuring reliability even in harsh conditions.
To locate the fuel pump relay, start by propping open the hood and identifying the battery. The power distribution box is usually positioned adjacent to the battery, often on the driver’s side. It’s a rectangular unit with a snap-on or screw-secured lid. Once the lid is removed, you’ll find a diagram on the underside that labels each component, including the fuel pump relay. This diagram is invaluable, as relays often look similar, and misidentifying one could lead to unnecessary complications.
Replacing the fuel pump relay is a task most DIYers can handle with basic tools. After locating the relay, use a flathead screwdriver or a fuse puller to carefully extract it from its slot. Ensure the replacement relay matches the original in terms of part number and specifications. When inserting the new relay, align it properly and apply gentle pressure until it clicks into place. Reattach the power distribution box lid securely to maintain protection from moisture and debris.
While the location near the battery is convenient, it’s important to exercise caution during the process. Always disconnect the battery before working on any electrical components under the hood to prevent accidental short circuits. Additionally, avoid touching the relay terminals with bare hands, as oil from your skin can cause corrosion over time. With these precautions in mind, accessing and servicing the fuel pump relay on a 2008 Ford Taurus becomes a manageable task that can save time and money compared to a shop visit.
Priming Your Fuel Pump: A Quick Guide for Push Button Start Vehicles
You may want to see also
Explore related products
Fuse box diagram identification
Locating the fuel pump relay in a 2008 Ford Taurus begins with understanding the vehicle’s fuse box diagram, a critical map for diagnosing electrical issues. The fuse box diagram is typically found on the underside of the fuse box cover or in the owner’s manual. For the 2008 Taurus, the diagram identifies relays and fuses by function and amperage, making it easier to pinpoint the fuel pump relay. Without this diagram, identifying the correct relay can be a frustrating guessing game, potentially leading to unnecessary part replacements or misdiagnoses.
Analyzing the fuse box diagram reveals that the fuel pump relay is often labeled as "FP Relay" or "Fuel Pump Relay." In the 2008 Ford Taurus, this relay is usually located in the underhood fuse box, which is situated near the battery. The diagram will show its exact position, often in a row with other relays. Cross-referencing the diagram with the physical layout ensures accuracy, as some relays may appear similar but serve different functions. For instance, the fuel pump relay is distinct from the PCM power relay, despite their proximity.
A practical tip for identifying the fuel pump relay is to look for a relay with a higher amperage rating, typically around 20-30 amps, as the fuel pump requires significant power. If the diagram is unclear or missing, online resources such as Ford forums or repair manuals often provide detailed images and descriptions. Additionally, testing the relay with a multimeter can confirm its functionality before assuming it’s faulty. This step-by-step approach minimizes errors and saves time during troubleshooting.
Comparing the 2008 Ford Taurus fuse box diagram to other models highlights slight variations in relay placement. For example, earlier Taurus models may have the fuel pump relay in the interior fuse panel, while the 2008 model consolidates it under the hood. This distinction underscores the importance of using the correct year-specific diagram. Misidentifying the relay location can lead to unnecessary disassembly of components, emphasizing the need for precision in fuse box diagram interpretation.
In conclusion, mastering fuse box diagram identification is essential for locating the fuel pump relay in a 2008 Ford Taurus. By understanding the diagram’s layout, cross-referencing labels, and leveraging additional resources, even novice mechanics can confidently diagnose fuel pump issues. This knowledge not only streamlines repairs but also fosters a deeper understanding of the vehicle’s electrical system, empowering owners to tackle future problems with greater ease.
Sizing Your Fuel Pump for 1000HP: A Comprehensive Guide
You may want to see also
Explore related products
Relay replacement steps guide
The fuel pump relay in a 2008 Ford Taurus is typically located in the under-hood fuse/relay box, often near the battery or firewall. Identifying its exact position requires consulting the owner’s manual or the diagram on the box lid, as relays are usually labeled with codes rather than descriptive names. Once located, replacing the relay is a straightforward process that can restore proper fuel system operation if the relay has failed.
Step 1: Preparation and Safety
Before beginning, ensure the vehicle is turned off and the ignition is in the "off" position to prevent electrical mishaps. Gather the necessary tools: a flathead screwdriver or relay puller, and the replacement relay (ensure it matches the original part number). Wear safety gloves to protect against sharp edges or accidental contact with battery terminals.
Step 2: Accessing the Relay
Open the hood and locate the fuse/relay box. It’s typically a black rectangular unit with a removable lid. Remove the lid to expose the relays and fuses. Refer to the diagram on the lid or manual to identify the fuel pump relay. Relays are often grouped together and may be labeled with codes like "FP" or "FPR."
Step 3: Removing the Old Relay
Gently pry out the old relay using a flathead screwdriver or relay puller, taking care not to damage surrounding components. Relays are designed to be removable but may require slight force if they’re stuck. Inspect the relay for signs of burning, corrosion, or damage, which confirm the need for replacement.
Step 4: Installing the New Relay
Insert the new relay into the same slot, ensuring it clicks securely into place. Double-check the orientation to match the old relay, as some relays are polarity-sensitive. Reattach the fuse/relay box lid and secure it properly.
Step 5: Testing the Replacement
Start the vehicle to confirm the fuel pump operates correctly. Listen for the pump’s hum, which should last 2-3 seconds when the ignition is turned on. If the engine starts and runs smoothly, the replacement was successful. If issues persist, further diagnosis of the fuel system may be required.
By following these steps, you can efficiently replace the fuel pump relay on a 2008 Ford Taurus, restoring fuel delivery and ensuring reliable vehicle performance. Always prioritize safety and accuracy during the process to avoid complications.
Easy Steps to Install a Strainer on Your Fuel Pump
You may want to see also
Explore related products
Symptoms of faulty relay
A faulty fuel pump relay in a 2008 Ford Taurus can manifest in several distinct ways, often mimicking symptoms of other fuel system issues. One of the most common indicators is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay fails to send power to the fuel pump, preventing it from priming the fuel system. If the engine cranks but doesn’t start, or if it starts briefly before stalling, the relay may be intermittently failing.
Another symptom is a sudden loss of power while driving, particularly at higher speeds or under load. This happens when the relay momentarily opens, cutting power to the fuel pump and starving the engine of fuel. Drivers may notice the vehicle hesitating or surging before the engine dies. In some cases, the car may restart after a short period, further confusing the diagnosis.
Unusual noises from the fuel tank area can also signal a relay problem. If the relay fails to engage properly, the fuel pump may not receive consistent power, causing it to whine, hum, or click erratically. While these sounds can indicate a failing pump, they may also point to a relay that’s unable to maintain a steady electrical connection.
A less obvious symptom is a check engine light accompanied by fuel-related trouble codes, such as P0191 (fuel rail pressure sensor circuit) or P0087 (fuel rail/system pressure too low). These codes often arise when the relay’s inconsistent power delivery disrupts the fuel system’s operation. However, diagnosing based solely on codes can be misleading, as other components like the fuel pump or pressure regulator may also trigger similar errors.
To isolate the relay as the culprit, perform a simple voltage test at the fuel pump connector while attempting to start the engine. If no power reaches the pump, the relay is likely at fault. Alternatively, swapping the fuel pump relay with another identical relay (such as the horn relay) can confirm the issue if the problem persists or shifts to the new circuit. Always consult the vehicle’s manual for relay location and compatibility before testing.
Can a Faulty Fuel Pump Relay Trigger a Diagnostic Trouble Code?
You may want to see also
Explore related products
$124.95 $148.95
Testing relay with multimeter
The fuel pump relay in a 2008 Ford Taurus is a critical component, often located in the under-hood fuse/relay box. Identifying its exact position is the first step, but verifying its functionality is equally important. Testing the relay with a multimeter ensures it’s not the source of fuel delivery issues. This process requires precision and understanding of the relay’s internal circuitry.
Begin by setting your multimeter to the resistance (ohms) setting. Locate the relay’s control circuit pins, typically marked as 85 and 86. With the ignition off, touch the multimeter probes to these pins. A functional relay should show continuity (low resistance), indicating the circuit is complete. If there’s no continuity, the relay’s internal switch is likely faulty, necessitating replacement.
Next, test the power circuit pins, usually 30 and 87. Turn the ignition to the "on" position and check for continuity. If the relay is energized, these pins should show continuity, confirming power is reaching the fuel pump. No continuity here suggests a problem with the power supply or the relay’s ability to close the circuit. Always ensure the multimeter is properly connected to avoid misdiagnosis.
A comparative analysis of the relay’s behavior under different conditions can provide deeper insights. For instance, swapping the relay with another of the same type in the fuse box (e.g., the horn relay) can help determine if the issue is relay-specific or systemic. If the fuel pump operates with the swapped relay, the original relay is defective. This method eliminates guesswork and isolates the problem efficiently.
In conclusion, testing the fuel pump relay with a multimeter is a straightforward yet powerful diagnostic technique. It requires minimal tools but demands attention to detail. By systematically checking continuity across control and power circuits, you can pinpoint relay failures with confidence. This approach not only saves time but also prevents unnecessary part replacements, making it an essential skill for troubleshooting fuel system issues in a 2008 Ford Taurus.
Step-by-Step Guide: Installing Walbro Fuel Pump on Honda V6 Engines
You may want to see also
Frequently asked questions
The fuel pump relay on a 2008 Ford Taurus is typically located in the smart junction box (SJB), which is found under the dash on the driver's side. It is often labeled as "Relay #30."
To access the fuel pump relay, locate the smart junction box under the driver's side dash. Remove the lower dash panel for easier access. The relay is usually labeled and can be pulled out directly from the SJB.
Common signs of a faulty fuel pump relay include the engine not starting, stalling, or difficulty starting. You may also notice a lack of fuel pressure or a dead fuel pump, which can be diagnosed using a multimeter to test the relay.
