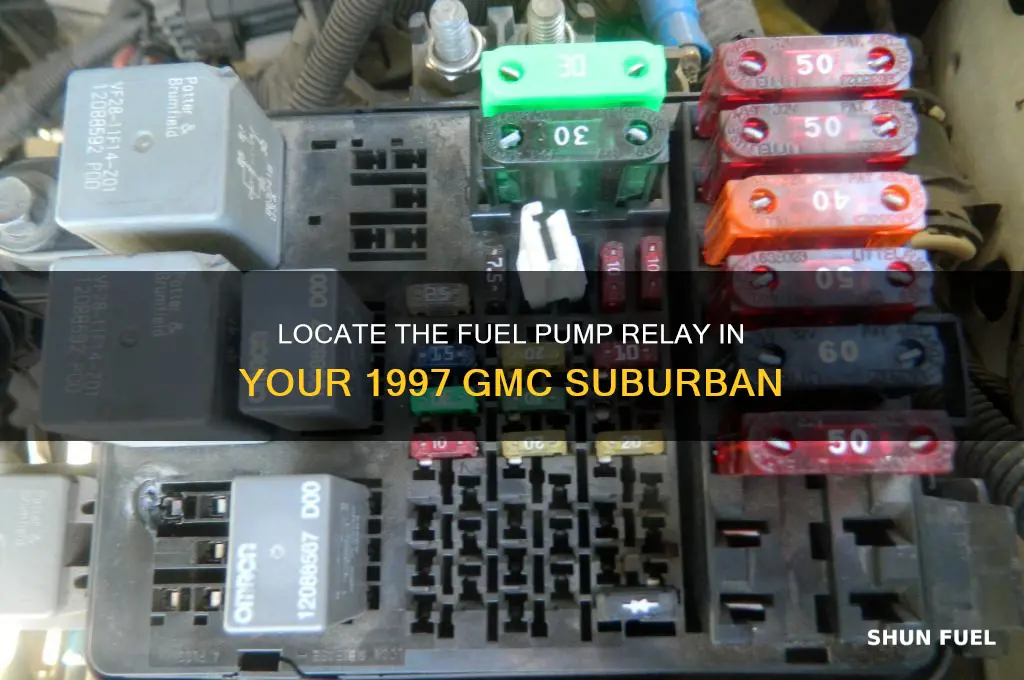

The 1997 GMC Suburban's fuel pump relay is a crucial component in the vehicle's fuel system, responsible for controlling the flow of power to the fuel pump. Located under the hood, this relay is typically found in the underhood fuse/relay box, which is situated near the battery on the driver's side. To access the fuel pump relay, you'll need to locate the fuse/relay box, remove its cover, and identify the specific relay among the various fuses and relays inside. It's essential to consult the vehicle's owner's manual or a repair guide for the exact location and diagram of the fuel pump relay, as it may vary depending on the specific model and engine configuration of the 1997 GMC Suburban.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the underhood fuse/relay center (near the battery). |
| Fuse/Relay Box Name | Underhood Fuse/Relay Center (also called the Power Distribution Center). |
| Relay Label | "Fuel Pump" or "FP" (may vary, but typically labeled clearly). |
| Relay Position | Specific position varies; consult the fuse/relay diagram in the owner's manual or lid of the fuse box. |
| Function | Controls power to the fuel pump, ensuring fuel delivery to the engine. |
| Diagnostic Tip | If the fuel pump is not working, check the relay for proper operation or swap it with a similar relay in the same box. |
| Replacement Part | Standard relay (ensure compatibility with the 1997 GMC Suburban's electrical system). |
| Access Difficulty | Easy to access; no special tools required for inspection or replacement. |
Explore related products
What You'll Learn
- Location under hood: Near the battery or fuse box, check owner’s manual for exact spot
- Relay identification: Look for a small, rectangular module labeled fuel pump or FP
- Testing the relay: Use a multimeter to check for continuity or swap with a similar relay
- Common issues: Relay failure causes no-start, check for clicking sounds or voltage drops
- Replacement steps: Disconnect battery, swap relay, and reconnect; ensure proper fit and function
Location under hood: Near the battery or fuse box, check owner’s manual for exact spot
The 1997 GMC Suburban's fuel pump relay is a critical component for ensuring your vehicle's engine receives the necessary fuel. When searching for its location, a good starting point is under the hood, specifically near the battery or fuse box. This area is a common placement for relays due to the convenience of accessing power sources and the need for protection from the elements. However, the exact spot can vary, which is why consulting the owner's manual is essential. This manual provides a detailed diagram of the under-hood layout, making it easier to pinpoint the fuel pump relay's location.
In analytical terms, the placement of the fuel pump relay near the battery or fuse box is a strategic decision. The battery provides a direct and stable power source, reducing the risk of voltage drops that could affect the relay's performance. The fuse box, on the other hand, offers a centralized location for circuit protection, ensuring that any issues with the fuel pump system can be quickly identified and addressed. By understanding this logic, you can more efficiently navigate the under-hood area and locate the relay with confidence.
For those attempting to locate the fuel pump relay, a step-by-step approach is recommended. Begin by opening the hood and securing it in place. Next, visually inspect the area near the battery and fuse box, looking for a rectangular or square-shaped component with multiple pins. If the relay is not immediately visible, refer to the owner's manual for a detailed diagram. Keep in mind that the relay may be tucked away in a corner or hidden behind other components, so a thorough inspection is necessary. A helpful tip is to use a flashlight to illuminate hard-to-see areas, ensuring no potential location is overlooked.
When comparing the 1997 GMC Suburban's fuel pump relay location to other vehicles, it's evident that manufacturers often prioritize accessibility and protection. While some vehicles may place the relay in the engine compartment, others might opt for the interior fuse box or even the trunk. The Suburban's under-hood location strikes a balance between ease of access and protection from environmental factors. This comparative analysis highlights the importance of understanding your vehicle's specific design and consulting the appropriate resources, such as the owner's manual, to ensure a successful search.
In practical terms, locating the fuel pump relay is crucial for troubleshooting fuel system issues. If your Suburban is experiencing difficulty starting or running rough, the relay could be a potential culprit. By knowing its exact location, you can quickly test or replace the component, saving time and money on diagnostics. As a general rule, it's advisable to inspect the relay and its connections periodically, especially if you notice any symptoms of fuel system problems. This proactive approach can help prevent unexpected breakdowns and ensure your vehicle remains in optimal condition. Remember to exercise caution when working under the hood, disconnecting the battery if necessary to avoid any risk of electrical shock.
Can a Faulty Fuel Pump Prevent Your Engine from Cranking?
You may want to see also
Explore related products
Relay identification: Look for a small, rectangular module labeled fuel pump or FP
Locating the fuel pump relay in a 1997 GMC Suburban begins with understanding its typical appearance and labeling. The relay is a small, rectangular module, often black or gray, designed to fit seamlessly into the vehicle’s under-hood fuse/relay box. Its primary identifier is a label that reads "fuel pump" or "FP," which distinguishes it from other relays in the same area. This labeling is critical, as relays are often grouped together, and their functions are not always immediately obvious without clear markings.
Analyzing the placement of this relay reveals a practical design choice by GMC. The fuel pump relay is usually located in the under-hood fuse/relay box, which is often mounted near the firewall or battery. This positioning ensures the relay is easily accessible for diagnostics or replacement while being protected from extreme weather conditions. For the 1997 Suburban, the relay box is typically found on the driver’s side of the engine compartment, though consulting the owner’s manual can confirm its exact location.
A comparative approach highlights the importance of the fuel pump relay’s labeling. Unlike fuses, which are often color-coded or numbered, relays rely heavily on textual labels for identification. The "fuel pump" or "FP" label is a universal standard across many GM vehicles, making it a reliable identifier even for those unfamiliar with the Suburban’s specific layout. This consistency simplifies troubleshooting, as technicians and DIY enthusiasts alike can quickly locate the relay without needing specialized knowledge.
Practical tips for identifying the fuel pump relay include using a flashlight to illuminate the under-hood area, as shadows can obscure small labels. If the relay box has a cover, it often includes a diagram indicating the position of each relay, which can serve as a secondary reference. Additionally, gently wiggling the relays can help dislodge any that may be stuck or difficult to remove, though caution should be exercised to avoid damaging the components.
In conclusion, the fuel pump relay in a 1997 GMC Suburban is a small but critical component, identifiable by its rectangular shape and "fuel pump" or "FP" label. Its location in the under-hood fuse/relay box, combined with clear labeling, ensures it can be found and serviced efficiently. Understanding these specifics not only aids in maintenance but also underscores the thoughtful design behind the Suburban’s electrical system.
Understanding the Functionality of a Kohler Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
Testing the relay: Use a multimeter to check for continuity or swap with a similar relay
The fuel pump relay in a 1997 GMC Suburban is a critical component, often located in the underhood fuse/relay box near the battery. When diagnosing fuel delivery issues, testing the relay is a logical step. A multimeter becomes your diagnostic ally here, allowing you to check for continuity across the relay’s terminals. Set the multimeter to the continuity or resistance setting, then touch the probes to the relay’s input and output pins. A functional relay will show continuity when energized, while a faulty one will remain open. If you lack a multimeter, a simpler method is to swap the fuel pump relay with another relay of the same type (e.g., the horn relay) in the fuse box. If the fuel pump engages after the swap, the original relay is likely defective.
Analyzing these methods reveals their strengths and limitations. Using a multimeter provides precise data, confirming whether the relay’s internal switch is functioning. However, it requires basic knowledge of relay pinouts, which can vary by model. Swapping relays, on the other hand, is straightforward but doesn’t pinpoint the exact failure point—it only confirms the relay is at fault. Both methods are cost-effective compared to replacing parts blindly, making them essential tools in your troubleshooting arsenal.
When testing, ensure the ignition is off to avoid electrical hazards. If using a multimeter, consult the relay’s diagram (often found on the cover of the fuse box) to identify the correct terminals. For swapping, label the relays to avoid confusion later. A common mistake is assuming the relay is bad without checking the fuel pump fuse or wiring, so always test these components first. If the relay fails the test, replace it with one of the same part number to ensure compatibility.
In practice, testing the relay can save time and money, especially if the issue mimics a failing fuel pump. For instance, a Suburban owner reported symptoms like hard starting and stalling, only to discover the relay was intermittently failing. A multimeter test confirmed the relay’s internal contacts were worn, and a $15 replacement resolved the issue. This underscores the importance of methodical testing before assuming major components are at fault.
Finally, while testing the relay is a valuable step, it’s part of a broader diagnostic process. If the relay tests good but fuel delivery issues persist, inspect the fuel pump, filter, and wiring harness. Remember, relays fail over time due to heat and vibration, so regular inspection, especially in older vehicles like the 1997 Suburban, can prevent unexpected breakdowns. By mastering relay testing, you’ll approach fuel system issues with confidence and precision.
How Long Can You Drive with a Failing Fuel Pump?
You may want to see also
Explore related products
Common issues: Relay failure causes no-start, check for clicking sounds or voltage drops
Relay failure in a 1997 GMC Suburban can be a silent culprit behind a no-start condition, often leaving drivers puzzled. The fuel pump relay, responsible for activating the fuel pump, is a critical component in the vehicle's fuel delivery system. When this relay fails, it disrupts the electrical circuit, preventing the fuel pump from engaging and starving the engine of fuel. This issue is particularly insidious because it mimics symptoms of other common problems, such as a dead battery or a faulty starter. Understanding the signs of relay failure is the first step in diagnosing and resolving this issue efficiently.
One telltale sign of a failing fuel pump relay is a distinct clicking sound emanating from the relay itself when attempting to start the vehicle. This sound occurs as the relay’s internal switch tries, but fails, to close the circuit. To confirm this, locate the relay under the hood in the fuse/relay box, typically near the firewall or battery. Swap the fuel pump relay with another relay of the same type (e.g., the horn relay) and attempt to start the vehicle. If the engine starts, the original relay is likely faulty. Additionally, use a multimeter to check for voltage drops across the relay’s terminals when the ignition is turned on. A significant drop indicates a weak or failing relay.
Voltage drops are another critical indicator of relay failure. A healthy relay should maintain consistent voltage across its terminals when activated. If the voltage drops below the expected range (typically 10-12 volts), the relay is not functioning properly. This can be tested by connecting a multimeter to the relay’s input and output terminals while engaging the ignition. If the voltage drops excessively, replace the relay immediately. Ignoring this issue can lead to prolonged cranking times, increased wear on the starter motor, and potential damage to the fuel pump.
Preventive maintenance can mitigate the risk of relay failure. Relays are prone to wear due to heat, vibration, and age, especially in older vehicles like the 1997 GMC Suburban. Regularly inspect the relay for signs of corrosion, loose connections, or physical damage. Keep the fuse/relay box clean and dry to prevent moisture-related issues. If the vehicle exhibits intermittent starting problems, consider replacing the relay proactively, as it is a relatively inexpensive and straightforward fix. Always use a relay that matches the original specifications to ensure compatibility and reliability.
In conclusion, relay failure is a common yet often overlooked cause of no-start conditions in a 1997 GMC Suburban. By recognizing the symptoms—clicking sounds and voltage drops—and performing simple diagnostic tests, drivers can quickly identify and address the issue. Proactive maintenance and timely replacement of the fuel pump relay can save time, money, and frustration, ensuring the vehicle remains reliable for years to come.
Step-by-Step Guide to Installing a Mechanical Fuel Pump Easily
You may want to see also
Explore related products
Replacement steps: Disconnect battery, swap relay, and reconnect; ensure proper fit and function
The fuel pump relay in a 1997 GMC Suburban is typically located under the hood, within the underhood fuse/relay center. This center is often found near the firewall on the driver’s side, though variations may exist depending on the model. Identifying the correct relay is crucial, as it ensures the fuel pump operates efficiently, preventing issues like stalling or poor engine performance. Before attempting replacement, verify the relay’s position using the vehicle’s manual or a diagram specific to your Suburban’s configuration.
Step-by-Step Replacement Process
Begin by disconnecting the battery to eliminate any risk of electrical shock or short circuits. Locate the underhood fuse/relay center and identify the fuel pump relay, which is usually labeled or marked in the center’s diagram. Gently pull the relay straight out of its slot, avoiding excessive force to prevent damage to the surrounding components. Swap the old relay with the new one, ensuring it clicks securely into place. Reattach the battery and start the engine to confirm proper function. Listen for the fuel pump’s priming sound, which should occur for 2-3 seconds when the ignition is turned on.
Ensuring Proper Fit and Function
A poorly fitted relay can lead to intermittent fuel pump operation or complete failure. After installation, inspect the relay for alignment and stability within the slot. Test drive the vehicle to monitor performance, paying attention to acceleration and idle quality. If issues persist, double-check the relay’s orientation or consider testing the fuel pump itself for underlying problems. Using a multimeter to verify voltage at the relay terminals can also confirm electrical continuity.
Practical Tips for Success
Always use a relay that matches the original specifications, as aftermarket alternatives may not fit or function correctly. Keep a spare relay in your vehicle for emergencies, especially during long trips. If the relay is difficult to remove, use a small, non-conductive tool like a plastic pry bar to avoid damaging the housing. Finally, document the replacement date and mileage for future reference, as relays typically last 100,000 miles or more but can fail unexpectedly.
Cautions and Troubleshooting
Avoid replacing the relay while the engine is hot or running, as this increases the risk of burns or electrical hazards. If the new relay fails to resolve the issue, inspect the fuel pump fuse and wiring harness for damage or corrosion. Persistent problems may indicate a faulty fuel pump or pressure regulator, requiring further diagnosis. Always consult a professional if you’re unsure about any step, as improper handling can lead to costly repairs or safety risks.
1985 V65 Sabre Fuel System: Electric Pump or Mechanical?
You may want to see also
Frequently asked questions
The fuel pump relay on a 1997 GMC Suburban is typically located in the underhood fuse/relay box. It is often labeled as "FUEL PUMP" or "FP" on the box's lid or diagram.
The fuel pump relay is usually a small, rectangular or square-shaped module with several pins. It can be identified by its label or by consulting the fuse/relay box diagram, which is often found on the inside of the box lid or in the vehicle’s owner’s manual.
If you’re having trouble locating the fuel pump relay, refer to the vehicle’s owner’s manual or a repair manual specific to your model. Alternatively, consult a professional mechanic or a GMC dealership for assistance in identifying and accessing the relay.
