The 1999 Ford Ranger's fuel pump relay is a crucial component in the vehicle's fuel system, responsible for controlling the flow of power to the fuel pump. Located under the hood, this relay is typically found in the power distribution box, which houses various fuses and relays. For the 1999 Ford Ranger, the fuel pump relay is often situated near the firewall, close to the driver's side fender. Identifying its exact location is essential for troubleshooting fuel-related issues, such as a no-start condition or poor engine performance. Consulting the vehicle's manual or a reliable repair guide can provide specific details on locating and testing the fuel pump relay in this particular model.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the power distribution box (fuse box) |
| Power Distribution Box | Located on the driver's side fender well |
| Relay Position | Typically in slot #30 (may vary, consult manual for confirmation) |
| Relay Color | Black or blue (color may vary depending on the specific model or region) |
| Function | Controls power to the fuel pump |
| Related Fuse | Fuse #12 (20A) in the power distribution box |
| Access | Remove the power distribution box cover to access the relay |
| Diagnostic Tip | If the fuel pump is not working, check the relay and fuse first |
| Replacement Part | Ford part number F5TZ-14B192-A or equivalent aftermarket relay |
| Year Applicability | Specific to 1999 Ford Ranger models |
Explore related products
What You'll Learn
- Location under hood: Find the relay near the battery or fuse box
- Relay identification: Look for a small black box labeled Fuel Pump
- Testing the relay: Use a multimeter to check for continuity and functionality
- Symptoms of failure: Engine won’t start, stalling, or no fuel pressure
- Replacement steps: Disconnect battery, swap relay, and reconnect power

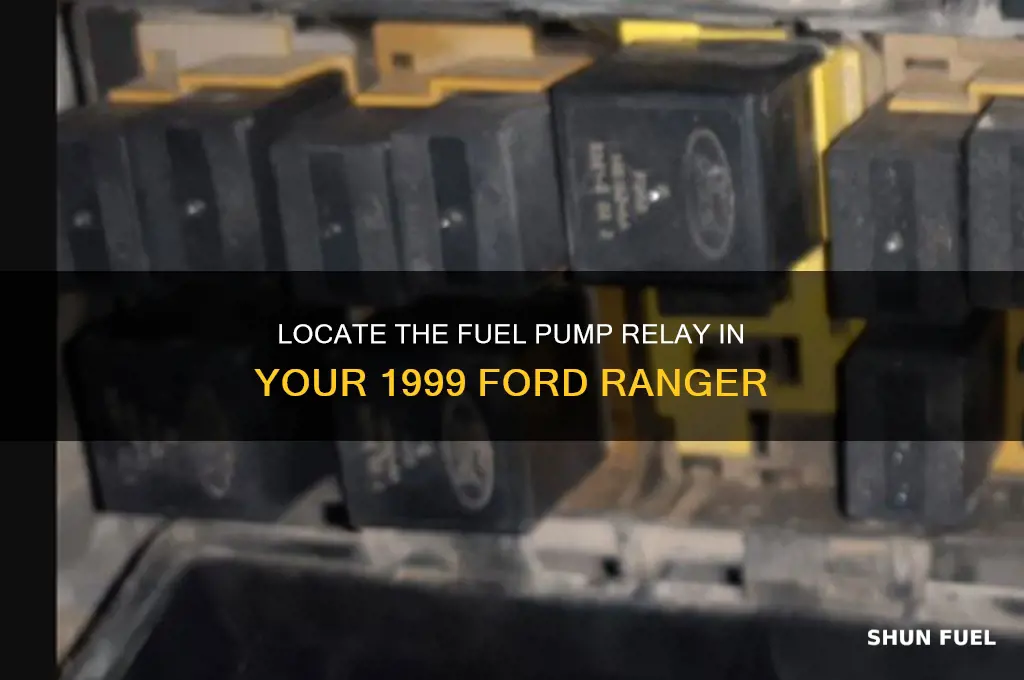

Location under hood: Find the relay near the battery or fuse box
The 1999 Ford Ranger’s fuel pump relay is strategically located under the hood, typically near the battery or fuse box. This placement is intentional, as it allows for easy access during maintenance or troubleshooting. The relay is often housed in a black plastic box labeled “Power Distribution Center” or “Underhood Fuse/Relay Box,” which consolidates key electrical components for convenience. If you’re unsure where to start, trace the positive battery cable—the relay box is usually within a foot of the battery, mounted on the fender or firewall.
Analyzing this design, the proximity to the battery reduces voltage drop, ensuring the fuel pump receives consistent power. The relay’s location also minimizes exposure to extreme heat or moisture, which could degrade its performance over time. However, this placement means it’s vulnerable to dirt and debris, so inspect the box for cracks or corrosion before accessing the relay. A cracked lid or water intrusion can cause electrical shorts, leading to erratic fuel pump operation or a no-start condition.
To locate the fuel pump relay, first disconnect the negative battery terminal to prevent accidental shorts. Open the hood and identify the fuse/relay box near the battery. Remove the lid by pressing the release tabs—refer to your owner’s manual for a diagram if needed. Inside, relays are typically labeled, but if not, consult the diagram on the lid or manual. The fuel pump relay is often a larger, square-shaped component with four or five pins. Use a relay puller tool to extract it carefully, avoiding damage to the socket.
Comparatively, newer vehicles often integrate the fuel pump relay into the engine control module (ECM), making it less accessible. The 1999 Ranger’s standalone relay design simplifies diagnostics—you can swap it with another identical relay (e.g., the horn relay) to test functionality. If the fuel pump operates with the swapped relay, the original is faulty. Replacement relays cost $10–$20 at auto parts stores, but ensure the part number matches to avoid compatibility issues.
Practically, keep a flashlight and gloves handy when working under the hood, as the area around the battery can be cramped and poorly lit. If the relay is difficult to remove, gently wiggle it side-to-side while pulling upward. Avoid forcing it, as this can damage the socket. After replacement, reattach the negative battery terminal and start the engine to verify the fuel pump operates. If issues persist, check the fuel pump inertia switch (located in the cab) or test for power at the pump itself, as the problem may lie elsewhere in the circuit.
Recognizing Fuel Pump Failure Symptoms: A Comprehensive Guide for Drivers
You may want to see also
Explore related products
Relay identification: Look for a small black box labeled Fuel Pump
The fuel pump relay in a 1999 Ford Ranger is a critical component, often overlooked until it fails. To locate it, start by identifying the power distribution box, typically found in the engine compartment. This box houses various relays and fuses, but the fuel pump relay stands out due to its specific labeling. Look for a small black box with a label that clearly reads "Fuel Pump." This straightforward identification is your first step in troubleshooting or replacing the relay.
Analyzing the design, the fuel pump relay is usually rectangular and made of durable plastic to withstand engine heat and vibrations. Its black color blends with the surrounding components, but the white or yellow text on the label ensures it’s easily spotted. This labeling convention is consistent across many Ford models, making it a reliable identifier. If the label is faded or missing, the relay’s position in the power distribution box often corresponds to a diagram inside the box lid, which can serve as a secondary reference.
When approaching relay identification, consider the vehicle’s age and potential wear. Over time, labels can degrade, and components may shift slightly. If the "Fuel Pump" label is unclear, cross-reference with the owner’s manual or a repair guide. Additionally, the relay’s location is typically near other fuel system components, such as the fuel pump fuse. This spatial relationship can provide context if visual identification alone is insufficient.
A practical tip for successful identification is to inspect the power distribution box under good lighting. Use a flashlight if necessary, as shadows can obscure small labels. If you’re unsure, gently remove the relay and compare it to a known replacement part. Most fuel pump relays have a standard size and pin configuration, making visual comparison effective. Always ensure the ignition is off before handling electrical components to avoid accidental activation.
In conclusion, identifying the fuel pump relay in a 1999 Ford Ranger hinges on recognizing the small black box labeled "Fuel Pump." This simple yet specific detail is your key to locating the component quickly. By combining visual inspection, contextual clues, and practical techniques, you can confidently identify the relay, whether for routine maintenance or emergency repairs. This focused approach ensures efficiency and accuracy in your troubleshooting process.
Step-by-Step Guide: Installing the Edelbrock Micro Fuel Pump Easily
You may want to see also
Explore related products
Testing the relay: Use a multimeter to check for continuity and functionality
The fuel pump relay in a 1999 Ford Ranger is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood in the power distribution box, this relay acts as a switch, controlling power to the fuel pump. However, diagnosing a faulty relay can be tricky without the right tools. A multimeter becomes your best ally in this scenario, allowing you to test for continuity and functionality with precision.
To begin testing the relay, start by disconnecting the battery to ensure safety. Locate the fuel pump relay in the power distribution box, typically labeled for easy identification. Once identified, remove the relay and inspect it for visible damage, such as burnt pins or a cracked casing. If it appears intact, proceed with the multimeter test. Set your multimeter to the continuity or resistance setting (usually denoted by a diode symbol or an ohms rating). Place the probes on the relay’s input and output pins, following the relay’s schematic diagram for accurate pin identification. A functional relay should show continuity (low resistance) between the correct pins, indicating a complete circuit.
Next, test the relay’s functionality under load. Switch your multimeter to the DC voltage setting and reconnect the battery. Have an assistant turn the ignition to the "on" position while you monitor the relay’s pins. The multimeter should read battery voltage on the input side and a corresponding voltage drop on the output side when the relay engages. If voltage is absent or inconsistent, the relay may be faulty. Additionally, listen for the fuel pump’s hum, which should activate for a few seconds when the ignition is turned on.
A comparative analysis of the relay’s performance against a known good relay can further confirm its condition. Swap the suspect relay with another of the same type (e.g., the horn relay) and retest. If the fuel pump operates correctly with the swapped relay, the original relay is likely defective. Conversely, if the issue persists, the problem may lie elsewhere in the fuel system.
In conclusion, testing the fuel pump relay with a multimeter is a straightforward yet effective method to diagnose issues in your 1999 Ford Ranger. By checking for continuity and functionality, you can pinpoint whether the relay is the culprit or if further investigation is needed. This approach not only saves time but also eliminates guesswork, ensuring your vehicle’s fuel system operates reliably.
Optimal Resistance Levels for Fuel Pump Harness Performance and Safety
You may want to see also
Explore related products
Symptoms of failure: Engine won’t start, stalling, or no fuel pressure
A failing fuel pump relay in a 1999 Ford Ranger can manifest in several ways, all tied to the disruption of fuel delivery to the engine. One of the most immediate and alarming symptoms is an engine that simply won’t start. When you turn the key, the engine may crank but fail to ignite, leaving you stranded. This occurs because the relay isn’t sending power to the fuel pump, preventing it from delivering fuel to the injectors. If you’ve recently experienced starting issues, especially after the engine has been running and then cooled, the fuel pump relay should be one of your first suspects.
Another telltale sign of a failing fuel pump relay is engine stalling, particularly during operation. This can happen at idle, during acceleration, or even while cruising at a steady speed. The engine may sputter or hesitate before shutting off completely, often accompanied by a loss of power. This symptom is caused by intermittent power delivery to the fuel pump, which results in inconsistent fuel pressure. If your Ranger stalls unpredictably, especially under load or during temperature changes, the relay’s ability to maintain a steady electrical connection is likely compromised.
No fuel pressure is a more technical symptom that can be diagnosed with a pressure gauge, but it’s closely linked to the relay’s failure. If the fuel pump isn’t receiving power, it won’t generate pressure in the fuel lines, which is essential for combustion. A simple test involves listening for the fuel pump’s priming hum when you turn the ignition to the "on" position (but don’t start the engine). If you hear nothing, the relay may not be activating the pump. This symptom often accompanies the inability to start the engine and can be confirmed by checking the fuel pump fuse and wiring for continuity.
To address these symptoms, start by locating the fuel pump relay, which in a 1999 Ford Ranger is typically found in the power distribution box under the hood. Consult the owner’s manual for the exact location, as it may vary by model. Swap the relay with another of the same type (e.g., the horn relay) to test functionality. If the engine starts or fuel pressure returns, replace the relay immediately. Additionally, inspect the relay’s terminals for corrosion or damage, as poor connections can mimic relay failure. Regular maintenance and prompt attention to these symptoms can prevent further damage to the fuel system and ensure your Ranger remains reliable.
How to Test a Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Replacement steps: Disconnect battery, swap relay, and reconnect power
The fuel pump relay in a 1999 Ford Ranger is a critical component, often located in the power distribution box under the hood. Before attempting any replacement, safety must come first. The initial step in this process is to disconnect the battery to prevent any electrical mishaps. This simple action can save you from potential shocks or short circuits, ensuring a smooth and safe repair.
Once the battery is disconnected, locating the fuel pump relay becomes the next crucial task. In the 1999 Ford Ranger, the power distribution box is typically found on the driver's side, near the fender. The relay itself is usually labeled, making identification easier. However, if the label is worn or missing, consulting the vehicle's manual or a reliable online resource can provide the exact location. Swapping the relay is straightforward: simply pull out the old one and insert the new relay, ensuring it clicks into place securely.
After the relay is replaced, reconnecting the battery is the final step. This should be done with care, ensuring the battery terminals are clean and securely tightened. Once the battery is reconnected, start the vehicle to confirm the fuel pump is functioning correctly. If the engine starts without issues, the replacement was successful. However, if problems persist, it may indicate a deeper issue, such as a faulty fuel pump or wiring.
While the process seems simple, there are a few cautions to keep in mind. Always wear safety gloves when handling electrical components to protect against potential hazards. Additionally, if you’re unsure about any step, it’s wise to consult a professional mechanic. DIY repairs can be empowering, but they should never compromise safety or vehicle integrity.
In conclusion, replacing the fuel pump relay on a 1999 Ford Ranger is a manageable task when approached methodically. By disconnecting the battery, accurately swapping the relay, and carefully reconnecting power, you can restore your vehicle’s fuel system functionality. This not only saves on repair costs but also enhances your understanding of your vehicle’s mechanics. With the right tools and precautions, this repair can be a rewarding DIY project.
Fixing a Defective Fuel Pump: Step-by-Step Repair Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a 1999 Ford Ranger is typically located in the power distribution box under the hood. It is often found in the relay panel near the battery.
The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" on the underside of the power distribution box lid. It is a rectangular or square-shaped relay with several pins.
Yes, you can test the fuel pump relay using a multimeter or by swapping it with another relay of the same type in the power distribution box. Listen for the fuel pump to activate when the key is turned to the "ON" position.
Common symptoms include the engine not starting, stalling, or difficulty starting. You may also notice a lack of fuel pressure or no sound from the fuel pump when the key is turned to the "ON" position.
