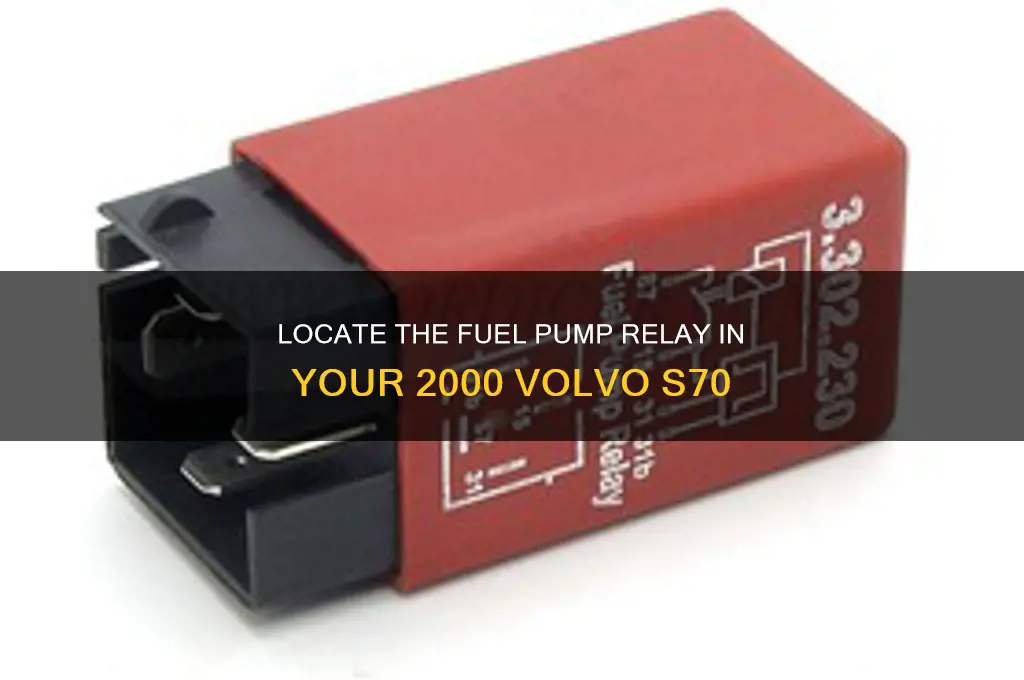

The fuel pump relay on a 2000 Volvo S70 is typically located in the relay box under the hood, often near the battery or fuse box. This relay is a crucial component of the vehicle's fuel system, as it controls the power supply to the fuel pump, ensuring proper fuel delivery to the engine. Identifying its exact location can vary slightly depending on the specific model and trim, but it is generally housed within a black plastic box labeled relay or fuse/relay module. Accessing this area usually requires opening the hood and consulting the vehicle's manual for precise instructions or diagrams to locate the fuel pump relay efficiently.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the fuse/relay box near the battery. |
| Fuse/Relay Box Label | Typically labeled as "Engine Compartment Fuse Box" or "Relay Box." |
| Relay Position | Usually in slot #10 or #11 (check the lid of the fuse box for the diagram). |
| Relay Color | Black or dark blue (may vary, refer to the diagram for confirmation). |
| Function | Controls power to the fuel pump. |
| Replacement Part | Volvo part number or compatible relay with the same specifications. |
| Access Difficulty | Easy to moderate; requires opening the hood and locating the fuse box. |
| Tools Required | None or a small screwdriver to pry open the fuse box lid. |
| Diagnostic Tip | If the fuel pump is not working, check the relay for clicking when ignition is on. |
Explore related products
What You'll Learn
Location of fuel pump relay in 2000 Volvo S70 engine bay
The fuel pump relay in a 2000 Volvo S70 is a critical component for ensuring your vehicle starts and runs smoothly. Located in the engine bay, this relay acts as a switch, controlling the power supply to the fuel pump. Understanding its exact location can save you time and frustration when troubleshooting or performing maintenance.
To locate the fuel pump relay, start by opening the hood and identifying the fuse box, which is typically situated near the battery on the driver’s side. The fuse box in the 2000 Volvo S70 is a rectangular unit with a removable lid. Once the lid is off, you’ll see a diagram on the underside, labeling the relays and fuses. The fuel pump relay is often labeled as "FUEL PUMP" or "FP RELAY" and is usually positioned in one of the corners or along the edges of the fuse box.
A practical tip is to consult your vehicle’s manual for a precise diagram, as relay positions can vary slightly depending on the model or trim. If the diagram is unclear, cross-reference it with online forums or repair guides specific to the 2000 Volvo S70. These resources often include photos or videos that visually pinpoint the relay’s location, making the process more straightforward.
Once you’ve identified the fuel pump relay, consider testing it if you suspect it’s malfunctioning. A faulty relay can cause the engine to crank but not start, or it may lead to intermittent stalling. To test it, swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) and observe if the issue persists. If the problem moves to the new relay’s function, the fuel pump relay is likely the culprit.
In summary, the fuel pump relay in a 2000 Volvo S70 is located in the engine bay fuse box, typically near the battery. Armed with the right tools, a diagram, and a bit of patience, you can easily locate and assess this component, ensuring your vehicle remains reliable and efficient.
