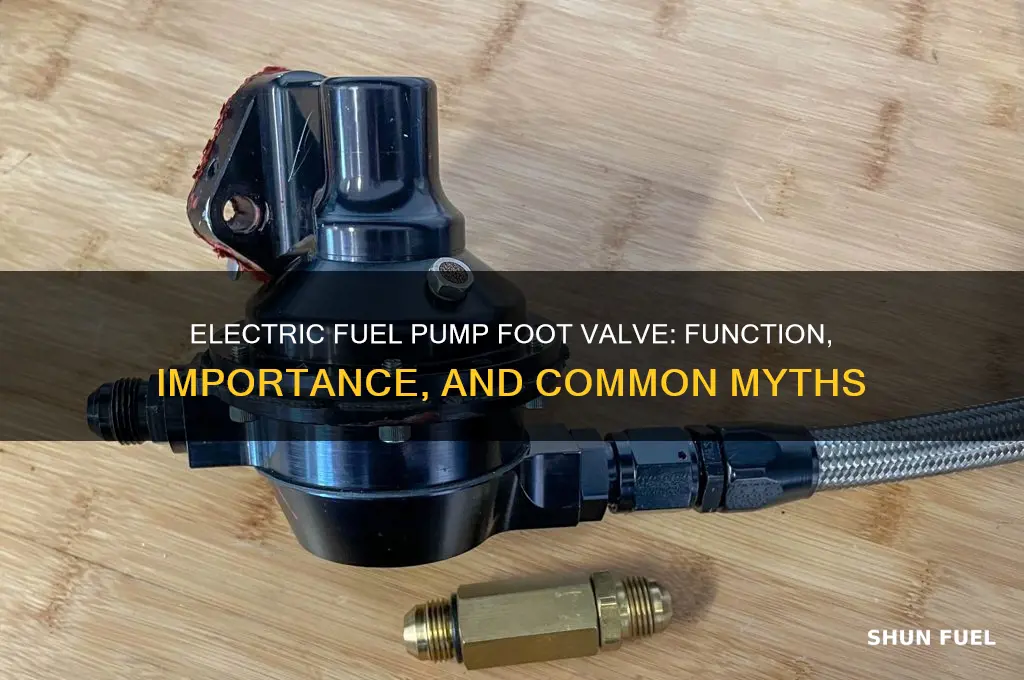

The question of whether an electric fuel pump has a foot valve is a common one among automotive enthusiasts and mechanics. A foot valve, also known as a check valve, is designed to prevent fuel from flowing backward in the system, ensuring consistent pressure and delivery to the engine. In traditional mechanical fuel pump setups, foot valves are often integrated to maintain prime and prevent air from entering the lines. However, electric fuel pumps, which are widely used in modern vehicles, typically incorporate internal check valves as part of their design. These internal valves serve the same purpose as a foot valve, ensuring one-way fuel flow and maintaining system pressure even when the pump is not active. Therefore, while electric fuel pumps do not have a separate, external foot valve, they achieve the same functionality through integrated components, making them more efficient and reliable in fuel delivery systems.
| Characteristics | Values |
|---|---|
| Purpose of Foot Valve | Prevents fuel from flowing back into the tank when the pump is off. |
| Presence in Electric Fuel Pumps | Not all electric fuel pumps have a foot valve. |
| Location | Typically located at the inlet of the fuel pump, inside the fuel tank. |
| Functionality | One-way valve allowing fuel to flow only towards the pump. |
| Material | Often made of rubber or plastic with a spring mechanism. |
| Maintenance | Requires periodic inspection for wear or clogging. |
| Failure Symptoms | Hard starting, fuel pressure loss, or engine stalling. |
| Compatibility | Depends on the specific fuel pump design and vehicle system. |
| Replacement | Often replaced as part of the fuel pump assembly. |
| Cost | Included in the cost of the fuel pump assembly if present. |
Explore related products
$45
![[10-Pack] PROCURU Heavy Duty Angle Stop Valve 1/2" Nominal (5/8" OD) Compression x 3/8" OD, 1/4-Turn Operation (PCAS12-10P)](https://m.media-amazon.com/images/I/81PZTynYVlL._AC_UL320_.jpg)
What You'll Learn
Purpose of a Foot Valve
Electric fuel pumps, unlike their mechanical counterparts, do not typically incorporate a foot valve. This distinction is crucial for understanding the purpose and function of a foot valve in fuel systems. A foot valve, also known as a check valve, is designed to prevent backflow in a system, ensuring that fluid moves in one direction only. In fuel systems, this means maintaining pressure and preventing fuel from returning to the tank when the pump is inactive. While electric fuel pumps rely on their internal design and external components to manage flow direction, foot valves are more commonly found in gravity-fed or siphon-based systems where backflow is a greater concern.
Consider a scenario where a vehicle’s engine is turned off. Without a foot valve, fuel could drain back into the tank, causing the fuel lines to empty and creating a delay in fuel delivery when the engine restarts. This is particularly problematic in carbureted engines or systems with long fuel lines. In such cases, a foot valve installed near the fuel tank outlet ensures that fuel remains in the lines, enabling immediate fuel delivery upon startup. While electric fuel pumps often use internal check valves or rely on system pressure to achieve this, the foot valve serves as a failsafe in simpler or older systems.
From a practical standpoint, installing a foot valve in a fuel system requires careful consideration of placement and compatibility. The valve should be positioned at the lowest point of the fuel line, typically near the tank outlet, to effectively prevent backflow. It’s essential to choose a valve rated for the fuel type (e.g., gasoline, diesel) and pressure requirements of the system. For example, a foot valve with a cracking pressure of 1-2 PSI is suitable for most automotive applications, ensuring it opens easily when the pump activates. Regular inspection for debris or wear is also critical, as a malfunctioning foot valve can restrict fuel flow or fail to prevent backflow.
Comparatively, the absence of a foot valve in electric fuel pump systems highlights advancements in pump design and system integration. Modern electric pumps often include built-in check valves or rely on the pump’s priming capability to maintain fuel pressure. However, in retrofitting or troubleshooting older systems, adding a foot valve can be a cost-effective solution to backflow issues. For instance, in a classic car restoration, installing a foot valve can improve starting reliability without the need for a complete fuel system overhaul. This underscores the foot valve’s role as a versatile component in addressing specific fuel delivery challenges.
In summary, while electric fuel pumps do not typically feature a foot valve, understanding its purpose provides insight into fuel system dynamics. A foot valve ensures unidirectional fuel flow, prevents backflow, and maintains line pressure, particularly in systems prone to drainage. Whether as a standalone component or part of a broader solution, its application depends on the system’s design and operational needs. For enthusiasts or mechanics working on diverse fuel systems, recognizing when and how to use a foot valve can enhance efficiency and reliability.
Fuel Pump Costs: What to Expect for Repairs and Replacements
You may want to see also
Explore related products
Electric Fuel Pump Components
Electric fuel pumps are essential components in modern vehicles, ensuring a consistent and reliable fuel supply to the engine. Among the various parts that make up these pumps, the foot valve is a critical yet often overlooked element. Contrary to some misconceptions, not all electric fuel pumps have a foot valve, but when present, it serves a vital function. The foot valve, also known as a check valve, prevents fuel from flowing back into the tank after the pump is turned off, maintaining pressure in the fuel lines and ensuring quick starts. This component is particularly common in in-tank electric fuel pumps, where it helps reduce engine cranking time and improves overall efficiency.
Understanding the components of an electric fuel pump is key to diagnosing and resolving fuel system issues. Beyond the foot valve, these pumps typically consist of a motor, impeller, pressure regulator, and fuel filter. The motor drives the impeller, which creates the necessary pressure to move fuel from the tank to the engine. The pressure regulator ensures the fuel is delivered at the correct pressure, while the fuel filter traps contaminants to protect the engine. Each of these parts works in harmony, and a failure in any one component can disrupt the entire system. For instance, a clogged fuel filter or a malfunctioning pressure regulator can lead to poor engine performance or stalling.
When troubleshooting an electric fuel pump, it’s crucial to consider the role of the foot valve in systems where it is present. Symptoms of a faulty foot valve include extended cranking times, difficulty starting the engine, or a sudden drop in fuel pressure after the pump is turned off. To test the foot valve, one can measure fuel pressure before and after turning off the ignition. If the pressure drops significantly, the foot valve may be compromised. Replacement of the foot valve typically involves removing the fuel pump assembly, a task that requires caution due to the flammable nature of fuel. Always ensure the vehicle is on a level surface, the engine is cool, and the battery is disconnected before beginning any work.
For those maintaining or upgrading their vehicle’s fuel system, selecting the right electric fuel pump is essential. Pumps with integrated foot valves are ideal for applications requiring quick starts and stable fuel pressure, such as high-performance engines or vehicles with return-style fuel systems. When installing a new pump, ensure compatibility with the vehicle’s fuel type (e.g., gasoline or diesel) and flow rate requirements. Additionally, follow manufacturer guidelines for wiring and grounding to prevent electrical issues. Regular inspection of the fuel pump and its components can extend the life of the system and prevent costly repairs down the line.
In summary, while not all electric fuel pumps have a foot valve, its presence significantly enhances fuel system performance. Familiarity with the pump’s components—motor, impeller, pressure regulator, fuel filter, and foot valve—empowers vehicle owners to address issues effectively. Whether diagnosing a problem or upgrading a system, understanding these parts ensures a reliable and efficient fuel delivery mechanism. Always prioritize safety and follow best practices when working on fuel systems to avoid accidents and ensure optimal vehicle performance.
Understanding the Functionality of a Mechanical Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
![[10-Pack] PROCURU PushFit Angle Stop Valve 1/2" Push x 3/8" OD Comp, Quarter-Turn Push-to-Connect Brass Shutoff Valve for Copper, PEX, CPVC, PE-RT, HDPE Pipes, LF Certified Safe (8X8012-11T)](https://m.media-amazon.com/images/I/81fgBbLcfyS._AC_UL320_.jpg)
Foot Valve vs. Check Valve
Electric fuel pumps often incorporate valves to ensure one-way fuel flow, preventing backflow and maintaining system pressure. Among these, the foot valve and check valve are frequently mentioned, though their roles and designs differ significantly. A foot valve, typically found in fuel tanks, is positioned at the intake of the pump to prevent fuel from flowing back into the tank when the pump is off. This ensures that the pump doesn’t need to repressurize the system each time it starts, reducing wear and improving efficiency. In contrast, a check valve, often located within or near the pump, serves a similar purpose but is designed to handle higher pressures and is more compact, making it suitable for inline applications.
Understanding the distinction between these valves is crucial for diagnosing fuel system issues. For instance, if fuel drains back into the tank when the engine is off, a faulty foot valve is likely the culprit. Symptoms include extended cranking times or difficulty starting after the vehicle has been sitting. On the other hand, a failing check valve might cause fuel pressure loss during operation, leading to stalling or poor performance. Mechanics often test these valves by measuring fuel pressure drop-off over time or inspecting for physical damage, such as cracked diaphragms or debris blockage.
From a maintenance perspective, foot valves are generally easier to access and replace since they’re located in the fuel tank. However, this requires dropping the tank, a labor-intensive process that demands caution to avoid fuel spills or damage to tank mounts. Check valves, being inline, are often more accessible but may require specialized tools to remove without damaging surrounding components. When replacing either valve, ensure compatibility with the fuel type (e.g., ethanol blends) and pressure ratings, as mismatches can lead to premature failure.
Persuasively, investing in high-quality valves and regular inspections can save significant repair costs down the line. For example, a $50 foot valve replacement during routine maintenance is far cheaper than addressing a $500 fuel pump failure caused by backflow-induced strain. Additionally, upgrading to valves with anti-debris screens can mitigate common failure points, especially in older vehicles or those exposed to contaminated fuel.
In summary, while both foot and check valves manage backflow, their placement, design, and failure modes differ. A foot valve safeguards the pump during downtime, while a check valve ensures pressure integrity during operation. Proper diagnosis, maintenance, and part selection are key to optimizing fuel system performance and longevity.
Bypassing the Fuel Pump on Your Sportsman: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel System Operation
Electric fuel pumps are integral to modern fuel systems, ensuring a consistent and pressurized supply of fuel to the engine. One critical component often associated with fuel pumps is the foot valve, a check valve designed to maintain prime in the fuel lines. In mechanical fuel pump systems, the foot valve prevents fuel from draining back into the tank when the engine is off, ensuring quick starts. However, in electric fuel pump systems, the design and necessity of a foot valve differ significantly. Electric fuel pumps are typically mounted within the fuel tank, creating a submerged system that naturally maintains fuel pressure and eliminates the need for a traditional foot valve.
The operation of an electric fuel pump is straightforward yet precise. It draws fuel from the tank and delivers it to the engine at the required pressure, often regulated by a pressure relief valve. This process is continuous when the ignition is on, ensuring a steady fuel supply regardless of engine demand. Unlike mechanical pumps, electric pumps are not driven by the engine’s camshaft, allowing for greater flexibility in fuel delivery and improved efficiency. The absence of a foot valve in this setup is compensated by the pump’s ability to maintain pressure and prime the system automatically, even after prolonged periods of inactivity.
A key advantage of electric fuel pump systems is their ability to handle high-pressure fuel injection requirements, which are common in modern engines. These pumps can deliver fuel at pressures exceeding 60 psi, essential for efficient combustion in fuel-injected systems. The integration of the pump within the fuel tank also reduces the risk of vapor lock, a condition where fuel vaporizes in the lines, causing engine stalls. This design eliminates the need for external check valves, as the pump’s submerged position ensures fuel remains in the lines.
For enthusiasts or mechanics working on fuel systems, understanding the role of the electric fuel pump is crucial. When diagnosing issues, such as hard starting or poor performance, check the pump’s operation and fuel pressure first. A faulty electric pump can mimic symptoms of a clogged fuel filter or failing injectors. To test the pump, measure fuel pressure at the rail using a gauge; it should match the manufacturer’s specifications, typically between 30 and 60 psi for most fuel-injected vehicles. If pressure is low, inspect the pump’s electrical connections, relay, and fuse before considering replacement.
In conclusion, while the concept of a foot valve is relevant in mechanical fuel systems, electric fuel pumps operate without one due to their design and functionality. Their submerged placement and continuous operation ensure prime and pressure, making them a reliable choice for modern vehicles. By focusing on the pump’s role in fuel system operation, mechanics and enthusiasts can better diagnose and maintain these critical components, ensuring optimal engine performance.
Does the 2003 Tahoe Fuel Pump Have a Fuse?
You may want to see also
Explore related products
$16.99
Common Electric Pump Designs
Electric fuel pumps, integral to modern fuel systems, come in various designs tailored to specific vehicle needs. One common design is the in-tank electric fuel pump, which is submerged in the fuel tank to maintain a cool operating temperature and ensure a consistent fuel supply. This design often incorporates a check valve, sometimes referred to as a foot valve, to prevent fuel from flowing back into the tank when the pump is off, thereby reducing startup time and maintaining system pressure. This setup is widely used in passenger vehicles due to its efficiency and reliability.
Another prevalent design is the external electric fuel pump, typically mounted outside the fuel tank, often near the engine bay. While less common in modern cars, it remains a staple in older vehicles and certain high-performance applications. External pumps may or may not include a foot valve, depending on the system’s requirements. For instance, carbureted engines often rely on external pumps without foot valves, as the carburetor’s design naturally prevents backflow. However, when retrofitting an external pump into a fuel-injected system, a foot valve becomes essential to maintain residual pressure.
Gerotor pumps represent a specialized design within electric fuel pumps, known for their compact size and high efficiency. These pumps use a rotating inner gear and an outer rotor to create a vacuum that draws fuel through the system. While gerotor pumps often include internal check valves, they are not typically referred to as foot valves. This design is favored in motorcycles and small engines, where space and weight are critical considerations.
When selecting an electric fuel pump, understanding its design and valve configuration is crucial. For example, high-pressure fuel pumps used in direct injection systems require robust check valves to handle pressures exceeding 1,500 PSI. Conversely, low-pressure pumps in returnless fuel systems may use simpler foot valves to maintain 40–60 PSI. Always consult the vehicle’s specifications or a trusted mechanic to ensure compatibility, as mismatched designs can lead to poor performance or system failure.
In summary, electric fuel pump designs vary widely, each with unique features like foot valves or check valves tailored to specific applications. Whether in-tank, external, or gerotor, the presence and type of valve play a pivotal role in system efficiency and reliability. By understanding these distinctions, vehicle owners can make informed decisions to optimize fuel delivery and engine performance.
Suzuki Volusia 2001: Fuel Pump Presence and Functionality Explained
You may want to see also
Frequently asked questions
No, an electric fuel pump does not have a foot valve. Foot valves are typically found in mechanical fuel pump systems, not electric ones.
A foot valve in a fuel system is designed to maintain fuel pressure in the lines when the engine is turned off, preventing fuel from draining back into the tank and ensuring easier starting.
Yes, an electric fuel pump functions independently and does not require a foot valve. It maintains fuel pressure electronically and does not rely on mechanical check valves.
In electric fuel pump systems, check valves or one-way valves are often integrated into the pump or fuel lines to prevent backflow, serving a similar purpose to a foot valve.
