Mercedes Mullins

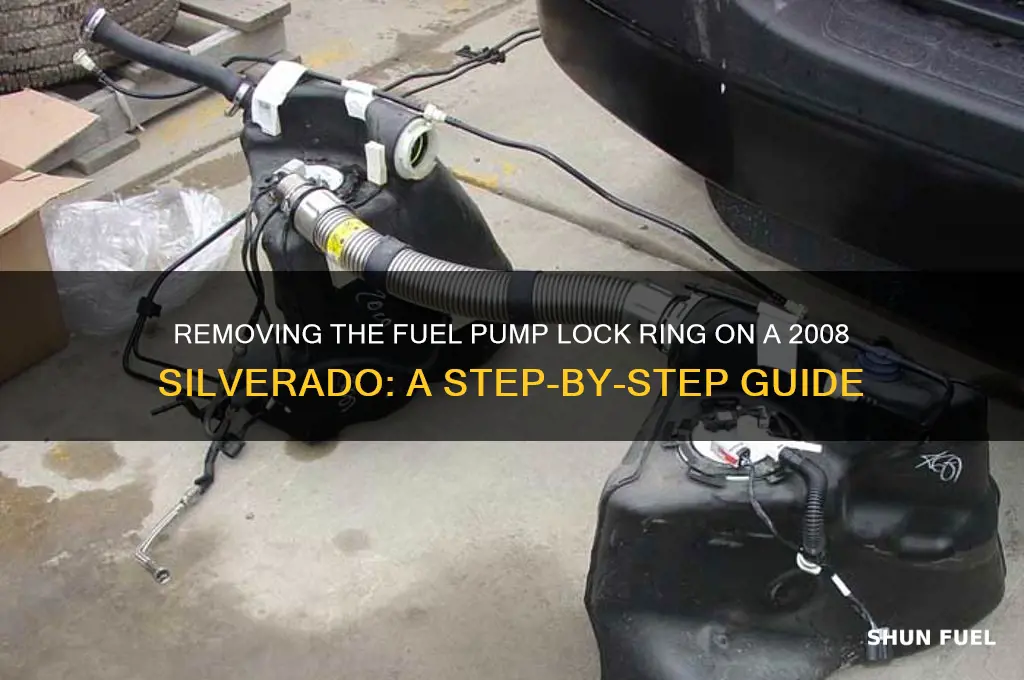

Removing the fuel pump lock ring on a 2008 Silverado is a critical step in accessing and replacing the fuel pump assembly. This task requires specific tools and careful attention to safety due to the presence of fuel and potential hazards. The lock ring is designed to secure the fuel pump module in the tank, and removing it involves using a specialized tool to release the locking mechanism without damaging the components. Proper preparation, such as relieving fuel system pressure and disconnecting the battery, is essential to ensure a safe and successful process. Following a step-by-step guide and using the correct tools will help you efficiently remove the lock ring and proceed with the necessary repairs or maintenance.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2008 Chevrolet Silverado |
| Component | Fuel Pump Lock Ring |
| Tools Required | Fuel Pump Module Removal Tool, Ratchet, Socket Set, Screwdriver, Pliers |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Location of Lock Ring | Inside the fuel tank, securing the fuel pump module |
| Removal Process | 1. Relieve fuel pressure. 2. Disconnect battery. 3. Drain fuel tank. 4. Remove bed and access fuel tank. 5. Use fuel pump module tool to release lock ring. |
| Lock Ring Tool | Specialized fuel pump module removal tool (e.g., GM J-37080-A or equivalent) |
| Common Issues | Lock ring may be stuck due to corrosion or debris |
| Replacement | Replace lock ring if damaged or worn |
| Reinstallation | Ensure lock ring is properly seated and tightened securely |
| Difficulty Level | Intermediate to Advanced (requires mechanical skill and specialized tools) |
| Estimated Time | 2-4 hours depending on experience and tools |
| Additional Tips | Use penetrating oil if lock ring is difficult to remove |
Explore related products
What You'll Learn
- Tools Needed: Socket set, extension, ratchet, and fuel pump module lock ring tool
- Safety Precautions: Relieve fuel pressure, disconnect battery, and work in well-ventilated area
- Accessing the Pump: Remove bed, disconnect wiring, and lower fuel tank for access
- Removing Lock Ring: Use lock ring tool, apply steady force, and turn counterclockwise
- Reinstallation Tips: Align module, tighten lock ring securely, and reconnect all components properly
Tools Needed: Socket set, extension, ratchet, and fuel pump module lock ring tool
Removing the fuel pump lock ring on a 2008 Silverado requires precision and the right tools. Among the essentials are a socket set, extension, ratchet, and a fuel pump module lock ring tool. These tools are not interchangeable with generic alternatives; the lock ring tool, in particular, is designed to engage the specific tabs on the factory lock ring without damaging the module. Attempting this job without it often leads to stripped tabs or a broken ring, complicating the repair and increasing costs.
The socket set and extension work in tandem to reach the lock ring, which is recessed within the fuel tank. A 10mm or 12mm socket typically fits the lock ring, but verify the size for your specific model. The extension bridges the gap between the ratchet and the lock ring, ensuring you can apply torque without straining your wrist or damaging surrounding components. Without an extension, accessing the lock ring becomes nearly impossible due to its depth and the tank’s design.
The ratchet is the powerhouse of this assembly, providing the mechanical advantage needed to loosen the lock ring. Use a 3/8-inch drive ratchet for optimal control and leverage. Apply steady, even pressure while turning counterclockwise; abrupt force risks bending the lock ring or damaging the fuel pump module. If the ring is stubborn, a gentle tap with a mallet on the ratchet handle can help break initial resistance, but avoid excessive force.
Finally, the fuel pump module lock ring tool is the linchpin of this operation. This specialized tool grips the lock ring’s tabs securely, preventing slippage during removal. Generic tools or pliers often fail to engage the tabs properly, leading to stripped or broken components. Invest in the correct tool—typically available at auto parts stores or online—to ensure a smooth, damage-free removal. This small expense saves time and frustration, making it a non-negotiable addition to your toolkit.
In summary, while the socket set, extension, and ratchet form the backbone of this repair, the fuel pump module lock ring tool is the differentiator. Together, these tools transform a potentially daunting task into a manageable DIY project. Approach the job methodically, prioritize precision over force, and always use the right tool for the job to avoid costly mistakes.
Are Fuel Pump Relays Universal? Compatibility and Interchangeability Explained
You may want to see also
Explore related products
Safety Precautions: Relieve fuel pressure, disconnect battery, and work in well-ventilated area
Before attempting to remove the fuel pump lock ring on a 2008 Silverado, it's crucial to prioritize safety by relieving fuel pressure, disconnecting the battery, and working in a well-ventilated area. Fuel systems operate under high pressure, and gasoline is highly flammable, making these precautions non-negotiable. Relieving fuel pressure involves locating the Schrader valve on the fuel rail and using a pressure gauge to release the pressure safely. This step prevents accidental fuel spray, which could ignite if exposed to sparks or open flames.
Disconnecting the battery is equally vital to eliminate the risk of electrical sparks. Even a small spark can cause a fire or explosion when working near fuel lines. To disconnect the battery, start by removing the negative terminal first, followed by the positive terminal if necessary. Ensure the battery is securely disconnected and cannot accidentally reconnect during the repair process. This simple step significantly reduces the risk of electrical ignition, providing a safer environment to work in.
Working in a well-ventilated area is another critical safety measure. Gasoline vapors are heavier than air and can accumulate in enclosed spaces, creating a hazardous environment. If these vapors come into contact with an ignition source, they can explode. To mitigate this risk, perform the repair in an open area or a garage with the doors wide open. Using a fan to improve air circulation can further reduce the concentration of fumes, enhancing safety during the procedure.
These safety precautions are not just recommendations—they are essential practices to protect yourself and your vehicle. Relieving fuel pressure, disconnecting the battery, and ensuring proper ventilation form the foundation of a safe repair process. By adhering to these steps, you minimize the risk of accidents, allowing you to focus on the task at hand without unnecessary danger. Remember, taking a few extra minutes to implement these precautions can prevent serious injuries and costly damage.
In summary, safety should always be the top priority when working on a vehicle’s fuel system. Relieving fuel pressure prevents accidental sprays, disconnecting the battery eliminates electrical hazards, and working in a well-ventilated area reduces the risk of vapor ignition. By following these guidelines, you create a secure environment to remove the fuel pump lock ring on your 2008 Silverado, ensuring a successful and accident-free repair.
Understanding the Functionality of an Impulse Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
Accessing the Pump: Remove bed, disconnect wiring, and lower fuel tank for access
Removing the bed of a 2008 Silverado is a labor-intensive but necessary step to access the fuel pump lock ring. This process requires careful planning and execution to avoid damage to the vehicle. Start by disconnecting the battery to prevent electrical hazards. Next, remove the tailgate and any bed bolts or fasteners securing the bed to the frame. Use a floor jack and wooden blocks to support the bed as you unbolt it, ensuring stability and safety. Once the bed is removed, set it aside on a flat, secure surface, preferably with the help of another person to avoid strain or injury.
With the bed out of the way, the fuel tank becomes accessible, but further steps are needed to reach the pump. Begin by disconnecting the wiring harness connected to the fuel tank, typically located near the driver’s side rear wheel well. Label each connector with tape or take photos to ensure proper reassembly. Next, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a compatible tool. Failure to do this can result in fuel spray or fire hazards during the removal process.
Lowering the fuel tank is the next critical step, requiring precision and caution. Support the tank with a jack or strap to prevent strain on the fuel lines. Remove the retaining straps or bolts securing the tank to the vehicle frame, ensuring all connections are detached. Slowly lower the tank to a safe working height, taking care not to damage the fuel lines or wiring. If the tank is too heavy to handle alone, enlist assistance to avoid accidents or damage to the vehicle.
Once the tank is lowered, the fuel pump module becomes accessible. Inspect the area for any debris or corrosion that could complicate the lock ring removal. Clean the surface around the pump module if necessary to ensure a clear workspace. This preparatory step not only facilitates the removal process but also reduces the risk of contaminants entering the fuel system during reassembly. Proper access to the pump module is the key to successfully removing the lock ring without causing damage to the fuel tank or surrounding components.
Step-by-Step Guide to Removing a 1985 Nissan 300ZX Fuel Pump
You may want to see also
Explore related products
Removing Lock Ring: Use lock ring tool, apply steady force, and turn counterclockwise
The fuel pump lock ring on a 2008 Silverado is a critical component that secures the fuel pump module to the fuel tank. Removing it requires precision and the right tools to avoid damage. The lock ring tool is specifically designed to engage with the ring’s notches, providing the necessary grip to loosen it. Without this tool, the task becomes nearly impossible, as standard pliers or wrenches lack the precision and leverage needed. This tool is not just a recommendation—it’s a requirement for a safe and efficient removal process.
Once the lock ring tool is in place, the technique you apply is just as crucial as the tool itself. Begin by positioning the tool firmly onto the lock ring, ensuring all tabs are fully engaged. Apply steady, consistent force while turning the tool counterclockwise. Jerky or excessive force can strip the ring or damage the fuel tank, leading to costly repairs. Think of it as unscrewing a tight jar lid—patience and controlled effort yield the best results. If resistance is met, reassess the tool’s alignment before applying more force.
A common mistake is underestimating the importance of steady pressure. Unlike bolts or nuts, the lock ring is designed to resist casual removal, ensuring it stays secure during vehicle operation. Turning the tool counterclockwise gradually breaks the seal, allowing the ring to release. If the ring doesn’t budge after several attempts, inspect for debris or corrosion that might be hindering movement. A light application of penetrating oil can sometimes ease the process, but avoid excessive use to prevent contamination of the fuel system.
After successfully removing the lock ring, take a moment to inspect both the ring and the fuel pump module for wear or damage. This step is often overlooked but can prevent future issues. If the ring shows signs of deformation or the module appears compromised, replacement parts may be necessary. Proper removal not only facilitates the current repair but also ensures the longevity of the fuel system. With the right tool and technique, what seems like a daunting task becomes a manageable step in maintaining your 2008 Silverado.
Identifying the Right Fuel Pump for Your 1998 Chevy Tahoe
You may want to see also
Explore related products
Reinstallation Tips: Align module, tighten lock ring securely, and reconnect all components properly
After removing the fuel pump lock ring on a 2008 Silverado, reinstallation demands precision to avoid leaks, ensure functionality, and prevent future issues. Begin by aligning the fuel pump module with the tank opening, ensuring the tabs or guides on the module engage properly. Misalignment can damage the module or seal, leading to fuel leaks or poor performance. Use a bright light and possibly a mirror to verify alignment, especially in tight spaces.
Tightening the lock ring securely is critical but requires caution. Over-tightening can warp the locking mechanism or damage the tank, while under-tightening risks leaks. Use a torque wrench if available, aiming for 40-50 ft-lbs, though specifications may vary—consult your vehicle’s manual. If a torque wrench isn’t accessible, tighten the ring firmly by hand, then use a ratchet with moderate force, stopping when resistance is felt. Avoid using excessive leverage or pipe extensions, which can lead to overtightening.
Reconnecting all components properly is the final step to restore functionality. Reattach the fuel lines, ensuring the quick-connect fittings click securely into place. Inspect electrical connectors for damage and plug them in firmly, listening for the audible click that confirms a secure connection. Double-check all hoses and wires for proper routing to avoid pinching or interference. Turn the ignition to the "on" position (without starting the engine) to pressurize the system and check for leaks using a spray bottle of soapy water around connections.
A systematic approach ensures a successful reinstallation. Start with alignment, proceed to tightening, and conclude with reconnection. Each step builds on the previous one, so skipping or rushing any phase can compromise the repair. For example, improper alignment makes tightening ineffective, and loose connections can cause leaks despite correct torque. Patience and attention to detail are key, as even small mistakes can lead to costly repairs or safety hazards.
Finally, test the system thoroughly before driving. With the key in the "on" position, listen for the fuel pump priming cycle (a brief hum). Start the engine and monitor for unusual noises or smells. Drive the vehicle briefly, checking for performance issues or warning lights. If any problems arise, reinspect the installation, focusing on connections and tightness. Proper reinstallation not only restores functionality but also ensures long-term reliability, saving time and money in the future.
Easy Steps to Install a Strainer on Your Fuel Pump
You may want to see also
Frequently asked questions
You will need a fuel pump lock ring tool (specific to GM vehicles), a flathead screwdriver, and possibly a hammer and punch for stubborn rings.
First, relieve the fuel system pressure, then remove the rear seat and the fuel pump access cover in the truck bed to expose the fuel pump module.
The lock ring can be tight due to corrosion, rust, or years of pressure. Using the correct tool and applying steady force is essential to avoid damaging the module.
It is not recommended to reuse the lock ring due to potential wear or damage. Always replace it with a new one to ensure a secure seal.
