The fuel pump relay in a 2000 Audi A8 Quattro is a critical component responsible for controlling the fuel pump’s operation, ensuring proper fuel delivery to the engine. Located in the relay panel, this relay is typically housed in the engine bay fuse box, often found near the battery or along the inner fender. To access it, you’ll need to remove the fuse box cover, which may require a screwdriver or release tabs. Once opened, the relay is usually labeled as Fuel Pump or identified by its part number in the fuse box diagram, which can be found in the vehicle’s owner’s manual. If the relay fails, symptoms like difficulty starting, stalling, or a non-responsive engine may occur, making it essential to locate and inspect this component for proper vehicle functionality.
| Characteristics | Values |
|---|---|
| Location | In the trunk, behind the rear seat on the driver's side, inside the relay panel. |
| Relay Panel Name | Convenience Relay Panel (CRP) or Rear SAM (Signal Acquisition Module). |
| Relay Position | Typically labeled as "Fuel Pump" or "Relay 109" (may vary by model). |
| Access Method | Remove the rear seat cushion or access panel to reach the relay panel. |
| Relay Function | Controls power supply to the fuel pump for engine operation. |
| Common Issues | Relay failure can cause no-start conditions or fuel pump malfunction. |
| Replacement Part | Genuine Audi fuel pump relay or compatible aftermarket part. |
| Diagnostic Tip | Check for power at the fuel pump connector if relay is suspected faulty. |
Explore related products
What You'll Learn

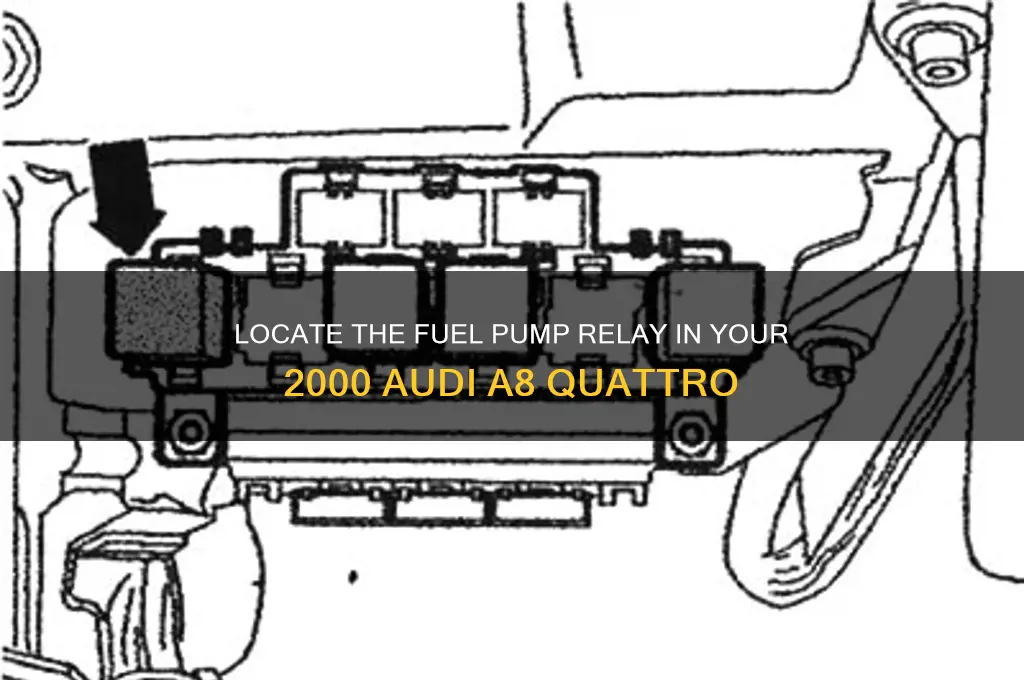

Location of Fuel Pump Relay
The fuel pump relay in a 2000 Audi A8 Quattro is a critical component, ensuring the fuel pump operates only when the engine is running or being started. Locating it requires familiarity with the vehicle’s electrical architecture. In this model, the relay is typically housed within the relay panel, which is situated in the engine bay. Specifically, it’s often found near the battery or along the inner fender wall, protected by a plastic cover labeled "Relays" or "Fuses/Relays." This placement is consistent with Audi’s design philosophy of grouping electrical components for accessibility and protection from the elements.
To access the fuel pump relay, start by opening the hood and locating the relay panel. Remove the cover by pressing the retaining clips or unscrewing it, depending on the design. Inside, relays are usually labeled with diagrams or codes; the fuel pump relay is often marked as "FPR" or "Fuel Pump." If the labels are unclear, consult the vehicle’s manual or a repair guide for the exact position. Audi typically uses a standardized relay layout across models, but slight variations may exist, so cross-referencing is essential.
One practical tip for identifying the correct relay is to use a multimeter. With the ignition on, measure for power at each relay’s terminals. The fuel pump relay should show voltage when the engine is cranked or running. This method eliminates guesswork, especially if the relay panel lacks clear labeling. Additionally, swapping relays of the same type (e.g., swapping the fuel pump relay with the horn relay) can help diagnose a faulty unit if the vehicle fails to start.
Comparatively, the 2000 Audi A8 Quattro’s fuel pump relay location differs from earlier models, which often placed it in the interior fuse box. This change reflects Audi’s shift toward consolidating electrical components in the engine bay for better heat management and serviceability. However, this relocation also means the relay is more exposed to underhood temperatures, underscoring the importance of regular inspection for corrosion or damage.
In conclusion, locating the fuel pump relay in a 2000 Audi A8 Quattro involves identifying the relay panel in the engine bay, referencing labels or diagrams, and using diagnostic tools if necessary. Understanding its placement not only aids in troubleshooting but also highlights Audi’s evolutionary approach to electrical system design. Regular maintenance and familiarity with this component can prevent unexpected breakdowns and ensure the vehicle’s reliability.
Rebuilding Your Waterman Fuel Pump: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Accessing the Relay Panel
The relay panel in a 2000 Audi A8 Quattro is a critical component housing various relays, including the fuel pump relay. Accessing it requires precision and familiarity with the vehicle’s layout. Located in the engine bay, the panel is often concealed behind a protective cover to shield it from debris and moisture. Identifying its exact position is the first step in troubleshooting or replacing the fuel pump relay, a task that can save time and prevent misdiagnosis of fuel system issues.
To access the relay panel, start by opening the hood and securing it in place. Locate the battery, typically positioned on the driver’s side of the engine bay. The relay panel is usually situated adjacent to the battery, mounted on the inner fender or firewall. It’s often marked with a diagram or label indicating the relays’ functions, though this may fade over time. If the panel isn’t immediately visible, consult the vehicle’s manual or a trusted repair guide for precise location details.
Once located, remove the protective cover by pressing or sliding the retaining clips, depending on the design. Be cautious not to force it, as plastic components can become brittle with age. With the cover removed, you’ll see a grid of relays, each labeled or numbered. The fuel pump relay is typically identified by its position in the grid or a specific code (e.g., “J294” in some Audi models). Cross-reference this with the panel diagram or manual to confirm its location before proceeding.
Before handling any relays, ensure the ignition is off to prevent electrical mishaps. Relays are modular and can be pulled straight out of their sockets, but use even pressure to avoid damaging the connectors. If the relay is difficult to remove, gently wiggle it side-to-side while pulling upward. Once accessed, you can test the relay, swap it with a known-good one, or replace it entirely. Reassemble the panel carefully, ensuring the cover is securely fastened to maintain protection against environmental elements.
Do DW Fuel Pumps Include Check Valves? A Detailed Explanation
You may want to see also
Explore related products
Identifying the Correct Relay
Locating the fuel pump relay in a 2000 Audi A8 Quattro requires precision, as misidentifying the relay can lead to unnecessary troubleshooting or damage. The vehicle’s relay panel houses multiple relays, often labeled ambiguously or not at all, making visual identification challenging. Start by consulting the owner’s manual or a factory service manual, which typically provides a relay panel diagram. For this model, the fuel pump relay is usually located in the auxiliary relay panel under the hood, near the battery or fuse box. However, Audi’s labeling system may use codes like “J234” instead of descriptive names, so cross-referencing the diagram is essential.
Analyzing the relay’s function provides another layer of certainty. The fuel pump relay is responsible for delivering power to the fuel pump when the ignition is activated. To confirm its identity, use a multimeter to test for continuity between the relay’s terminals when the ignition is on. If continuity is detected, and the relay clicks during ignition, it’s likely the correct one. This method is particularly useful if the relay panel lacks clear labels or if the diagram is unavailable.
A comparative approach can also aid identification. Compare the suspected fuel pump relay with others in the panel, noting size, shape, and terminal configuration. Audi often uses standardized relays, but the fuel pump relay may have a higher amperage rating due to its load requirements. Additionally, look for signs of heat or wear, as the fuel pump relay operates frequently and may show more visible stress compared to less-used relays.
Practical tips streamline the process. If the relay panel is inaccessible or poorly lit, use a flashlight and consider removing the panel for easier inspection. Label each relay as you test or remove it to avoid confusion. For the 2000 Audi A8 Quattro, a common workaround is to swap the suspected relay with another of the same type in the panel; if the fuel pump fails to engage, you’ve likely found the correct one. Always reattach relays securely after testing to prevent electrical issues.
In conclusion, identifying the correct fuel pump relay in a 2000 Audi A8 Quattro demands a combination of research, testing, and observation. Relying solely on visual cues is insufficient; instead, use diagrams, functional testing, and comparative analysis to ensure accuracy. With patience and the right tools, even a novice can confidently locate and verify this critical component.
Best Electric Fuel Pump Options for 850 Carburetor Upgrades
You may want to see also
Explore related products
Testing the Fuel Pump Relay
The fuel pump relay in a 2000 Audi A8 Quattro is a critical component that ensures your vehicle’s engine receives the necessary fuel for operation. Testing this relay is a straightforward process that can help diagnose issues such as a no-start condition or erratic engine behavior. Before diving into the test, locate the relay in the auxiliary relay panel, typically found in the engine bay near the battery or fuse box. Once identified, you’ll need a multimeter and a basic understanding of electrical circuits to proceed.
To begin testing, disconnect the relay and inspect its terminals. The fuel pump relay usually has four or five pins, corresponding to the coil and contact sides of the relay. Using your multimeter set to the continuity or resistance mode, check for continuity between the coil terminals (typically pins 85 and 86) when the relay is energized. If there’s no continuity, the relay’s coil is likely faulty. Next, apply power to the coil terminals and check for continuity between the contact terminals (usually pins 30 and 87). If continuity is absent, the relay’s contacts are not functioning correctly, indicating a failed relay.
A comparative approach can help clarify the process. Imagine testing a light switch: you check if flipping the switch (energizing the coil) completes the circuit (contacts closing). Similarly, the fuel pump relay acts as a switch for the fuel pump circuit. If the relay fails this test, it’s a strong indicator that it needs replacement. However, before replacing the relay, ensure the issue isn’t caused by a blown fuse, a faulty fuel pump, or a wiring problem. Always cross-reference your findings with the vehicle’s wiring diagram for accuracy.
Practical tips can streamline the testing process. Keep a relay puller tool handy to safely remove the relay without damaging it or the socket. Label the relay’s position in the panel to avoid confusion during reinstallation. If you’re unsure about pin designations, consult the Audi A8 service manual or an online resource specific to your model. Testing the relay with the ignition in the "on" position can provide more realistic conditions, but always prioritize safety by disconnecting the battery if you’re uncomfortable working with live circuits.
In conclusion, testing the fuel pump relay on a 2000 Audi A8 Quattro is a diagnostic step that requires minimal tools but careful attention to detail. By systematically checking continuity and understanding the relay’s function, you can pinpoint whether the relay is the source of your fuel system issues. This process not only saves time but also prevents unnecessary part replacements, ensuring your vehicle returns to optimal performance efficiently.
DIY Guide: Cutting a Hole in Your Truck Bed for Fuel Pump Installation
You may want to see also
Explore related products
Replacing a Faulty Relay
The fuel pump relay in a 2000 Audi A8 Quattro is a critical component, often located in the auxiliary relay panel under the hood. Identifying its exact position requires consulting the vehicle’s manual or a reliable repair guide, as Audi’s layout can differ from other models. Once located, replacing a faulty relay is a straightforward task that can restore proper fuel system operation and prevent stalling or starting issues.
Steps to Replace the Relay: Begin by disconnecting the car battery to ensure safety. Locate the auxiliary relay panel, typically near the fuse box, and identify the fuel pump relay using the diagram on the panel cover. Carefully pry out the old relay with a flat-head screwdriver, noting its orientation. Insert the new relay in the same position, ensuring it clicks securely into place. Reattach the battery and test the vehicle to confirm the issue is resolved.
Cautions and Considerations: While the process is simple, misidentifying the relay or forcing it out can damage the panel. Always double-check the part number of the replacement relay to ensure compatibility. If the vehicle continues to exhibit symptoms after replacement, the issue may lie elsewhere, such as a faulty fuel pump or wiring harness, necessitating further diagnosis.
Practical Tips: Keep a spare relay in your vehicle for emergencies, as fuel pump relay failure is a common issue in older Audis. Use a multimeter to test the relay before replacement; a faulty relay will show no continuity between pins when activated. If unsure, consult a professional mechanic to avoid misdiagnosis or additional damage.
Energizing Your Fuel Pump via Diagnostics Connector: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a 2000 Audi A8 Quattro is typically located in the relay panel under the hood. It is often found near the battery or fuse box, labeled as "Fuel Pump Relay" or "Relay 109."
The fuel pump relay is usually a small, black or gray rectangular module with a diagram or number (e.g., "109") on it. Refer to your vehicle’s manual or a relay panel diagram to confirm its exact location and appearance.
If you’re having trouble locating the fuel pump relay, consult the vehicle’s service manual or contact a professional mechanic. It may also be helpful to check online forums or Audi-specific resources for detailed instructions and diagrams.
