Regan Brown
The 1989 Ford Aerostar, a popular minivan of its time, often leaves owners searching for specific components like the fuel pump relay. This relay is a crucial part of the vehicle's fuel system, responsible for controlling the fuel pump's operation. Locating the fuel pump relay on an '89 Aerostar can be a bit tricky, as it is typically housed within the under-hood fuse box, which is usually found near the battery or along the firewall. Identifying the correct relay requires consulting the owner's manual or a repair guide, as it may be labeled differently depending on the specific model and configuration of the Aerostar. Once located, accessing the relay is generally straightforward, involving the removal of the fuse box cover to inspect or replace the component if necessary.
| Characteristics | Values |
|---|---|
| Location | Under the hood, near the firewall on the driver's side. |
| Relay Type | Standard fuel pump relay (typically a black or blue square-shaped relay). |
| Relay Function | Controls power to the fuel pump to ensure proper fuel delivery. |
| Wiring Connections | Typically has four pins for power, ground, and fuel pump control. |
| Access Difficulty | Moderate; may require removing a plastic cover or reaching tight spaces. |
| Common Issues | Relay failure can cause no-start conditions or fuel pump malfunction. |
| Replacement Part | Available at auto parts stores; ensure compatibility with 1989 Aerostar. |
| Diagnostic Tip | Check for power at the relay and fuel pump when troubleshooting. |
Explore related products
What You'll Learn

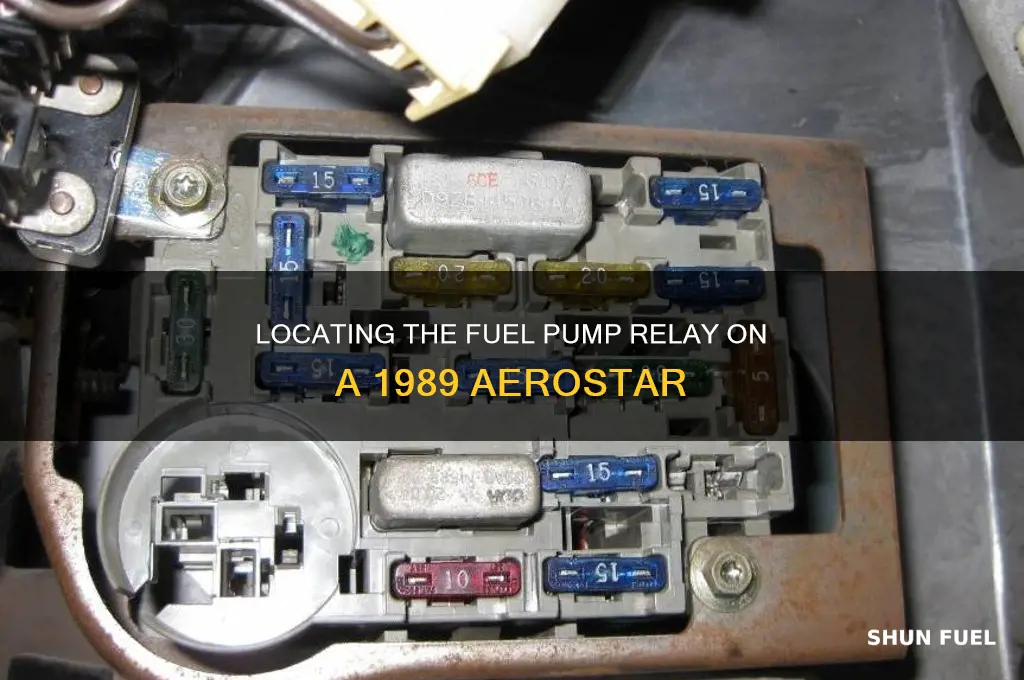

Location of fuel pump relay in 89 Aerostar engine bay
The 1989 Ford Aerostar, a versatile minivan of its time, houses its fuel pump relay in a location that requires some familiarity with the engine bay layout. This relay, a crucial component in the fuel delivery system, is often sought after for diagnostics or replacement. Understanding its exact position can save time and frustration for owners and mechanics alike.
Analyzing the Engine Bay Layout:
The 89 Aerostar's engine bay is designed with functionality in mind, but locating the fuel pump relay might not be immediately intuitive. This relay is typically found in the main fuse box, which is a common practice in many vehicles of that era. However, the Aerostar's fuse box is not always in the most accessible spot, especially for those unfamiliar with its layout. It is situated on the driver's side of the engine bay, near the firewall, and might require some maneuvering to reach comfortably.
Step-by-Step Location Guide:
- Open the hood and secure it in the raised position.
- Locate the driver's side wheel well. The fuse box is positioned just above this area, close to where the firewall meets the inner fender.
- You'll find a rectangular-shaped fuse box with a removable lid. This is the main fuse and relay center for the vehicle.
- Remove the lid to access the relays and fuses. The fuel pump relay is usually labeled and can be identified by its shape and color, often distinct from other relays.
Practical Tips for Access and Replacement:
Accessing the fuel pump relay in the 89 Aerostar can be a bit tight, especially for larger hands. Consider using a flashlight to illuminate the area, making it easier to identify the correct relay. When replacing the relay, ensure you have the correct part number, as relays can vary between different Aerostar models and engine configurations. It's also advisable to check the condition of the fuse box and surrounding wiring for any signs of corrosion or damage, as these issues can sometimes be the root cause of fuel pump-related problems.
In summary, while the fuel pump relay's location in the 89 Aerostar engine bay might not be immediately obvious, it follows a logical placement within the main fuse box. With a bit of guidance and familiarity, accessing and replacing this relay can be a straightforward task, ensuring the vehicle's fuel system operates reliably. This knowledge empowers owners to tackle basic maintenance and diagnostics with confidence.
E Street 2 Fuel Pump Relay: Essential or Optional Upgrade?
You may want to see also
Explore related products
Identifying the fuel pump relay in 89 Aerostar
The 1989 Ford Aerostar, a pioneering minivan of its time, houses its fuel pump relay in a location that reflects the era's automotive design. Typically, you'll find this relay nestled within the engine compartment, often mounted on the firewall or near the battery. This placement is strategic, ensuring the relay is accessible yet protected from extreme underbody conditions. To pinpoint it, start by consulting the vehicle's manual, which often includes a diagram of the fuse and relay box layout. If the manual is unavailable, a visual inspection is your next step. Look for a rectangular or square-shaped module with a series of terminals, usually labeled or color-coded for identification.
Identifying the fuel pump relay in an 89 Aerostar requires a methodical approach. Begin by disconnecting the battery to prevent any electrical mishaps. Then, locate the fuse and relay box, which is often a black plastic unit with a removable lid. Inside, relays are typically arranged in a grid pattern. The fuel pump relay is usually larger than others and may be labeled "FP" or "FUEL." If labels are absent, consult a relay identification guide or use a multimeter to test for continuity. This process involves swapping relays of the same type to see which one corresponds to the fuel pump circuit.
A comparative analysis of the 89 Aerostar's fuel pump relay reveals its design simplicity compared to modern vehicles. Unlike newer models with integrated control modules, this relay operates independently, making it easier to diagnose and replace. However, its location in the engine bay exposes it to heat and moisture, which can cause corrosion or malfunction over time. Regular inspection and cleaning of the relay and its terminals can prevent issues. If the relay fails, symptoms like a no-start condition or engine stalling may occur, necessitating immediate replacement.
For a persuasive argument, consider the importance of maintaining the fuel pump relay in your 89 Aerostar. A faulty relay can lead to fuel delivery problems, compromising performance and safety. Investing in a high-quality replacement and keeping a spare in your toolkit is a proactive measure. Additionally, understanding the relay's function empowers you to troubleshoot issues efficiently, saving time and money on diagnostics. By prioritizing this component, you ensure your Aerostar remains reliable, even after decades of service.
Instructively, replacing the fuel pump relay in an 89 Aerostar is a straightforward task. First, purchase a compatible relay from an auto parts store, ensuring it matches the original specifications. After disconnecting the battery, locate and remove the old relay by pulling it straight out of its socket. Insert the new relay, ensuring it clicks into place securely. Reattach the battery and test the vehicle's operation. This process, when done correctly, restores fuel system functionality and extends the vehicle's lifespan. Always dispose of the old relay responsibly, adhering to local regulations for electronic waste.
Step-by-Step Guide: Installing a Fuel Pump on a Chevy 305
You may want to see also
Explore related products
Steps to access fuel pump relay in 89 Aerostar
The fuel pump relay in a 1989 Ford Aerostar is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Located under the hood, it’s part of the larger relay center, which houses multiple relays for various systems. Identifying its exact position requires familiarity with the Aerostar’s engine bay layout, as the relay center is often tucked away near the firewall or fender. Before starting, ensure the vehicle is turned off and the ignition key is removed to prevent accidental activation of electrical systems.
To access the fuel pump relay, begin by opening the hood and locating the relay center, typically a black plastic box with a removable lid. On the 89 Aerostar, this is often found on the driver’s side near the strut tower or firewall. The lid may have a diagram labeling the relays, but if not, consult the owner’s manual or a repair guide for the fuel pump relay’s specific position. Once identified, carefully pry off the lid using a flathead screwdriver, being cautious not to damage the plastic clips.
With the relay center exposed, the fuel pump relay is usually a rectangular module with four or five pins. It may be labeled “FP” or “Fuel Pump” for easy identification. To remove it, grasp the relay firmly and pull straight up, avoiding sideways force to prevent bending the pins. If the relay is stubborn, gently rock it back and forth while pulling upward. Once removed, inspect the relay for signs of corrosion, melting, or damage, as these are common indicators of failure.
Reinstalling or replacing the relay requires aligning the pins with the corresponding slots in the relay center. Ensure the new relay matches the original in terms of part number and pin configuration. Press it firmly into place until it clicks securely. After reinstalling the relay, test the fuel pump by turning the ignition to the “On” position (without starting the engine) and listening for the pump’s hum, which should last 2-3 seconds. If the pump doesn’t activate, recheck the relay’s connection or test the pump’s circuit for faults.
Finally, reattach the relay center lid and secure it properly to protect the relays from moisture and debris. This straightforward process not only helps diagnose fuel delivery issues but also empowers you to perform basic maintenance on your 89 Aerostar. Always prioritize safety by working in a well-ventilated area and avoiding open flames or sparks near the fuel system. With these steps, accessing and servicing the fuel pump relay becomes a manageable task for any DIY enthusiast.
Understanding the Functionality of Holdwell Fuel Pumps: A Comprehensive Guide
You may want to see also
Explore related products
$23.99
Common issues with 89 Aerostar fuel pump relay
The 1989 Ford Aerostar, a pioneering minivan of its time, often leaves owners scratching their heads when it comes to locating and troubleshooting the fuel pump relay. This component, crucial for delivering fuel from the tank to the engine, is tucked away in a less intuitive spot: under the hood, near the firewall on the driver’s side. It’s housed in a black relay box, often labeled “Engine Compartment Fuse and Relay Box.” Identifying its location is just the first step; understanding common issues with this relay is essential for maintaining reliability.
One prevalent issue with the 89 Aerostar’s fuel pump relay is corrosion. Due to its proximity to the engine and exposure to moisture, the relay’s terminals can oxidize over time, leading to poor electrical contact. Symptoms include intermittent starting problems or a complete failure to start, as the relay fails to send power to the fuel pump. To diagnose this, inspect the relay for greenish residue or pitting on the terminals. Cleaning the terminals with a wire brush and applying dielectric grease can restore functionality, but replacement is often the more permanent solution.
Another common problem is the relay’s internal contacts wearing out. This typically occurs after years of use, as the constant switching of high-current loads degrades the contacts. A telltale sign is a clicking noise from the relay when attempting to start the vehicle, indicating the solenoid is engaging but failing to maintain contact. Testing the relay with a multimeter can confirm this issue. Replacement relays are inexpensive and readily available, making this a straightforward fix for DIY enthusiasts.
Misdiagnosis is a frequent pitfall when dealing with fuel pump relay issues. Owners often assume the fuel pump itself is faulty, leading to unnecessary replacements. Before condemning the pump, always test the relay and check for power at the pump’s connector. If the relay is functioning but the pump isn’t receiving power, the issue may lie in the wiring harness or the inertia switch, a safety device that cuts fuel flow during collisions. This systematic approach saves time and money.
Lastly, the relay’s location in the engine bay makes it susceptible to heat damage. Prolonged exposure to high temperatures can cause the plastic housing to warp or crack, compromising the relay’s integrity. If the relay feels brittle or shows signs of melting, it’s time for a replacement. Upgrading to a relay with a heat-resistant housing can prevent recurrence, especially in hotter climates. Regular inspection during routine maintenance can catch this issue early, ensuring uninterrupted performance.
DIY Guide: Replacing the Fuel Pump in Your 88 Ford Ranger
You may want to see also
Explore related products
Replacing the fuel pump relay in 89 Aerostar
The fuel pump relay in a 1989 Ford Aerostar is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood, this relay is often housed in the main fuse box near the battery or on the firewall. Identifying its exact position can be tricky, as the Aerostar’s layout may vary slightly depending on the trim or engine configuration. A quick visual inspection or consulting the owner’s manual can save time before proceeding with a replacement.
Replacing the fuel pump relay in an 89 Aerostar begins with safety precautions. Ensure the vehicle is turned off and the ignition key is removed to prevent accidental activation of the fuel system. Next, locate the relay by tracing the wiring harness from the fuel pump or referring to a diagram specific to your model. Once identified, use a flathead screwdriver or relay puller tool to carefully extract the old relay from its slot. Avoid forcing it, as this could damage the surrounding components.
Selecting the correct replacement relay is crucial for optimal performance. The 1989 Aerostar typically uses a standard 4-pin relay with a 30/87/85/86 pin configuration. Verify the part number and specifications to ensure compatibility. Aftermarket relays are widely available, but OEM parts are recommended for reliability. Installation is straightforward: align the new relay with the slot and press it firmly into place until it clicks securely. Test the connection by gently tugging to confirm it’s seated properly.
Post-installation, it’s essential to test the fuel pump relay’s functionality. Turn the ignition to the “on” position (without starting the engine) and listen for the fuel pump’s priming hum, which should last 2-3 seconds. If the pump doesn’t engage, double-check the relay’s orientation and connections. A faulty relay can cause hard starts, stalling, or no-start conditions, so addressing the issue promptly is key. Regularly inspecting the relay during routine maintenance can prevent unexpected breakdowns.
In summary, replacing the fuel pump relay in an 89 Aerostar is a manageable task with the right tools and knowledge. By locating the relay accurately, using the correct replacement part, and testing its functionality, you can restore your vehicle’s fuel system efficiency. This DIY repair not only saves on labor costs but also ensures your Aerostar remains reliable for years to come. Always prioritize safety and precision when working on electrical components to avoid complications.
Does a Jimmy Have a Fuel Pump Module? Explained
You may want to see also
Frequently asked questions
The fuel pump relay on a 1989 Ford Aerostar is typically located under the hood in the power distribution box (also known as the fuse/relay box).
The fuel pump relay controls the power supply to the fuel pump, ensuring it only operates when the ignition is on and the engine is running or being started.
The fuel pump relay is usually labeled as "Fuel Pump" or "FP" on the underside of the power distribution box lid. It is often a square or rectangular relay with several pins.
Symptoms include the engine not starting, stalling, or difficulty starting, as well as a lack of fuel pressure. You may also hear the fuel pump not engaging when the key is turned to the "On" position.
Yes, you can test the relay by swapping it with another relay of the same type in the power distribution box (e.g., the horn relay) to see if the issue persists. You can also use a multimeter to check for continuity and proper operation.
