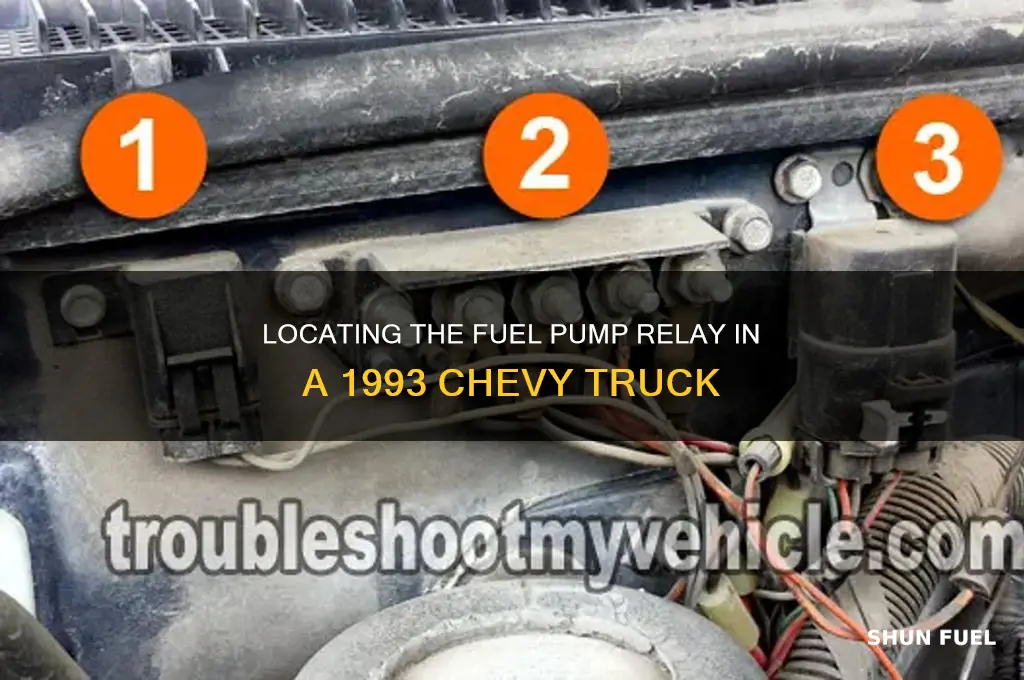

The 1993 Chevy truck's fuel pump relay is a critical component in the vehicle's fuel delivery system, ensuring the fuel pump operates efficiently. Located under the hood, the relay is typically found in the underhood fuse/relay center, often near the firewall on the driver's side. This center houses various fuses and relays, making it essential to consult the owner's manual or a repair guide for precise identification. Accessing the fuel pump relay involves opening the hood, locating the fuse/relay box, and carefully removing the lid to identify the specific relay, which is usually labeled for convenience. Understanding its location is crucial for troubleshooting fuel delivery issues or performing maintenance on this classic Chevy truck.
| Characteristics | Values |
|---|---|
| Location | Under the hood, near the firewall on the driver's side. |
| Relay Box | Typically found in the underhood fuse/relay box. |
| Relay Label | Often labeled as "FUEL PUMP" or "FP" on the relay box cover. |
| Relay Type | Standard 30-amp relay with four pins. |
| Function | Controls power to the fuel pump, activating it when the ignition is on. |
| Diagnostic Tip | If the fuel pump is not working, check the relay for clicking when key is turned. |
| Replacement Part | AC Delco part number D1564 or equivalent. |
| Wiring Colors | Varies, but typically includes a power wire (usually red) and ground wire. |
| Access Difficulty | Easy to access; requires no special tools for inspection or replacement. |
| Related Components | Fuel pump fuse, fuel pump itself, and the oil pressure switch. |
Explore related products
What You'll Learn
- Fuel pump relay location under hood near fuse box on 1993 Chevy truck
- Identifying the fuel pump relay by its shape and markings on the truck
- Common issues with fuel pump relay in 1993 Chevy trucks and troubleshooting tips
- How to test the fuel pump relay on a 1993 Chevy truck for faults?
- Replacing the fuel pump relay in a 1993 Chevy truck: steps and tools needed
Fuel pump relay location under hood near fuse box on 1993 Chevy truck
The fuel pump relay on a 1993 Chevy truck is a critical component for ensuring your vehicle starts and runs smoothly. Located under the hood near the fuse box, this relay acts as a switch, controlling the power supply to the fuel pump. Understanding its exact location can save you time and frustration when troubleshooting fuel-related issues. Typically, you’ll find it mounted on the firewall or directly on the inner fender, often housed in a black plastic relay box labeled "Underhood Fuse/Relay Center." This centralized location makes it accessible for inspection and replacement without requiring extensive disassembly.
To locate the fuel pump relay, start by opening the hood and identifying the fuse box, usually positioned near the driver’s side fender. The relay box is often adjacent to it, secured with a clip or screw. Once you’ve located the box, remove its cover to reveal a series of relays and fuses. The fuel pump relay is usually labeled "FUEL" or "FP" and is distinguishable by its shape and size, often a cube-like module with four or five pins. If the labels are faded or missing, consult your truck’s manual or a diagram specific to the 1993 Chevy model for precise identification.
When replacing the fuel pump relay, ensure the ignition is off to prevent electrical mishaps. Swap the relay by pulling it straight out of its slot and inserting the new one in the same orientation. Test the vehicle immediately to confirm the issue is resolved. Keep in mind that a faulty fuel pump relay can mimic symptoms of a bad fuel pump, such as difficulty starting or stalling, so proper diagnosis is key. If the problem persists, consider testing the fuel pump itself or checking for wiring issues.
For added convenience, consider keeping a spare fuel pump relay in your glove compartment. This small, inexpensive component can be a lifesaver if your truck fails to start due to a relay failure. Additionally, familiarize yourself with the relay’s location during routine maintenance checks, as early detection of wear or corrosion can prevent unexpected breakdowns. Regularly inspecting the underhood fuse/relay center for dirt, moisture, or damage can also extend the life of these components.
In summary, the fuel pump relay on a 1993 Chevy truck is strategically placed near the fuse box under the hood, making it relatively easy to access. Knowing its location and function empowers you to handle basic diagnostics and repairs confidently. Whether you’re troubleshooting a no-start condition or performing preventive maintenance, this knowledge ensures your truck remains reliable and road-ready. Always refer to your vehicle’s manual or seek professional advice if you’re unsure about any steps.
Step-by-Step Guide: Installing a Fuel Pump on a Chevy 305
You may want to see also
Explore related products
Identifying the fuel pump relay by its shape and markings on the truck
The fuel pump relay in a 1993 Chevy truck is a small but critical component, often hidden among a sea of similar-looking relays under the hood. To identify it, start by locating the fuse box, typically found on the driver’s side fender or near the firewall. The fuel pump relay is usually rectangular or square in shape, measuring about 1.5 inches on each side, and is made of black plastic. Its distinguishing feature is a series of markings on the top, which often include the manufacturer’s logo, part number, and voltage rating (e.g., "12V"). These markings are essential for confirmation, as they differentiate the fuel pump relay from other relays in the same area.
Analyzing the relay’s shape and markings requires a methodical approach. Begin by comparing the size and color of the relays in the fuse box. The fuel pump relay is typically larger than most others, though not the largest. Once you’ve narrowed it down to a few candidates, inspect the top surface for the aforementioned markings. A common part number for this relay is "22060" or "22061," depending on the truck’s specific model and engine configuration. If the markings are faded or difficult to read, use a flashlight to enhance visibility. Cross-referencing the part number with a repair manual or online database can provide additional confirmation.
A practical tip for identification is to test the relay’s function if you’re still uncertain. With the ignition off, locate the relay and gently pull it straight out of its socket. Swap it with a relay of the same shape and markings from another position in the fuse box (ensure it’s not critical to immediate operation, like the horn or lights). Turn the ignition to the "On" position and listen for the fuel pump’s hum, which should last 2-3 seconds. If the pump doesn’t activate, the relay you removed is likely the correct one. Reinstall the relays to their original positions to avoid confusion later.
Caution must be exercised during this process, as mishandling relays can lead to electrical issues. Avoid touching the metal terminals on the bottom of the relay, as this can cause corrosion or short circuits. Always work with the ignition off to prevent accidental activation of systems. If you’re unsure about any step, consult a repair manual or seek assistance from a professional. Identifying the fuel pump relay by its shape and markings is a straightforward task when approached systematically, ensuring you can address fuel system issues with confidence.
EFI Fuel Pump Orientation: Does Vertical Positioning Matter?
You may want to see also
Explore related products
Common issues with fuel pump relay in 1993 Chevy trucks and troubleshooting tips
The fuel pump relay in a 1993 Chevy truck is a critical component that ensures the fuel pump operates correctly, delivering fuel from the tank to the engine. Located under the hood on the driver’s side, near the firewall, this relay is often housed in a black plastic box labeled “fuse/relay center.” Identifying its location is the first step in diagnosing issues, but understanding common problems and troubleshooting techniques is equally vital for maintaining your truck’s performance.
One frequent issue with the fuel pump relay in these trucks is corrosion or loose connections within the relay socket. Over time, moisture and dirt can accumulate, causing poor electrical contact. This results in intermittent fuel pump operation, leading to stalling or difficulty starting the engine. To address this, inspect the relay socket for signs of corrosion or damage. Clean the contacts with electrical contact cleaner and ensure the relay is firmly seated. If the socket is severely corroded, consider replacing it to restore reliable connectivity.
Another common problem is a faulty relay itself, which can fail due to age or electrical stress. Symptoms include a non-starting engine or a fuel pump that doesn’t prime when the key is turned to the “on” position. To troubleshoot, swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) to see if the issue resolves. If the fuel pump operates correctly after the swap, replace the faulty relay. Always verify the part number to ensure compatibility.
Electrical issues, such as a blown fuse or a broken wire, can also mimic relay failure. The fuel pump fuse is typically located in the same fuse box as the relay. Check the fuse for continuity using a multimeter; if it’s blown, replace it and investigate the cause, as repeated fuse failures indicate a deeper electrical problem. Additionally, inspect the wiring harness for damage or fraying, especially near the fuel tank and engine bay, as rodents or wear can compromise the circuit.
Preventive maintenance can extend the life of the fuel pump relay and related components. Regularly inspect the fuse box for moisture intrusion and seal any gaps in the firewall or underhood area. Keep the battery terminals clean to ensure a stable electrical system, as voltage spikes can damage the relay. By addressing these common issues and following these troubleshooting tips, you can keep your 1993 Chevy truck running smoothly and avoid unexpected breakdowns.
Testing Your 2010 Cadillac SRX Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
How to test the fuel pump relay on a 1993 Chevy truck for faults
The fuel pump relay on a 1993 Chevy truck is a critical component in the vehicle's fuel delivery system, ensuring the engine receives the necessary fuel for operation. Located under the hood, typically near the fuse box or on the firewall, this relay acts as a switch, controlling the power supply to the fuel pump. Testing it for faults is essential when diagnosing fuel-related issues, such as a no-start condition or erratic engine performance. By understanding its function and location, you can efficiently troubleshoot potential problems.
To test the fuel pump relay, start by locating it in the under-hood fuse/relay box. Consult the owner’s manual or a repair guide for the exact position, as it varies by model. Once identified, use a relay puller or pliers to carefully remove it. Inspect the relay for physical damage, such as cracked casing or burnt pins, which could indicate a fault. If the relay appears intact, proceed with a functional test using a multimeter or a relay tester. This step ensures you’re not replacing a perfectly good component unnecessarily.
A practical method to test the relay involves swapping it with another relay of the same type in the fuse box, such as the horn or cooling fan relay. After swapping, attempt to start the vehicle. If the fuel pump now operates, the original relay is likely faulty. However, if the issue persists, the problem may lie elsewhere, such as with the fuel pump itself or the wiring harness. Always retest the swapped relay in its original position to confirm its functionality.
For a more precise diagnosis, use a multimeter to test the relay’s terminals. With the ignition on, check for voltage at the relay’s power input terminal (typically pin 85 or 86). If voltage is present, activate the starter circuit (or have an assistant crank the engine) and verify that the ground terminal (pin 85 or 86) completes the circuit. If the relay fails to switch, it’s defective and should be replaced. Ensure the multimeter is set to the appropriate voltage range and handle connections carefully to avoid short circuits.
In conclusion, testing the fuel pump relay on a 1993 Chevy truck requires a systematic approach, combining visual inspection, functional testing, and electrical verification. By following these steps, you can accurately diagnose relay faults and avoid unnecessary repairs. Always prioritize safety, disconnecting the battery before handling electrical components, and refer to a reliable repair manual for model-specific details. This methodical process ensures you address the root cause of fuel system issues effectively.
Yamaha Roadstar 1700 Fuel Pump Location Guide: Find It Easily
You may want to see also
Explore related products
Replacing the fuel pump relay in a 1993 Chevy truck: steps and tools needed
The fuel pump relay in a 1993 Chevy truck is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood, typically near the firewall on the driver’s side, this relay controls power to the fuel pump, which delivers fuel from the tank to the engine. If your truck struggles to start, stalls, or fails to run smoothly, a faulty fuel pump relay could be the culprit. Replacing it is a straightforward task that requires basic tools and a bit of know-how.
Steps to Replace the Fuel Pump Relay:
- Locate the Relay: Open the hood and identify the fuse/relay box near the firewall. Consult your truck’s manual or a diagram to pinpoint the fuel pump relay. It’s often labeled as "FP" or "FUEL."
- Disconnect the Battery: Safety first—disconnect the negative battery terminal to prevent electrical mishaps.
- Remove the Relay: Press the tabs on the relay box cover to open it, then carefully pull out the fuel pump relay. Note its orientation for proper replacement.
- Install the New Relay: Insert the new relay in the same position as the old one, ensuring it clicks securely into place.
- Reassemble and Test: Close the relay box, reconnect the battery, and start the truck to confirm the issue is resolved.
Tools Needed:
- Flathead screwdriver (for prying open the relay box)
- Pliers (optional, for battery terminal removal)
- New fuel pump relay (ensure compatibility with your 1993 Chevy truck model)
Cautions and Tips:
Always double-check the relay’s position before removal to avoid confusion. If the truck still doesn’t start after replacement, the issue may lie elsewhere, such as the fuel pump itself or a clogged fuel filter. Keep a multimeter handy to test the relay’s functionality before assuming it’s faulty.
By following these steps and using the right tools, you can replace the fuel pump relay in your 1993 Chevy truck efficiently, saving time and money on potential mechanic fees. This DIY approach not only addresses immediate issues but also empowers you to maintain your vehicle’s reliability.
Rebuilding Your 2003 Galant GTZ Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a 1993 Chevy truck is typically located in the underhood fuse/relay box. It is often found near the firewall on the driver's side.
The fuel pump relay is usually a small, square or rectangular module with a series of pins on the bottom. It may be labeled "FUEL PUMP" or "FP" on the relay box cover or diagram.
If you’re having trouble locating the fuel pump relay, consult the owner’s manual or a repair manual for your specific model. Alternatively, the relay may be located in a different position due to variations in trim or manufacturing, so checking online forums or diagrams for your truck’s specific configuration can help.
