Sylvie Willis

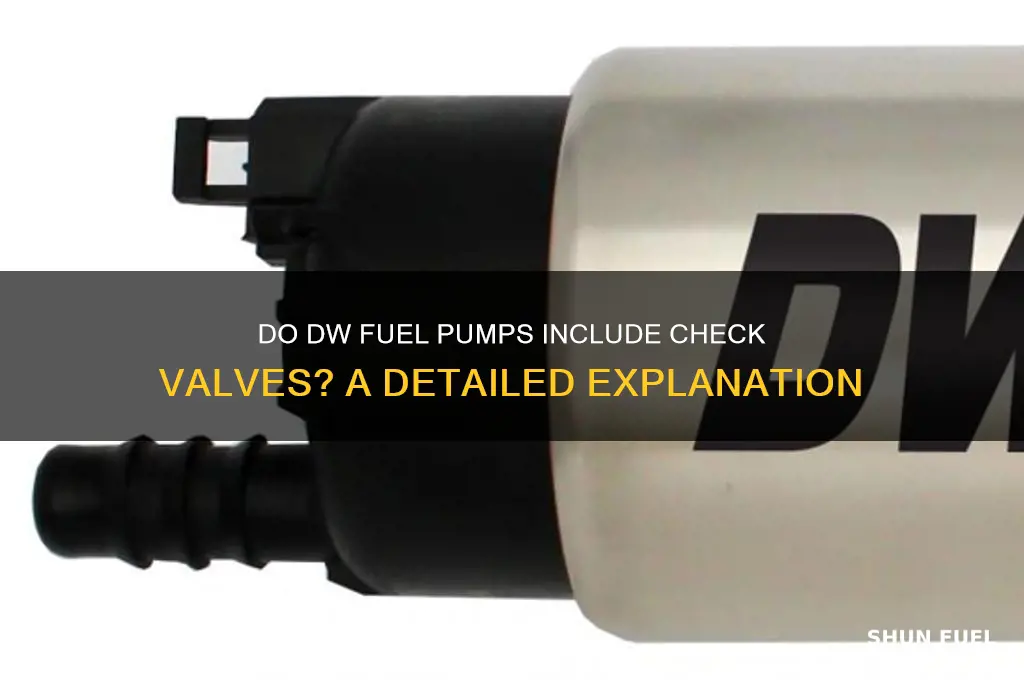

Fuel pump functionality is a critical aspect of any vehicle's performance, and understanding the components involved is essential for maintenance and troubleshooting. One common question among car enthusiasts and mechanics is whether DW fuel pumps, known for their high-performance capabilities, are equipped with check valves. Check valves play a vital role in maintaining fuel pressure and preventing backflow within the fuel system, ensuring consistent delivery to the engine. This inquiry delves into the design specifics of DW fuel pumps, exploring whether they incorporate check valves as a standard feature or if additional modifications are necessary for optimal fuel management.
| Characteristics | Values |
|---|---|
| Check Valve Presence | Yes, DW fuel pumps typically include integrated check valves. |
| Purpose of Check Valve | Prevents fuel from flowing backward, maintaining pressure in the system. |
| Location of Check Valve | Usually located at the pump outlet or within the pump assembly. |
| Material | Often made of durable materials like stainless steel or high-grade plastic. |
| Compatibility | Designed for use with gasoline and ethanol-blended fuels. |
| Pressure Rating | Varies by model, typically rated for high-pressure fuel systems. |
| Flow Direction | Unidirectional (allows fuel flow in one direction only). |
| Maintenance | Generally low-maintenance, but periodic inspection is recommended. |
| Application | Commonly used in high-performance and racing fuel systems. |
| Brand Specificity | DW (DeatschWerks) fuel pumps are known for their quality and reliability. |
Explore related products
$20.7
$13.61
What You'll Learn
- Check Valve Functionality: How check valves prevent fuel backflow in DW pumps
- DW Pump Design: Integration of check valves in DW fuel pump systems
- Common Issues: Problems caused by faulty check valves in DW pumps
- Replacement & Maintenance: Steps to replace or maintain DW pump check valves
- Compatibility: Ensuring check valves are compatible with DW fuel pump models
Check Valve Functionality: How check valves prevent fuel backflow in DW pumps
Fuel systems in DW pumps rely on precise pressure regulation to ensure efficient engine performance. Check valves play a critical role in this process by allowing fuel to flow unidirectionally, from the pump to the engine, while preventing backflow. This one-way flow is essential because backflow can lead to fuel starvation, airlock formation, and even damage to the pump’s internal components. Without a check valve, residual fuel pressure could cause the system to drain back into the tank, forcing the pump to re-prime every time the engine starts, which wastes time and fuel.
Consider the mechanics of a check valve in a DW pump: it operates as a spring-loaded mechanism that opens under forward pressure and closes when flow reverses. The spring tension is calibrated to ensure the valve shuts quickly and securely, maintaining system pressure during engine operation. For example, in high-performance fuel systems, check valves are often rated to handle pressures up to 100 PSI, ensuring they can withstand the demands of turbocharged or supercharged engines. Proper installation is key—the valve must be positioned downstream of the pump to effectively block backflow while minimizing flow restriction.
A common misconception is that all DW pumps come with integrated check valves. While some models include them as standard, others require an external check valve to be installed in the fuel line. When retrofitting a check valve, ensure it’s compatible with the fuel type (e.g., gasoline, diesel, or ethanol blends) and the system’s pressure requirements. For instance, ethanol-based fuels can degrade certain valve materials over time, so opt for stainless steel or PTFE-coated components for longevity. Always consult the pump manufacturer’s guidelines to avoid voiding warranties or compromising performance.
The benefits of a properly functioning check valve extend beyond preventing backflow. It also helps maintain consistent fuel pressure during engine shutdown, reducing the risk of vapor lock in hot environments. For off-road or marine applications, where fuel systems are subject to extreme angles or vibrations, a check valve acts as a safeguard against fuel line collapse or air ingress. Regular inspection is crucial—look for signs of wear, such as leaking or sticking valves, and replace them immediately to avoid system failure.
In summary, check valves are indispensable in DW fuel pumps for their role in preventing backflow and maintaining system integrity. Whether integrated or external, their design and placement must align with the pump’s specifications and the application’s demands. By understanding their functionality and ensuring proper installation and maintenance, you can optimize fuel delivery, enhance engine reliability, and extend the lifespan of your DW pump. Treat the check valve as a critical component, not an afterthought, and your fuel system will perform flawlessly under any condition.
E31 850i Fuel Pump Count: Understanding Its Fuel System Setup
You may want to see also
Explore related products
DW Pump Design: Integration of check valves in DW fuel pump systems
DW fuel pumps are often scrutinized for their ability to maintain fuel pressure and prevent backflow, a critical function in high-performance engines. One key component that addresses this concern is the check valve, which ensures one-way fuel flow and minimizes the risk of air infiltration. In DW pump design, the integration of check valves is not just a feature but a strategic necessity to optimize performance and reliability. By examining the placement and functionality of these valves, engineers can enhance fuel delivery efficiency, particularly in systems subjected to extreme conditions such as racing or off-road applications.
The integration of check valves in DW fuel pump systems begins with precise engineering to ensure compatibility with the pump’s flow rate and pressure requirements. Typically, these valves are positioned at the outlet of the pump to prevent fuel from returning to the tank when the engine is off or during sudden pressure drops. For instance, in DW’s high-flow fuel pumps, check valves are often rated to handle fuel pressures up to 100 PSI, ensuring they remain functional even in turbocharged or supercharged setups. Proper sizing and material selection, such as using stainless steel or high-grade polymers, are critical to withstand the corrosive nature of modern fuels, including ethanol blends.
A comparative analysis reveals that DW’s approach to check valve integration differs from standard OEM designs. While many factory fuel pumps incorporate rudimentary check valves, DW’s systems often feature dual or redundant valves to provide an additional layer of protection against backflow. This redundancy is particularly beneficial in applications where fuel starvation can lead to engine damage, such as in prolonged high-RPM operation. For example, DW’s in-tank fuel pump assemblies include a primary check valve at the pump outlet and a secondary valve near the fuel rail, ensuring consistent pressure even during rapid throttle changes.
Practical implementation of check valves in DW fuel pump systems requires careful installation and maintenance. Technicians should inspect valves for wear or debris buildup during routine service intervals, as even minor obstructions can compromise performance. Additionally, when upgrading to a DW fuel pump, it’s essential to verify that the check valve’s cracking pressure aligns with the system’s requirements—typically between 2-5 PSI for most applications. Overlooking this step can result in inefficient fuel delivery or excessive pump strain, reducing the system’s lifespan.
In conclusion, the integration of check valves in DW fuel pump systems is a testament to the brand’s commitment to precision and durability. By focusing on strategic placement, robust materials, and redundant designs, DW ensures that their pumps meet the demands of high-performance engines. For enthusiasts and professionals alike, understanding these design nuances is key to maximizing fuel system efficiency and safeguarding against potential failures. Whether upgrading a daily driver or building a race car, DW’s check valve integration sets a benchmark for reliability in fuel delivery systems.
Locate Your Fuel Pump Relay: A Step-by-Step Guide for Car Owners
You may want to see also
Explore related products
Common Issues: Problems caused by faulty check valves in DW pumps
Faulty check valves in DW fuel pumps can lead to a cascade of problems, often starting with inconsistent fuel pressure. The check valve’s primary role is to prevent fuel backflow, ensuring a steady supply to the engine. When it fails, fuel can flow backward into the tank, causing pressure drops that result in hard starts, stalling, or erratic engine performance. This issue is particularly noticeable during acceleration or when the vehicle is under load, as the pump struggles to maintain the required pressure. Diagnosing this often involves checking for pressure fluctuations using a fuel pressure gauge, especially after the engine has been turned off.
Another common issue is fuel starvation, where the engine receives insufficient fuel due to the check valve’s inability to hold pressure. This can manifest as sputtering, hesitation, or complete engine cutoff, especially at high speeds or during prolonged operation. In diesel engines, this problem is exacerbated because diesel fuel systems rely heavily on consistent pressure for proper injection timing. A failing check valve can also cause air to enter the fuel system, leading to airlocks that further disrupt fuel delivery. Regularly inspecting the fuel filter for air bubbles or debris can provide early warning signs of this issue.
Long-term consequences of a faulty check valve include damage to the fuel pump and injectors. Without proper backflow prevention, the pump may run dry intermittently, causing overheating and premature wear. Injectors, which operate under precise pressure requirements, can become clogged or damaged due to inconsistent fuel flow. This not only reduces engine efficiency but also increases repair costs, as injectors are expensive components. Preventive maintenance, such as replacing the check valve during routine fuel system inspections, can mitigate these risks.
Lastly, a faulty check valve can lead to fuel contamination, as backflow allows debris or moisture from the tank to enter the pump and lines. This is particularly problematic in older vehicles or those with corroded fuel tanks. Contaminated fuel can cause filter clogging, injector failure, and even internal engine damage. To address this, always replace the check valve when installing a new fuel pump and consider using a fuel additive to stabilize and clean the system. Regularly draining water from the fuel filter bowl, if applicable, can also help prevent moisture-related issues.
Understanding the Mechanics of a 2-Stroke Fuel Pump Operation
You may want to see also
Explore related products
Replacement & Maintenance: Steps to replace or maintain DW pump check valves
DW fuel pumps often incorporate check valves to prevent fuel backflow, ensuring consistent pressure and system integrity. These valves are critical for maintaining optimal pump performance, especially in high-demand applications like racing or modified engines. Over time, check valves can wear out due to debris, fuel contamination, or mechanical stress, necessitating replacement or maintenance. Ignoring these issues can lead to fuel starvation, engine misfires, or even pump failure.
Replacement Process: A Step-by-Step Guide
Begin by disconnecting the fuel lines and relieving system pressure to avoid spills or accidents. Remove the pump assembly, typically secured by bolts or clamps, and disassemble it to access the check valve. Inspect the valve for cracks, debris, or improper sealing. Replace the valve with a compatible OEM or high-quality aftermarket part, ensuring it seats correctly. Reassemble the pump, reinstall it, and reconnect the fuel lines. Test the system for leaks and verify proper operation before driving.
Maintenance Tips to Prolong Valve Life
Regularly clean the fuel system to prevent debris buildup, which can clog or damage the check valve. Use a fuel filter with a micron rating suitable for your pump (e.g., 10 microns for most DW pumps). Periodically inspect the valve during routine pump maintenance, especially after 20,000 miles or if performance issues arise. Consider using fuel additives designed to clean injectors and pumps, reducing the risk of contamination.
Cautions and Troubleshooting
Avoid using excessive force when replacing the check valve, as this can damage the pump housing. If the valve fails prematurely, investigate the root cause—contaminated fuel, incorrect installation, or a faulty pump component. Symptoms like hard starting, rough idle, or loss of power may indicate a failing check valve. Always consult the manufacturer’s guidelines for specific torque values and compatibility.
Replacing or maintaining DW pump check valves is a straightforward task with significant benefits. By addressing wear early and adhering to best practices, you can ensure reliable fuel delivery and extend the pump’s lifespan. Whether you’re a DIY enthusiast or a professional mechanic, understanding these steps empowers you to tackle issues confidently and keep your engine running smoothly.
Understanding Kroger's Fuel Discount Calculation at the Pump
You may want to see also
Explore related products
Compatibility: Ensuring check valves are compatible with DW fuel pump models
DW fuel pumps are often paired with check valves to prevent fuel backflow, but compatibility is critical for optimal performance. Not all check valves are created equal, and mismatches can lead to reduced fuel pressure, engine stalling, or even pump failure. For instance, a check valve with a cracking pressure too high for a DW pump’s flow rate will restrict fuel delivery, while one with inadequate material compatibility (e.g., alcohol-resistant seals for E85 setups) will degrade prematurely. Always verify the valve’s specifications against the pump’s requirements to avoid these issues.
To ensure compatibility, start by identifying the exact DW fuel pump model and its flow rate, operating pressure, and fuel type compatibility. For example, a DW 300 series pump designed for high-flow applications may require a check valve with a larger orifice and higher pressure rating than a DW 200 series pump. Cross-reference these details with the check valve’s datasheet, paying attention to cracking pressure, flow capacity, and material construction. If the valve’s cracking pressure is too high, it will act as a restriction; if too low, it may not effectively prevent backflow.
Material compatibility is equally vital, especially in modern fuel systems. Ethanol-blended fuels like E85 are corrosive to certain materials, so ensure the check valve’s seals and body are rated for such applications. For example, Viton seals are a common choice for ethanol compatibility, while standard nitrile seals will deteriorate quickly. Similarly, if the DW pump is used in a diesel application, the check valve must withstand the higher pressures and fuel properties associated with diesel systems.
Installation considerations also play a role in compatibility. Check valves should be installed downstream of the pump to prevent backflow into the pump, which can damage internal components. Ensure the valve’s orientation is correct—most check valves are directional and must be installed with the flow arrow pointing toward the engine. Improper installation can render the valve ineffective or cause it to fail prematurely.
Finally, consider the system’s overall design and the role of the check valve within it. In boosted or turbocharged engines, fuel pressure fluctuations are more pronounced, requiring a check valve with faster response times. For racing applications, where fuel systems are pushed to their limits, opt for a high-performance check valve designed to handle extreme conditions. Regularly inspect the valve for signs of wear or contamination, as even a compatible valve can fail if not maintained properly. By meticulously matching the check valve to the DW pump’s specifications and application demands, you ensure reliability and performance in your fuel system.
Diamond Star DA40 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Frequently asked questions
Yes, DW (DeatschWerks) fuel pumps are typically equipped with check valves to maintain fuel pressure and prevent backflow when the pump is not running.
The check valve in a DW fuel pump ensures that fuel does not drain back into the tank when the engine is off, helping to maintain prime and reduce startup time.
In most cases, the check valve in a DW fuel pump is integrated into the pump assembly and is not designed to be replaced or serviced separately. If the check valve fails, the entire pump may need to be replaced.
