The fuel pump on a 1996 Chevrolet C1500 is typically located inside the fuel tank, a common design for many vehicles of that era to protect the pump from external damage and maintain fuel pressure. Accessing the fuel pump requires removing the fuel tank, which involves disconnecting the fuel lines, electrical connectors, and tank straps. This process can be challenging and should be approached with caution, as it involves working with flammable materials and requires proper safety measures, such as relieving fuel system pressure and ensuring the vehicle is on a stable surface. Consulting the vehicle’s service manual or seeking professional assistance is recommended for accurate and safe removal or replacement of the fuel pump.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1996 Chevrolet C1500 |
| Fuel Pump Location | Inside the fuel tank |
| Fuel Tank Access | Beneath the truck bed, near the rear axle |
| Fuel Pump Type | In-tank electric fuel pump |
| Fuel Pump Module | Includes pump, sender, and filter |
| Tools Required | Jack, jack stands, wrenches, screwdriver |
| Safety Precautions | Relieve fuel system pressure, disconnect battery |
| Replacement Difficulty | Moderate (requires fuel tank removal) |
| Estimated Time | 2-4 hours depending on experience |
| Common Issues | Pump failure, clogged filter, electrical faults |
Explore related products
What You'll Learn
Fuel Pump Location in 96 C1500
The fuel pump on a 1996 Chevrolet C1500 is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool, as it is submerged in the fuel, which helps prevent overheating and extends the pump's lifespan. Accessing the fuel pump requires removing the fuel tank, a task that demands careful planning and safety precautions due to the flammable nature of gasoline.
To locate and replace the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, raise the vehicle securely on jack stands to access the fuel tank from underneath. Disconnect the negative battery terminal to prevent accidental sparks. Then, remove the fuel lines and electrical connectors from the tank. Once these connections are detached, lower the tank to access the pump assembly. The pump is typically held in place by a locking ring, which can be removed with a specialized tool.
A key consideration when working on the fuel pump is safety. Always work in a well-ventilated area and avoid open flames or sparks. Use a drain pan to catch any fuel that spills during the process. If the tank is more than half full, siphon out the excess fuel to reduce weight and minimize spill risks. Additionally, inspect the fuel tank for signs of corrosion or damage, as these issues can complicate the removal process or indicate the need for further repairs.
Comparing the 96 C1500 to newer models, the in-tank fuel pump design remains standard, but modern vehicles often include access panels or easier disassembly methods. For the C1500, the process is more labor-intensive, requiring patience and attention to detail. However, this design ensures the pump operates efficiently and reliably, making it a durable component when properly maintained. Understanding its location and the steps to access it empowers owners to tackle fuel pump issues confidently.
In conclusion, the fuel pump on a 96 C1500 is an integral part of the fuel system, nestled within the fuel tank for optimal performance. While accessing it involves several steps and precautions, the process is manageable with the right tools and safety measures. By following these guidelines, owners can diagnose and address fuel pump problems effectively, ensuring their vehicle remains reliable for years to come.
Why Bosch Fuel Pumps Are Green: Uncovering the Eco-Friendly Reason
You may want to see also
Explore related products
Accessing the Fuel Pump on a 96 C1500
The fuel pump on a 1996 Chevrolet C1500 is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain fuel pressure, but it also means accessing the pump requires more effort than if it were mounted externally. To reach the fuel pump, you’ll need to remove the fuel tank, a task that demands careful preparation and adherence to safety protocols.
Steps to Access the Fuel Pump:
- Relieve Fuel System Pressure: Before starting, disconnect the negative battery terminal and relieve the fuel system pressure using the Schrader valve on the fuel rail. This step is critical to prevent fuel spray or fire hazards.
- Drain the Fuel Tank: Siphon or pump out as much fuel as possible from the tank to minimize spillage and weight during removal. Use a hand siphon or electric transfer pump for this task.
- Remove the Fuel Tank: Jack up the vehicle securely and support it on stands. Locate the fuel tank straps, typically found on either side of the tank, and remove the bolts securing them. Carefully lower the tank to the ground, being mindful of any remaining fuel lines or wiring connected to it.
- Access the Fuel Pump Assembly: With the tank removed, locate the fuel pump access plate or locking ring on the top of the tank. Remove the screws or locking mechanism to expose the pump assembly.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. If the tank is rusted or corroded, use penetrating oil to loosen bolts and straps. Consider replacing the fuel tank straps if they show signs of wear, as they are critical for securing the tank safely.
Installing a Fuel Pump in a 1995 Lincoln Town Car: Step-by-Step Guide
You may want to see also
Explore related products
Fuel Pump Tank Removal Steps
The fuel pump on a 1996 Chevrolet C1500 is located inside the fuel tank, a common design for in-tank fuel pumps in modern vehicles. This placement ensures a constant supply of cool fuel, which helps prevent vapor lock and improves pump longevity. Removing the fuel pump for maintenance or replacement requires careful steps to avoid hazards and ensure a successful repair.
Preparation and Safety: Before beginning, relieve the fuel system pressure to minimize the risk of fuel spray or fire. Locate the pressure relief valve, typically near the fuel rail, and attach a pressure gauge. Slowly depress the valve to release pressure until the gauge reads zero. Disconnect the negative battery terminal to prevent accidental ignition. Gather the necessary tools, including a jack, jack stands, wrenches, and a new fuel pump assembly if replacing.
Accessing the Fuel Tank: Securely raise the vehicle using a jack and support it on jack stands to access the underside. Locate the fuel tank, typically positioned along the chassis between the rear wheels. Identify the fuel pump access panel or the tank straps holding the tank in place. Loosen the straps or remove the panel, taking care not to damage surrounding components. Lower the tank slightly to access the electrical connector and fuel lines attached to the pump.
Removing the Fuel Pump: With the tank accessible, disconnect the electrical connector and fuel lines from the pump. Use appropriate tools to avoid damaging the connections. If the pump is part of a module, carefully pry or unscrew the retaining ring securing the assembly to the tank. Gently lower the pump assembly out of the tank, being mindful of any residual fuel. Inspect the pump and sending unit for wear or damage, replacing as necessary.
Reinstallation and Testing: Install the new fuel pump assembly, ensuring it seats correctly and the retaining ring is secure. Reattach the electrical connector and fuel lines, double-checking for tightness. Reinstall the fuel tank, securing it with the straps or access panel. Lower the vehicle from the jack stands and reconnect the battery. Start the engine to verify proper fuel pump operation, checking for leaks and ensuring the fuel gauge reads accurately.
Cautions and Tips: Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Use a drain pan to catch any spilled fuel during removal. If the tank is difficult to lower, consider draining it first to reduce weight. Keep a fire extinguisher nearby as a safety precaution. For vehicles with high mileage, consider replacing the fuel filter simultaneously for optimal performance. Following these steps ensures a safe and efficient fuel pump tank removal and replacement process.
Locating Fuel Pump Grounds in a 1997 Nissan Pathfinder
You may want to see also
Explore related products
Identifying Fuel Pump Components in 96 C1500

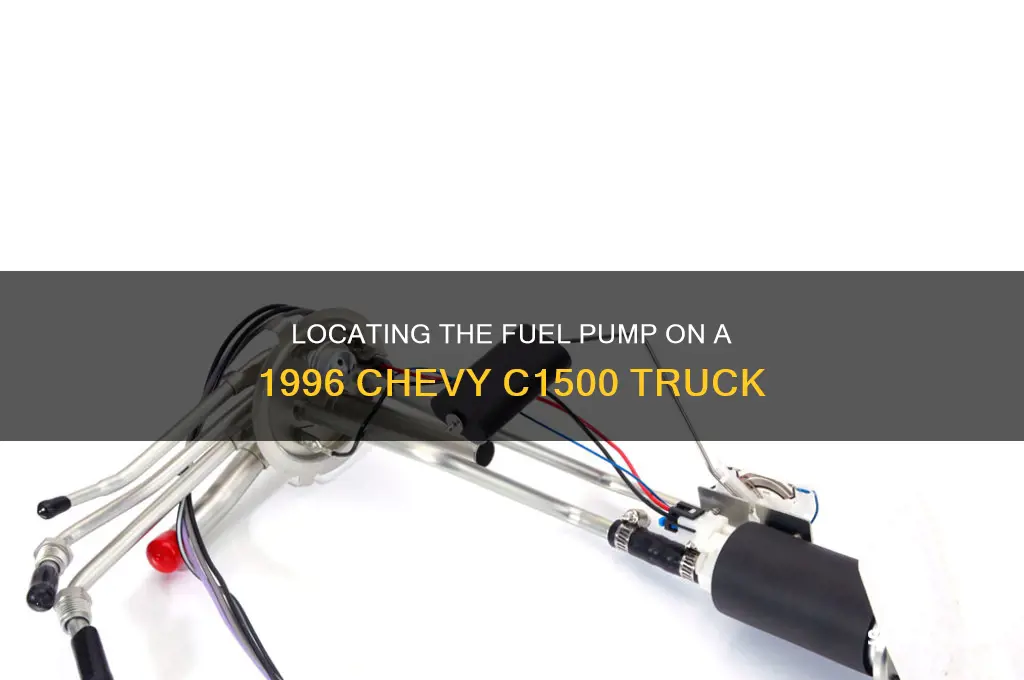

The fuel pump in a 1996 Chevrolet C1500 is located inside the fuel tank, a common placement for many vehicles of that era to protect the pump from heat and potential damage. Identifying its components requires understanding both the external and internal elements that contribute to its function. The fuel tank itself is situated beneath the truck bed, typically on the driver’s side, and accessing it involves removing the bed or using specialized tools to reach the tank. Once the tank is exposed, the fuel pump module can be identified as a cylindrical assembly attached to the top of the tank, often secured by a locking ring or bolts.
Externally, the fuel pump module consists of the pump itself, a sending unit for the fuel gauge, and a filter sock designed to prevent debris from entering the system. The sending unit is a float mechanism connected to a variable resistor, which communicates fuel levels to the dashboard gauge. The filter sock, usually made of a fine mesh material, is critical for maintaining pump longevity by trapping contaminants. These components are integrated into a single unit, making replacement typically a matter of swapping out the entire module rather than individual parts.
Internally, the fuel pump is an electric submersible unit that operates via a DC motor. It draws fuel from the tank and pressurizes it for delivery to the engine through the fuel lines. The pump’s inlet is covered by the filter sock, while the outlet connects to a rubber hose leading to the fuel lines. Understanding the internal workings is crucial for diagnosing issues such as whining noises, which may indicate pump failure, or erratic fuel pressure, suggesting a clogged filter sock.
When identifying these components, safety is paramount. Always relieve fuel system pressure before attempting any work, as residual pressure can cause fuel to spray or ignite. Disconnect the battery to prevent accidental activation of the pump during inspection. Additionally, work in a well-ventilated area and avoid open flames or sparks. For those unfamiliar with fuel system mechanics, consulting a repair manual or seeking professional assistance can prevent costly mistakes or safety hazards.
In summary, identifying fuel pump components in a 96 C1500 involves recognizing the external module—comprising the pump, sending unit, and filter sock—and understanding the internal mechanics of the electric submersible pump. Proper identification and handling of these components ensure efficient troubleshooting and maintenance, extending the life of the fuel system and the vehicle as a whole.
Effective Steps to Repair and Restore Your Fuel Pump Strainer
You may want to see also
Explore related products
Common Fuel Pump Issues in 96 C1500
The fuel pump in a 1996 Chevrolet C1500 is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage but complicates access for maintenance or replacement. Understanding its location is crucial when diagnosing fuel system issues, as symptoms often point directly to the pump’s condition.
One of the most frequent fuel pump issues in a 96 C1500 is premature failure due to contamination. Over time, debris from the fuel tank or low-quality fuel can clog the pump’s internal filter or damage its components. This results in reduced fuel pressure, causing symptoms like sputtering, stalling, or difficulty starting. Regularly replacing the fuel filter (every 30,000 miles) and using high-quality gasoline can mitigate this risk.
Another common problem is electrical failure, often caused by a faulty relay or wiring issues. The fuel pump relies on a relay to activate when the ignition is turned on. If the relay fails or the wiring corrodes, the pump may not receive power, leading to a no-start condition. Testing the relay with a multimeter (resistance should be between 50–120 ohms) and inspecting wiring for damage are essential troubleshooting steps.
Overheating is a less obvious but significant issue, particularly in high-mileage C1500s. The fuel pump relies on the fuel in the tank to cool it during operation. If the tank runs low frequently, the pump can overheat, shortening its lifespan. Maintaining at least a quarter tank of fuel is a simple yet effective preventive measure.
Lastly, worn brushes or armatures inside the pump can lead to intermittent operation. This manifests as the engine running fine at times but stalling under load or at high speeds. While this issue requires pump replacement, it’s often misdiagnosed as a carburetor or ignition problem. Listening for a whining noise from the fuel tank when the key is turned (indicating pump operation) can help confirm its functionality.
In summary, fuel pump issues in a 96 C1500 often stem from contamination, electrical faults, overheating, or internal wear. Regular maintenance, such as fuel filter replacement and keeping the tank adequately filled, can prevent many of these problems. When symptoms arise, systematic troubleshooting—starting with the relay and wiring—can save time and money before resorting to pump replacement.
Locate Zuma 50 Fuel Pump Valve Petcock: A Comprehensive Guide
You may want to see also
Frequently asked questions
The fuel pump on a 1996 Chevy C1500 is located inside the fuel tank.
To access the fuel pump, you need to remove the fuel tank. This involves draining the fuel, lowering the tank, and disconnecting the fuel lines and electrical connectors.
Yes, always relieve fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards. Use proper safety equipment and follow a repair manual for detailed instructions.
