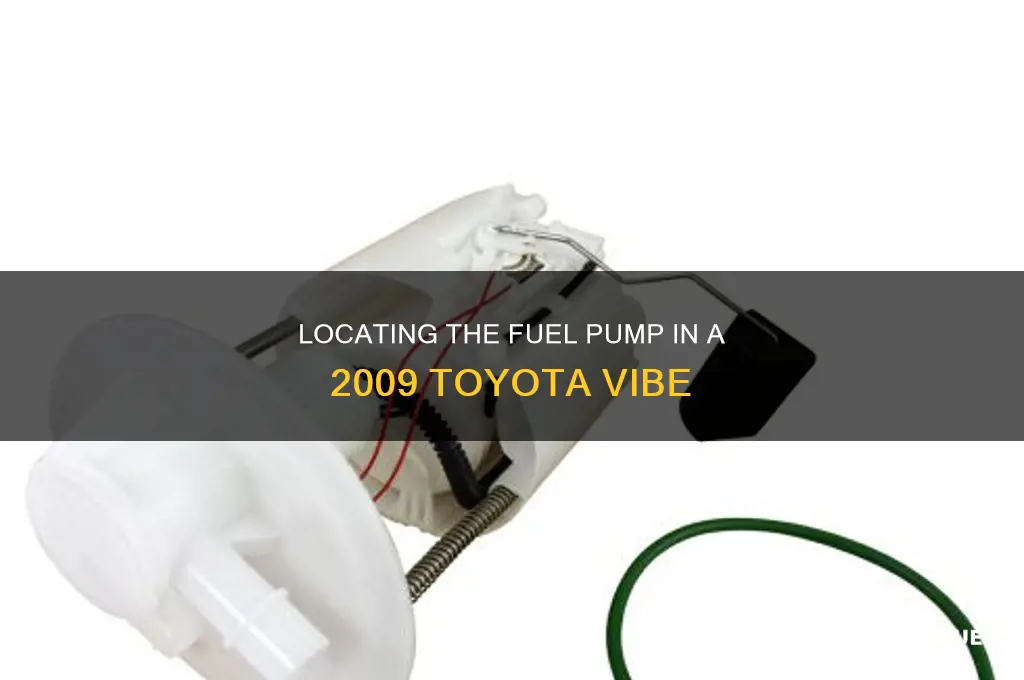

The 2009 Toyota Vibe, a compact hatchback known for its reliability and practicality, houses its fuel pump within the fuel tank, a common design feature in modern vehicles. Located beneath the rear seat, the fuel pump assembly is accessible by removing the seat cushion and the fuel pump access panel. This setup ensures the pump remains submerged in fuel, reducing the risk of overheating and maintaining consistent fuel delivery to the engine. For those looking to inspect, replace, or service the fuel pump, understanding its location and the steps to access it is crucial for a successful DIY repair or maintenance task.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat and fuel tank access panel |
| Tools Needed | Socket set, wrench, screwdriver, fuel line disconnect tool |
| Difficulty Level | Moderate to difficult (requires mechanical skill) |
| Estimated Time | 2-4 hours depending on experience |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical connection problems |
| Replacement Part | Fuel pump module (includes pump, sender, and float assembly) |
| Compatibility | Fits 2009 Toyota Matrix and Pontiac Vibe (same platform) |
| Diagnostic Symptoms | Engine stalling, difficulty starting, no fuel pressure, whining noise |
| Maintenance Tips | Regularly check fuel filter and connections, use high-quality fuel |
Explore related products
What You'll Learn
Fuel pump location in engine bay
The fuel pump in a 2009 Toyota Vibe, which shares its platform with the Pontiac Vibe, is not located in the engine bay. Instead, it is situated inside the fuel tank, a common design in modern vehicles to keep fuel cool and reduce the risk of vapor lock. This in-tank placement is part of the vehicle's fuel delivery system, ensuring consistent fuel supply to the engine under various driving conditions. Understanding this location is crucial for diagnostics, maintenance, or replacement, as accessing the fuel pump requires removing the fuel tank, a task that demands caution and adherence to safety protocols.
For those unfamiliar with this setup, the absence of a fuel pump in the engine bay can initially seem puzzling. However, this design offers several advantages, including improved fuel efficiency and reduced noise. When troubleshooting fuel system issues, such as a failing fuel pump, symptoms like engine sputtering, difficulty starting, or stalling can indicate the need for inspection. If you suspect a problem, it’s advisable to use a fuel pressure gauge to test the system before proceeding with any repairs. Always ensure the vehicle is on a level surface, the engine is cool, and the power is disconnected to avoid accidents.
Replacing the fuel pump on a 2009 Vibe involves a systematic process. Begin by relieving the fuel system pressure using the Schrader valve located near the fuel rail. Next, disconnect the negative battery terminal to prevent electrical hazards. Drain the fuel tank or siphon fuel to minimize spillage during removal. Accessing the tank requires lifting the vehicle securely on jack stands and removing the protective shield underneath. Once the tank is lowered, disconnect the electrical connector and fuel lines before removing the pump assembly. Installation follows the reverse steps, ensuring all connections are secure and the tank is properly resealed.
A comparative look at other vehicles reveals that while some models place the fuel pump in the engine bay or along the chassis, the in-tank design of the 2009 Vibe aligns with industry trends for compactness and efficiency. This layout also protects the pump from external heat and potential damage. However, it complicates access, making DIY repairs more challenging. For those uncomfortable with the process, consulting a professional mechanic is recommended to avoid errors that could lead to fuel leaks or system damage.
In summary, the fuel pump’s location inside the fuel tank on a 2009 Vibe is a key design feature that requires specific knowledge for maintenance. While this placement offers benefits, it demands careful handling during repairs. Armed with the right tools, safety precautions, and procedural understanding, addressing fuel pump issues becomes a manageable task, ensuring your vehicle’s reliability and performance.
