The Zuma 50 fuel pump valve petcock is a crucial component in the Yamaha Zuma 50 scooter's fuel system, responsible for controlling the flow of fuel from the tank to the engine. Located typically near the bottom of the fuel tank, this valve allows riders to shut off the fuel supply when necessary, such as during maintenance or storage, preventing fuel leaks and ensuring safety. Identifying its exact position may require consulting the scooter's manual or visually inspecting the fuel tank area, as designs can vary slightly between models and years. Proper maintenance of the petcock is essential to avoid issues like fuel contamination or engine stalling, making it an important part for Zuma 50 owners to familiarize themselves with.
| Characteristics | Values |
|---|---|
| Location | On the fuel tank, typically near the bottom or side, depending on the model year and region. |
| Function | Controls the flow of fuel from the tank to the carburetor or fuel injection system. |
| Type | Manual petcock (on/off/reserve) or vacuum-operated petcock, depending on the model. |
| Compatibility | Specifically designed for Yamaha Zuma 50 (also known as BWs in some regions). |
| Part Number | Varies by model year; common part numbers include 5RS-24501-00-00 or 5RS-24501-10-00. |
| Material | Typically made of durable plastic or metal alloy for longevity. |
| Operation | Manual petcocks have a knob or lever to switch between on, off, and reserve positions. Vacuum-operated petcocks function automatically based on engine vacuum. |
| Maintenance | Regularly check for leaks, clean the filter screen (if applicable), and replace if damaged or malfunctioning. |
| Availability | Available at Yamaha dealerships, authorized parts suppliers, and online retailers specializing in scooter parts. |
| Price Range | Typically ranges from $20 to $50 USD, depending on the type and supplier. |
Explore related products
What You'll Learn
Location in Zuma 50 Fuel System
The Zuma 50’s fuel pump valve petcock is a critical component located on the left side of the motorcycle, near the bottom of the fuel tank. This positioning allows for easy access during routine maintenance or when troubleshooting fuel delivery issues. Unlike some models where the petcock is integrated into the tank, the Zuma 50’s design places it externally, simplifying inspection and replacement. This external placement also reduces the risk of fuel leaks contaminating the tank’s interior, a common issue in internal petcock systems.
To locate the petcock, start by turning the Zuma 50’s handlebars to the left, which provides a clearer view of the fuel system components. The petcock is typically a cylindrical valve with a lever or knob for controlling fuel flow. It connects directly to the fuel line leading to the carburetor, ensuring a steady supply of fuel during operation. If the petcock is difficult to find, trace the fuel line from the carburetor backward—it will lead directly to the valve. This methodical approach ensures you don’t mistake other nearby components for the petcock.
When working on the petcock, always ensure the motorcycle is on a stable surface and the engine is off to prevent accidents. If the petcock is stuck or difficult to turn, apply a small amount of penetrating oil and allow it to sit for 10–15 minutes before attempting to move the lever. Over-tightening the petcock can damage the valve, so use gentle force and stop if resistance is felt. Regularly checking the petcock for leaks or corrosion is also essential, as fuel residue can accumulate and compromise its function over time.
Comparing the Zuma 50’s petcock location to other scooters reveals a design choice prioritizing accessibility. While some models bury the petcock beneath fairings or require tank removal for access, Yamaha’s external placement streamlines maintenance. This design is particularly beneficial for riders who perform their own repairs, as it eliminates the need for specialized tools or extensive disassembly. However, this accessibility also means the petcock is more exposed to debris and impacts, so periodic inspection is crucial to ensure it remains in good condition.
For riders experiencing fuel delivery issues, the petcock is often the first component to inspect. Symptoms like sputtering, stalling, or difficulty starting can indicate a clogged or malfunctioning valve. To test the petcock, turn it to the "On" position and listen for fuel flowing into the carburetor. If no sound is heard, the valve may be blocked or stuck in the "Off" position. In such cases, cleaning or replacing the petcock is typically a straightforward fix that restores normal fuel flow. Keeping a spare petcock in your toolkit is a practical tip for riders who frequently travel long distances or in remote areas.
Diagnosing Fuel Pump Issues: Checking the Temperature Sensor Effectively
You may want to see also
Explore related products
$9.99
Identifying the Petcock Valve

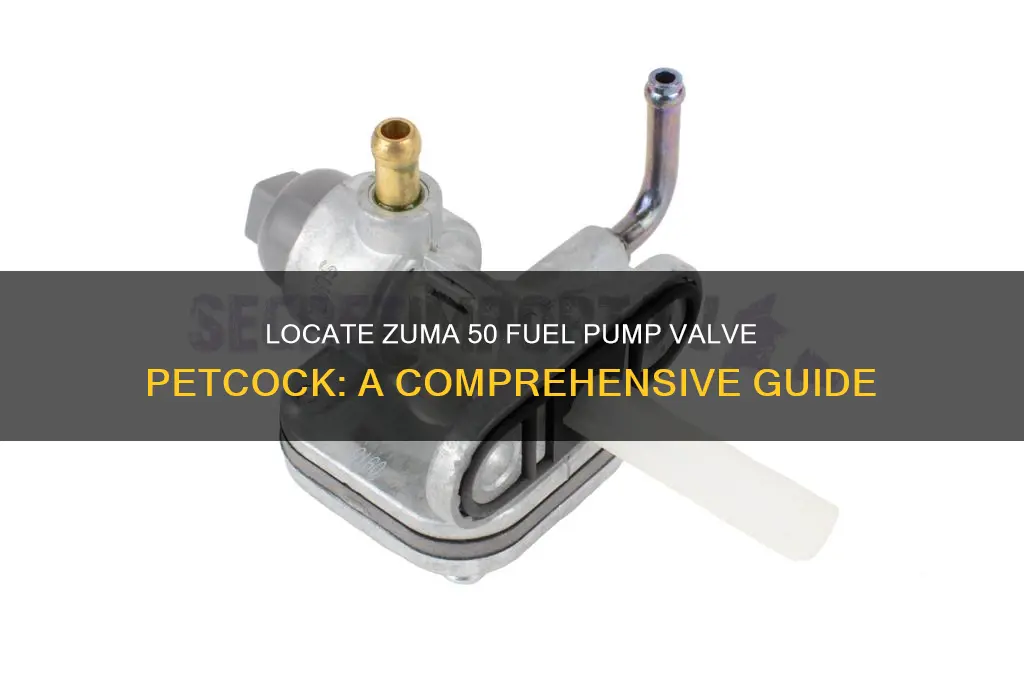

The Zuma 50's petcock valve is a small but critical component, often overlooked until it malfunctions. Located on the fuel tank, this valve controls the flow of fuel to the carburetor, ensuring your scooter runs smoothly. Identifying it correctly is the first step in maintenance or troubleshooting. Typically, the petcock valve is positioned near the bottom of the fuel tank, with a lever or knob that allows you to switch between "On," "Off," and "Reserve" settings. Its design is straightforward, yet its function is indispensable for preventing fuel leaks and ensuring consistent engine operation.
To locate the petcock valve on your Zuma 50, start by examining the underside of the fuel tank. It’s usually mounted directly on the tank, with a hose connecting it to the carburetor. The valve’s lever or knob is often color-coded or labeled for easy identification. If you’re unsure, consult your scooter’s manual for a diagram or description. A common mistake is confusing the petcock with other nearby components, such as the fuel filter or vacuum lines. Remember, the petcock is the only part with a manual switch for controlling fuel flow.
Once identified, inspect the petcock valve for signs of wear or damage. Leaks, cracks, or a stiff lever indicate it may need replacement. Regularly cleaning the valve and ensuring it’s free of debris can prevent clogs and extend its lifespan. If you’re replacing the petcock, ensure the new part is compatible with your Zuma 50 model. Installation typically involves disconnecting the fuel hose, removing the old valve, and securing the new one in place. Always turn off the petcock and relieve fuel pressure before working on it to avoid spills or accidents.
Comparing the Zuma 50’s petcock valve to those on other scooters highlights its simplicity and reliability. Unlike some models with electric fuel pumps, the Zuma relies on a manual valve, making it easier to diagnose and repair. However, this also means proper maintenance is crucial. For instance, always switch the petcock to "Off" when storing your scooter to prevent fuel from draining into the carburetor and causing issues. This small habit can save you from costly repairs down the line.
In conclusion, identifying the petcock valve on your Zuma 50 is a straightforward task with significant implications for your scooter’s performance. By understanding its location, function, and maintenance needs, you can ensure your ride remains reliable. Whether you’re a seasoned mechanic or a novice, taking the time to familiarize yourself with this component will pay off in the long run. Keep it clean, check it regularly, and handle it with care—your Zuma 50 will thank you.
Step-by-Step Guide to Replacing a Ford F150 Fuel Pump
You may want to see also
Explore related products
$31.99
Common Issues with Zuma 50 Petcock
The Zuma 50 petcock, a critical component in the scooter's fuel system, often becomes a source of frustration for owners due to its susceptibility to common issues. One prevalent problem is vacuum-operated petcock failure, which can lead to fuel leaks or an inability to shut off the fuel supply. This occurs when the diaphragm inside the petcock deteriorates, causing a loss of vacuum and improper valve operation. Symptoms include fuel dripping from the carburetor or a persistent flow of gas even when the petcock is in the "off" position. To diagnose, inspect the petcock for visible cracks or leaks and test the vacuum hose for proper suction. Replacement with a manual petcock is often recommended for long-term reliability, as vacuum-operated units are prone to age-related wear.
Another frequent issue is clogging due to sediment buildup, particularly in older Zuma 50 models or those with neglected fuel systems. Over time, debris from contaminated fuel or tank rust can accumulate in the petcock's filter screen, restricting fuel flow and causing the engine to stall or run poorly. This problem is exacerbated by the use of ethanol-blended fuels, which can degrade rubber components and loosen tank residue. To prevent clogging, regularly clean the fuel tank and replace the petcock filter screen as part of routine maintenance. Using a fuel stabilizer can also minimize sediment formation and extend the petcock's lifespan.
Leaking gaskets are a third common issue, often overlooked until fuel begins to seep from the petcock's mounting area. The rubber gasket between the petcock and fuel tank can degrade over time due to exposure to gasoline and temperature fluctuations. This not only results in fuel loss but also poses a fire hazard. When replacing the petcock or performing maintenance, always inspect the gasket for brittleness or cracks. Using a high-quality, fuel-resistant gasket and applying a thin layer of gasket sealant can ensure a secure, leak-free installation.
Lastly, misalignment or improper installation can render the petcock ineffective, even if the component itself is in good condition. This often occurs during DIY repairs or after-market modifications, where the petcock is not seated correctly or the vacuum hose is connected incorrectly. Symptoms include fuel flowing only in certain positions or a complete lack of fuel delivery. To avoid this, consult the Zuma 50 service manual for proper installation procedures and double-check hose connections. Ensuring the petcock is aligned with the tank's fuel outlet and securely tightened can prevent unnecessary troubleshooting and repairs.
By addressing these common issues—vacuum failure, sediment buildup, gasket leaks, and installation errors—Zuma 50 owners can maintain a reliable fuel system and avoid costly downtime. Regular inspection and proactive maintenance are key to keeping the petcock functioning optimally.
Resetting Your Pontiac Fiero's Fuel Pump Relay: A Step-by-Step Guide
You may want to see also
Explore related products
![[Vehicle Parts] Fuel Petcock for Yamaha CY50 CY 50 for Jog SH50 SH 50 for Razz 50CC for 3KJ-24500-02 [Replacement]](https://m.media-amazon.com/images/I/51T11bHs1oL._AC_UL320_.jpg)
Replacing the Fuel Pump Valve
The Zuma 50’s fuel pump valve, often referred to as the petcock, is a critical component located on the bottom left side of the fuel tank, near the carburetor. Its primary function is to control fuel flow from the tank to the engine, ensuring optimal performance. Over time, this valve can wear out, clog, or malfunction, leading to fuel delivery issues such as stalling, poor acceleration, or difficulty starting. Identifying its location is the first step in diagnosing and resolving these problems.
When installing the new valve, apply thread sealant or Teflon tape to the threads to ensure a secure, leak-free connection. Tighten the valve by hand before using a tool to avoid cross-threading. Reattach the fuel lines, ensuring they are securely connected and aligned correctly. Once installed, turn the valve to the "ON" position and check for leaks by running the engine briefly. If no leaks are detected, the replacement is successful.
A common mistake during this process is overtightening the valve, which can strip the threads or damage the fuel tank. Another pitfall is neglecting to clean the area, potentially introducing contaminants into the fuel system. To avoid these issues, work methodically and use the appropriate tools. For those unfamiliar with motorcycle mechanics, consulting a manual or seeking professional assistance can save time and prevent costly errors.
In conclusion, replacing the Zuma 50’s fuel pump valve is a straightforward task when approached with care and precision. By understanding its location, following proper procedures, and avoiding common mistakes, you can restore your bike’s fuel delivery system to optimal condition. Regular maintenance and timely replacement of worn components ensure reliability and longevity for your Zuma 50.
Signs Your Fuel Pump is Failing: Mileage and Warning Indicators
You may want to see also
Explore related products
Maintenance Tips for Zuma 50 Petcock
The Zuma 50’s petcock, located on the bottom left side of the fuel tank near the carburetor, is a critical component for fuel delivery. Overlooking its maintenance can lead to fuel flow issues, engine stalling, or even contamination. Regular inspection and care ensure reliability, especially for older models where rubber components degrade over time.
Step-by-Step Cleaning Procedure: Begin by turning the petcock to the "off" position and disconnecting the fuel line. Remove the petcock by unscrewing the retaining nut, then disassemble it to access the internal filter and valve. Soak components in a carburetor cleaner for 20–30 minutes, scrubbing away debris with a soft-bristle brush. Reassemble using a light coat of silicone grease on O-rings to prevent leaks. Test for proper sealing before reinstallation.
Preventive Measures: Replace the petcock every 5–7 years, or sooner if cracks or stiffness are detected. For scooters in humid climates, consider annual inspections to combat corrosion. Always use ethanol-free fuel or stabilizers to minimize internal residue buildup. A small investment in maintenance prevents costly carburetor repairs down the line.
Troubleshooting Common Issues: If the engine sputters or stalls, check the petcock for clogs or improper positioning. The "reserve" setting should only be used when the main tank is nearly empty, as prolonged use can strain the valve. For persistent leaks, inspect the fuel line connection and tighten the petcock securely, but avoid over-torquing to prevent damage.
Upgrades and Alternatives: Aftermarket petcocks with brass or stainless steel components offer durability over stock aluminum models. For riders seeking convenience, vacuum-operated petcocks eliminate manual switching but require precise installation. Always verify compatibility with the Zuma 50’s fuel system before upgrading.
By integrating these practices into routine maintenance, riders can ensure their Zuma 50’s petcock remains functional, extending the scooter’s lifespan and enhancing performance. A well-maintained petcock is not just a component—it’s the lifeline of your fuel system.
Delphi Fuel Pumps: Reliability, Performance, and Longevity Reviewed
You may want to see also
Frequently asked questions
The Zuma 50 fuel pump valve petcock is typically located on the bottom of the fuel tank, near the carburetor or fuel line connection.
To access the petcock, you’ll need to remove the side panel or seat of the scooter, depending on the model. It’s usually secured with a few screws or bolts.
The petcock controls the flow of fuel from the tank to the carburetor. It’s important for preventing fuel leaks when the scooter is not in use and for ensuring proper fuel delivery during operation.
