The 1993 Ford E-150 Club Wagon's fuel pump is typically located inside the fuel tank, a common design for many vehicles of that era to ensure the pump remains cooled by the fuel. To access it, you'll need to remove the fuel tank, which involves safely relieving the fuel system pressure, disconnecting the tank's lines and electrical connections, and then lowering the tank to expose the pump assembly. This task requires basic mechanical skills and safety precautions, such as working in a well-ventilated area and using proper tools to avoid fuel spills or accidents. Consulting the vehicle's service manual can provide specific details for your model.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump | Inside the fuel tank |
| Fuel Tank Access | Beneath the vehicle, near the rear axle |
| Fuel Pump Type | In-tank electric fuel pump |
| Tank Removal Required | Yes, for direct access to the fuel pump |
| Tools Needed | Jack, jack stands, wrenches, screwdrivers, and a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Common Issues | Fuel pump failure, clogged fuel filter, corroded wiring |
| Replacement Difficulty | Moderate to difficult due to fuel tank removal |
| Estimated Replacement Time | 2-4 hours depending on experience |
| Compatibility | Specific to 1993 Ford E-150 Club Wagon with similar fuel system setup |
Explore related products
$15.99 $18.99
What You'll Learn

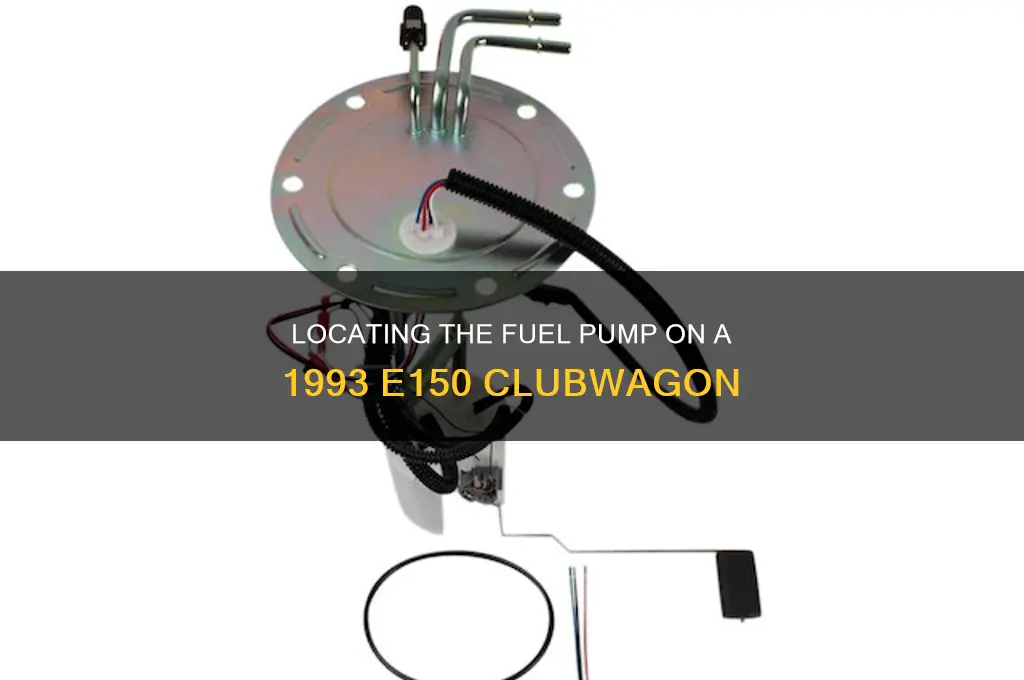

Fuel pump location under vehicle
The fuel pump on a 1993 E150 Club Wagon is typically located inside the fuel tank, a common design for many vehicles of that era. This placement offers several advantages, including better cooling for the pump and reduced exposure to external elements that could cause damage. However, it also means that accessing the fuel pump requires more effort compared to external mounting locations. If you're planning to replace or inspect the fuel pump, be prepared for a more involved process that includes draining the fuel tank and removing it from the vehicle.
To locate the fuel pump under your 1993 E150 Club Wagon, start by identifying the fuel tank, which is usually positioned along the underside of the vehicle, near the rear axle. The fuel pump module is attached to the top of the tank, but accessing it requires removing the tank itself. Before beginning, ensure the vehicle is on a level surface, and the fuel tank is as empty as possible to minimize spillage and weight. Use a jack and jack stands to safely lift the vehicle, providing enough clearance to work underneath.
Once the vehicle is securely lifted, locate the fuel tank straps or mounting brackets that hold the tank in place. These are typically secured with bolts or nuts that can be removed with standard hand tools. After loosening the straps, carefully lower the tank to access the top, where the fuel pump module is located. Be cautious of any fuel lines or electrical connectors still attached to the tank, as these will need to be disconnected before fully removing the pump.
When replacing the fuel pump, consider installing a new fuel tank seal to prevent leaks. Additionally, inspect the fuel lines and filter for signs of wear or damage, as these components often require replacement alongside the pump. Reinstalling the fuel tank involves reversing the removal steps, ensuring all connections are secure and properly tightened. After reassembly, check for leaks and test the fuel pump’s operation before driving the vehicle.
Understanding the fuel pump’s location and the steps required to access it can save time and reduce frustration during maintenance. While the process is more complex than dealing with an externally mounted pump, it’s manageable with the right tools and precautions. Always prioritize safety, especially when working with fuel systems, and consider consulting a repair manual or professional if you’re unsure about any step. Proper maintenance ensures the longevity of your 1993 E150 Club Wagon’s fuel system, keeping it running smoothly for years to come.
Do All Fuel Pumps Make Noise? Understanding Common Sounds
You may want to see also
Explore related products
Accessing fuel pump through access panel
The 1993 E150 Club Wagon's fuel pump is located beneath the vehicle, but accessing it doesn't require dropping the gas tank. Ford designed this model with a convenient access panel, a feature that simplifies maintenance and repairs. This panel is typically found on the driver's side, just behind the rear wheel well, and is a crucial entry point for fuel pump replacement or inspection.
Locating the Access Panel: Begin by ensuring the vehicle is on a level surface and the engine is cool. The access panel is a rectangular metal cover, often secured by a series of bolts or screws. Its exact size and shape may vary, but it's generally large enough to accommodate the fuel pump assembly. A quick visual inspection underneath the vehicle should reveal this panel, which is a significant advantage over models requiring tank removal.
Accessing the Fuel Pump: To open the access panel, you'll need the appropriate tools, typically a socket or screwdriver set. Remove the fasteners in a systematic manner, keeping track of their positions for reassembly. Once the panel is removed, the fuel pump module should be visible. This module often includes the pump, sending unit, and associated wiring. It's crucial to exercise caution here; fuel lines and electrical connections are sensitive components.
Practical Tips: Before attempting any work, relieve the fuel system pressure to prevent accidental spray or spillage. This process involves locating the Schrader valve on the fuel rail and using a pressure gauge to release the pressure safely. Additionally, have a drain pan ready to catch any residual fuel that may spill during the process. When removing the fuel pump, take note of its orientation and the positioning of any seals or gaskets, as these details are critical for a successful reinstallation.
This access panel design is a time-saver for mechanics and DIY enthusiasts alike, offering a direct route to the fuel pump without the complexities of tank removal. It's a testament to Ford's engineering, providing a practical solution for a common maintenance task. By following these steps and precautions, accessing and replacing the fuel pump on a 1993 E150 Club Wagon becomes a more manageable endeavor.
Boosting Performance: Enhancing Stock Fuel Pump Flow for Turbocharged Engines
You may want to see also
Explore related products
Fuel pump placement near fuel tank
The fuel pump on a 1993 E150 Club Wagon is typically located inside the fuel tank, a common design in many vehicles of that era. This placement offers several advantages, including better cooling for the pump, as it is submerged in fuel, and reduced noise levels since the tank acts as a sound barrier. Understanding this location is crucial for maintenance and troubleshooting, as accessing the pump requires removing the fuel tank, a task that demands careful planning and safety precautions.
Analyzing the Design Choice
Placing the fuel pump inside the fuel tank was a strategic decision by Ford to enhance reliability and efficiency. By submerging the pump in fuel, it remains lubricated and cooled, extending its lifespan. This design also ensures a consistent fuel supply to the engine, as the pump draws directly from the tank’s reservoir. However, this placement complicates replacement, as the entire tank must be lowered to access the pump. For DIY enthusiasts, this means allocating sufficient time and gathering the right tools, such as a jack, jack stands, and a wrench set, to safely complete the task.
Steps for Accessing the Fuel Pump
To locate and replace the fuel pump on a 1993 E150 Club Wagon, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the battery to prevent accidental ignition. Raise the vehicle securely on jack stands and locate the fuel tank, typically positioned beneath the rear seats or cargo area. Remove the tank straps and carefully lower the tank to access the pump assembly. Be cautious of residual fuel in the tank, and use a drain pan to avoid spills. Once the tank is removed, the pump module can be extracted by releasing the locking ring and electrical connectors.
Cautions and Practical Tips
Working on a fuel system carries inherent risks, including fire hazards and fuel exposure. Always wear safety goggles and gloves, and ensure the work area is well-ventilated. Avoid smoking or using open flames nearby. If the tank is more than half full, siphon fuel to reduce weight and minimize spillage. When installing a new pump, ensure the rubber gasket is properly seated to prevent leaks. Reattach the tank securely, as loose straps can cause vibration and damage. Finally, test the system for leaks and ensure all connections are tight before driving.
Comparative Perspective
Unlike older vehicles where fuel pumps were often mounted externally, the in-tank design of the 1993 E150 Club Wagon reflects advancements in automotive engineering. External pumps, while easier to access, were more prone to overheating and failure. The in-tank placement, though more labor-intensive to service, offers superior performance and durability. This evolution highlights the trade-offs between convenience and functionality, making it essential for owners to weigh their mechanical skills and resources before attempting a replacement.
Takeaway
Understanding the fuel pump’s placement near the fuel tank in a 1993 E150 Club Wagon is key to effective maintenance. While the in-tank design enhances performance, it requires careful planning and safety measures for replacement. By following systematic steps and heeding cautions, even novice mechanics can tackle this task successfully, ensuring their vehicle’s fuel system operates reliably for years to come.
Testing Fuel Vapor Leak Detection Pumps: A Step-by-Step Guide
You may want to see also
Explore related products
Identifying fuel pump on 1993 E150
The fuel pump on a 1993 Ford E150 Club Wagon is located inside the fuel tank, a common placement for many vehicles of that era. This in-tank design helps maintain fuel pressure and reduces the risk of vapor lock, but it also means accessing the pump requires removing the tank. If you’re troubleshooting fuel delivery issues or planning a replacement, understanding this location is the first step. Unlike external pumps, which are often mounted along the chassis, the in-tank design on the E150 requires a more involved process to inspect or replace.
To identify the fuel pump, start by locating the fuel tank beneath the vehicle. On the 1993 E150, the tank is typically positioned along the chassis, between the frame rails. The pump itself is integrated into the fuel sender assembly, which is accessed through an opening in the top of the tank. If you’re unsure, look for the fuel lines and electrical connector leading to the tank—these will guide you to the pump’s location. Keep in mind that the tank must be drained or at least partially emptied before removal to avoid spills and ensure safety.
A practical tip for identifying the fuel pump is to follow the fuel lines from the engine bay to the tank. The lines connect to the pump assembly, which is usually secured by a locking ring or bolts. If you’re working on the vehicle for the first time, consider using a repair manual or online diagram specific to the 1993 E150 to confirm the exact location. This visual reference can save time and prevent mistakes, especially if you’re unfamiliar with the layout of the fuel system.
When inspecting the fuel pump, listen for unusual noises during operation, such as whining or grinding, which may indicate wear or failure. If the pump is not functioning, check the electrical connector for corrosion or loose wires. However, diagnosing a faulty pump often requires testing with a multimeter or pressure gauge, tools that can confirm if the pump is delivering the correct pressure (typically 30–60 PSI for this model). Always disconnect the battery before working on the fuel system to avoid sparks or electrical hazards.
In summary, identifying the fuel pump on a 1993 E150 Club Wagon involves locating the in-tank assembly, following fuel lines, and using visual aids for accuracy. While the process is straightforward, it requires careful preparation and safety measures due to the pump’s placement. Whether you’re diagnosing issues or replacing the pump, understanding its location and function is key to a successful repair.
Can a Code Reader Diagnose a Failing Fuel Pump? Find Out
You may want to see also
Explore related products
Tools needed to locate fuel pump
Locating the fuel pump on a 1993 E150 Club Wagon requires more than just a keen eye—it demands the right tools to ensure accuracy and safety. The fuel pump is typically housed within the fuel tank, which means accessing it involves working with both mechanical and electrical components. To streamline the process, you’ll need a combination of basic hand tools and specialized equipment. A reliable set of wrenches and sockets is essential for removing bolts and fasteners, while a flathead and Phillips screwdriver will handle various screws encountered during disassembly. Additionally, a fuel line disconnect tool is crucial for safely detaching the fuel lines without causing leaks or damage.
Beyond the physical tools, diagnostic equipment plays a pivotal role in confirming the fuel pump’s location and functionality. A multimeter is indispensable for testing electrical connections and verifying voltage at the pump’s wiring harness. This step ensures you’re not mistakenly replacing a functional component or overlooking a related issue. For those with access to advanced tools, a fuel pressure gauge can provide precise readings to assess the pump’s performance before proceeding with any repairs. While not strictly necessary, this tool adds an extra layer of confidence in your diagnosis.
Safety should never be an afterthought when working on a vehicle’s fuel system. A pair of safety goggles and nitrile gloves are non-negotiable to protect against fuel spills and debris. A drip pan placed beneath the fuel tank will catch any residual fuel during disassembly, minimizing environmental hazards and cleanup. For added precaution, ensure the vehicle’s battery is disconnected to eliminate the risk of electrical sparks near the fuel system. These safety measures, though simple, are critical to preventing accidents.
Finally, consider the value of a vehicle-specific repair manual or online resource tailored to the 1993 E150 Club Wagon. These guides often include detailed diagrams and step-by-step instructions that complement your toolset, ensuring you approach the task with clarity and precision. While tools enable the physical work, knowledge of the vehicle’s unique layout transforms the process from guesswork to a systematic procedure. Armed with the right tools and information, locating and servicing the fuel pump becomes a manageable task rather than a daunting challenge.
Honda Fuel Pump Lifespan: Durability, Maintenance, and Replacement Guide
You may want to see also
Frequently asked questions
The fuel pump on a 1993 E150 Clubwagon is located inside the fuel tank, which is situated underneath the vehicle, typically near the rear passenger side.
To access the fuel pump, you’ll need to safely raise the vehicle, remove the fuel tank’s protective shield, and then lower the tank to access the pump assembly. Ensure the fuel system is depressurized before starting.
Common issues include fuel pump failure, which may cause the engine to stall or not start. Symptoms can include a whining noise from the tank, difficulty starting, or a complete loss of power. Regular maintenance and timely replacement can prevent these problems.
