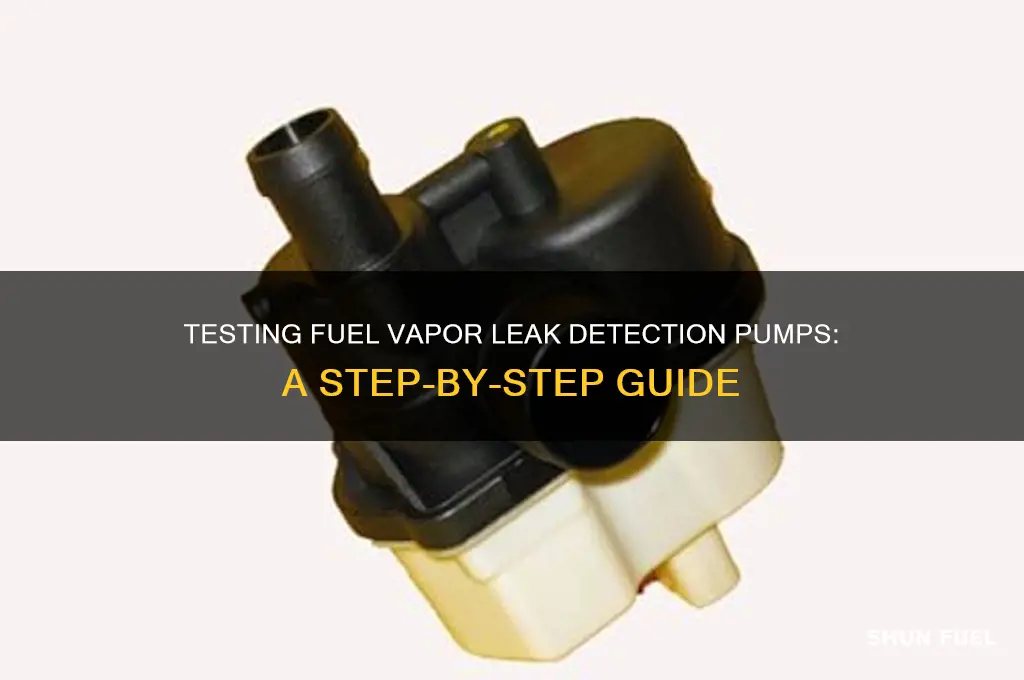

Testing a fuel vapor leak detection pump is a critical process to ensure the integrity of a vehicle's evaporative emission control system, which is designed to prevent harmful fuel vapors from escaping into the atmosphere. This pump, often referred to as the EVAP pump, is responsible for creating a vacuum to detect leaks in the system. To test it, start by locating the pump, typically found near the charcoal canister or fuel tank. Begin with a visual inspection for any physical damage or loose connections. Next, use a scan tool to activate the pump and monitor its operation, ensuring it runs smoothly and achieves the required vacuum levels. Additionally, perform a pressure or vacuum test by sealing the EVAP system and measuring the pressure drop over time to confirm there are no leaks. Always refer to the vehicle’s service manual for specific testing procedures and diagnostic trouble codes (DTCs) to accurately diagnose and resolve any issues.
| Characteristics | Values |
|---|---|
| Purpose of Test | To verify the functionality of the fuel vapor leak detection pump. |
| Tools Required | Smoke machine, vacuum/pressure gauge, scan tool, manufacturer's manual. |
| Test Procedure | Connect smoke machine to EVAP system, apply smoke, observe for leaks. |
| Pressure/Vacuum Test | Apply specified pressure/vacuum to EVAP system; pump should activate. |
| Expected Operation | Pump should run for a predetermined time (e.g., 10-30 seconds). |
| Diagnostic Trouble Codes (DTCs) | Check for DTCs related to EVAP system (e.g., P0440, P0455). |
| Visual Inspection | Inspect pump, wiring, and hoses for damage or disconnections. |
| Power Supply Check | Verify 12V power supply to the pump during operation. |
| Ground Circuit Check | Ensure proper grounding for the pump circuit. |
| Manufacturer Specifications | Refer to vehicle-specific manual for exact test parameters and values. |
| Common Failure Symptoms | Check Engine Light (CEL) on, failed emissions test, fuel odor. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, disconnect battery. |
| Test Frequency | As part of routine emissions testing or when EVAP system issues arise. |
| Replacement Criteria | Replace pump if it fails to activate, runs continuously, or shows leaks. |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate pump, and prepare vehicle
- Pressure Decay Test: Seal system, pressurize, monitor pressure drop, identify leaks using gauge
- Functional Operation Check: Activate pump, listen for noise, verify vacuum/pressure, assess performance
- Diagnostic Trouble Codes: Use scanner, check for codes, interpret results, troubleshoot issues
- Post-Test Inspection: Reconnect battery, inspect connections, reset system, confirm repairs
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate pump, and prepare vehicle
Testing a fuel vapor leak detection pump requires meticulous pre-test preparation to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a scan tool compatible with your vehicle’s make and model, a digital multimeter for electrical diagnostics, and a smoke machine or vacuum pump for pressure testing. Include safety gear such as nitrile gloves, safety goggles, and a fire extinguisher, as you’ll be working near fuel vapors. Organize these tools within easy reach to streamline the process and minimize interruptions.
Safety is paramount when dealing with fuel systems. Park the vehicle on a level surface, engage the parking brake, and allow the engine to cool for at least 30 minutes to reduce the risk of ignition. Ensure proper ventilation by working in an open area or using a well-ventilated garage. Avoid open flames, sparks, or smoking nearby. Familiarize yourself with the location of the fuel shut-off valve in case of emergencies. These precautions are non-negotiable, as fuel vapors are highly flammable and can pose serious hazards.
Before proceeding, disconnect the battery to prevent accidental activation of the pump or other electrical components. Locate the negative terminal, loosen the nut with a wrench, and remove the cable. Wrap the exposed terminal with electrical tape to prevent accidental contact. This step not only protects the vehicle’s electrical system but also ensures your safety by eliminating the risk of short circuits or unexpected pump operation during testing.
Locate the fuel vapor leak detection pump, typically found near the fuel tank or charcoal canister. Consult your vehicle’s service manual for precise placement, as designs vary across makes and models. Inspect the surrounding area for signs of damage, corrosion, or loose connections that could affect test results. Understanding the pump’s location and condition beforehand allows for a focused and efficient diagnostic process.
Finally, prepare the vehicle by ensuring the fuel tank is between 15% and 85% full—this range provides optimal conditions for testing the pump’s functionality. If the tank is outside this range, adjust it accordingly. Clear any debris or obstructions around the pump and related components to facilitate access. Double-check that all safety measures are in place and tools are ready before initiating the test. Proper preparation not only enhances accuracy but also reduces the risk of errors or accidents during the diagnostic procedure.
Does the Nissan Versa Have a Fuel Pump Regulator?
You may want to see also
Explore related products
Pressure Decay Test: Seal system, pressurize, monitor pressure drop, identify leaks using gauge
A pressure decay test is a precise method for identifying leaks in a fuel vapor leak detection pump system, leveraging the principle of pressure differentials to pinpoint weaknesses. To begin, ensure the system is sealed tightly, as even minor openings can skew results. Use a compatible sealant or clamps to secure all connections, including hoses, valves, and fittings. Once sealed, pressurize the system to a specified level, typically between 15 and 20 psi, using a regulated air source. This pressure should be maintained long enough to stabilize, usually 1–2 minutes, to account for any initial fluctuations.
Monitoring the pressure drop is the core of this test. Attach a high-precision pressure gauge to the system, ensuring it’s calibrated for accurate readings. Observe the gauge over a defined period, often 5–10 minutes, noting any deviations from the initial pressure. A consistent, measurable drop indicates a leak, while a stable reading suggests integrity. For example, a drop of 1 psi over 5 minutes in a 20-psi system could signal a leak, depending on the system’s size and material. Document these observations for analysis, as patterns can reveal the leak’s location or severity.
Practical tips enhance the effectiveness of this test. First, perform the test in a controlled environment to minimize external factors like temperature changes, which can affect air density and pressure readings. Second, use a digital gauge with data logging capabilities for precise tracking and easier comparison. Third, isolate sections of the system if possible, testing one component at a time to narrow down the leak source. For instance, test the charcoal canister separately from the purge valve to identify which part is failing.
Cautions are critical to avoid misinterpretation or damage. Avoid over-pressurizing the system, as this can cause ruptures or false positives. Always adhere to the manufacturer’s pressure limits, typically found in the service manual. Additionally, ensure the system is depressurized safely after testing to prevent residual pressure from affecting future operations. Finally, be aware that small, intermittent leaks may not always be detectable with this method, requiring additional diagnostic techniques like smoke testing for confirmation.
In conclusion, the pressure decay test is a reliable, non-invasive method for assessing the integrity of a fuel vapor leak detection pump system. By systematically sealing, pressurizing, and monitoring the system, technicians can identify leaks with precision. Combining this test with practical tips and cautionary measures ensures accurate results, making it an indispensable tool in diagnostic workflows. Whether for routine maintenance or troubleshooting, mastering this technique empowers professionals to maintain system efficiency and compliance with emissions standards.
Reprogramming Your Fuel Pump Control Module: A Step-by-Step Guide
You may want to see also
Explore related products
Functional Operation Check: Activate pump, listen for noise, verify vacuum/pressure, assess performance
The fuel vapor leak detection pump is a critical component in modern vehicles, ensuring emissions compliance by detecting leaks in the evaporative emissions (EVAP) system. A functional operation check is a straightforward yet effective method to assess its performance. Begin by activating the pump, typically done through the vehicle’s onboard diagnostics (OBD) system or a dedicated scan tool. This step simulates real-world conditions, allowing the pump to engage as it would during a leak test. Activation should be immediate, with no delays or errors reported on the diagnostic tool, indicating the pump’s readiness for further evaluation.
Listening for noise is the next critical step in this process. A properly functioning pump should produce a consistent, low-pitched humming sound, indicative of smooth operation. Unusual noises, such as grinding, clicking, or erratic whirring, suggest mechanical issues like worn bearings or debris in the system. For example, a high-pitched squeal might point to a failing motor, while intermittent noise could indicate electrical problems. This auditory assessment provides immediate feedback on the pump’s internal health, often revealing issues before they escalate.
Verifying vacuum or pressure is a quantitative measure of the pump’s effectiveness. Using a vacuum gauge or pressure sensor, connect to the EVAP system’s test port and monitor the readings during pump operation. A typical vacuum range for a healthy pump is between 10 and 20 inches of mercury (inHg), while pressure should remain stable within manufacturer specifications. Deviations, such as insufficient vacuum or erratic pressure fluctuations, signal leaks, blockages, or pump inefficiency. For instance, a reading below 10 inHg may indicate a clogged line, while sudden pressure drops suggest a faulty valve.
Assessing overall performance involves synthesizing these observations into a conclusive evaluation. If the pump activates promptly, operates quietly, and maintains correct vacuum/pressure levels, it is likely functioning optimally. However, any discrepancies—unusual noise, inadequate vacuum, or unstable pressure—warrant further investigation. Practical tips include checking for loose connections, inspecting hoses for cracks, and ensuring the charcoal canister is not saturated. Regular testing, especially on vehicles over five years old, can prevent costly repairs and ensure compliance with emissions standards. This methodical approach not only diagnoses current issues but also predicts potential failures, making it an indispensable part of vehicle maintenance.
Diagnosing a Faulty OptiMax Pulse Fuel Pump: Key Signs to Watch For
You may want to see also
Explore related products
$44.98
Diagnostic Trouble Codes: Use scanner, check for codes, interpret results, troubleshoot issues
Diagnostic Trouble Codes (DTCs) are the Rosetta Stone of modern vehicle diagnostics, translating complex system malfunctions into readable, actionable insights. When testing a fuel vapor leak detection pump, the first step is to connect an OBD-II scanner to the vehicle’s diagnostic port, typically located beneath the dashboard. This tool communicates with the vehicle’s onboard computer, retrieving stored or pending DTCs related to the evaporative emission (EVAP) system. Common codes like P0442 (small leak detected) or P0455 (large leak detected) directly point to potential issues with the leak detection pump or associated components. Without this initial scan, troubleshooting becomes a shot in the dark, wasting time and resources.
Interpreting DTCs requires more than just reading the code; it demands context. For instance, a P0441 code indicates an incorrect flow during the EVAP system’s self-test, which could stem from a faulty pump, clogged lines, or a malfunctioning purge valve. Cross-referencing the code with the vehicle’s repair manual or online databases provides specific parameters for the pump’s operation, such as expected vacuum levels or duty cycle percentages. For example, a pump should maintain a vacuum of 10–15 inHg during a test cycle; deviations signal inefficiency or failure. This analytical approach transforms raw data into a targeted diagnostic strategy.
Troubleshooting begins with isolating the issue based on the interpreted DTCs. Start by inspecting the pump’s electrical connections for corrosion or loose wiring, as these are common culprits for intermittent codes. Next, perform a manual activation test using a scan tool to command the pump on and off while monitoring its response. If the pump fails to engage or maintain pressure, disassemble the unit for physical inspection. Look for cracked diaphragms, worn seals, or debris obstructing the internal mechanism. Practical tip: use a smoke machine to simulate pressure in the EVAP system, revealing leaks invisible to the naked eye.
Caution must be exercised when dealing with EVAP systems, as they operate under precise pressure thresholds. Over-pressurizing the system during testing can damage components, while mishandling fuel vapors poses safety risks. Always work in a well-ventilated area and avoid ignition sources. Additionally, some vehicles require specific procedures to reset the EVAP monitor after repairs, such as driving through predetermined cycles (e.g., 50 miles of mixed city and highway driving). Ignoring these steps may result in recurring codes, misleading future diagnostics.
In conclusion, DTCs serve as the cornerstone of efficient fuel vapor leak detection pump testing. By systematically using a scanner, interpreting codes with context, and methodically troubleshooting, technicians can pinpoint issues with precision. This structured approach not only saves time but also ensures repairs address the root cause, restoring the EVAP system’s integrity. Remember, the goal isn’t just to clear codes—it’s to restore functionality and compliance with emissions standards.
Understanding the PSI Rating of a 1994 Ford F150 Fuel Pump
You may want to see also
Explore related products
Post-Test Inspection: Reconnect battery, inspect connections, reset system, confirm repairs
After testing the fuel vapor leak detection pump, the post-test inspection is a critical step to ensure the system is restored to full functionality and safety. Begin by reconnecting the battery, ensuring the terminals are clean and securely tightened to prevent voltage drops or intermittent connections. A loose battery connection can trigger false diagnostic codes or compromise system performance, so torque the terminals to manufacturer specifications—typically 10-15 Nm for most vehicles. If corrosion is present, clean the terminals with a baking soda and water solution, then apply a thin layer of dielectric grease to inhibit future buildup.
Next, inspect all connections related to the fuel vapor system, including the purge valve, charcoal canister, and EVAP lines. Look for cracks, leaks, or dislodged hoses, as even minor damage can lead to system inefficiency or failure. Pay particular attention to rubber components, which degrade over time due to heat and fuel exposure. Replace any compromised parts immediately, using OEM components to ensure compatibility and longevity. For example, a cracked purge valve diaphragm can cause a P0441 code, mimicking a failed leak detection pump, so thorough inspection is key to accurate diagnosis.
Resetting the system is essential to clear diagnostic trouble codes (DTCs) and reinitialize the EVAP monitor. Use an OBD-II scanner to erase codes, then cycle the ignition to allow the ECU to relearn system parameters. Some vehicles require a specific drive cycle to complete this process, such as idling for 30 seconds, driving at steady speeds for 5 minutes, and decelerating without braking. Consult the vehicle’s service manual for exact requirements, as skipping this step may leave the check engine light illuminated or prevent readiness monitors from running.
Finally, confirm repairs by performing a secondary test or monitoring live data via the OBD-II scanner. Check for vacuum pump operation, purge valve duty cycle, and fuel tank pressure sensor readings to ensure all components are functioning harmoniously. A post-repair smoke test can also verify the absence of leaks, providing visual confirmation of a successful fix. This comprehensive approach not only validates the repair but also builds confidence in the vehicle’s long-term reliability, reducing the likelihood of repeat issues.
Avoiding Fuel Pump Burnout: Common Causes and Prevention Tips
You may want to see also
Frequently asked questions
A fuel vapor leak detection pump is a component in a vehicle's evaporative emission control (EVAP) system that checks for leaks in the fuel vapor system. Testing it ensures the system is functioning correctly to prevent fuel vapor leaks, which can harm the environment and reduce fuel efficiency.
Ensure the vehicle is parked on a level surface, the engine is off, and the fuel tank is between 15% and 85% full. Disconnect the battery to reset the system, and allow the vehicle to sit for a few minutes before starting the test.
You’ll need a scan tool capable of activating the EVAP system, a smoke machine or vacuum pump for pressure testing, and a multimeter to check electrical connections if necessary.
If the pump activates and holds pressure without leaks, the system is functioning properly. If the pump fails to activate, stalls, or detects a leak, further diagnosis is needed, such as checking for damaged hoses, faulty valves, or a malfunctioning pump.
