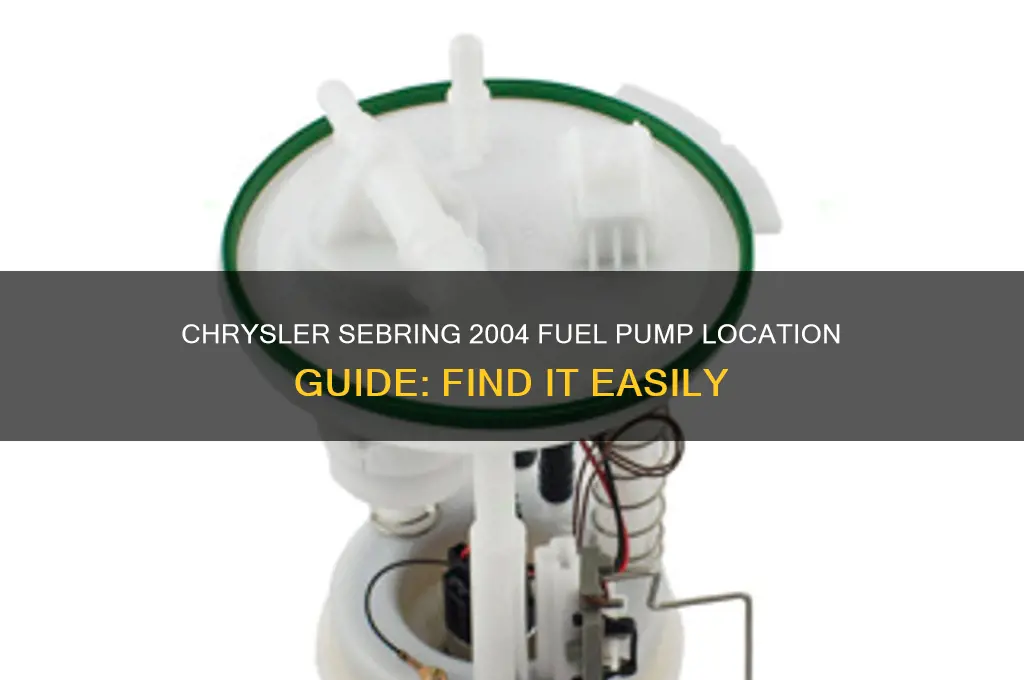

The fuel pump on a 2004 Chrysler Sebring is typically located inside the fuel tank, which is situated at the rear of the vehicle, beneath the rear seats. This in-tank design is common in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump usually requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank slightly or completely removing it, depending on the specific repair or maintenance task being performed. It’s important to ensure the fuel system is depressurized and the battery is disconnected before attempting any work on the fuel pump to avoid safety hazards.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2004 Chrysler Sebring |
| Fuel Pump Location | Inside the fuel tank |
| Fuel Tank Access | Located beneath the rear seat (sedan models) or trunk floor (convertible models) |
| Access Panel | Rear seat bottom (sedan) or trunk carpet (convertible) must be removed for access |
| Fuel Pump Module | Includes pump, sender, and filter in a single unit |
| Tools Required for Access | Screwdriver, socket set, and possibly trim removal tools |
| Safety Precautions | Relieve fuel system pressure before servicing |
| Replacement Difficulty | Moderate; requires fuel tank partial or full removal |
| Common Issues | Fuel pump failure, clogged filter, or electrical faults |
| Diagnostic Symptoms | Engine stalling, difficulty starting, or loss of power |
| Replacement Part Compatibility | OEM or aftermarket fuel pump modules designed for 2004 Chrysler Sebring |
Explore related products
What You'll Learn
Fuel Pump Location in 2004 Chrysler Sebring
The fuel pump in a 2004 Chrysler Sebring is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and keeps it submerged in fuel, which aids in cooling and extends its lifespan. Accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions.
To locate and replace the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Disconnect the negative battery terminal to prevent accidental ignition. Raise the vehicle securely on jack stands to access the fuel tank from beneath. The tank is typically held in place by straps and may require removing the exhaust system or other components for clearance. Once the tank is lowered, disconnect the electrical connector and fuel lines from the pump assembly.
A key consideration when working on the fuel pump is the potential for fuel spillage and fumes. Always work in a well-ventilated area and avoid open flames or sparks. Use a drain pan to catch any residual fuel when removing the tank. If the tank is difficult to remove due to rust or corrosion, apply penetrating oil to the mounting hardware and allow it to sit for 15–20 minutes before attempting to loosen the bolts.
Comparing the 2004 Chrysler Sebring’s fuel pump to earlier models, the in-tank design represents an evolution in fuel delivery systems. Older vehicles often featured external pumps, which were more susceptible to heat and mechanical failure. The in-tank location also integrates the pump with the sending unit, simplifying diagnostics and reducing the number of components under the vehicle. This design is particularly advantageous for front-wheel-drive vehicles like the Sebring, where space is limited.
For DIY enthusiasts, replacing the fuel pump on a 2004 Chrysler Sebring is a moderately challenging task. While the process is straightforward, it requires mechanical aptitude and the right tools, including a floor jack, wrench set, and possibly a specialty fuel line disconnect tool. If you’re unsure about any step, consult a repair manual or seek professional assistance to avoid costly mistakes. Properly diagnosing the pump before replacement is crucial; symptoms like engine sputtering or difficulty starting can mimic other fuel system issues.
Step-by-Step Guide to Replacing a 1997 Mustang Fuel Pump
You may want to see also
Explore related products
Accessing the Fuel Pump on a 2004 Sebring
The fuel pump on a 2004 Chrysler Sebring is located inside the fuel tank, a common placement in many modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, complicates access, requiring the removal of the fuel tank for pump replacement or inspection. Understanding this layout is crucial for anyone attempting DIY repairs or diagnostics, as it dictates the tools, time, and safety precautions needed.
To access the fuel pump, start by relieving the fuel system pressure using the Schrader valve located near the fuel rail. This step is non-negotiable, as residual pressure can lead to fuel spray or fire hazards. Next, disconnect the negative battery terminal to prevent accidental ignition. With safety measures in place, raise the vehicle securely on jack stands to access the fuel tank from beneath. The tank is typically held by straps bolted to the chassis; remove these straps carefully, ensuring the tank is supported as you lower it.
Once the tank is accessible, disconnect the electrical connector and fuel lines from the pump assembly. These connections are often secured with clips or retaining rings, so inspect them closely to avoid damage. The pump itself is usually mounted to the tank via a locking ring or flange, which requires a specialized tool for removal. A fuel tank locking ring tool, available at most auto parts stores, ensures you can remove the ring without damaging the tank or seal.
After removing the pump assembly, inspect the sender unit and filter for wear or contamination. Replacing these components alongside the pump is often recommended to ensure optimal performance and longevity. Reinstallation follows the reverse process, with careful attention to sealing the tank properly to prevent leaks. Torque specifications for the locking ring and tank straps should be adhered to, typically ranging from 10 to 20 ft-lbs, depending on the fastener.
While accessing the fuel pump on a 2004 Sebring is manageable with the right tools and precautions, it’s a task that demands patience and precision. Mistakes in handling fuel system components can lead to costly repairs or safety risks. If unsure, consulting a professional mechanic is a prudent choice, especially for those unfamiliar with fuel system mechanics. Proper preparation and execution ensure the job is done safely and effectively, minimizing downtime and potential hazards.
Step-by-Step Guide to Installing an Inline Fuel Pump Easily
You may want to see also
Explore related products
Fuel Tank Removal for 2004 Chrysler Sebring
The fuel pump on a 2004 Chrysler Sebring is located inside the fuel tank, a common design in modern vehicles to keep the pump cool and ensure consistent fuel delivery. Removing the fuel tank to access the pump requires careful preparation and execution to avoid safety hazards and potential damage. Before starting, ensure the vehicle is on a flat surface, the ignition is off, and the battery is disconnected to prevent accidental sparks.
Steps for Fuel Tank Removal:
- Relieve Fuel System Pressure: Locate the fuel pump relay in the fuse box and remove it. Start the engine and let it run until it stalls to depressurize the system. Alternatively, use a pressure relief tool if available.
- Disconnect Fuel Lines: Raise the vehicle securely on jack stands and locate the fuel tank beneath the rear seat area. Use a line disconnect tool to detach the fuel lines from the tank, being cautious of residual fuel. Have a drain pan ready to catch any spills.
- Remove Tank Straps: Identify the straps securing the fuel tank to the chassis. Use a socket wrench to remove the bolts holding the straps, then carefully lower the tank to access the pump assembly.
Cautions During Removal:
- Fuel Fumes: Work in a well-ventilated area and avoid open flames or sparks. Use non-sparking tools if possible.
- Tank Weight: The fuel tank can be heavy, especially if partially full. Use a transmission jack or a helper to support the tank during removal.
- Electrical Connections: Label or take photos of the wiring harness connections before disconnecting them to ensure proper reassembly.
Practical Tips for Success:
- If the tank is difficult to lower due to rust or debris, gently pry the straps with a flathead screwdriver or use penetrating oil to loosen stubborn bolts.
- Inspect the tank for corrosion or damage during removal. If the tank is compromised, consider replacing it instead of just the pump.
- After removing the tank, place it on a stable surface to access the pump module. Use a lock ring tool to remove the retaining ring and extract the pump assembly carefully.
By following these steps and precautions, you can safely remove the fuel tank on a 2004 Chrysler Sebring to access and replace the fuel pump, ensuring the vehicle’s fuel system operates efficiently.
Signs Your F250's Fuel Pump is Failing: Diagnosis Guide
You may want to see also
Explore related products
Identifying Fuel Pump Components in 2004 Sebring
The fuel pump in a 2004 Chrysler Sebring is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design requires accessing the fuel tank to inspect or replace the pump, which involves a series of steps that demand caution and precision. Before beginning, ensure the vehicle is on a level surface, the engine is cool, and the fuel system pressure is relieved to prevent accidents.
Identifying the fuel pump components begins with understanding the fuel tank’s layout. The tank is typically located beneath the rear seat in the 2004 Sebring, secured by straps and surrounded by protective shielding. To access it, start by removing the rear seat cushion, which often involves pressing release tabs or unscrewing bolts. Once the seat is removed, locate the fuel pump module access panel, usually a round or rectangular cover held in place by screws or clips. This panel provides direct access to the fuel pump assembly.
The fuel pump assembly consists of several key components: the electric fuel pump, the sending unit (which measures fuel level), and the fuel filter. The pump itself is a compact, cylindrical unit with electrical connectors and fuel lines attached. The sending unit is integrated into the pump module and features a float arm that moves with the fuel level. Inspect these components for signs of wear, corrosion, or damage, such as cracked lines or frayed wires. If the pump is faulty, it may exhibit symptoms like engine sputtering, difficulty starting, or a whining noise from the tank.
When replacing the fuel pump, compatibility is critical. Ensure the new pump matches the original in terms of flow rate, pressure, and electrical specifications. For the 2004 Sebring, the fuel pump typically operates at 3–5 psi and delivers 50–60 liters per hour, depending on the engine size. Always use a high-quality replacement part and follow the manufacturer’s torque specifications when reinstalling the module to avoid leaks or damage.
In summary, identifying fuel pump components in a 2004 Chrysler Sebring involves accessing the fuel tank, understanding the pump assembly’s layout, and inspecting each part for functionality. This process requires attention to detail and adherence to safety protocols to ensure a successful repair or replacement. By familiarizing yourself with these components, you can diagnose issues more effectively and maintain your vehicle’s fuel system with confidence.
Are Federal Mogul Fuel Pumps Reliable? A Comprehensive Review
You may want to see also
Explore related products
Tools Needed to Replace 2004 Sebring Fuel Pump
The 2004 Chrysler Sebring's fuel pump is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. Replacing it requires a specific set of tools to ensure the job is done safely and efficiently. Here’s a detailed breakdown of what you’ll need.
Essential Tools for the Job
To access the fuel pump, you’ll first need a jack and jack stands or a hydraulic lift to safely raise the vehicle and provide enough clearance to work underneath. A wrench set, including both standard and metric sizes, is crucial for removing bolts and clamps securing the fuel tank. Additionally, a screwdriver set (flathead and Phillips) will be necessary for various fasteners and components. A fuel line disconnect tool is highly recommended to safely detach the fuel lines without causing damage or leaks.
Specialized Equipment
A fuel pump module removal tool is essential for extracting the pump assembly from the tank. This tool ensures you don’t damage the locking ring or the tank itself. A torque wrench is also critical for reassembling components to factory specifications, preventing over-tightening that could lead to leaks or damage. If you’re working in a poorly lit area, a drop light or headlamp will make the process easier and safer.
Safety and Convenience Tools
Safety should never be overlooked. Nitrile gloves and safety goggles are mandatory to protect against fuel spills and debris. A drain pan is essential for catching any residual fuel when disconnecting the lines. For convenience, a ratcheting strap or bungee cords can help secure the fuel tank while you work, preventing accidental drops or shifts.
Optional but Helpful Tools
While not strictly necessary, a fuel pressure gauge can be useful for diagnosing pump issues before replacement. A trim removal tool can also come in handy for accessing the fuel pump access panel inside the vehicle, if applicable. Finally, a parts cleaner or degreaser can help prepare the area for a clean installation.
By gathering these tools beforehand, you’ll streamline the replacement process and minimize the risk of complications. Proper preparation ensures a smoother, safer, and more efficient repair.
Diagnosing Your 2006 Duramax CP Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump on a 2004 Chrysler Sebring is located inside the fuel tank, which is situated in the rear of the vehicle, underneath the trunk area.
To access the fuel pump, you need to remove the fuel tank. This involves lowering the tank from the vehicle, which requires disconnecting the fuel lines, electrical connectors, and support straps.
Yes, always relieve the fuel system pressure before working on the fuel pump. Additionally, ensure the vehicle is on a level surface, and use proper safety equipment to avoid fuel spills or fires.
No, the fuel pump is an integral part of the fuel tank assembly, so the tank must be removed to access and replace the pump.
