The fuel pump on a 2001 Chevrolet Suburban is typically located inside the fuel tank, a common placement for most modern vehicles to ensure the pump remains cooled by the fuel and to reduce the risk of ignition. To access the fuel pump, you’ll need to remove the fuel tank, which is usually mounted underneath the vehicle, near the rear axle. This process requires careful steps, including relieving fuel system pressure, disconnecting the battery, and safely lowering the tank to expose the pump assembly. Consulting the vehicle’s service manual or seeking professional assistance is recommended for accurate and safe replacement or inspection.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2001 Chevrolet Suburban |
| Fuel Pump Location | Inside the fuel tank |
| Fuel Tank Access | Beneath the vehicle, requires removing a protective cover or panel |
| Tank Shape | Rectangular, located along the chassis |
| Pump Type | Electric in-tank fuel pump |
| Access Difficulty | Moderate; requires lifting the vehicle or using a jack for easier access |
| Tools Needed | Jack, jack stands, wrenches, and possibly a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| **Replacement Considerations | Fuel tank must be lowered or removed for pump replacement |
| Common Issues | Pump failure due to age, contamination, or electrical faults |
| Diagnostic Symptoms | Engine stalling, difficulty starting, loss of power, whining noise from tank |
Explore related products
What You'll Learn
- Fuel Pump Location in Tank: 2001 Suburban's fuel pump is inside the fuel tank, accessed from underneath
- Accessing the Fuel Tank: Locate the tank under the vehicle, near the rear axle
- Removing the Fuel Pump: Disconnect battery, relieve pressure, and drop the tank for access
- Fuel Pump Module Assembly: The pump is part of a module with sender and float
- Safety Precautions: Work in well-ventilated area, avoid sparks, and use proper tools for removal
Fuel Pump Location in Tank: 2001 Suburban's fuel pump is inside the fuel tank, accessed from underneath
The 2001 Chevrolet Suburban, a stalwart of the SUV world, houses its fuel pump within the fuel tank, a design choice that offers both advantages and challenges for maintenance. This in-tank placement is a common feature in modern vehicles, including the Suburban, as it helps to keep the fuel pump cool and reduces the risk of fuel line vapor lock. However, it also means that accessing the pump for repairs or replacement requires a bit more effort compared to external fuel pump setups.
To access the fuel pump in a 2001 Suburban, you’ll need to work from underneath the vehicle. Start by ensuring the fuel tank is as empty as possible to minimize spillage and fire hazards. Safely raise the vehicle using a jack and secure it on stands. Locate the fuel tank, typically found in the center of the chassis, and identify the access panel or sending unit assembly on top of the tank. This assembly often includes the fuel pump, level sensor, and other components. Disconnect the negative battery terminal to prevent accidental electrical issues during the process.
Removing the fuel pump involves several steps. First, relieve the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the electrical connectors and fuel lines from the sending unit assembly. Be cautious with the fuel lines, as residual pressure or fuel may still be present. Once disconnected, remove the retaining ring or bolts securing the assembly to the tank. Carefully lift the assembly out, taking note of its orientation for reinstallation. This process requires patience and attention to detail to avoid damaging the tank or surrounding components.
Replacing the fuel pump in a 2001 Suburban is a task that, while not overly complex, demands precision and safety precautions. Always work in a well-ventilated area and avoid open flames or sparks. If you’re unsure about any step, consulting a repair manual or seeking professional assistance is advisable. Understanding the in-tank location and access procedure is crucial for anyone tackling this maintenance task, ensuring a successful and safe repair.
Do Kohler Engines Have Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Accessing the Fuel Tank: Locate the tank under the vehicle, near the rear axle
The fuel tank of a 2001 Suburban is strategically positioned under the vehicle, close to the rear axle, a design choice that balances weight distribution and safety. This location is not arbitrary; it ensures the tank is shielded by the vehicle’s underbody and away from high-impact zones in the event of a collision. To access it, you’ll need to crawl under the vehicle, preferably on a flat, stable surface, and locate the tank’s rectangular shape near the rear differential. This placement also minimizes the risk of fuel contamination from external elements, as the tank is less exposed to road debris compared to more forward positions.
Accessing the fuel tank requires a systematic approach to avoid damage or injury. Start by engaging the parking brake and using jack stands to secure the vehicle at a height that allows comfortable movement underneath. The tank is typically covered by a protective shield, which can be removed with basic hand tools like a socket wrench or screwdriver. Once exposed, you’ll notice the fuel pump module is integrated into the top of the tank, accessible through a panel or locking ring. Be cautious of residual fuel pressure; relieve it by removing the fuel pump fuse and running the engine until it stalls before proceeding.
Comparing this design to older models, the 2001 Suburban’s fuel tank location reflects advancements in automotive engineering. Earlier vehicles often placed the tank behind the rear axle or even in the rear cargo area, increasing fire risks in rear-end collisions. By situating the tank near the rear axle, GM prioritized safety without compromising fuel capacity. This layout also simplifies maintenance, as the pump module is more accessible than in designs where the tank is buried deeper within the chassis.
For DIY enthusiasts, replacing the fuel pump on a 2001 Suburban is a feasible task with the right tools and precautions. After accessing the tank, disconnect the electrical connectors and fuel lines, then remove the retaining ring to extract the pump module. Installation follows the reverse process, ensuring all seals are intact to prevent leaks. A pro tip: use a fuel line quick disconnect tool to avoid damaging the lines, and always work in a well-ventilated area to minimize fume exposure. This hands-on approach not only saves on labor costs but also deepens your understanding of your vehicle’s mechanics.
In conclusion, the fuel tank’s location near the rear axle on a 2001 Suburban is a thoughtful design that balances safety, accessibility, and functionality. Whether you’re troubleshooting a fuel pump issue or performing routine maintenance, understanding this layout empowers you to tackle the task with confidence. By following proper procedures and leveraging practical tips, even novice mechanics can navigate this critical component of their vehicle’s fuel system.
How to Check and Test Your Ford Fuel Pump Relay
You may want to see also
Explore related products
Removing the Fuel Pump: Disconnect battery, relieve pressure, and drop the tank for access
The fuel pump in a 2001 Suburban is located inside the fuel tank, a design common in many modern vehicles to keep the pump cool and improve reliability. This placement, while advantageous for performance, complicates the removal process, requiring careful steps to ensure safety and efficiency.
Steps to Remove the Fuel Pump:
- Disconnect the Battery: Begin by disconnecting the negative battery terminal to eliminate the risk of electrical sparks, which could ignite fuel vapors. Use a 10mm wrench and ensure the connection is fully separated.
- Relieve Fuel System Pressure: Locate the fuel pressure relief valve, typically near the fuel rail on the engine. Attach a pressure gauge and slowly depress the Schrader valve to release pressure. Alternatively, loosen the fuel line at the rail using a flare nut wrench, but be prepared for fuel spillage.
- Drop the Fuel Tank: Support the vehicle securely on jack stands, then remove the tank straps using a 15mm socket. Lower the tank gradually, being mindful of the fuel lines and wiring harness. Disconnect the pump’s electrical connector and fuel lines before fully removing the tank.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks. Use a drain pan to catch residual fuel when lowering the tank. If the tank is heavy, consider using a transmission jack for controlled lowering. Inspect the tank for corrosion or damage before proceeding, as weakened areas could compromise safety.
Removing the fuel pump on a 2001 Suburban is a systematic process that prioritizes safety and precision. By disconnecting the battery, relieving fuel pressure, and carefully dropping the tank, you can access the pump without unnecessary risks. This method ensures a controlled environment, reducing the likelihood of accidents while maintaining the integrity of the fuel system.
Bypassing Fuel Pump Relay in a 2003 Dodge Ram: A Guide
You may want to see also
Explore related products
Fuel Pump Module Assembly: The pump is part of a module with sender and float

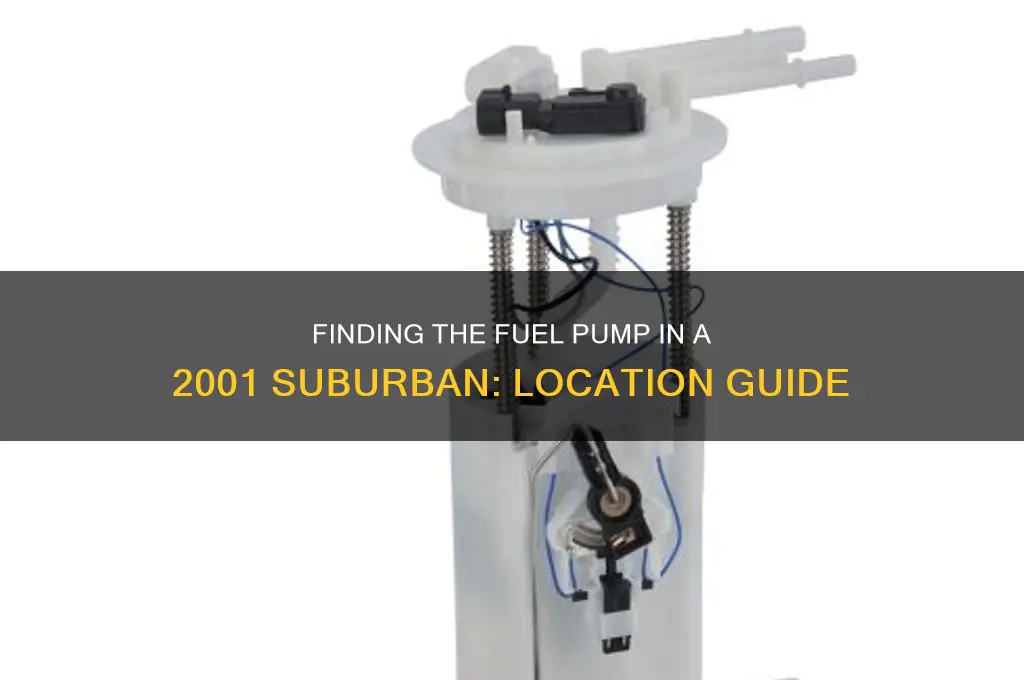

The fuel pump in a 2001 Suburban is not a standalone component but part of a larger fuel pump module assembly. This assembly is a self-contained unit that includes the pump, sender, and float, all housed within the fuel tank. Understanding this integrated design is crucial for diagnosis, maintenance, or replacement, as it simplifies the process by treating the system as a single unit rather than individual parts.
Analyzing the fuel pump module assembly reveals its efficiency in both function and repair. The sender unit measures fuel levels, while the float moves with the fuel’s surface to provide accurate readings to the fuel gauge. The pump itself ensures consistent fuel delivery to the engine. This modular design reduces the risk of misalignment or leaks during installation, making it a preferred setup in modern vehicles like the 2001 Suburban. When issues arise, such as a failing pump or inaccurate fuel gauge, replacing the entire module is often more cost-effective and time-efficient than repairing individual components.
For DIY enthusiasts or mechanics, accessing the fuel pump module assembly in a 2001 Suburban requires careful steps. First, relieve fuel system pressure by disconnecting the negative battery terminal and removing the fuel pump fuse or relay. Next, drain the fuel tank or siphon fuel to minimize spillage. Then, raise the vehicle securely and locate the fuel tank, typically beneath the rear seat. Remove the tank’s retaining straps and lower it enough to access the module. Disconnect the electrical connector and fuel lines, then unscrew the module’s locking ring to extract it. Always work in a well-ventilated area and avoid open flames or sparks due to fuel vapors.
Comparing the fuel pump module assembly to older designs highlights its advantages. In earlier vehicles, the pump, sender, and float were often separate components, requiring more complex installation and higher chances of error. The integrated module in the 2001 Suburban streamlines maintenance, reduces labor time, and minimizes potential points of failure. This evolution in design reflects broader automotive trends toward modularity and ease of service.
In conclusion, the fuel pump module assembly in a 2001 Suburban is a testament to efficient engineering. By combining the pump, sender, and float into a single unit, it simplifies diagnostics and repairs while ensuring reliable performance. Whether you’re troubleshooting fuel delivery issues or performing routine maintenance, understanding this assembly’s role and structure is key to keeping your Suburban running smoothly.
Step-by-Step Guide: Removing Fuel Pump from MK6 GTI Easily
You may want to see also
Explore related products
Safety Precautions: Work in well-ventilated area, avoid sparks, and use proper tools for removal
Locating and replacing the fuel pump on a 2001 Suburban requires careful attention to safety, as the task involves working with flammable materials in a confined space. One critical precaution is ensuring the work area is well-ventilated. Gasoline fumes are heavier than air and can accumulate in low-lying areas, increasing the risk of fire or explosion. Open windows, garage doors, or use a fan to maintain airflow, especially if working indoors. Avoid using heaters or air conditioners that could ignite fumes, and consider wearing a respirator if ventilation is limited.
Another essential safety measure is eliminating potential ignition sources. Fuel systems are highly flammable, and even a small spark can cause a dangerous situation. Before beginning, disconnect the vehicle’s battery to prevent accidental electrical discharge. Avoid using power tools with exposed sparks or open flames nearby. Opt for hand tools or non-sparking tools designed for use in explosive environments. Keep a fire extinguisher within reach as a precautionary measure, ensuring it is rated for fuel fires (Class B).
Using the proper tools for fuel pump removal is not just about efficiency—it’s about safety. Specialized tools like a fuel line disconnect tool or a pump module removal wrench minimize the risk of damaging fuel lines or the tank, which could lead to leaks. Attempting to force components apart with improper tools can cause cracks or disconnections, releasing fuel into the work area. Always refer to the vehicle’s service manual for recommended tools and procedures, and inspect all components for wear or damage before reassembly.
Finally, approach the task with a methodical mindset. Rushing increases the likelihood of mistakes, such as spilling fuel or mishandling components. Work deliberately, double-checking each step to ensure safety protocols are followed. If unsure about any part of the process, consult a professional or seek guidance from reliable automotive resources. Taking these precautions not only protects you but also ensures the longevity and reliability of your vehicle’s fuel system.
Understanding the 1972 Fuel Pump: Mechanics and Operation Explained
You may want to see also
Frequently asked questions
The fuel pump on a 2001 Suburban is located inside the fuel tank, which is situated underneath the vehicle, typically near the rear passenger side.
To access the fuel pump, you’ll need to safely raise the vehicle, remove the fuel tank’s protective shield, disconnect the fuel lines and electrical connectors, and then lower the tank to access the pump inside.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards. Additionally, ensure the fuel tank is as empty as possible to reduce weight and spill risks.
