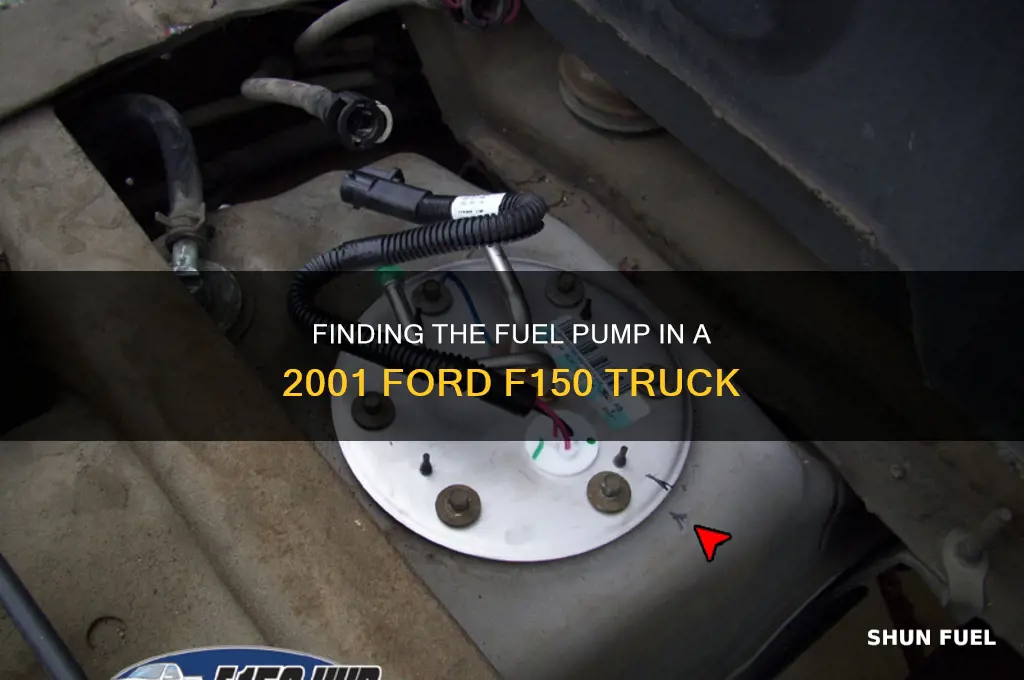

The fuel pump on a 2001 Ford F150 truck is typically located inside the fuel tank, a common placement for in-tank fuel pumps in modern vehicles. This design helps maintain fuel pressure and ensures a consistent supply to the engine. To access the fuel pump, you'll need to remove the fuel tank, which is usually mounted underneath the truck's bed, near the rear axle. It's important to relieve the fuel system pressure and disconnect the battery before attempting any repairs or maintenance on the fuel pump to ensure safety and prevent accidents.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access | Through an access panel on the top of the fuel tank |
| Tank Type | Single in-tank fuel pump |
| Fuel Pump Module | Includes pump, sender, and float assembly |
| Tank Capacity | Varies by model (typically 21-26 gallons) |
| Fuel Pump Replacement | Requires dropping the fuel tank for access |
| Common Issues | Fuel pump failure, clogged fuel filter, or faulty relay |
| Diagnostic Symptoms | Engine stalling, hard starting, or no start condition |
| Recommended Maintenance | Replace fuel filter every 30,000-50,000 miles |
| Tools Required for Replacement | Jack, jack stands, wrenches, and fuel line disconnect tools |
Explore related products
What You'll Learn
Fuel Pump Location in 2001 F150
The fuel pump in a 2001 Ford F150 is located inside the fuel tank, a common placement for many modern vehicles to protect the pump from external damage and maintain fuel pressure stability. This in-tank design requires accessing the fuel tank, typically situated beneath the truck bed, to inspect or replace the pump. Understanding this location is crucial for troubleshooting fuel delivery issues or performing maintenance tasks.
To access the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, locate the fuel tank, which is positioned under the rear of the truck bed, near the driver’s side. You’ll need to remove the bed or use a specialized access panel if available. Once the tank is exposed, disconnect the electrical connector and fuel lines, then lower the tank to access the pump assembly. This process requires basic tools like wrenches and a jack, but caution is essential to avoid fuel spills or electrical hazards.
Comparing the 2001 F150’s fuel pump location to earlier models highlights a shift in design. Older Ford trucks often featured external fuel pumps, mounted on the engine or frame, which were more accessible but prone to damage and temperature-related inefficiency. The in-tank design in the 2001 model improves reliability and performance, though it complicates replacement. This evolution underscores the importance of consulting model-specific guides for accurate maintenance procedures.
For DIY enthusiasts, replacing the fuel pump in a 2001 F150 is feasible with patience and preparation. Ensure the truck is on a level surface, and use a jack stand for safety. After lowering the tank, remove the retaining ring securing the pump assembly and install the new unit, ensuring all seals are intact. Reattach the fuel lines and electrical connector, then reattach the tank. Test the system for leaks and verify proper operation before driving. While the task is more involved than external pump replacements, it’s manageable with the right tools and precautions.
Finally, recognizing symptoms of a failing fuel pump can save time and prevent roadside breakdowns. Common signs include sputtering at high speeds, difficulty starting, or a whining noise from the tank. If these occur, inspect the pump promptly, as delays can lead to complete fuel delivery failure. Regularly checking fuel filter condition and addressing issues early can extend the pump’s lifespan, ensuring your 2001 F150 remains reliable for years to come.
Dual Fuel Pumps in 2003 Yamaha 115hp 4-Stroke Outboard: Why?
You may want to see also
Explore related products
Identifying Fuel Pump on F150
The fuel pump on a 2001 Ford F150 is a critical component nestled within the fuel tank, a design choice that keeps it cooled by the surrounding fuel. This in-tank location is a standard feature across most modern vehicles, including the F150, and is a significant departure from older models where fuel pumps were often mounted externally. Identifying the fuel pump in this setup requires a methodical approach, as it’s not immediately visible without accessing the fuel tank.
To locate the fuel pump, start by identifying the fuel tank itself, typically positioned beneath the rear seat or bed of the truck. The fuel pump module is integrated into the top of the tank, accessible through a dedicated service panel or by removing the tank entirely. For the 2001 F150, the module includes the pump, sending unit, and filter, all housed in a single assembly. A practical tip: use a fuel pressure gauge to test the pump’s functionality before disassembly, as symptoms like engine sputtering or failure to start can mimic pump issues but may stem from other causes.
Comparing the 2001 F150 to earlier models highlights the evolution of fuel pump design. Pre-2000 models often featured external pumps, which were more accessible but prone to overheating. The in-tank design of the 2001 model enhances reliability by immersing the pump in fuel, which acts as a coolant. However, this design also complicates replacement, requiring specialized tools and safety precautions due to the flammable nature of fuel.
When identifying the fuel pump, consider the vehicle’s symptoms. A failing pump may exhibit reduced fuel pressure, erratic engine behavior, or difficulty starting, especially after the engine warms up. Diagnostic tools like a multimeter or fuel pressure tester can confirm pump functionality before proceeding with removal. Always work in a well-ventilated area, disconnect the battery, and relieve fuel system pressure to minimize risks during inspection or replacement.
In conclusion, identifying the fuel pump on a 2001 Ford F150 involves understanding its in-tank location and the integrated module design. By combining diagnostic checks with knowledge of the vehicle’s layout, you can accurately pinpoint the pump and address issues efficiently. This approach not only saves time but also ensures safety, a critical aspect when dealing with fuel system components.
Where to Find Your Fuel Pump Control Module Location Guide
You may want to see also
Explore related products
Accessing Fuel Pump in F150
The fuel pump in a 2001 Ford F150 is located inside the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. This in-tank placement, while advantageous for performance, complicates access for maintenance or replacement. Understanding the exact location and the steps required to reach it is crucial for anyone attempting this task.
To access the fuel pump, start by relieving the fuel system pressure. Locate the pressure relief valve on the fuel rail, typically near the engine, and depress it using the appropriate tool. This step is critical to prevent fuel spray and potential hazards during the process. Once pressure is relieved, disconnect the negative battery terminal to ensure electrical safety. These initial precautions are non-negotiable and set the foundation for a safe repair.
Next, raise the truck and secure it on jack stands to gain access to the underside of the vehicle. The fuel tank is positioned along the chassis, usually near the rear axle. Identify the fuel pump module assembly, which is attached to the top of the tank. This assembly includes the pump, sending unit, and fuel lines. Removing the assembly requires dropping the tank partially or fully, depending on the clearance and your comfort level. Use a floor jack to support the tank while loosening the straps that hold it in place.
Once the tank is lowered, disconnect the electrical connector and fuel lines from the pump module. Be prepared for residual fuel to drain, so have a catch pan ready. The module is typically secured with a locking ring or retaining mechanism that requires a specialized tool for removal. After accessing the pump, inspect it for damage or wear before proceeding with replacement or repairs. Reinstallation follows the reverse process, ensuring all connections are secure and the tank is properly supported.
Accessing the fuel pump in a 2001 Ford F150 is a task that demands precision and safety awareness. While the in-tank location enhances performance, it requires methodical steps to avoid complications. By following these guidelines, even a novice can navigate the process with confidence, ensuring the fuel system operates reliably for years to come.
Mechanical Fuel Pump Cam: Do You Really Need It?
You may want to see also
Explore related products
Fuel Pump Placement in 2001 Model
The fuel pump in a 2001 Ford F-150 is located inside the fuel tank, a common placement for in-tank fuel pumps in modern vehicles. This design ensures that the pump operates submerged in fuel, which helps with cooling and reduces the risk of cavitation. To access the fuel pump, you’ll need to remove the fuel tank from the vehicle. Start by relieving the fuel system pressure, disconnecting the battery, and safely raising the truck to access the tank. Once the tank is lowered, you’ll find the fuel pump module secured to the top of it, typically held in place by a locking ring or retainer.
Analyzing this placement reveals both advantages and challenges. The in-tank design improves fuel efficiency and reduces noise compared to external pumps, as the fuel acts as a sound dampener. However, replacing the pump requires more labor-intensive steps, including draining the fuel tank and removing it from the vehicle. This contrasts with older models where external pumps were easier to access but less efficient. For DIY repairs, ensure you have a suitable workspace and safety equipment, as working with fuel systems carries risks of fire or fumes.
If you’re tackling this repair, consider replacing the fuel tank straps and filter at the same time, as these components often wear out concurrently. A typical fuel pump replacement kit for a 2001 F-150 includes the pump, sender unit, and float assembly. Costs for parts range from $150 to $300, depending on the brand, while labor can add $200 to $400 if done professionally. For those with moderate mechanical skills, this is a feasible weekend project, but always consult a repair manual or video tutorial for model-specific steps.
Comparing the 2001 F-150’s fuel pump placement to other Ford models highlights consistency across generations. Most Ford trucks from the late 1990s to mid-2000s share this in-tank design, making the repair process familiar for experienced mechanics. However, newer models often integrate the fuel pump with the sending unit more tightly, requiring specialized tools for removal. For the 2001 model, a standard socket set and fuel line disconnect tools are usually sufficient, making it a more accessible repair for enthusiasts.
Finally, a practical tip: before assuming the fuel pump is faulty, test for power at the pump’s connector using a multimeter. If power is present but the pump isn’t running, it’s likely the pump itself is bad. If no power is detected, the issue could be a blown fuse, faulty relay, or wiring problem. This diagnostic step can save time and money, ensuring you only replace what’s necessary. Always address fuel system issues promptly, as a failing pump can lead to stalling or poor performance, compromising safety on the road.
Understanding the Yamaha G1 Fuel Pump: Functionality and Operation Explained
You may want to see also
Explore related products
Locating F150 Fuel Pump Steps
The fuel pump on a 2001 Ford F150 is located inside the fuel tank, a common placement for in-tank fuel pumps in modern vehicles. This design helps maintain fuel pressure and reduces the risk of vapor lock, but it also means accessing the pump requires removing the tank. Before diving into the steps, ensure you have the necessary tools: a jack, jack stands, wrenches, and a new fuel pump if you plan to replace it. Safety first—work in a well-ventilated area, and relieve the fuel system pressure before starting.
Step 1: Prepare the Vehicle
Park the truck on a flat surface, engage the parking brake, and use wheel chocks for added safety. Disconnect the battery to prevent electrical accidents. Locate the fuel tank, which sits beneath the truck’s rear seat area. Use a jack to lift the vehicle and secure it on jack stands for better access. Remove the fuel tank shield if equipped, typically held by a few bolts or screws.
Step 2: Relieve Fuel Pressure
Before removing the tank, relieve the fuel system pressure to avoid spills or accidents. Locate the fuel pressure relief valve, often found on the fuel rail near the engine. Attach a pressure gauge and slowly depress the Schrader valve to release pressure. If your model lacks a relief valve, carefully disconnect the fuel lines at the tank, but be prepared for some fuel spillage.
Step 3: Disconnect and Remove the Fuel Tank
Disconnect the fuel lines, electrical connectors, and vent hoses from the tank. Use a wrench to loosen the fuel tank straps, then carefully lower the tank to the ground. Place a drain pan under the tank to catch any residual fuel. Once removed, locate the fuel pump assembly, which is accessed by unscrewing the tank’s locking ring with a specialized tool.
Step 4: Access and Replace the Fuel Pump
With the tank open, remove the locking ring and carefully lift out the fuel pump assembly. Inspect the pump and filter for damage or wear. If replacing, install the new pump, ensuring the seal is intact and the locking ring is tightened securely. Reinstall the tank in reverse order, reconnecting all lines and electrical connectors.
Cautions and Tips
Always work with caution when handling fuel systems to avoid fires or spills. If you’re unsure about any step, consult a repair manual or seek professional assistance. Keep a fire extinguisher nearby as a precaution. After installation, check for leaks and ensure the fuel system is properly pressurized before starting the engine.
By following these steps, you can successfully locate and service the fuel pump on your 2001 Ford F150, ensuring your truck runs smoothly and efficiently.
Why Your Fuel Pump Overheats: Causes and Solutions Explained
You may want to see also
Frequently asked questions
The fuel pump on a 2001 Ford F150 is located inside the fuel tank, which is situated beneath the truck bed, near the driver's side rear wheel.
To access the fuel pump, you’ll need to remove the truck bed or drop the fuel tank. It’s recommended to relieve fuel system pressure and disconnect the battery before starting the process.
Common signs of a failing fuel pump include difficulty starting the engine, sputtering at high speeds, loss of power, or a whining noise from the fuel tank area.
Replacing the fuel pump involves working with the fuel system, which can be dangerous. While it’s possible to do it yourself with the right tools and knowledge, hiring a professional is recommended for safety and to ensure the job is done correctly.
