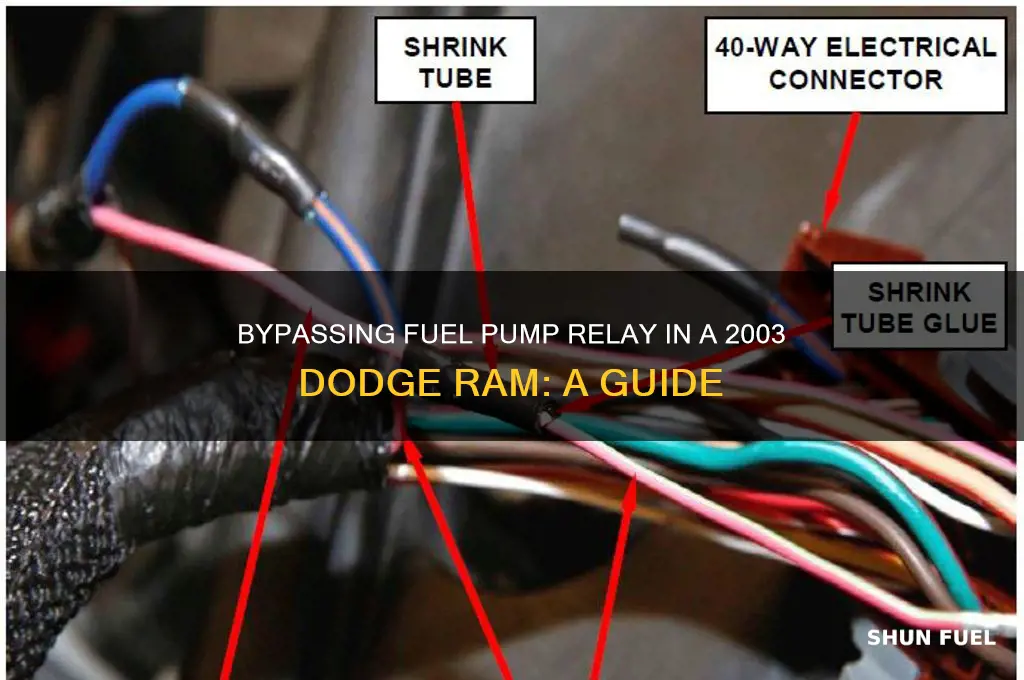

Bypassing the fuel pump relay on a 2003 Dodge Ram can be a temporary solution to diagnose fuel delivery issues or to keep the vehicle running in an emergency. This process involves directly powering the fuel pump by connecting the battery's positive terminal to the fuel pump's power wire, typically located at the fuel pump connector or relay socket. However, it’s crucial to exercise caution, as bypassing the relay bypasses safety features and can pose risks if not done correctly. Always ensure the ignition is off before making any connections, and consider this a short-term fix while arranging for proper repairs. Consult a repair manual or seek professional assistance for a safe and accurate procedure.
Explore related products
What You'll Learn
- Identify Relay Location: Locate the fuel pump relay in the 2003 Dodge Ram's fuse box
- Test Relay Functionality: Use a multimeter to check if the relay is functioning properly
- Bypass with Wire: Connect a jumper wire directly from the battery to the fuel pump
- Use a Switch: Install a manual switch to control the fuel pump independently of the relay
- Check Fuse and Ground: Ensure the fuel pump fuse is intact and the ground connection is secure
Identify Relay Location: Locate the fuel pump relay in the 2003 Dodge Ram's fuse box
The 2003 Dodge Ram's fuel pump relay is a critical component in the vehicle's fuel system, and identifying its location is the first step in any bypass or troubleshooting process. This relay is typically housed within the fuse box, a centralized hub for various electrical components. Locating it requires a methodical approach, as the fuse box can be a maze of similar-looking relays and fuses.
Analyzing the Fuse Box Layout: The fuse box in a 2003 Dodge Ram is often located under the hood, near the battery or along the firewall. It’s a rectangular or square-shaped unit with a removable cover. Inside, you’ll find rows of fuses and relays, each labeled with a diagram or chart on the cover. The fuel pump relay is usually labeled as “FUEL PUMP” or “FP.” However, if the labels are faded or missing, cross-referencing with the vehicle’s manual or online diagrams is essential. For instance, in many 2003 Ram models, the fuel pump relay is positioned in the top row, second from the left, though this can vary based on the specific trim or engine configuration.
Practical Steps to Locate the Relay: Start by ensuring the vehicle is turned off and the keys are removed to avoid electrical hazards. Open the hood and locate the fuse box. Remove the cover and compare the layout with the diagram provided in the owner’s manual or a reliable online source. If the relay is not immediately identifiable, use a multimeter to test for continuity or power at each relay slot when the ignition is turned on. The fuel pump relay will show activity during this test, as it activates the fuel pump when the engine is started. This methodical approach ensures accuracy, especially in older vehicles where wear and tear may have obscured labels.
Cautions and Considerations: While locating the fuel pump relay, avoid touching other components unnecessarily, as this can lead to accidental disconnections or damage. Be mindful of the relay’s orientation when removing it, as relays are often polarity-specific. If you’re unsure, take a photo of the fuse box before starting to document the original positions of all components. Additionally, working in a well-lit area with proper tools, such as a fuse puller or needle-nose pliers, can make the process smoother and safer.
Takeaway for DIY Enthusiasts: Identifying the fuel pump relay in a 2003 Dodge Ram’s fuse box is a straightforward task with the right tools and knowledge. It’s a foundational step for bypassing the relay or diagnosing fuel system issues. By combining visual inspection with technical verification, even novice mechanics can confidently locate this critical component. Remember, accuracy in this step sets the stage for successful troubleshooting or modifications, ensuring your vehicle’s fuel system operates reliably.
Step-by-Step Guide to Bleeding a Roosa Master Fuel Pump
You may want to see also
Explore related products
Test Relay Functionality: Use a multimeter to check if the relay is functioning properly
Before attempting to bypass the fuel pump relay on a 2003 Dodge Ram, it’s critical to confirm whether the relay itself is faulty. A malfunctioning relay can mimic symptoms of a failing fuel pump, such as no-start conditions or erratic engine behavior. Testing the relay with a multimeter is a precise, cost-effective way to diagnose the issue before resorting to bypass methods, which can be risky if the relay isn’t the problem.
To test the relay, start by locating it in the under-hood fuse box. Consult the vehicle’s manual or a diagram to identify the fuel pump relay, typically labeled as "FUEL PUMP" or "FP." Remove the relay by pulling it straight out of its socket. A multimeter set to the ohms (resistance) setting is your primary tool here. With the relay removed, inspect its terminals—usually four or five pins. Focus on the coil terminals (often pins 85 and 86) and the power output terminals (pins 30 and 87).
Place the multimeter probes on the coil terminals to check for continuity. A functional relay should show infinite resistance (open circuit) when the coil is inactive. Next, apply 12 volts to the coil terminals (using a battery or jumper wires) and retest. The resistance should drop to near zero, indicating the internal switch has closed. If this doesn’t occur, the relay is defective. Repeat the process for the power output terminals: with the coil energized, there should be continuity between pins 30 and 87. No continuity suggests a broken internal connection, confirming relay failure.
A common mistake is misidentifying relay terminals or using the wrong multimeter setting. Always double-check the relay’s pin configuration and ensure the multimeter is set to resistance mode. If testing reveals a faulty relay, replacement is straightforward—install a new relay of the same part number. However, if the relay tests good, the issue likely lies elsewhere, such as the fuel pump itself, wiring, or the PCM. Bypassing a functional relay risks damage to the fuel pump or electrical system, underscoring the importance of accurate diagnosis.
In summary, testing the fuel pump relay with a multimeter is a critical step in troubleshooting a 2003 Dodge Ram’s fuel system. It eliminates guesswork, prevents unnecessary repairs, and ensures bypass methods are only used when justified. With clear steps and attention to detail, this test transforms a complex issue into a manageable task, saving time and potential repair costs.
Choosing the Right GPH Fuel Pump for 550 HP Engines
You may want to see also
Explore related products
Bypass with Wire: Connect a jumper wire directly from the battery to the fuel pump
Bypassing the fuel pump relay in a 2003 Dodge Ram by connecting a jumper wire directly from the battery to the fuel pump is a straightforward but risky method. This approach effectively circumvents the relay, delivering constant power to the fuel pump. It’s a temporary fix often used to diagnose whether the relay is the root of fuel delivery issues. However, it’s not a long-term solution due to the potential for overheating, excessive fuel pressure, or draining the battery. Always treat this as a diagnostic step, not a permanent repair.
To execute this bypass, locate the fuel pump connector near the fuel tank. Identify the power wire, typically a thick, insulated wire leading to the pump. Strip both ends of a jumper wire and connect one end to the positive battery terminal, ensuring a secure connection. Attach the other end to the fuel pump’s power wire, using electrical tape or heat shrink to insulate the connection. Start the engine briefly to test if the pump operates. If it does, the relay is likely faulty, but further investigation is necessary to confirm.
While this method is simple, it comes with significant cautions. Running the fuel pump continuously can cause it to overheat, reducing its lifespan. Additionally, bypassing the relay eliminates the safety features it provides, such as shutting off power in a collision. Never leave the jumper wire connected for extended periods, as it can drain the battery or create a fire hazard. Always prioritize safety by wearing gloves, ensuring the vehicle is off during connections, and working in a well-ventilated area.
Comparatively, this bypass is quicker than replacing the relay but lacks the reliability of a proper repair. It’s akin to using a bandage on a wound that needs stitches—effective temporarily but insufficient long-term. For a 2003 Dodge Ram, the fuel pump relay is typically located in the under-hood fuse box, and replacing it is a more sustainable solution. However, if parts are unavailable or time is critical, this bypass can pinpoint the issue, guiding you toward the correct repair.
In conclusion, bypassing the fuel pump relay with a jumper wire is a practical diagnostic tool for a 2003 Dodge Ram. It’s quick, requires minimal tools, and provides immediate feedback on relay functionality. Yet, its risks and limitations demand caution. Use it sparingly, focus on safety, and always follow up with a proper repair to ensure your vehicle’s reliability and safety.
Understanding the Fuel Pump System in a 1991 GMC Sonoma
You may want to see also
Explore related products
Use a Switch: Install a manual switch to control the fuel pump independently of the relay
Installing a manual switch to bypass the fuel pump relay in a 2003 Dodge Ram offers direct control over the fuel pump, circumventing potential relay failures. This method is particularly useful for diagnostic purposes or as a temporary fix when the relay malfunctions. Begin by locating the fuel pump wiring harness, typically found under the rear seat or in the trunk area, depending on the model. Identify the power wire leading to the fuel pump, usually a thick, insulated wire. Disconnect this wire from the relay and connect it to a heavy-duty toggle switch rated for the pump’s amperage, often 10-20 amps. Mount the switch in an accessible location, such as the dashboard or under the hood, ensuring it’s within easy reach for testing or emergency use.
While this approach provides immediate control, it requires careful execution to avoid safety risks. Always use a switch with a fuse holder inline to protect the circuit from overcurrent. A 15-amp fuse is commonly recommended for most fuel pumps, but verify the exact amperage in your vehicle’s manual. Ground the switch securely to the chassis to prevent electrical shorts. Test the setup by turning the ignition to the "on" position and flipping the switch to activate the pump. Listen for the pump’s hum, which confirms proper operation. This method is not a long-term solution but serves as a reliable diagnostic tool or temporary fix.
Comparatively, bypassing the relay with a switch is simpler than replacing the entire relay module, which can be costly and time-consuming. However, it lacks the automated safety features of the original relay, such as shutting off the pump during ignition shutdown. For this reason, it’s crucial to exercise caution and only use the switch when necessary. Avoid leaving the pump running continuously, as this can drain the battery or cause fuel system issues. This method is best suited for troubleshooting or emergency scenarios, not everyday driving.
In practice, this bypass technique is favored by DIY enthusiasts and mechanics for its simplicity and effectiveness. It allows for direct testing of the fuel pump without relying on the relay’s functionality, isolating potential issues in the electrical system. For instance, if the pump operates with the switch but not through the relay, the relay is likely the culprit. However, always address the root cause of the relay failure rather than relying indefinitely on the manual switch. Proper installation and usage ensure this workaround remains safe and practical.
Accessing the Fuel Pump in Your 2000 Oldsmobile Alero: A Guide
You may want to see also
Explore related products
Check Fuse and Ground: Ensure the fuel pump fuse is intact and the ground connection is secure
Before attempting any bypass, it's crucial to verify the integrity of the fuel pump fuse and ground connection. A blown fuse or loose ground can mimic relay failure, leading to unnecessary repairs. The 2003 Dodge Ram's fuel pump fuse is typically located in the Integrated Power Module (IPM) under the hood, often labeled as "Fuel Pump" or "FP." Consult your owner's manual for the exact location and amperage rating, usually around 20 amps.
Inspection Process: Begin by locating the IPM and identifying the fuel pump fuse. Use a fuse puller or needle-nose pliers to extract the fuse carefully. Visually inspect the fuse for signs of damage, such as a broken filament or discoloration. If the fuse appears intact, test its continuity using a multimeter set to the ohms (Ω) or continuity setting. A reading of 0-2 ohms indicates a good fuse, while an open circuit (OL or infinite resistance) suggests a blown fuse. Replace the fuse if necessary, ensuring the correct amperage rating to prevent electrical hazards.
A secure ground connection is equally vital for proper fuel pump operation. The ground point is often located near the fuel tank or on the vehicle's chassis. Inspect the ground wire for corrosion, damage, or loose connections. Clean the ground point and wire terminal using a wire brush or sandpaper to remove any oxidation or debris. Reattach the ground wire securely, ensuring a tight connection. If the ground wire is damaged, consider replacing it with a suitable gauge wire, typically 12-14 AWG for most automotive applications.
Real-world Application: Imagine a scenario where your 2003 Dodge Ram fails to start, and initial diagnostics point to a faulty fuel pump relay. Before bypassing the relay, checking the fuse and ground can save time and money. In one case, a technician found a corroded ground wire causing intermittent fuel pump operation. After cleaning the ground point and reattaching the wire, the fuel pump functioned correctly without requiring a relay bypass. This simple inspection prevented an unnecessary repair and highlighted the importance of thorough diagnostics.
In summary, verifying the fuel pump fuse and ground connection is a critical step in troubleshooting a 2003 Dodge Ram's fuel pump issues. By following a systematic inspection process, you can identify and rectify common problems, ensuring a reliable and safe repair. Remember, a blown fuse or loose ground can cause symptoms similar to a faulty relay, making this step indispensable in your diagnostic arsenal. Always prioritize safety and consult professional resources when in doubt.
Understanding the Fuel Pump System in a 1993 Ford F150
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the Power Distribution Center (PDC) under the hood. It’s often labeled as "FUEL PUMP" or "RELAY 1." Refer to your owner’s manual for the exact location.
Yes, you can temporarily bypass the relay by connecting the fuel pump directly to the battery using a fused wire. However, this is not a long-term solution and should only be done for diagnostic purposes.
You’ll need basic tools like a screwdriver, wire strippers, electrical tape, and a fused wire. Ensure the vehicle is off and the battery is disconnected before starting.
Yes, bypassing the relay can cause the fuel pump to run continuously, leading to overheating or premature failure. It also removes safety features, increasing the risk of fire or electrical damage. Always address the root issue instead of relying on a bypass.
