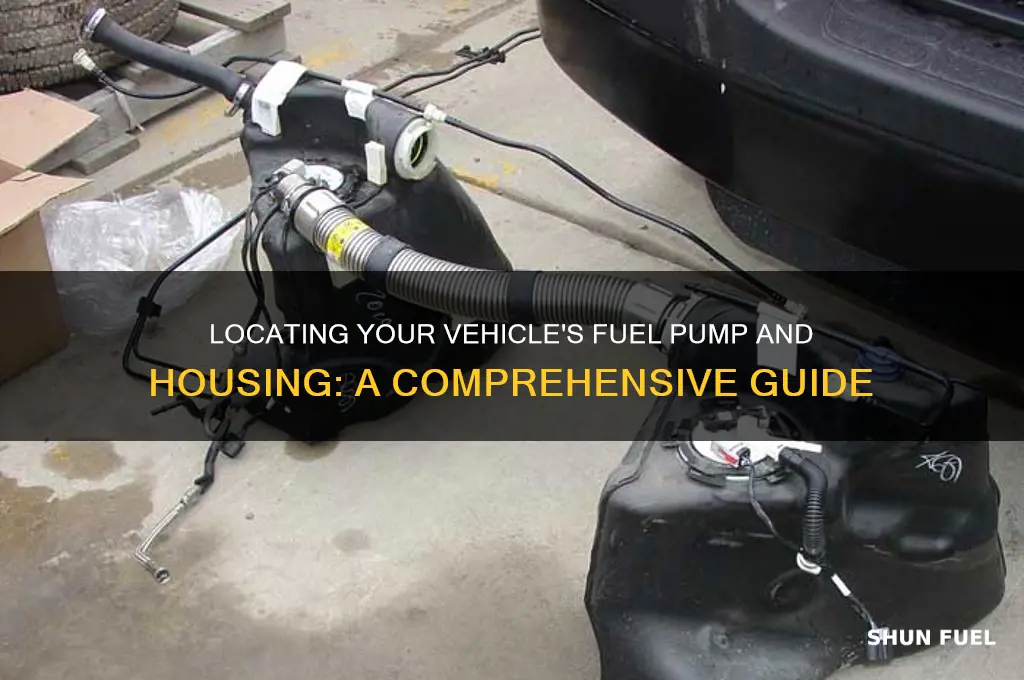

The fuel pump and housing are critical components of a vehicle's fuel system, responsible for delivering fuel from the tank to the engine. Typically located inside the fuel tank in modern vehicles, the fuel pump is housed within a protective casing known as the fuel pump housing, which also contains other components like the fuel filter and pressure regulator. This setup ensures efficient fuel delivery while minimizing the risk of contamination or damage. Understanding the location and function of the fuel pump and housing is essential for maintenance, troubleshooting, and ensuring optimal vehicle performance.
Explore related products
$15.99 $18.99
What You'll Learn
Fuel Pump Location by Vehicle Make
The fuel pump's location varies significantly across vehicle makes, often tied to engineering priorities like safety, accessibility, and space optimization. For instance, in most Toyota models (e.g., Camry, Corolla), the fuel pump is integrated into the fuel tank, a design that reduces fire risk by keeping flammable components away from hot engine areas. This in-tank placement is common in many Japanese vehicles, including Honda and Nissan, where it’s paired with a quick-release access panel under the rear seat for maintenance. In contrast, older Ford and GM vehicles often housed the fuel pump externally, near the tank or along the chassis, though modern models like the Ford F-150 and Chevy Silverado have shifted to in-tank designs for improved efficiency.
European manufacturers take a slightly different approach. BMW and Mercedes-Benz typically locate the fuel pump inside the tank but incorporate advanced diagnostics and high-pressure systems to support their turbocharged engines. For example, the BMW 3 Series uses a dual-pump setup for better fuel delivery under high-load conditions. Volkswagen and Audi, on the other hand, often place the pump in the tank but include additional filters and strainers to protect the pump from debris, a feature critical for their direct-injection engines. These variations highlight how vehicle make influences not just the pump’s location but also its design and functionality.
For Jeep and other off-road vehicles, fuel pump placement is driven by durability and terrain considerations. The Jeep Wrangler, for instance, positions the pump inside the tank but adds extra shielding to protect against impacts from rocks or debris. Similarly, Subaru, known for its all-wheel-drive systems, places the pump in the tank but ensures it’s compatible with the vehicle’s symmetrical drivetrain layout. These adaptations demonstrate how off-road and all-weather capabilities shape fuel system design.
When diagnosing or replacing a fuel pump, knowing the make-specific location saves time and reduces errors. For Hyundai and Kia vehicles, the pump is typically accessed by removing the rear seat and a protective cover, a straightforward process that requires a 10mm socket and basic tools. In Chrysler models like the Dodge Ram, the pump may be located outside the tank near the rear axle, requiring a jack and safety stands for access. Always disconnect the battery before working on the fuel system to prevent sparks, and use a pressure gauge to test the system post-replacement. Understanding these make-specific nuances ensures efficient repairs and minimizes safety risks.
Finally, electric vehicles (EVs) like Tesla eliminate the fuel pump entirely, replacing it with a battery-powered system. However, hybrid vehicles like the Toyota Prius retain a fuel pump for the gasoline engine, typically located in the tank, alongside the electric motor and battery pack. This hybrid design showcases how fuel pump location evolves with powertrain technology. Whether you’re working on a traditional combustion engine or a hybrid, knowing the make-specific location is key to effective maintenance and troubleshooting.
RAM 50 Electric Choke & Fuel Pump Wiring Guide: Optimal Locations
You may want to see also
Explore related products
Identifying Fuel Pump Housing Components
The fuel pump housing is a critical component in modern vehicles, often integrated into the fuel tank to ensure efficient fuel delivery to the engine. Identifying its components requires a systematic approach, starting with locating the fuel tank itself, typically beneath the rear seat or cargo area in most cars. Once accessed, the housing is usually a modular unit comprising the pump, sender unit, and filter. Understanding these parts is essential for maintenance, as wear or damage can lead to poor engine performance or stalling.
Analyzing the housing reveals its complexity. The fuel pump, often electric, is the core component, drawing fuel from the tank and pressurizing it for injection into the engine. Adjacent to it is the sender unit, which measures fuel levels and transmits data to the vehicle’s gauge. The filter, integrated into the assembly, traps contaminants to protect the pump and engine. These components are interconnected via hoses, electrical connectors, and a mounting flange, which secures the unit to the tank. Recognizing their layout is crucial for troubleshooting, as issues like clogged filters or faulty senders are common.
To identify these components effectively, follow a step-by-step process. First, disconnect the battery to prevent electrical hazards. Then, relieve fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it. Next, access the fuel tank by removing the rear seat or trunk lining, depending on the vehicle. Once exposed, the housing is typically secured by a locking ring or bolts. Carefully detach electrical connectors and fuel lines, noting their positions for reassembly. Inspect each component for signs of wear, such as cracks in the housing or debris in the filter, and replace as necessary.
A comparative analysis highlights differences across vehicle models. In older vehicles, the fuel pump might be external, mounted near the tank or inline with the fuel lines. Modern designs favor in-tank pumps for better cooling and efficiency. Additionally, diesel vehicles often feature higher-pressure pumps and robust filters to handle thicker fuel. Understanding these variations ensures accurate identification and maintenance, tailored to the specific vehicle’s design.
Practically, regular inspection of the fuel pump housing can prevent costly repairs. For instance, a failing pump may exhibit symptoms like whining noises, reduced power, or difficulty starting. If replacing components, use OEM parts for compatibility and longevity. DIY enthusiasts should exercise caution, as working with fuel systems carries risks of fire or explosion. Always work in a well-ventilated area, avoid open flames, and use non-sparking tools. By mastering the identification and maintenance of these components, vehicle owners can ensure reliable performance and extend the lifespan of their fuel system.
Can Your Car Operate Without a Fuel Pump? Find Out Here
You may want to see also
Explore related products
Accessing the Fuel Pump in Tank
The fuel pump in most modern vehicles is located inside the fuel tank, a design choice that improves safety by reducing the risk of fuel leaks and fires. This placement, however, makes accessing the pump for maintenance or replacement a more complex task compared to older vehicles where the pump was external. Understanding the steps and precautions involved is crucial for anyone attempting this repair.
Steps to Access the Fuel Pump:
- Safety First: Before starting, ensure the vehicle is on a flat surface, the engine is off, and the fuel system is depressurized. This can typically be done by locating the fuel pump relay in the fuse box and removing it, then starting the engine to drain any residual pressure. Allow the engine to stall naturally.
- Remove the Fuel Tank: Begin by relieving the fuel system pressure as mentioned. Then, disconnect the negative battery terminal to prevent accidental ignition. Locate the fuel tank, which is usually beneath the rear seat or trunk area. Remove any protective covers or panels to access the tank. Disconnect the fuel lines and electrical connectors attached to the tank. Use a floor jack to support the tank, then remove the mounting straps or bolts to lower it safely.
- Extract the Fuel Pump Module: Once the tank is removed, place it on a stable surface. Identify the fuel pump module, which is typically secured by a locking ring or bolts. Use the appropriate tool to remove the locking ring or bolts, being careful not to damage the tank. Lift the module out of the tank, taking note of its orientation for reassembly.
- Inspect and Replace: With the module removed, inspect the fuel pump, sender unit, and filter for signs of wear or damage. If replacement is necessary, install the new pump and components, ensuring all seals and gaskets are intact. Reassemble the module and prepare it for reinstallation.
Cautions and Tips:
- Fuel Handling: Always work in a well-ventilated area and avoid open flames or sparks. Use a fuel line disconnect tool to minimize spills and wear safety goggles and gloves.
- Tank Support: When lowering the fuel tank, ensure it is adequately supported to prevent damage to the tank or surrounding components. Use a jack or stands as needed.
- Electrical Connections: Double-check all electrical connections before reassembly to avoid issues with the fuel gauge or pump operation.
Accessing the fuel pump in the tank requires careful planning and execution. By following these steps and precautions, you can safely perform this task, ensuring your vehicle’s fuel system remains reliable and efficient. Always consult the vehicle’s manual for specific details related to your make and model.
Delphi Fuel Pumps: Performance, Reliability, and User Ratings Explained
You may want to see also
Explore related products
External Fuel Pump Mounting Positions
When selecting an external fuel pump mounting position, consider factors like vibration, heat, and environmental exposure. Vibration from the chassis can damage the pump over time, so use rubber isolators or mounts to dampen movement. Heat from exhaust systems or braking components can degrade fuel pump performance, so maintain a safe distance from these sources. Additionally, protect the pump from road debris and moisture by choosing a location shielded by the vehicle’s underbody or using a protective housing. For instance, mounting the pump behind the fuel tank or within a custom enclosure can extend its lifespan.
Comparing external mounting positions reveals trade-offs between accessibility and safety. Mounting the pump near the fuel tank simplifies fuel line routing and reduces the risk of leaks, but it may be harder to reach during maintenance. Conversely, placing the pump closer to the engine bay improves accessibility but increases exposure to heat and contaminants. In racing applications, pumps are often mounted in the trunk or rear cargo area for quick access and to keep them away from high-temperature zones. Evaluate your vehicle’s layout and intended use to strike the right balance.
For DIY enthusiasts, installing an external fuel pump requires careful planning and adherence to safety standards. Start by identifying a suitable mounting location that aligns with the fuel tank and engine bay. Use stainless steel or coated hardware to secure the pump, as these materials resist corrosion from fuel and environmental factors. Route fuel lines with minimal bends to reduce pressure loss, and ensure all connections are sealed with proper gaskets or clamps. Test the system for leaks before driving, and periodically inspect the pump and lines for wear or damage. Following these steps ensures a reliable and safe fuel delivery system.
In conclusion, external fuel pump mounting positions demand thoughtful consideration of performance, safety, and practicality. By choosing a location that minimizes vibration, heat, and exposure while balancing accessibility, you can maximize the pump’s efficiency and longevity. Whether for daily driving or high-performance applications, understanding these principles allows for informed decisions that enhance your vehicle’s fuel system reliability.
Understanding Fuel Pump Noise: Optimal Sound Levels for Your Vehicle
You may want to see also
Explore related products
$289.12
Common Fuel Pump Housing Failure Signs
The fuel pump and its housing are critical components in a vehicle's fuel delivery system, typically located within the fuel tank. This setup ensures a steady supply of fuel to the engine under the correct pressure. However, the housing, which protects and secures the pump, can degrade over time, leading to performance issues. Recognizing the signs of failure early can prevent costly repairs and ensure vehicle reliability.
One of the first indicators of fuel pump housing failure is an unusual noise coming from the fuel tank area. A whining or humming sound that intensifies during acceleration or when the fuel level is low suggests the housing may be cracked or the pump is operating inefficiently. This noise often occurs because the housing is no longer providing adequate support or insulation for the pump, allowing vibrations to resonate more loudly. If you notice such sounds, it’s crucial to inspect the housing for cracks or damage, especially in older vehicles where material fatigue is more likely.
Another common sign is a sudden drop in fuel efficiency or engine performance. A failing housing can cause fuel leaks or allow contaminants to enter the system, disrupting the pump’s ability to deliver fuel consistently. For instance, a cracked housing might permit debris from the tank to clog the pump or fuel lines, leading to sputtering, stalling, or difficulty starting the engine. Monitoring fuel consumption and noting any abrupt changes can help identify housing issues before they escalate. Regularly checking for fuel odors or visible leaks around the tank area is also advisable.
In some cases, a malfunctioning housing can trigger the check engine light due to irregular fuel pressure readings. Modern vehicles have sensors that detect deviations in fuel delivery, which can illuminate the dashboard warning light. While this symptom can stem from various issues, a compromised housing is a frequent culprit, particularly if other signs like noise or performance loss are present. Using a diagnostic tool to read error codes can provide more insight, but a physical inspection of the housing remains essential for confirmation.
Preventive maintenance is key to avoiding fuel pump housing failure. For vehicles over 10 years old or with high mileage, periodic inspections of the fuel tank and housing are recommended. Replacing the housing during a fuel pump replacement can also be a proactive measure, as both components often wear at similar rates. Additionally, using high-quality fuel and avoiding low fuel levels can reduce strain on the system, prolonging the housing’s lifespan. By staying vigilant and addressing early warning signs, drivers can maintain optimal fuel system performance and avoid unexpected breakdowns.
Rebuilding Your 10 HP Evinrude Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump is typically located inside the fuel tank in most modern vehicles. This design helps maintain fuel pressure and ensures a consistent supply of fuel to the engine.
The fuel pump housing is a protective casing that encloses the fuel pump and related components. It prevents fuel leaks, shields the pump from debris, and ensures proper mounting within the fuel tank.
In some vehicles, the fuel pump and housing can be accessed through an access panel on the top of the fuel tank, eliminating the need to remove the entire tank. However, this depends on the vehicle's design.
Common signs include engine sputtering, difficulty starting the vehicle, loss of power, or unusual noises coming from the fuel tank. If the housing is damaged, you may notice fuel leaks or a strong gasoline odor.
