The fuel pump driver module (FPDM) in a Ford Taurus is a critical component responsible for controlling the fuel pump’s operation, ensuring proper fuel delivery to the engine. Located in different positions depending on the model year, the FPDM is commonly found near the fuel tank, often mounted on the chassis or within the rear quarter panel area. For example, in many 2000–2007 Ford Taurus models, it is situated behind the left rear wheel well, accessible by removing the interior trunk panel or wheel liner. Identifying its exact location requires consulting the vehicle’s service manual or verifying the specific year and trim of the Taurus, as newer models may integrate the FPDM into the fuel tank assembly or place it in a more concealed area for protection. Properly locating the FPDM is essential for diagnosing fuel system issues, such as pump failure or electrical faults, and ensuring safe and efficient repairs.
| Characteristics | Values |
|---|---|
| Location | Behind the left side of the dashboard, near the firewall or under the hood (varies by model year) |
| Model Years Affected | Primarily 2000–2007 Ford Taurus models |
| Purpose | Controls the fuel pump relay and monitors fuel system pressure |
| Symptoms of Failure | No-start condition, engine stalling, or erratic fuel gauge readings |
| Access Difficulty | Moderate to difficult; may require removing interior panels or components |
| Replacement Cost | $100–$300 (part and labor, depending on location and mechanic rates) |
| Part Number (Reference) | Varies by model year (e.g., 3W7Z-9396-AA for some models) |
| Diagnostic Codes | P0232 (Fuel Pump Secondary Circuit High) or P1233 (Fuel Pump Circuit Low) |
| Common Misdiagnosis | Often mistaken for a faulty fuel pump or relay |
| DIY Repair Feasibility | Low to moderate; requires intermediate mechanical skills |
| Alternative Names | Fuel Pump Driver Module (FPDM) or Fuel Pump Control Module |
Explore related products
What You'll Learn

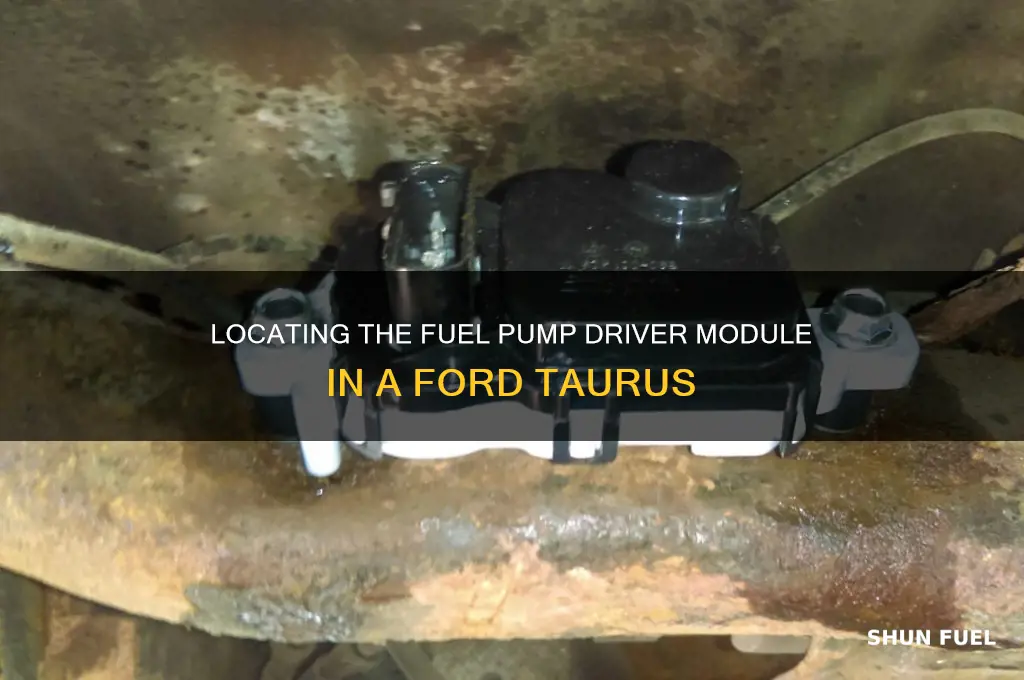

Location of Fuel Pump Driver Module in Ford Taurus
