The fuel pump in a 2003 Ford F-150 is typically located inside the fuel tank, a common design in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump requires removing the fuel tank or using a specialized access panel, depending on the specific model and configuration. For owners or mechanics working on this vehicle, understanding the exact location and the steps to safely replace or service the fuel pump is crucial, especially since symptoms of a failing pump can include engine sputtering, difficulty starting, or stalling. Proper safety precautions, such as relieving fuel system pressure and working in a well-ventilated area, are essential when dealing with fuel system components.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford F-150 (2003) |
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump) |
| Fuel Tank Access | Beneath the truck bed, requires removing the bed or accessing from below |
| Fuel Pump Type | Electric fuel pump |
| Fuel Pump Function | Delivers fuel from the tank to the engine |
| Common Issues | Fuel pump failure, reduced fuel pressure, engine stalling |
| Replacement Difficulty | Moderate to difficult (requires fuel tank removal or bed removal) |
| Estimated Replacement Time | 2-4 hours (professional), 4-6 hours (DIY) |
| Replacement Cost | $200-$500 (parts), $400-$800 (labor) |
| Diagnostic Symptoms | Engine sputtering, difficulty starting, loss of power |
| Maintenance Tips | Regularly check fuel filter, keep fuel tank above 1/4 full |
| Compatibility | Specific to 2003 Ford F-150 models with in-tank fuel pump systems |
Explore related products
What You'll Learn

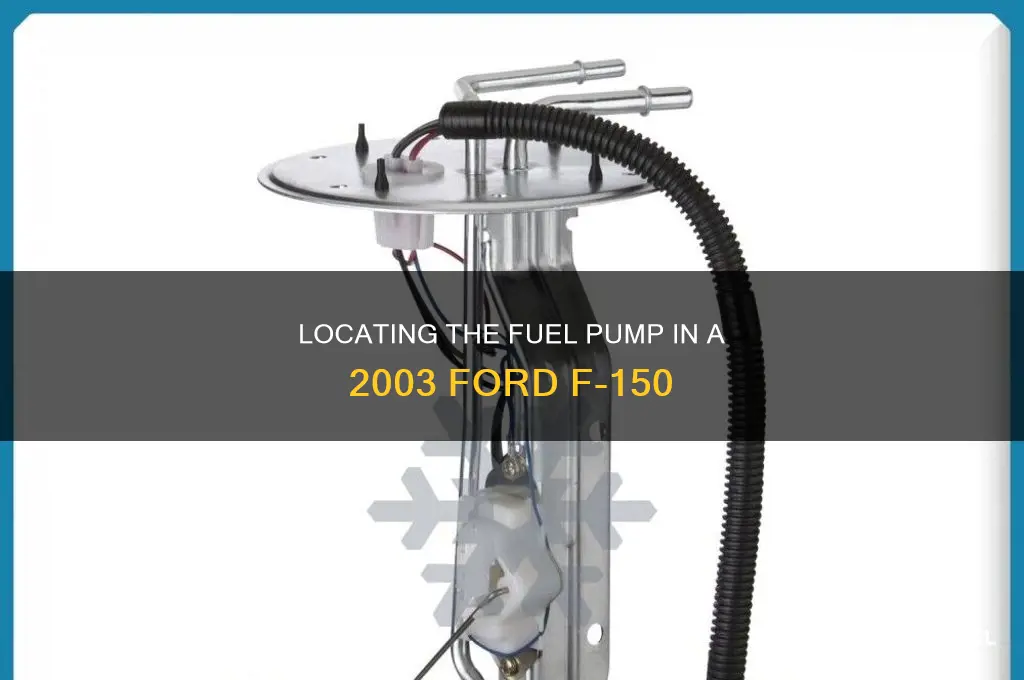

Fuel Pump Location in 2003 Ford F-150
The fuel pump in a 2003 Ford F-150 is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and temperature extremes. To access the fuel pump, you’ll need to remove the fuel tank, which requires draining the fuel, disconnecting the tank’s lines, and lowering it from the vehicle. This task is best performed with the help of a second person due to the tank’s weight and the need to handle fuel safely.
Analyzing the process, replacing or inspecting the fuel pump in a 2003 Ford F-150 is not a beginner-level task. It involves working with fuel lines, electrical connections, and heavy components. If you’re unsure about any step, consulting a professional mechanic is advisable. The fuel pump itself is typically located near the center of the tank, attached to a module that includes the sending unit for the fuel gauge. Understanding this layout can save time during diagnosis and repair, as it helps pinpoint potential issues like a faulty pump or clogged filter.
For those attempting this repair, here’s a step-by-step guide: First, relieve the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the battery to prevent accidental sparks. Raise the vehicle securely on jack stands to access the tank. Remove the fuel tank shield, if equipped, and disconnect the fuel lines and electrical connector. Lower the tank carefully, then remove the retaining ring to access the pump module. Replace the pump and reassemble in reverse order, ensuring all connections are tight and secure.
A comparative look at fuel pump designs reveals that earlier Ford models often placed the pump externally, which simplified access but increased vulnerability to damage. The in-tank design of the 2003 F-150, while more complex to service, offers improved reliability and performance. This evolution highlights the trade-offs between accessibility and durability in automotive engineering. For owners of this model, understanding these differences can provide context for why the repair process is more involved.
Finally, a practical tip: Always work in a well-ventilated area when dealing with fuel systems, and keep a fire extinguisher nearby as a precaution. After replacing the fuel pump, it’s crucial to check for leaks and ensure the system is properly primed before starting the engine. This not only ensures safety but also prolongs the life of the new component. By following these guidelines, you can tackle the fuel pump replacement with confidence and precision.
