The fuel pump relay on a Vauxhall Zafira is a crucial component of the vehicle's fuel system, responsible for controlling the flow of power to the fuel pump. Located within the fuse box, typically found in the engine bay, the exact position of the relay can vary depending on the model year and engine type. For most Vauxhall Zafira models, the fuel pump relay is situated in the under-hood fuse box, often labeled as FUEL PUMP or FP RELAY on the fuse box cover diagram. It is essential to consult the vehicle's manual or a reliable repair guide to accurately identify the relay's location, as accessing and replacing it may require some technical knowledge and tools. Proper identification and maintenance of the fuel pump relay are vital to ensure the vehicle's fuel system operates efficiently and reliably.
| Characteristics | Values |
|---|---|
| Location | Typically found in the fuse box under the hood or near the battery. |
| Fuse Box Position | Often located in slot #30 or #32 (varies by model year). |
| Model Compatibility | Vauxhall Zafira A (1999–2005) and Zafira B (2005–2014). |
| Relay Type | Standard fuel pump relay (usually a 4-pin or 5-pin design). |
| Function | Controls power supply to the fuel pump to ensure proper engine operation. |
| Symptoms of Failure | Engine not starting, stalling, or difficulty starting. |
| Replacement Cost | Approximately £10–£30 (varies by brand and retailer). |
| DIY Accessibility | Relatively easy to access and replace with basic tools. |
| Diagnostic Method | Check for continuity or use a multimeter to test the relay. |
| Related Components | Fuel pump, fuse box, and wiring harness. |
Explore related products
What You'll Learn
Location of Fuel Pump Relay
The fuel pump relay in a Vauxhall Zafira is a critical component that ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. Locating this relay is essential for troubleshooting issues such as engine stalling or failure to start. In the Vauxhall Zafira, the fuel pump relay is typically housed within the fuse box, which is often found in the engine compartment. However, its exact position can vary depending on the model year and specific configuration of the vehicle.

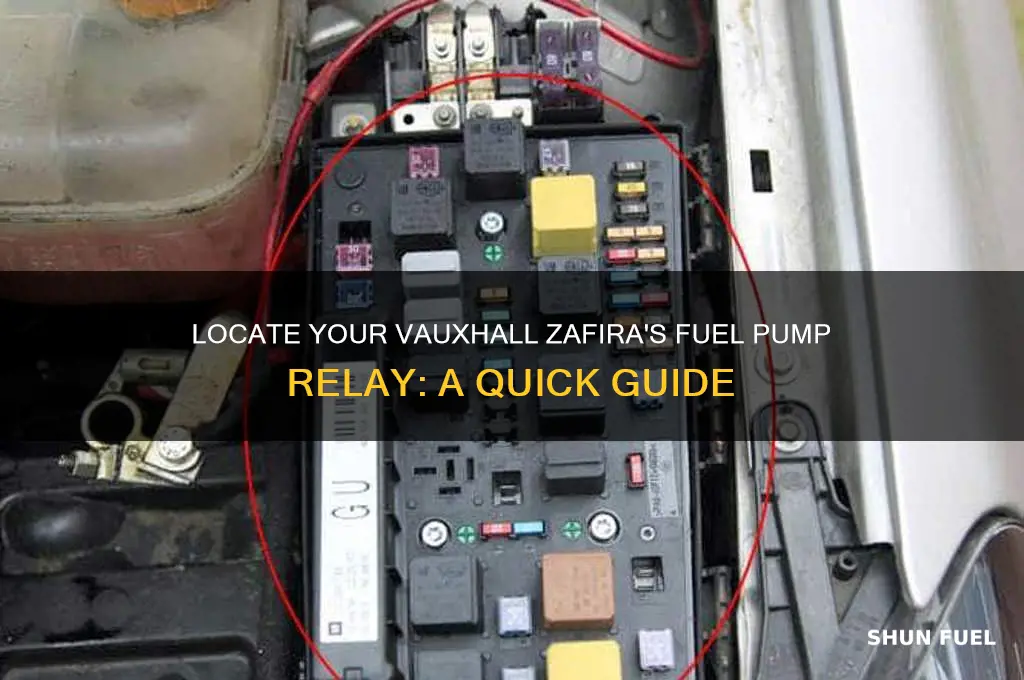

For most Vauxhall Zafira models, particularly those from the early 2000s to mid-2010s, the fuel pump relay is located in the under-hood fuse box. To access it, start by opening the hood and identifying the fuse box, usually positioned near the battery or along the inner fender panel. The fuse box cover often has a diagram indicating the location of each relay and fuse. Look for the label "Fuel Pump" or a similar designation. If the diagram is unclear or missing, consult the vehicle’s manual for precise guidance. Once identified, the relay can be tested or replaced if necessary.
In some cases, the fuel pump relay may be integrated into a larger relay module, making it less obvious to locate. For these instances, it’s helpful to use a multimeter to test the relay’s functionality. Begin by disconnecting the battery to ensure safety, then remove the relay and check for continuity between the appropriate pins. If the relay fails the test, it’s a strong indicator that it needs replacement. Always ensure the replacement relay matches the original specifications to avoid compatibility issues.
A practical tip for Vauxhall Zafira owners is to familiarize themselves with the fuse box layout before any issues arise. This proactive approach saves time and reduces frustration when dealing with fuel pump relay problems. Additionally, keeping a spare relay in the vehicle can be a lifesaver in emergency situations. For those less experienced with automotive repairs, consulting a professional mechanic is advisable to avoid misdiagnosis or further damage to the vehicle.
In summary, the fuel pump relay in a Vauxhall Zafira is typically found in the under-hood fuse box, though its exact location may vary. Identifying and testing the relay requires careful attention to the vehicle’s manual and, in some cases, the use of diagnostic tools. By understanding its location and function, owners can address fuel pump issues more effectively, ensuring their vehicle remains reliable and safe to drive.
Easy Steps to Remove Fuel Pump Clips on Ford F-150
You may want to see also
Explore related products
Identifying the Relay in Engine Bay
The fuel pump relay in a Vauxhall Zafira is a critical component, often tucked away in the engine bay, and its location can vary depending on the model year and engine type. For most Vauxhall Zafira models, particularly those from the early 2000s, the fuel pump relay is housed within the fuse box located in the engine compartment. This fuse box is typically situated near the battery, making it a logical starting point for your search. However, identifying the correct relay among the array of fuses and relays requires a systematic approach.
To begin, consult the vehicle’s manual for a diagram of the fuse box layout. This will provide a visual guide to the location of the fuel pump relay, often labeled as "Fuel Pump" or "FP." If the manual is unavailable, online forums and Vauxhall-specific resources can offer model-specific insights. For instance, in some Zafira models, the fuel pump relay is a black or blue rectangular module with four or five pins, distinguishable from other relays by its size and position within the fuse box. A flashlight and a small tool, like a flathead screwdriver, can aid in carefully prying open the fuse box cover without causing damage.
Once the fuse box is accessible, compare the relays against the diagram or description. The fuel pump relay is typically larger than standard relays and may be positioned near other engine management components. If visual identification remains challenging, a multimeter can be used to test for continuity or voltage at each relay when the ignition is turned on. This method requires caution to avoid electrical hazards and should only be attempted with basic knowledge of automotive electrical systems.
A practical tip is to label the relay once identified, using a piece of tape and a marker, to save time for future maintenance. Additionally, if the relay is faulty, replacing it with a compatible part from a reputable supplier is essential. Generic relays may not meet the vehicle’s specifications, leading to performance issues. Always ensure the engine is off and the battery is disconnected before handling electrical components in the engine bay.
In summary, identifying the fuel pump relay in a Vauxhall Zafira’s engine bay involves a combination of research, visual inspection, and, if necessary, basic diagnostic testing. With the right tools and precautions, this task can be accomplished efficiently, ensuring the vehicle’s fuel system operates reliably.
Understanding the Mechanism: How Fuel Pump Nozzles Automatically Stop Filling
You may want to see also
Explore related products
Common Fuse Box Placement
The Vauxhall Zafira, like many vehicles, houses its fuse box in a location that balances accessibility and protection from the elements. Typically, you’ll find the main fuse box under the dashboard on the driver’s side. To access it, start by locating the panel cover near the steering column. It’s often secured with clips or screws, so use a flathead screwdriver or trim removal tool to pry it open carefully. Inside, fuses are labeled according to their function, making it easier to identify the fuel pump relay. This placement ensures that minor electrical issues can be addressed without extensive disassembly, though always consult the owner’s manual for precise diagrams.
While the interior fuse box is the most common location, some Vauxhall Zafira models may also have a secondary fuse box in the engine compartment. This is particularly true for higher-trim versions or later model years. The engine bay fuse box is usually located near the battery or along the inner fender wall, protected by a waterproof cover. Accessing it requires opening the hood and removing the cover, which may have clips or screws. The fuel pump relay in this location is often part of a larger relay module, so inspect the layout carefully. This secondary placement is designed to handle higher-power components, including the fuel pump, which demands more robust protection.
Understanding the rationale behind fuse box placement can save time and frustration. Manufacturers prioritize safety and convenience, ensuring that fuses for frequently serviced systems are easily reachable. For instance, the interior fuse box often contains relays for interior lights, infotainment, and dashboard functions, while the engine bay houses fuses for critical systems like the fuel pump, cooling fans, and ignition. If you’re troubleshooting a fuel pump issue, start with the engine bay fuse box, as it’s more likely to house the relay. However, always verify the exact location for your specific Zafira model, as variations exist across years and trims.
A practical tip for locating the fuel pump relay is to use a multimeter to test for power at the fuse slots. With the ignition on, check for voltage at the suspected fuel pump relay fuse. If there’s no power, the relay or its circuit may be faulty. Additionally, keep a fuse puller handy to safely remove and inspect fuses without damaging them. For Zafira owners, investing in a Haynes or Chilton manual can provide detailed diagrams and step-by-step instructions tailored to your vehicle. Remember, working with electrical systems requires caution—disconnect the battery if you’re unsure, and avoid touching terminals with bare hands.
In summary, the Vauxhall Zafira’s fuse box placement is a blend of practicality and engineering foresight. By familiarizing yourself with both the interior and engine bay locations, you’ll be better equipped to diagnose and resolve electrical issues, including those related to the fuel pump relay. Always approach with patience, the right tools, and a clear understanding of your vehicle’s layout to ensure a safe and efficient repair process.
Step-by-Step Guide to Removing a Victory Fuel Pump Easily
You may want to see also
Explore related products
Relay Replacement Steps
The fuel pump relay in a Vauxhall Zafira is typically located in the fuse box, which can be found in the engine bay or under the dashboard, depending on the model year. Identifying its exact position is crucial for troubleshooting or replacement, as a faulty relay can lead to fuel delivery issues. Before proceeding, ensure the vehicle is turned off and the ignition is in the "off" position to avoid electrical hazards.
Step 1: Locate the Relay
Begin by consulting the vehicle’s manual or a reliable online diagram to pinpoint the fuel pump relay’s position in the fuse box. On most Vauxhall Zafira models, the fuse box is situated near the battery in the engine compartment. Look for a rectangular or square-shaped relay labeled "fuel pump" or identified by a specific number or code. If the relay is under the dashboard, you may need to remove a panel to access it.
Step 2: Remove the Relay
Once located, carefully pull the relay straight out of its slot. Avoid tilting or forcing it, as this can damage the surrounding components. Some relays may have a locking mechanism or clip; gently release it before removal. If the relay is difficult to extract, use a flat-head screwdriver to pry it out, taking care not to damage the fuse box.
Step 3: Test or Replace the Relay
Before installing a new relay, test the old one using a multimeter to confirm it’s faulty. Check for continuity between the relay’s pins according to its wiring diagram. If the relay fails the test, replace it with a new one of the same type and specifications. Ensure the replacement relay is compatible with your Vauxhall Zafira’s make and model.
Cautions and Tips
Always handle relays with clean hands to avoid corrosion from oils or dirt. If you’re unsure about the process, consult a professional mechanic to prevent further damage. Keep a record of the relay’s position and orientation before removal to ensure correct reinstallation. Finally, after replacing the relay, test the vehicle’s fuel pump by turning the ignition to the "on" position and listening for the pump’s activation.
By following these steps, you can efficiently replace the fuel pump relay on your Vauxhall Zafira, restoring proper fuel system functionality and ensuring reliable performance.
Are Hella Fuel Pumps Reliable? A Comprehensive Performance Review
You may want to see also
Explore related products
Troubleshooting Relay Issues
The fuel pump relay in a Vauxhall Zafira is a critical component, ensuring the engine receives the necessary fuel for operation. When this relay malfunctions, it can lead to a no-start condition or erratic engine behavior. Troubleshooting relay issues requires a systematic approach to identify and resolve the problem efficiently.
Analyzing Symptoms and Causes
A faulty fuel pump relay often manifests as a lack of fuel pressure, engine stalling, or failure to start. Common causes include corroded terminals, internal coil failure, or a blown fuse. To diagnose, start by checking the relay’s power supply and ground connections. Use a multimeter to verify voltage at the relay’s input and output terminals. If power is present but the fuel pump doesn’t activate, the relay may be defective.
Step-by-Step Troubleshooting
- Locate the Relay: On a Vauxhall Zafira, the fuel pump relay is typically found in the under-hood fuse box. Consult the owner’s manual for the exact location.
- Inspect for Damage: Visually examine the relay for signs of burning, melting, or corrosion. Clean the terminals with electrical contact cleaner if necessary.
- Swap Relays: If another relay of the same type is available (e.g., the horn relay), swap it with the fuel pump relay. If the issue resolves, the original relay is faulty.
- Test Continuity: Remove the relay and use a multimeter to test the coil’s resistance. A reading outside the specified range (typically 50–150 ohms) indicates a failed relay.
Cautions and Practical Tips
Avoid testing relays while the engine is running, as this can cause damage. Always disconnect the battery before handling electrical components. If the relay appears intact but still fails, check the wiring harness for shorts or breaks. In some cases, a faulty fuel pump or ECM issue may mimic relay failure, so rule out these possibilities before replacing the relay.
Troubleshooting a fuel pump relay on a Vauxhall Zafira demands precision and patience. By methodically checking symptoms, testing components, and eliminating potential causes, you can pinpoint the issue and restore your vehicle’s functionality. Always prioritize safety and consult a professional if unsure.
Effective Steps to Clean Your Fuel Pump for Optimal Performance
You may want to see also
Frequently asked questions
The fuel pump relay on a Vauxhall Zafira is typically located in the fuse box under the bonnet. It is often labeled as "Fuel Pump" or "FP" in the fuse box diagram.
Yes, you can access the fuel pump relay without special tools. Simply open the bonnet, locate the fuse box, and remove the cover to access the relays and fuses.
The fuel pump relay controls the power supply to the fuel pump, ensuring it only operates when the engine is running or being started. It helps prevent the fuel pump from running continuously, which could be a safety hazard.
The fuel pump relay is usually labeled in the fuse box diagram provided in your vehicle’s manual. It may also be physically marked on the relay itself with "Fuel Pump" or a similar designation.
If the fuel pump relay is faulty, it’s best to replace it with a new one. You can purchase a replacement relay from an auto parts store or dealership. Ensure it matches the specifications of your vehicle before installation.
