Rajan Wilcox

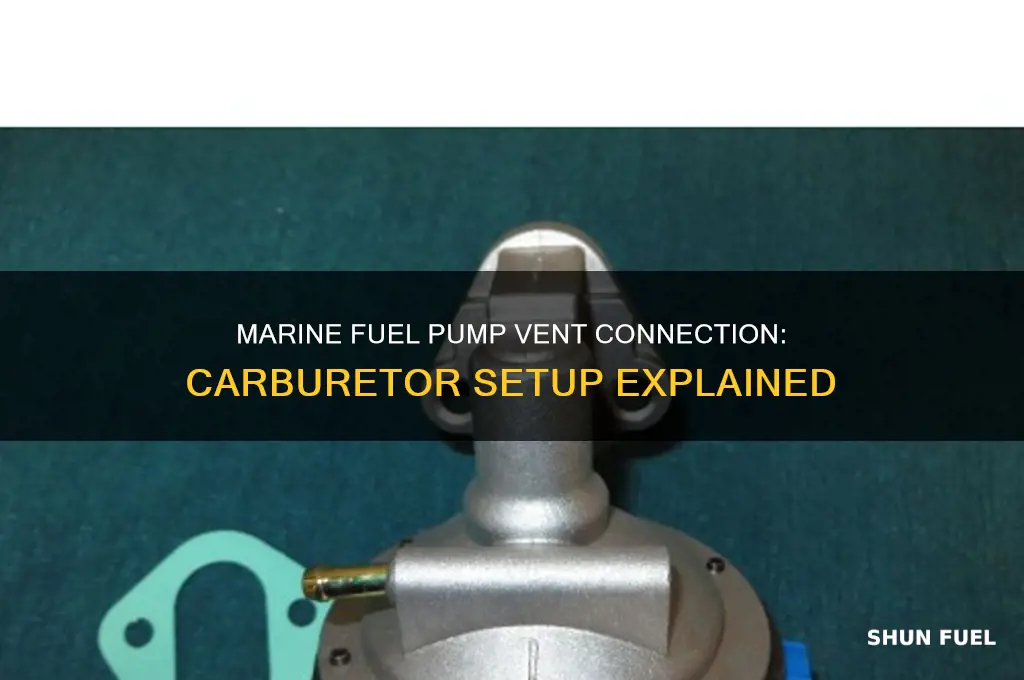

When addressing the question of where a marine fuel pump vent connects on a carburetor, it's essential to understand the role of the vent in maintaining proper fuel system functionality. The vent on a marine fuel pump typically connects to the carburetor's vapor return or venturi area, allowing excess fuel vapors to be safely redirected back into the carburetor for combustion. This connection is crucial for preventing fuel system pressure buildup, ensuring consistent fuel delivery, and reducing the risk of vapor lock, especially in marine environments where temperature fluctuations and engine orientation can impact performance. Proper installation and routing of the vent line are key to optimizing engine efficiency and reliability.
| Characteristics | Values |
|---|---|
| Connection Point | Typically connects to the carburetor's venturi or a dedicated vent port near the carburetor |
| Purpose | Releases excess fuel vapor and air pressure from the fuel pump, preventing vapor lock and ensuring proper fuel flow |
| Hose Size | Usually 1/8" or 3/16" ID (inner diameter) depending on the carburetor and fuel pump specifications |
| Hose Material | Fuel-resistant rubber or silicone to withstand gasoline and marine environment conditions |
| Routing | Should be routed away from hot surfaces (e.g., exhaust, engine block) to prevent vapor ignition |
| Termination | Often vents into the atmosphere or connects to a charcoal canister (in emissions-controlled systems) |
| Common Carburetor Types | Rochester, Holley, Edelbrock, and other marine carburetors typically have a vent port for this connection |
| Fuel Pump Compatibility | Works with mechanical fuel pumps commonly used in marine engines (e.g., Mercruiser, Volvo Penta) |
| Maintenance | Regularly inspect the vent hose for cracks, leaks, or clogs to ensure proper function |
| Safety | Ensure the vent is not obstructed or damaged to prevent fuel leaks and potential fire hazards |
Explore related products
What You'll Learn
- Vent Hose Routing: Path from fuel pump vent to carburetor or atmosphere, avoiding engine heat
- Carburetor Connection Point: Specific port or fitting on the carburetor for vent hose attachment
- Vapor Management: Role of vent in preventing vapor lock and maintaining fuel system pressure
- Atmospheric Venting: Direct connection to air for older systems without charcoal canisters
- Emissions Control: Integration with evaporative emissions systems in modern marine engines
Vent Hose Routing: Path from fuel pump vent to carburetor or atmosphere, avoiding engine heat
The vent hose on a marine fuel pump serves a critical function: preventing vapor lock and ensuring consistent fuel delivery. Proper routing of this hose is essential to avoid engine heat, which can cause fuel vaporization and performance issues. The ideal path should direct vapors away from hot components like exhaust manifolds, cylinder heads, and the engine block. For carbureted systems, the vent typically connects to the carburetor’s vapor vent fitting, often located near the fuel bowl. If routed to the atmosphere, use a vented fuel cap or a dedicated vent line above the waterline, ensuring compliance with marine safety regulations.
Analyzing common mistakes reveals that many boaters route the vent hose too close to heat sources or allow it to dangle near moving parts. This not only risks vapor lock but also poses a fire hazard. A well-designed route should follow the shortest, coolest path, often along the engine’s cooler side or beneath the cowl where airflow is sufficient. For inboard engines, consider securing the hose to the transom or stringer using clamps and zip ties, keeping it clear of propellers and outdrives. Outboard engines may require routing the hose along the motor’s side, away from the exhaust ports.
Instructively, start by identifying the fuel pump’s vent port and the carburetor’s vapor vent fitting. Measure the distance between them and select a hose with sufficient length and heat resistance, such as rubber or reinforced nylon. Cut the hose to size, leaving a slight bend to prevent kinking. Secure the hose with clamps at both ends and along its length, ensuring it doesn’t touch hot surfaces. If venting to the atmosphere, install a flame arrestor at the exit point to prevent ignition. Test the system by running the engine at idle and under load, checking for leaks or overheating.
Comparatively, venting to the carburetor is more efficient than atmospheric venting, as it reuses fuel vapors in the combustion process. However, atmospheric venting is simpler and may be preferred for older engines without a carburetor vent fitting. In both cases, the key is to avoid heat. For example, on a V6 marine engine, route the hose along the valley between cylinder banks, where temperatures are lower. On inline engines, keep the hose on the opposite side of the exhaust manifold. Always prioritize safety by inspecting the hose for cracks or damage during routine maintenance.
Descriptively, imagine the vent hose as a lifeline for your fuel system, carrying vapors away from danger. Its path should mimic the cool, shaded areas of the engine compartment, like a stream flowing around rocks. Use a hose with a smooth interior to minimize resistance and a durable exterior to withstand vibrations and heat. For added protection, wrap the hose in heat-resistant sleeving where it must pass near hot components. Properly routed, the vent hose becomes an invisible hero, ensuring smooth operation even on the hottest days. By focusing on heat avoidance and secure mounting, you’ll maintain fuel system integrity and extend the life of your marine engine.
Understanding the Fuel Pump Operation in Kohler 16HP Engines
You may want to see also
Explore related products
Carburetor Connection Point: Specific port or fitting on the carburetor for vent hose attachment
The carburetor's vent hose connection point is a critical yet often overlooked component in marine fuel systems. Typically, this connection is made at a specific port or fitting designed to accommodate the vent hose, ensuring proper fuel flow and pressure regulation. On most carburetors, this port is located near the float bowl, allowing excess fuel vapors to escape and prevent pressure buildup. Identifying this port is straightforward: it’s usually a small, threaded opening or a barb fitting, often labeled or marked in the carburetor’s manual. Ensuring a secure connection here is essential to avoid fuel leaks and maintain engine performance.
Analyzing the design of carburetor vent ports reveals a focus on functionality over complexity. Most marine carburetors feature a dedicated vent port, distinct from fuel inlet or air mixture passages. This separation prevents contamination and ensures the venting system operates independently. For example, on a Rochester Quadrajet carburetor, the vent port is typically located on the driver’s side of the float bowl, identifiable by its smaller diameter compared to other openings. Understanding these design specifics allows for precise troubleshooting and maintenance, reducing the risk of misconnection or system failure.
When connecting the vent hose, follow these steps for optimal results: first, clean the carburetor port and hose end to remove debris. Next, apply a small amount of thread sealant or use a hose clamp if the fitting is barbed. Secure the hose firmly but avoid over-tightening, as this can damage the carburetor or cause leaks. For threaded connections, hand-tighten and then give it an additional quarter turn with a wrench. Always refer to the carburetor’s manual for torque specifications or specific instructions. Proper installation ensures the venting system functions as intended, preventing fuel system issues.
Comparing carburetor vent port designs across different models highlights variations in placement and type. For instance, some carburetors, like the Holley Marine, feature a vent port integrated into the float bowl cover, while others, such as the Edelbrock, may have a separate fitting on the carburetor body. These differences underscore the importance of model-specific knowledge. A universal tip for all types is to inspect the port for signs of corrosion or clogging during routine maintenance. Clearing blockages promptly ensures the venting system remains effective, contributing to reliable engine operation.
In practice, the carburetor vent port’s role extends beyond mere venting—it’s a safeguard against fuel system inefficiency. A clogged or improperly connected vent can lead to hard starting, rough idling, or even fuel overflow. Regularly checking this connection during seasonal maintenance or after fuel system repairs can prevent these issues. For boaters, understanding this specific carburetor feature translates to fewer on-water breakdowns and a smoother overall experience. Mastery of this small but vital detail is a hallmark of marine engine proficiency.
Installing Holley Blue Electric Fuel Pump on Your Mustang: Step-by-Step Guide
You may want to see also
Explore related products
Vapor Management: Role of vent in preventing vapor lock and maintaining fuel system pressure
Marine fuel systems rely on precise pressure regulation to deliver fuel efficiently to the carburetor. Without proper venting, vapor buildup can disrupt this balance, leading to vapor lock—a condition where fuel vaporizes prematurely, starving the engine of liquid fuel. The vent connection on a carburetor serves as a critical release point for these vapors, ensuring they don’t accumulate in the fuel lines or pump. Typically, this vent connects to the carburetor’s vapor vent fitting, often located near the bowl or float chamber, allowing excess pressure and vapors to escape back into the fuel tank or atmosphere.
Consider the mechanics: as fuel is drawn through the system, heat from the engine or ambient conditions can cause it to vaporize. Without a vent, these vapors compress, increasing pressure and reducing the pump’s ability to move liquid fuel. The vent acts as a pressure relief valve, maintaining a consistent flow and preventing the formation of air pockets that disrupt fuel delivery. For example, in marine applications, where engines operate in high-temperature environments, a properly functioning vent is essential to avoid performance issues like stalling or rough idling.
To ensure optimal vapor management, inspect the vent connection regularly for clogs or leaks. Use a fuel-resistant hose to connect the vent to the carburetor, ensuring it’s secure and free from kinks. If your system vents back into the fuel tank, verify the tank’s vent is clear to prevent vacuum lock, which can restrict fuel flow. For systems vented to the atmosphere, install a flame arrestor to mitigate fire risks, especially in marine environments where fuel vapors can ignite easily.
A practical tip: if you suspect vapor lock, check the fuel lines for signs of overheating or swelling. Running the engine at idle for a few minutes can help dissipate vapors temporarily, but a long-term solution requires addressing the venting system. Upgrading to a high-temperature fuel line or adding an inline fuel cooler can reduce vaporization, but neither replaces the need for a functional vent.
In summary, the vent connection on a carburetor is a small but vital component in marine fuel systems. By managing vapor pressure, it prevents vapor lock and ensures consistent fuel delivery, even under demanding conditions. Regular maintenance and proper installation of this vent are key to keeping your marine engine running smoothly.
Step-by-Step Guide: Installing a Mechanical Fuel Pump on Dodge D150
You may want to see also
Explore related products
Atmospheric Venting: Direct connection to air for older systems without charcoal canisters
In older marine fuel systems, atmospheric venting serves as a straightforward solution for managing fuel pump vapors. Unlike modern setups with charcoal canisters, these systems rely on a direct connection to the air, typically through a vent hose routed above the waterline. This method prevents pressure buildup in the fuel tank while allowing excess vapors to escape harmlessly into the atmosphere. It’s a no-frills approach that prioritizes functionality over emissions control, reflecting the design priorities of its era.
Implementing atmospheric venting requires careful attention to detail. The vent hose should be securely connected to the fuel pump’s vent port and extended to a location where vapors won’t accumulate near ignition sources or enclosed spaces. A common practice is to route the hose through the engine compartment and out through a hull fitting, ensuring it remains above the waterline at all angles of heel. Inspect the hose regularly for cracks, leaks, or blockages, as these can compromise the system’s effectiveness and pose safety risks.
While atmospheric venting is simple, it’s not without drawbacks. Without a charcoal canister to capture hydrocarbons, this method releases fuel vapors directly into the environment, contributing to air pollution. For this reason, it’s largely obsolete in modern marine applications, where regulations mandate more eco-friendly solutions. However, for older vessels or those operating in regions with less stringent rules, it remains a viable, cost-effective option.
A key consideration when maintaining such a system is ensuring compliance with local regulations. Some jurisdictions prohibit atmospheric venting altogether, requiring retrofits with charcoal canisters or other vapor recovery systems. Before relying on this method, consult maritime authorities or a marine mechanic to confirm its legality. Additionally, always prioritize safety by avoiding open flames or sparks near the vent, as fuel vapors are highly flammable.
In summary, atmospheric venting offers a direct, uncomplicated way to manage fuel pump vapors in older marine systems. While it lacks the environmental benefits of modern alternatives, its simplicity and reliability make it a practical choice for certain applications. By understanding its mechanics, limitations, and regulatory context, boat owners can maintain this system effectively while ensuring safety and compliance.
Does a Huskee Riding Mower Have a Fuel Pump?
You may want to see also
Explore related products
Emissions Control: Integration with evaporative emissions systems in modern marine engines
Modern marine engines face stringent emissions regulations, particularly concerning evaporative emissions, which contribute significantly to air pollution. The integration of evaporative emissions systems with marine fuel pumps is a critical aspect of compliance. These systems are designed to capture and control fuel vapors that would otherwise escape into the atmosphere, ensuring that marine vessels meet environmental standards. The vent connection on a carburetor plays a pivotal role in this process, serving as the interface between the fuel system and the evaporative emissions control system.
In a typical setup, the marine fuel pump vent connects to the carburetor’s vapor vent tube, which routes fuel vapors to a charcoal canister. This canister acts as a temporary storage unit, adsorbing the vapors until they can be reintroduced into the engine’s intake manifold during operation. For example, in a Mercury Marine engine, the vent hose from the fuel pump is often routed to the carburetor’s vapor fitting, ensuring that vapors are captured rather than released. This connection is crucial for preventing hydrocarbon emissions, which are a major component of smog-forming pollutants.
When integrating these systems, it’s essential to ensure proper sealing and routing of hoses to avoid leaks. A common mistake is using cracked or deteriorated hoses, which can compromise the system’s effectiveness. Inspect all components regularly, replacing hoses every 3–5 years or as recommended by the manufacturer. Additionally, ensure the charcoal canister is functioning correctly; a saturated or clogged canister can lead to poor engine performance or increased emissions. For instance, a canister designed to handle 10 grams of hydrocarbon emissions should be replaced when its adsorption capacity is nearing depletion, typically after 50,000 miles of operation or equivalent usage.
Comparatively, older marine engines often lacked these sophisticated systems, relying instead on open vents that released vapors directly into the atmosphere. Modern designs, however, prioritize closed-loop systems that minimize environmental impact. For example, Yamaha’s VMAX SHO engines incorporate advanced evaporative emissions controls, including a fuel tank pressure sensor and a purge control valve, which work in tandem with the fuel pump vent to optimize vapor management. This contrasts sharply with carbureted engines from the 1980s, where emissions control was minimal or nonexistent.
To ensure optimal performance and compliance, follow these steps: first, identify the carburetor’s vapor vent fitting, typically located near the float bowl. Second, connect the fuel pump vent hose securely to this fitting, using clamps to prevent disconnection. Third, route the hose to the charcoal canister, ensuring it is free from kinks or obstructions. Finally, test the system by running the engine and checking for leaks using a smoke machine or soapy water solution. By integrating evaporative emissions systems effectively, marine engine operators can reduce their environmental footprint while maintaining reliable performance.
Understanding Fuel Pump Burnout: Causes, Symptoms, and Prevention Tips
You may want to see also
Frequently asked questions
The marine fuel pump vent typically connects to the carburetor's venturi or the air horn, allowing excess fuel vapors to be drawn into the intake manifold.
No, the vent should not be connected directly to the atmosphere. It must connect to the carburetor to prevent fuel vapor leaks and ensure proper fuel system operation.
Improper vent connection can cause fuel vapor lock, hard starting, or fuel leaks, leading to poor engine performance or safety hazards.
No, the connection point varies depending on the carburetor model. Always refer to the carburetor's manual or manufacturer guidelines for the correct vent location.
Look for a small fitting or port labeled "vent" or "vapor return" on the carburetor. It is often located near the fuel inlet or on the air horn. Consult the carburetor manual if unsure.
